deleyCON SCART to HDMI Converter MK1846 User Manual

1. Introducció

The deleyCON SCART to HDMI Converter (Model MK1846) is designed to convert analog SCART signals (PAL/NTSC/SECAM) into a digital Full HD 720p or 1080p HDMI output. It also features an additional HDMI input for signal source flexibility. An integrated audio extractor provides analog audio via a 3.5mm jack and digital audio via a coaxial (S/PDIF) output. This manual provides detailed instructions for setting up and operating your converter.

2. Producte acabatview

The deleyCON SCART to HDMI Converter features multiple input and output ports, along with control buttons for easy operation.

2.1 Tauler frontal

Davant view of deleyCON SCART to HDMI converter showing HDMI output, audio jacks, and control buttons.

Descripció de la imatge: This image displays the front panel of the deleyCON converter. From left to right, it shows a red 'POWER' LED indicator, an 'HDMI OUTPUT' port, a 3.5mm 'AUDIO' jack, a 'COAXIAL' (S/PDIF) audio output, and three small buttons labeled 'SCART/HD', '720P/1080P', and 'PAL/NTSC'.

LED d'alimentació: Indica que el dispositiu està encès.
SORTIDA HDMI: Connects to your display device (TV, monitor, projector).
AUDIO (3.5mm Jack): Analog audio output for headphones or stereo systems.
COAXIAL (S/PDIF): Digital audio output for compatible audio receivers.
SCART/HD Button: Toggles between SCART input and HDMI input.
720P/1080P Button: Selects the HDMI output resolution (720p or 1080p).
PAL/NTSC Button: Selects the video format (50Hz for PAL, 60Hz for NTSC).

2.2 Panell posterior

posterior view of deleyCON SCART to HDMI converter showing HDMI input, SCART input, and power input.

Descripció de la imatge: This image shows the rear panel of the deleyCON converter. From left to right, it features an 'HDMI INPUT' port, a 'SCART INPUT' port, and a '5V/DC' power input jack.

ENTRADA HDMI: Es connecta a un dispositiu font HDMI.
SCART INPUT: Connects to a SCART source device.
5V/CC: Entrada d'alimentació per a l'adaptador de 5 V CC inclòs.

2.3 Combined View

De dalt a baix view of both front and rear panels of the deleyCON SCART to HDMI converter.

Descripció de la imatge: This image provides a combined top-down view, illustrating both the front and rear panels of the deleyCON converter simultaneously, highlighting all input, output, and control elements.

3. Instruccions de configuració

Follow these steps to connect your deleyCON SCART to HDMI Converter.

Connectar el dispositiu d'origen:
- For SCART sources: Connect a SCART cable from your source device (e.g., DVD player, game console) to the SCART INPUT port on the converter. Ensure the connection is firm.
- For HDMI sources: Alternatively, connect an HDMI cable from an HDMI source device to the Entrada HDMI port del convertidor.
Connecta el dispositiu de visualització: Connecteu un cable HDMI des del SORTIDA HDMI port on the converter to your display device (e.g., TV, monitor, projector).
Connectar àudio (opcional): For audio extraction, connect a 3.5mm audio cable to the ÀUDIO jack or a coaxial cable to the COAXIAL (S/PDIF) port, then connect to your audio receiver or headphones.
Connectar l'alimentació: Connecteu l'adaptador de corrent continu de 5 V inclòs al 5 V/DC port on the converter and plug it into a power outlet. The red PODER El LED s'il·luminarà.

3.1 Diagrama de connexió

Diagram illustrating various devices connecting to the deleyCON converter and then to a TV, headphones, and speakers.

Descripció de la imatge: This diagram shows the versatility of the converter. It illustrates multiple source devices (Blu-ray player, PlayStation, DVD player) connecting to the converter via HDMI or SCART, and the converter then outputting to a TV, headphones, and a speaker system.

3.2 SCART Setup Example

Example setup showing a DVD player connected via SCART to the converter, which then connects via HDMI to a TV.

Descripció de la imatge: This image demonstrates a typical SCART connection. A DVD player is connected to the converter's SCART input, and the converter's HDMI output is connected to a television.

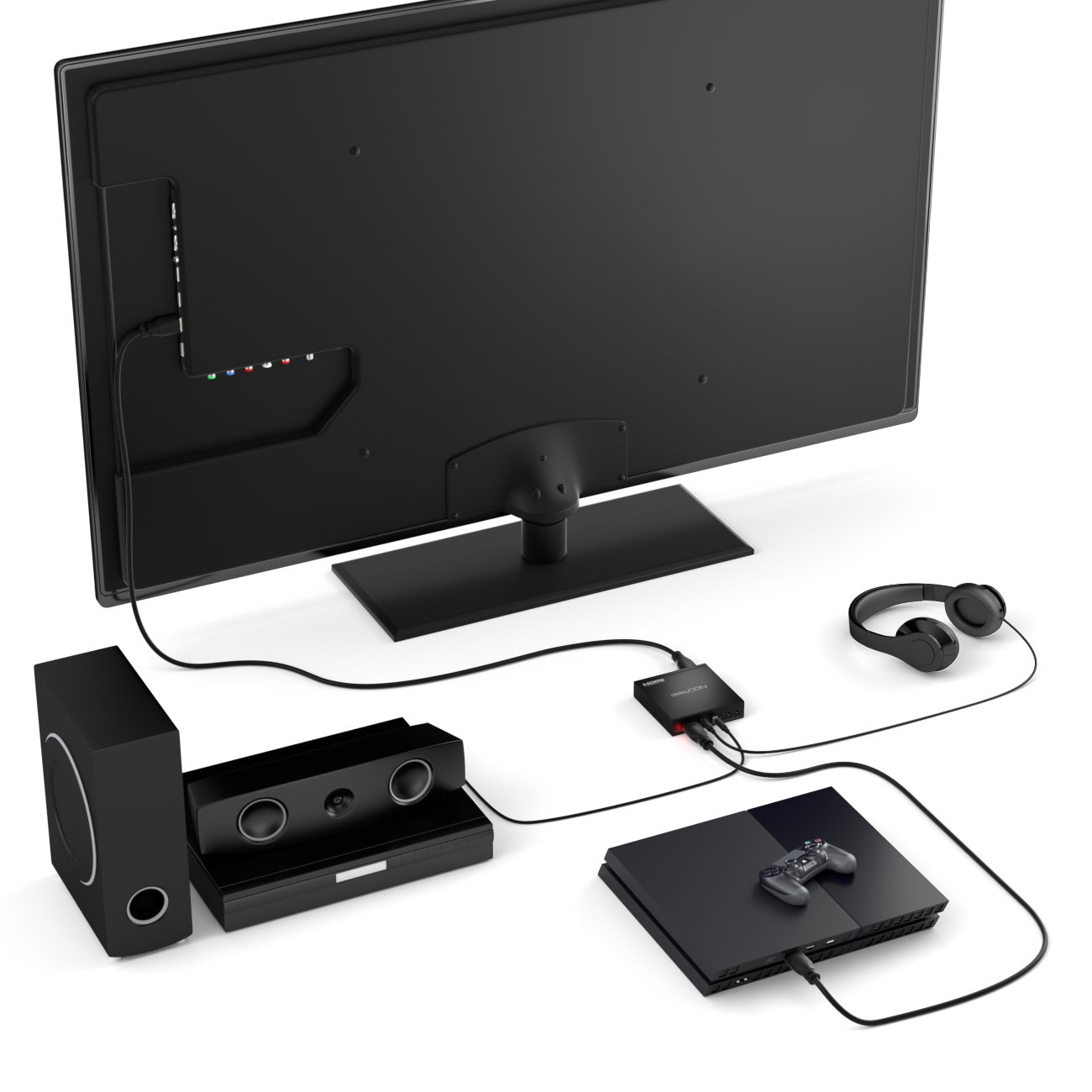

3.3 HDMI Setup Example with Audio Extraction

Example setup showing a game console connected via HDMI to the converter, which then connects via HDMI to a TV, and audio outputs to a sound system and headphones.

Descripció de la imatge: This image illustrates an HDMI setup with audio extraction. A game console is connected to the converter's HDMI input. The converter's HDMI output goes to a TV, while its audio outputs are connected to a subwoofer/speaker system and headphones.

4. Instruccions de funcionament

Once connected, operate the converter using the front panel buttons.

Encès: Ensure all connections are secure and the power adapter is plugged in. The red PODER LED should be illuminated.
Selecció d'entrada: Utilitza el SCART/HD button on the converter to switch between the SCART input and the HDMI input.
Video Format Selection: Utilitza el PAL/NTSC button to select the appropriate video format (50Hz for PAL, 60Hz for NTSC) if automatic detection is not optimal for your source.
Output Resolution Selection: Utilitza el 720P/1080P button to select the desired output resolution (720p or 1080p Full HD). The converter will automatically save the selected output resolution.
Sortida d'àudio: Audio will be output simultaneously via the HDMI cable, the 3.5mm audio jack, and the coaxial S/PDIF port.

5. Manteniment

To ensure the longevity and optimal performance of your deleyCON converter, follow these maintenance guidelines:

Keep the device in a dry environment, away from direct sunlight, high humidity, and extreme temperatures.
Clean the device with a soft, dry cloth. Do not use liquid cleaners, abrasive materials, or solvents, as these can damage the casing o components interns.
Assegureu-vos que hi hagi una ventilació adequada al voltant del dispositiu per evitar el sobreescalfament. No bloquegeu cap obertura de ventilació.
Desconnecteu l'adaptador de corrent quan el dispositiu no s'utilitzi durant períodes prolongats.

6. Solució De Problemes

If you encounter issues with your deleyCON converter, please refer to the following troubleshooting steps:

6.1 Sense imatge ni so

Comproveu les connexions: Verify that all cables (SCART, HDMI, audio, power) are securely connected to both the converter and your source/display devices.
Verificació de potència: Ensure the power adapter is functioning correctly and the red PODER LED on the converter is illuminated.
Display Input: Confirm that your display device (TV, monitor) is set to the correct HDMI input channel.
Converter Input Selection: Utilitza el SCART/HD button on the converter to cycle through the input sources.
Resolution/Format: Experiment with different output resolutions (720p/1080p) and video formats (PAL/NTSC) using the respective buttons on the converter.
SCART Cable Firmness: If using SCART, ensure the SCART cable is firmly connected. Loose connections can cause image artifacts or a complete loss of signal.

6.2 Mala qualitat d'imatge

Qualitat de la font: The quality of the output signal is directly dependent on the quality of the input signal. Older analog sources (e.g., VHS tapes) may naturally have lower resolution and visual artifacts.
Format de vídeo: Ensure the correct video format (PAL/NTSC) is selected on the converter to match your source.
Resolució de sortida: Try adjusting the output resolution (720p/1080p) to see if it improves clarity on your specific display.
Source Device Settings: Some older SCART source devices (e.g., certain game consoles) may have internal settings for video output (e.g., RGB vs. Composite). Adjusting these on the source device might improve image quality.

6.3 No Audio from Extractor Ports

Audio Cable Connections: Verify that audio cables are correctly connected to the 3.5mm jack or coaxial port on the converter and to your audio system or headphones.
Nivells de volum: Check the volume levels on your connected audio system or headphones.
Selecció d'entrada d'àudio: Ensure your audio receiver is set to the correct input for the coaxial or analog audio connection.

7. Especificacions

Detailed technical specifications for the deleyCON SCART to HDMI Converter (Model MK1846).

Entrades: 1x SCART, 1x HDMI
Sortides: 1x HDMI, 1x S/PDIF (Coaxial), 1x 3.5mm Jack
SCART Input Formats: PAL / NTSC / SECAM
HDMI Output Resolutions: Supports 480p - 1080p (24 / 25 / 50 / 60Hz), 480i - 1080i (24 / 25 / 50 / 60 Hz), and 3D. The device also lists support for 4K x 2K @30Hz, though its primary function for SCART conversion is 720p/1080p scaling.
Ample de banda HDMI: 340 MHz / 10.2 Gbps
Font d'alimentació: 5V CC (adaptador d'alimentació inclòs)
Dimensions (Device): Approximately 28mm x 13mm x 51mm (Height x Width x Depth)
Característiques automàtiques: Automatic detection of RGB (50/60Hz), automatic detection of composite video (PAL/NTSC), automatic storage of output resolution.

8. Contingut del paquet

The following items are included in your deleyCON SCART to HDMI Converter package:

deleyCON SCART to HDMI Converter (Model MK1846)
Adaptador de corrent continu de 5 V
Illustrated User Manual (this document)

deleyCON SCART to HDMI converter shown next to its 5V DC power adapter.

Descripció de la imatge: This image displays the deleyCON converter alongside its compact 5V DC power adapter, illustrating the main components included in the package.

9. Garantia i Suport

For warranty information, technical support, or any questions regarding your deleyCON SCART to HDMI Converter, please refer to the documentation provided with your purchase or contact deleyCON customer service directly. Contact details can typically be found on the manufacturer's official weblloc web o a l'embalatge del producte.

deleyCON MK1846

deleyCON SCART to HDMI Converter with Audio Extractor - User Manual
