LiftMaster/Chamberlain Model 3950 Rolling Sheet Door Operator Instruction Manual

1. Introducció

This manual provides essential instructions for the installation, operation, and maintenance of the LiftMaster/Chamberlain Model 3950 Rolling Sheet Door Operator. This operator is specifically designed for commercial rolling sheet door applications, making it suitable for environments such as self-storage facilities. It is intended for use with commercial rolling sheet doors up to 12 feet high and 14 feet wide, with a maximum weight capacity of 650 lbs. The maximum recommended duty cycle is 10 cycles per hour. Please read this manual thoroughly before installation and use to ensure safe and efficient operation.

2. Informació de seguretat

ADVERTIMENT: Improper installation or use of this product can result in serious injury or death. Always follow all safety instructions.

• This operator is for commercial rolling sheet doors only. Do not use for residential applications or other door types.
• Installation should be performed by qualified personnel. Refer to local electrical codes and safety standards.
• Ensure the door is balanced and in good working condition before installing the operator.
• Keep hands and loose clothing clear of the door and operator when in motion.
• Do not allow children to operate or play near the door operator.
• Desconnecteu l'alimentació abans de realitzar qualsevol manteniment o reparació.
• Install the wall control station within sight of the door, at least 5 feet (1.5 m) above the floor, and away from all moving parts of the door.

3. Producte acabatview

The LiftMaster/Chamberlain Model 3950 is a robust operator designed for commercial rolling sheet doors. It features a durable motor and drive system to handle frequent use in commercial settings.

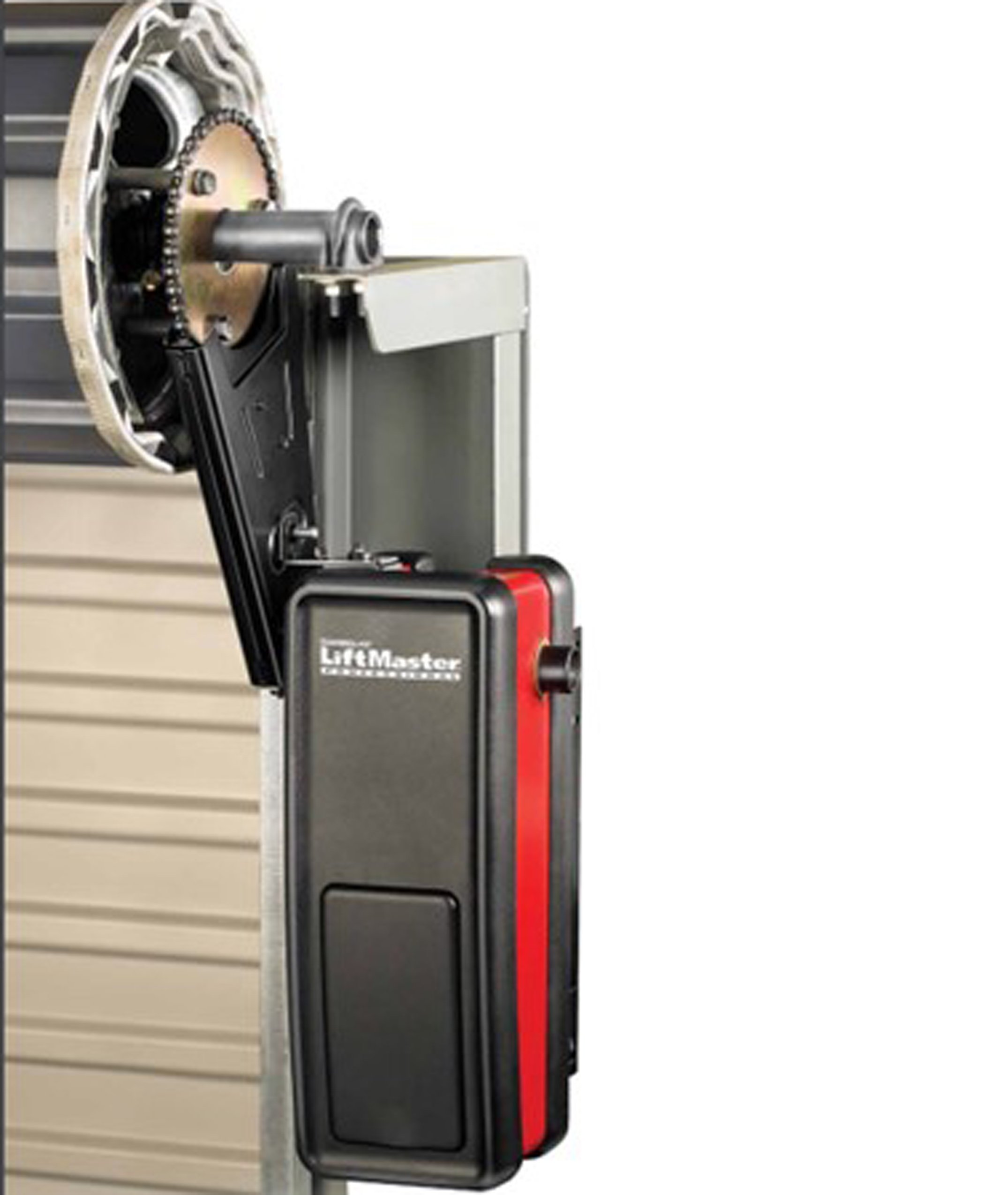

Figura 1: The LiftMaster/Chamberlain Model 3950 Rolling Sheet Door Operator. This image shows the main unit of the door operator, typically featuring a motor housing and drive components, designed for commercial rolling sheet doors.

Característiques principals:

• Designed for commercial rolling sheet door applications.
• Suitable for doors up to 12 ft. high and 14 ft. wide.
• Supports doors weighing up to 650 lbs.
• Maximum recommended duty cycle: 10 cycles per hour.

4. Configuració i instal·lació

Installation of the Model 3950 operator requires mechanical and electrical expertise. It is strongly recommended that installation be performed by a certified garage door technician or a qualified professional to ensure proper function and safety.

General Installation Steps (Consult full installation manual for details):

1. Comprovació prèvia a la instal·lació: Ensure the rolling sheet door is properly balanced and operates smoothly manually. Repair or adjust any issues before proceeding.
2. Muntatge de l'operador: Securely mount the operator to the wall or appropriate structural support near the door shaft. Ensure it is level and aligned with the door's live or dead shaft.
3. Connecting the Drive System: Attach the operator's drive mechanism (e.g., chain, sprocket) to the door shaft according to the specific instructions for your door type.
4. Cablejat elèctric: Connect the operator to a dedicated power supply. All electrical wiring must comply with local electrical codes. Install the wall control station in a safe, visible location.
5. Ajust del commutador de límit: Adjust the operator's limit switches to set the door's fully open and fully closed positions.
6. Safety Reversal System Test: Test the safety reversal system to ensure the door reverses upon contact with an obstruction. Adjust as necessary.
7. Programació del comandament a distància: Program any remote controls or wireless accessories.

Note: A detailed installation manual with diagrams and specific steps is included with the product. Always refer to that document for comprehensive instructions.

5. Funcionament

The Model 3950 operator is designed for straightforward operation once properly installed and configured.

Obrir i tancar la porta:

• Control de paret: Press the UP button on the wall control to open the door. Press the DOWN button to close the door. Press the STOP button to halt the door's movement at any point.
• Comandament a distància: Press the designated button on your remote control to activate the door. A single press typically cycles the door (open, stop, close, stop).

Característiques de seguretat:

• Automatic Reversal: If the door encounters an obstruction while closing, it will automatically reverse to the fully open position.
• Photo-Electric Sensors (Optional/Recommended): If equipped, these sensors will prevent the door from closing if an object breaks the beam.

Always ensure the path of the door is clear before operating. Do not attempt to manually force the door while the operator is engaged.

6. Manteniment

Regular maintenance ensures the longevity and safe operation of your Model 3950 door operator. Disconnect power to the operator before performing any maintenance.

Controls mensuals:

• Balanç de la porta: Disengage the operator and manually open and close the door. It should move smoothly and stay in place at any point. If not, contact a professional for door spring adjustment.
• Prova d'inversió de seguretat: Place a 1.5-inch (3.8 cm) object (e.g., a 2x4 board laid flat) on the floor in the door's path. Close the door. The door must reverse upon contact. If it does not, adjust the force settings or contact a professional.
• Lubricació: Lubricate the door's moving parts (rollers, hinges, springs) as recommended by the door manufacturer. Do not lubricate the operator's internal components unless specifically instructed.
• Inspecció de maquinari: Check all bolts, nuts, and fasteners on the operator and door for tightness. Tighten if necessary.

Servei anual:

It is recommended to have a qualified door technician inspect and service your door and operator annually.

7. Solució De Problemes

Abans de contactar amb l'atenció al client, review els següents problemes comuns i les seves solucions.

Si aquests passos no resolen el problema, poseu-vos en contacte amb l'atenció al client o amb un tècnic qualificat.

8. Especificacions

9. Garantia i Suport

For specific warranty information regarding your LiftMaster/Chamberlain Model 3950 Rolling Sheet Door Operator, please refer to the warranty card included with your product or visit the official LiftMaster weblloc. Els termes de la garantia solen cobrir els defectes de materials i de fabricació durant un període especificat a partir de la data de compra.

For technical support, replacement parts, or service inquiries, please contact LiftMaster/Chamberlain customer service. Contact information can usually be found on the product packaging, the official website, or in the detailed installation manual.

Recursos en línia: For additional information, FAQs, and support, visit the Botiga LiftMaster a Amazon o el LiftMaster oficial weblloc.
