Introducció i informació de seguretat
Thank you for choosing the Stanley SXFPW30E 3000W Induction Motor Pressure Washer. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new pressure washer. Please read this manual thoroughly before assembly, operation, or maintenance to ensure proper use and to prevent injury or damage to the unit.
Instruccions importants de seguretat:
- Always wear appropriate personal protective equipment, including safety glasses, gloves, and hearing protection, when operating the pressure washer.
- Never direct the high-pressure spray at people, animals, electrical devices, or the unit itself.
- Assegureu-vos que totes les connexions estiguin ben fixades abans d'engegar la unitat.
- Do not operate the pressure washer in an explosive atmosphere or near flammable liquids.
- Mantingueu els nens i les mascotes lluny de la zona d'operacions.
- Desconnecteu l'alimentació abans de realitzar qualsevol manteniment o neteja.
Muntatge i muntatge
Segueix aquests passos per muntar i preparar la teva rentadora a pressió per al primer ús.
1. Desembalatge i comprovació de components
Carefully remove all components from the packaging. Verify that all parts listed in the packing list are present and undamaged. If any parts are missing or damaged, do not assemble or operate the unit; contact customer support.
2. Handle and Wheel Assembly
Attach the handle to the main unit using the provided screws. Secure the wheels to the base of the pressure washer. Refer to the diagram for correct placement.

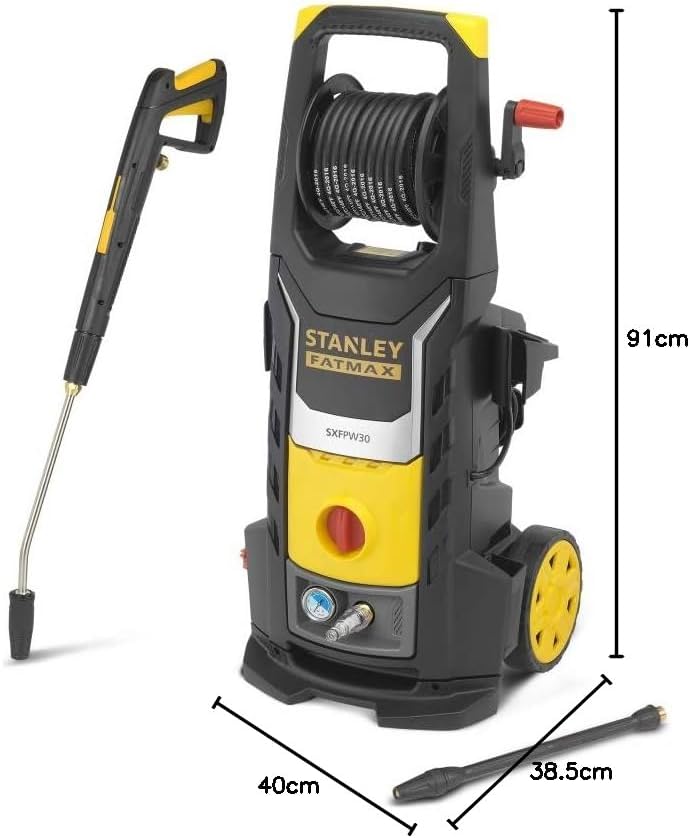

Imatge: The Stanley SXFPW30E pressure washer shown with its main components, including the spray gun, various nozzles, and overall dimensions (40cm width, 38.5cm depth, 91cm height). This image illustrates the assembled unit and its accessories.
3. High-Pressure Hose and Spray Gun Connection
- Connect one end of the high-pressure hose (12 meters) to the high-pressure outlet on the pressure washer. Ensure it is securely tightened.
- Connecteu l'altre extrem de la mànega d'alta pressió a la pistola de polvorització.
- Connecteu el broquet desitjat a la pistola de polvorització.
4. Connexió de subministrament d'aigua
Connect a garden hose to the water inlet of the pressure washer. Ensure the water supply is clean and free of debris. The unit features a self-priming capability, allowing it to draw water from an external source like a bucket or tank, provided the water inlet is submerged and the unit is properly primed. For standard operation, connect to a mains water supply.
5. Connexió elèctrica
Connecteu el cable d'alimentació a una presa de corrent amb connexió a terra. Assegureu-vos que el volumtage and frequency of your power supply match the specifications of the pressure washer.
Instruccions de funcionament
This section details how to safely operate your Stanley SXFPW30E pressure washer.
1. Engegar la rentadora a pressió
- Ensure the water supply is turned on and the high-pressure hose and spray gun are correctly connected.
- Squeeze the trigger on the spray gun to release any air trapped in the system. Hold the trigger until a steady stream of water emerges.
- Turn the pressure washer ON using the power switch. The induction motor will start.
- The unit is equipped with a Total Stop System (TSS), which automatically shuts off the motor when the trigger is released and restarts it when the trigger is pressed again. This prolongs motor life and saves energy.
Imatge: Davant view of the Stanley SXFPW30E pressure washer, highlighting the main controls, water inlet, and high-pressure outlet. The pressure gauge is visible on the lower front panel.
2. Using Nozzles and Accessories
Select the appropriate nozzle for your cleaning task. Different nozzles provide varying spray patterns and pressure levels. Always test the spray on an inconspicuous area first to avoid damage.
3. Applying Detergent (if applicable)
If your model includes a detergent tank or siphoning tube, fill it with a pressure washer-safe detergent. Apply detergent at low pressure, then switch to high pressure for rinsing. Always follow detergent manufacturer instructions.
4. Shutting Down the Pressure Washer
- Apagueu l'interruptor d'alimentació de la unitat.
- Tanqueu el subministrament d'aigua.
- Premeu el gallet de la pistola polvoritzadora per alliberar la pressió restant al sistema.
- Disconnect the high-pressure hose and water supply hose.
Imatge: posterior view of the Stanley SXFPW30E pressure washer, showing the integrated hose reel for convenient storage of the high-pressure hose. The water inlet and power cord storage are also visible.
Manteniment
Un manteniment regular garanteix la longevitat i el rendiment òptim de la teva rentadora a pressió.
1. Neteja
- After each use, wipe down the exterior of the unit with a damp tela.
- Clean the nozzles to prevent blockages. A nozzle cleaning tool may be provided.
- Check the water inlet filter for debris and clean it if necessary.
2. Emmagatzematge
Store the pressure washer in a dry, frost-free environment. The integrated hose reel helps keep the high-pressure hose neatly stored.
3. Hivernació
If storing the unit in an area where temperatures may drop below freezing, it is crucial to winterize the pressure washer to prevent damage to the pump. Run a pump protector solution through the unit or completely drain all water from the pump, hoses, and spray gun.
4. Pump Inspection
The unit is equipped with a durable aluminum pump. Periodically inspect for any signs of leaks or damage. If issues are detected, consult a qualified service technician.
Resolució de problemes
Consulteu aquesta secció per obtenir solucions a problemes operatius comuns.
| Problema | Causa possible | Solució |
|---|---|---|
| El motor no arrenca | Sense subministrament elèctric; interruptor automàtic saltat; interruptor defectuós. | Comproveu la connexió elèctrica; reinicieu l'interruptor automàtic; contacteu amb el servei tècnic. |
| Sense pressió d'aigua o amb poca pressió | Water supply off; clogged inlet filter; air in pump; worn nozzle. | Turn on water; clean filter; prime pump; replace nozzle. |
| Fuites d'aigua de les connexions | Connexions soltes; juntes tòriques danyades. | Tighten connections; replace O-rings. |
| Motor runs continuously (TSS not working) | Air leak in system; faulty TSS switch. | Check all connections for leaks; contact service. |
If you encounter problems not listed here or if the suggested solutions do not resolve the issue, please contact Stanley customer support.
Especificacions del producte
| Característica | Especificació |
|---|---|
| Número de model | SXFPW30E |
| Marca | Stanley |
| Tipus de potència | Cable elèctric |
| Tipus de motor | Motor d'inducció |
| Potència de sortida | 3000 W |
| Caudal màxim | 600 Litres per hour |
| Longitud de la mànega | 12 metres |
| Dimensions del producte (L x A x A) | 40 x 38.5 x 91 cm |
| Pes de l'article | 16.1 quilos |
| Material de la bomba | Alumini |
| Característiques especials | Total Stop System, Self-priming capability |
| International Article Number (EAN) | 08016287141383 |
Garantia i Suport
Stanley products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your product or visit the official Stanley weblloc web. Conserveu el comprovant de compra per a reclamacions de garantia.
For technical assistance, spare parts, or service, please contact your local Stanley service center or the retailer from whom you purchased the product. When contacting support, please have your model number (SXFPW30E) and serial number (if applicable) ready.
