Introducció
This manual provides essential information for the installation, operation, and maintenance of your Memphis Audio PRX60 Power Reference Series 6.5" Oversize 2-Way Coaxial Speakers. These speakers are designed to deliver high-quality audio performance with features like a polyurethane surround, PEI dome tweeter, multi-direction pivot tweeter system, and a stealthy black-on-black M-Cone design. Please read this manual thoroughly before installation and use to ensure optimal performance and longevity of your speakers.

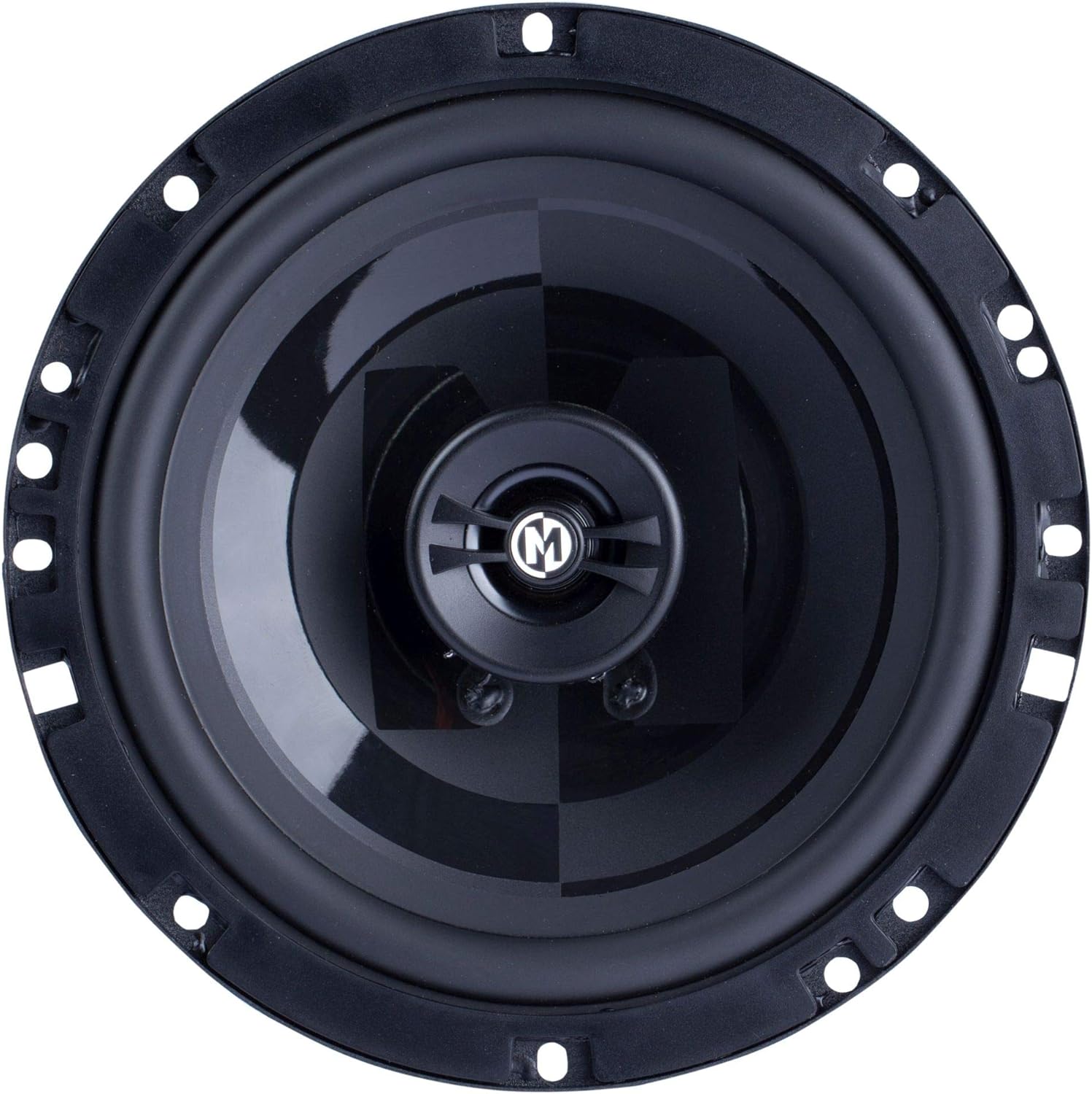

Figura 1: Frontal view of Memphis Audio PRX60 6.5" Coaxial Speakers.
Configuració i instal·lació
The Memphis Audio PRX60 speakers are designed for straightforward installation in compatible vehicle audio systems. Each package includes two coaxial speakers.
Consideracions clau per a la instal·lació:
- Muntatge: These speakers are designed for coaxial mounting, typically in door panels or kick panels. Ensure adequate depth and clearance for the 6.5-inch speaker.
- Cablejat: Connecteu els altaveus al vostre amplifier or head unit using appropriate gauge speaker wire. Pay attention to positive and negative terminals to ensure correct phase.
- Ajust de Tweeter: The multi-direction pivot tweeter system allows for aiming the tweeter for optimal sound staging. Adjust the tweeter angle after installation to direct high frequencies towards the listening position.
- Resistència a la intempèrie: While durable, these speakers are not waterproof. Ensure they are installed in locations protected from direct water exposure.

Figura 2: lateral view of the PRX60 speaker, highlighting wiring terminals and compact design.
Instal·lació acabadaview Vídeo:
Per a un repàs integralview of a Memphis Audio system installation, including speaker integration, please refer to the official product video below. This video demonstrates the process within a Ford Bronco, showcasing how various components, including speakers, are installed to achieve an enhanced audio experience.
Video 1: Memphis Audio Ford Bronco Upgrade Kit Product Overview. This video provides a general guide to installing Memphis Audio components, including speakers, in a vehicle.
Funcionament dels altaveus
Once properly installed, your Memphis Audio PRX60 speakers are ready to deliver a rich and clear audio experience.
- Qualitat del so: The polyurethane surround and PEI dome tweeter work in conjunction to produce tight, punchy mids and detailed, crystal-clear high frequencies.
- Tweeter Aiming: Utilize the multi-direction pivot tweeter to fine-tune the soundstage. Experiment with different angles to achieve the best sound dispersion and imaging for your listening position.
- Maneig de potència: These speakers are designed to handle up to 100 Watts of maximum output power. Ensure your amplifier's output matches the speaker's power handling capabilities to prevent damage and achieve optimal sound.

Figura 3: Detallada view of the PRX60 speaker cone and tweeter, showcasing the M-Cone design.
Manteniment
Proper maintenance will ensure the longevity and continued performance of your Memphis Audio PRX60 speakers.
- Neteja: Use a soft, dry cloth to wipe down the speaker grilles and surrounds. Avoid using harsh chemicals or abrasive cleaners.
- Protecció del medi ambient: While featuring weather-resistant materials, avoid prolonged exposure to extreme temperatures, direct sunlight, and excessive moisture. These speakers are not fully waterproof.
- Comprovació de la connexió: Periodically inspect all wiring connections to ensure they are secure and free from corrosion. Loose connections can lead to degraded sound quality or speaker damage.
Resolució de problemes
If you encounter issues with your Memphis Audio PRX60 speakers, refer to the following common troubleshooting steps:
| Problema | Causa possible | Solució |
|---|---|---|
| No hi ha so dels altaveus | Cablejat fluix o incorrecte; AmpL'amplificador està apagat o defectuós; problema amb la unitat principal. | Check all speaker wire connections. Ensure ampL'amplificador està encès i funciona. Verifiqueu la sortida de la unitat principal. |
| So distorsionat | Overpowering speakers; Incorrect amplifier gain settings; Damaged speaker. | Reduir el volum o amplifier gain. Check speaker for physical damage. Ensure amplifier power matches speaker rating. |
| So feble o apagat | Incorrect phase wiring; Obstruction in front of speaker; Low power. | Verify correct positive/negative wiring. Ensure no obstructions. Check ampsortida més elevada. |
If these steps do not resolve the issue, please contact a qualified car audio technician or Memphis Audio customer support.
Especificacions
| Característica | Especificació |
|---|---|
| Nom del model | PRX60 |
| Tipus d'altaveu | Coaxial |
| Mida de l'altaveu | 6.5 polzades |
| Potència de sortida màxima dels altaveus | 100 watts |
| Resposta de freqüència | 20000 Hz |
| Components inclosos | 2 Altaveus coaxials |
| Pes de l'article | 4.2 lliures |
| Dimensions del producte | 17.2 x 8.3 x 4.2 polzades |
| Fabricant | Àudio de Memphis |
| UPC | 702588206651 |
Garantia i Suport
Your Memphis Audio PRX60 speakers come with a Garantia limitada. For specific warranty terms and conditions, please refer to the documentation included with your purchase or visit the official Memphis Audio weblloc.
Atenció al client:
For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact Memphis Audio customer support.
- Recursos en línia: Visita el Botiga d'àudio de Memphis a Amazon per obtenir informació i recursos addicionals sobre el producte.
- Plans de protecció: Considera la compraasing an extended protection plan for additional coverage beyond the manufacturer's warranty. Options such as 2-Year and 3-Year Protection Plans are available.
