MS5209 Low Power Pointer Ground Resistance Tester User Manual

Introducció

The MS5209 Low Power Pointer Ground Resistance Tester is a precision instrument designed for measuring earth resistance and earth voltage. It features an analog display for direct reading of values and incorporates advanced circuit design to minimize interference from earth voltage and auxiliary earth bar resistance. This manual provides essential information for the safe and effective operation, setup, and maintenance of your MS5209 tester.

Característiques clau

• Baix consum d'energia per allargar la vida de la bateria.
• Direct reading of earth resistance values from the analog scale.
• Advanced circuit design reduces influence from earth voltage and auxiliary earth bar resistance.
• Simplified measurement function activated by a dedicated switch button.
• Push switch buttons for smooth and intuitive operation.

Informació de seguretat

Please read and understand all safety instructions before operating the MS5209 tester. Failure to follow these instructions may result in electric shock, fire, or damage to the instrument.

• Assegureu-vos sempre que l'instrument estigui en bon estat de funcionament abans d'utilitzar-lo.
• Do not use the tester in wet conditions or in environments with explosive gases or vapors.
• Observeu tots els codis de seguretat locals i nacionals.
• The instrument is designed to meet protection levels EN 61010-1; CAT II and protection class III.
• La resistència voltage between the electrical circuit and housing case is 1500V AC for one minute. Do not exceed this limit.
• Ensure proper connection of test leads and earth spikes to avoid incorrect readings or hazards.
• Replace batteries promptly when the "BATT. CHECK" indicator shows low power.
• Do not attempt to repair or modify the instrument. Refer all servicing to qualified personnel.

Components i contingut del paquet

The MS5209 Ground Resistance Tester package typically includes the following items:

• MS5209 Earth Resistance Tester Unit
• Set of Test Leads (Red, Green, Black)
• Auxiliary Earth Spikes (typically two)
• Maleta de transport
• Manual d'usuari (aquest document)

Nota: 8 x 1.5V AA batteries are required for operation and are not included in the package.

Image: The MS5209 Earth Resistance Tester shown with its main unit, test leads, and earth spikes, all contained within its protective carrying case.

Image: The MS5209 Earth Resistance Tester and its accessories neatly organized inside the blue and grey carrying case, ready for transport or storage.

Configuració

1. Instal·lació de la bateria

1. Locate the battery compartment on the back of the MS5209 unit.
2. Obriu la tapa del compartiment de la bateria.
3. Introduïu 8 piles AA d'1.5 V, assegurant-vos de la polaritat correcta (+/-).
4. Tanqueu bé la tapa del compartiment de la bateria.
5. Press the "OFF BATT.CHECK" button to verify battery status. The needle should move to the "OK" range if batteries are good.

2. Connecting Test Leads and Earth Spikes

For earth resistance measurements, connect the test leads and earth spikes as follows:

• Connect the red test lead to the "E" terminal on the tester.
• Connect the green test lead to the "P" terminal on the tester.
• Connect the black test lead to the "C" terminal on the tester.
• Drive the auxiliary earth spikes into the ground at appropriate distances from the earth electrode under test. Refer to standard earth resistance testing procedures for optimal spacing.
• Connect the other ends of the test leads to the earth electrode and auxiliary spikes accordingly.

Instruccions de funcionament

1. Earth Resistance Measurement

1. Ensure the test leads and earth spikes are connected correctly as per the setup instructions.
2. Select the appropriate measurement range (x1Ω, x10Ω, or x100Ω) using the range selection buttons. Start with a higher range if the resistance is unknown.
3. Press and hold the "MEAS." button. The analog needle will indicate the earth resistance value on the corresponding scale.
4. For simplified measurements, press the "SIMPLIFIED MEAS." button. This mode is designed for quick checks.
5. Read the value indicated by the needle on the scale. Multiply the reading by the selected range multiplier (e.g., if reading is 5 on x10Ω range, the resistance is 50Ω).
6. Release the "MEAS." button after taking the reading.

2. Earth Voltage Mesura

1. Connect the test leads to the points where earth voltage needs to be measured.
2. Press and hold the "AC V" button.
3. The analog needle will indicate the earth voltage value on the AC V scale.
4. Release the "AC V" button after taking the reading.

Manteniment

Neteja

Netegeu la superfície c de l'instrumentasing amb un suau, damp cloth. Do not use abrasive cleaners or solvents. Ensure the unit is dry before storage.

Canvi de bateria

When the battery check indicates low power, replace all 8 x 1.5V AA batteries simultaneously. Do not mix old and new batteries or different battery types.

Emmagatzematge

Store the MS5209 tester in its carrying case in a cool, dry place, away from direct sunlight and extreme temperatures. If storing for extended periods, remove the batteries to prevent leakage.

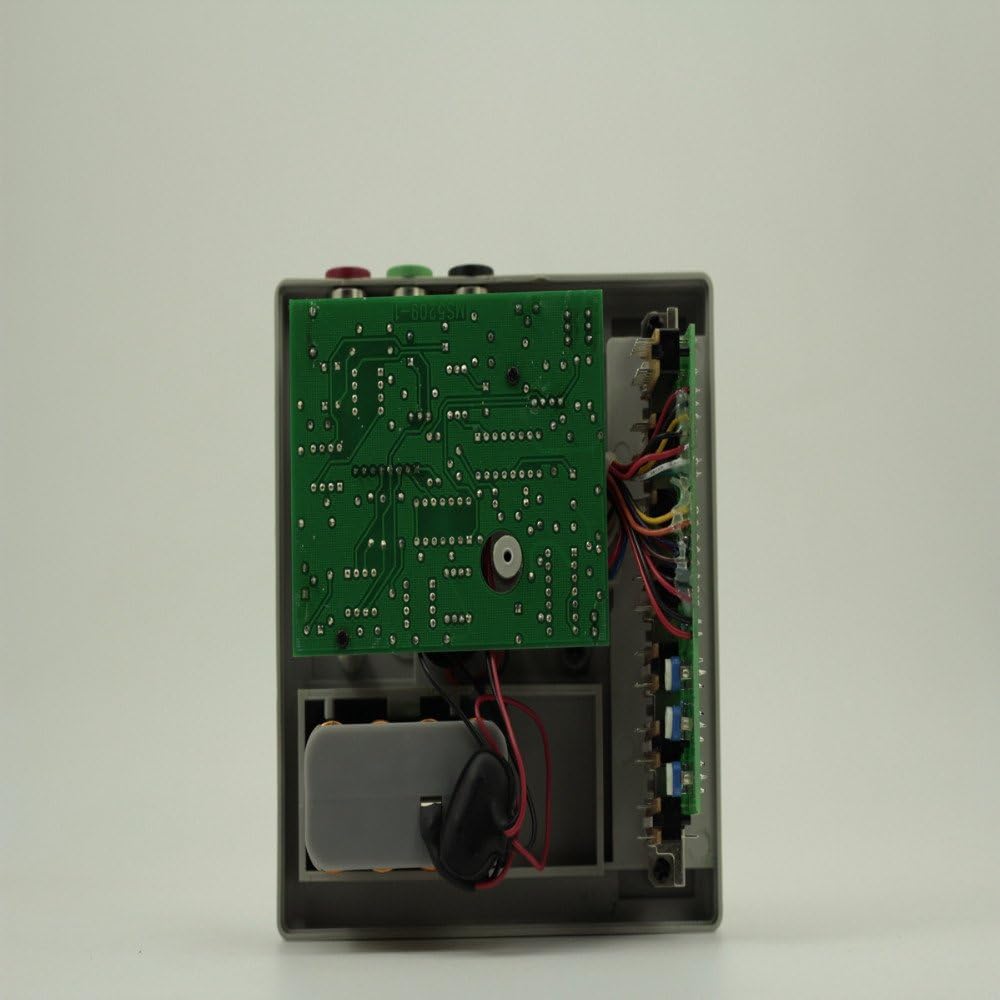

Imatge: Una imatge interna view of the MS5209 tester, showing the circuit board and internal components. This view is for informational purposes and not for user-level maintenance.

Resolució de problemes

Especificacions

Imatge: Diversos views of the MS5209 tester illustrating its approximate dimensions: 135mm height, 135mm width, and 75mm depth.

Garantia i Suport

For information regarding warranty coverage, technical support, or service, please contact the seller or the manufacturer directly. Keep your purchase receipt as proof of purchase.
