1. Introducció
The noblechairs ICON Gaming and Office Chair is designed to provide ergonomic support and comfort for extended periods of use, whether for gaming or office work. This manual provides essential information for the assembly, operation, and maintenance of your chair.

Image 1.1: The noblechairs ICON Gaming and Office Chair in a typical home office environment, showcasing its sleek black design and professional appearance.
The ICON chair features a robust steel frame, high-density cold foam upholstery, and a sophisticated rocking mechanism. It is upholstered in durable PU faux leather, offering both comfort and ease of maintenance. The chair is equipped with flexible 4D armrests and an adjustable backrest to cater to individual preferences.

Image 1.2: Detail of the chair's premium materials, highlighting the PU faux leather with diamond stitching and perforated sections for breathability.
2. Muntatge i muntatge
Your noblechairs ICON chair requires some assembly. All necessary tools and hardware are included in the packaging. Please follow the provided assembly instructions carefully.
2.1 Desembalatge
- Traieu amb cura tots els components de l'embalatge.
- Ensure all parts are present according to the parts list in the separate assembly guide.
- Keep packaging materials for future transport or storage if needed.
2.2 Consells de muntatge
- It is recommended to assemble the chair on a soft, clean surface to prevent scratches.
- Pay close attention to the backrest attachment. The mechanism can snap into place quickly; exercise caution to avoid injury.
- Assegureu-vos que tots els cargols estiguin ben ajustats, però no els estrenyeu massa.
The chair is designed for straightforward assembly, typically taking around 20 minutes. An assembly guide with pictures is included to assist you.
3. Funcionament i ajustos
The noblechairs ICON offers multiple adjustment options to customize your seating experience for optimal comfort and ergonomic support.
3.1 Ajust d'alçada
- To raise the chair, lift the lever located under the seat on the right side while taking your weight off the seat.
- To lower the chair, lift the same lever while seated.
3.2 Backrest Recline
- The backrest can be reclined between 90° and 135°.
- To recline, pull the lever on the right side of the chair, near the seat base, and lean back to your desired angle. Release the lever to lock the position.
- To return the backrest to an upright position, pull the lever and lean forward slightly.

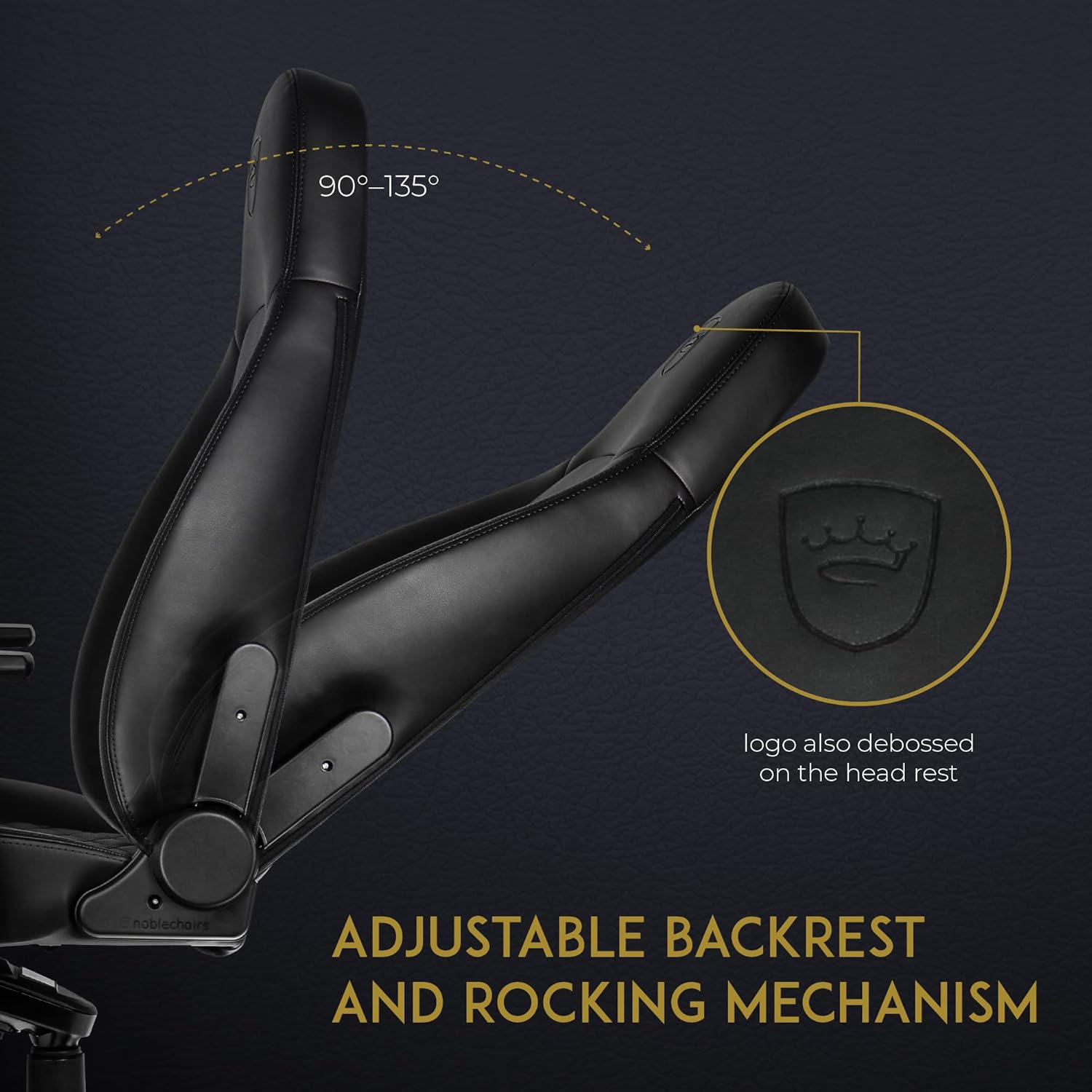

Image 3.1: Illustration of the adjustable backrest, demonstrating the recline range from 90 to 135 degrees.
3.3 Rocking Mechanism
- The chair features a sophisticated rocking mechanism. To activate, pull out the lever located under the seat on the left side.
- To lock the rocking function, push the lever back in.
- The tension of the rocking mechanism can be adjusted by turning the knob located under the front of the seat. Turn clockwise to increase tension, counter-clockwise to decrease.
3.4 4D Armrests
The armrests are 4-dimensional, allowing for extensive customization:
- Ajust d'alçada: Press the button on the side of the armrest support and move the armrest up or down.
- Endavant/Enrere: Feu lliscar el reposabraços cap endavant o cap enrere.
- Rotació esquerra/dreta: Gireu el reposabraços a l'esquerra o a la dreta.
- Inward/Outward: Slide the armrest pad inward or outward.

Imatge 3.2: View of the ergonomic design, highlighting the flexible 4D armrests and the deformation-resistant breathable cold foam upholstery.
3.5 Lumbar and Neck Support Cushions
The chair includes detachable neck and lumbar support cushions for added comfort and posture support. These can be positioned as desired or removed if not preferred.
4. Manteniment i cura
Proper care will extend the lifespan and maintain the appearance of your noblechairs ICON chair.
4.1 Neteja
- For general cleaning, wipe the PU faux leather surfaces with a damp tela.
- Avoid using harsh chemicals, abrasive cleaners, or solvents, as these can damage the material.
- For stubborn stains, use a mild soap solution and a soft cloth, then wipe dry immediately.
4.2 Atenció general
- Regularly check and tighten any loose screws to ensure stability and safety.
- Avoid exposing the chair to direct sunlight for prolonged periods, as this can cause fading or material degradation.
- Keep the chair away from direct heat sources.
5. Solució De Problemes
If you encounter any issues with your noblechairs ICON chair, please refer to the following common solutions:
5.1 Chair Squeaks or Wobbles
- Check all assembly screws and tighten them if loose.
- Apply a small amount of silicone lubricant to moving parts, such as the gas lift or rocking mechanism, if squeaking persists.
5.2 Gas Lift Not Functioning
- Assegureu-vos que la palanca d'ajust d'alçada estigui completament activada o desactivada segons calgui.
- Verify that the gas lift cylinder is correctly seated in the base and seat mechanism.
5.3 Armrests Feel Loose
- Reviseu els cargols que fixen els reposabraços a la base del seient i estrenyeu-los.
- For 4D armrests, ensure the internal locking mechanisms for movement are fully engaged after adjustment.
6. Especificacions

Image 6.1: Detailed dimensions of the noblechairs ICON Gaming Chair, including maximum height and weight capacity.
| Característica | Detall |
|---|---|
| Marca | cadires nobles |
| Nom del model | ICONA |
| Número de model | NBL-ICN-PU-BLA |
| Color | Negre |
| Material | PU Faux Leather, Cold Foam, Steel Frame |
| Dimensions del producte (P x A x A) | 19.3" x 20.5" x 54.3" (49 cm x 52 cm x 138 cm) |
| Pes de l'article | 61.6 lliures (28 kg) |
| Recomanació de pes màxim | 330 lliures (150 kg) |
| Angle d'inclinació del respatller | 90° a 135° |
| Reposabraços | 4D ajustable |
| Base Movement | Swivel, Rocking Mechanism |
| Rodes | 60mm, suitable for hard floors |
| Components inclosos | Chair, Neck Cushion, Lumbar Cushion, Casters |
| Instruccions de cura del producte | Netejar |
7. Garantia i Suport
7.1 Informació de la garantia
noblechairs products are manufactured to high-quality standards. The ICON chair comes with a 5-year EU spare part availability duration. For specific warranty terms and conditions applicable to your region, please refer to the warranty card included with your product or visit the official noblechairs weblloc.
7.2 Atenció al client
Should you require assistance with assembly, operation, or encounter any issues not covered in this manual, please contact noblechairs customer support. Contact details can typically be found on the noblechairs weblloc web o a la documentació del producte.
