1. Introducció
This manual provides essential information for the safe and correct installation, operation, and maintenance of the Legrand 191510 Plexo Recessed Switch. Please read these instructions thoroughly before beginning any work.
1.1 Informació de seguretat
- La instal·lació ha de ser realitzada per un electricista qualificat d'acord amb tots els codis elèctrics locals i nacionals.
- Always disconnect power at the main circuit breaker before installing or servicing the switch.
- Do not use the switch if it appears damaged.
- Assegureu-vos d'una connexió a terra adequada on calgui.
- The switch is designed for recessed installation and offers waterproof protection (IP54).
1.2 Producte acabatview
The Legrand 191510 Plexo Recessed Switch is a grey, waterproof switch designed for environments requiring protection against dust and water, such as outdoor areas, basements, and garages. It features a robust design for recessed installation and includes a box with upper and lower membranes for pipe inlet up to 25 mm, facilitating a secure and sealed cable entry.
Figura 1: Frontal view of the Legrand 191510 Plexo Recessed Switch.
2. Instruccions d'instal·lació
2.1 Eines necessàries
- Tornavís (Phillips i cap pla)
- Pelacables
- Voltage provador
- Drill (if creating a new recess)
- Cinta mètrica
2.2 Mounting the Switch Box
- Assegureu-vos que l'alimentació estigui desconnectada a l'interruptor principal.
- Prepare the recess in the wall according to the switch dimensions (approximately 8 x 8 x 5.5 cm).
- Identify the desired cable entry point(s) on the switch box (upper or lower membrane). Carefully pierce the membrane to allow cable passage.
- Insert the electrical cables through the prepared membrane(s).
- Secure the switch box into the recess using appropriate fasteners. The joint joints between the mechanism and the wall facilitate adjustment on various surfaces.
Figura 2: posterior view of the switch box with cable entry membranes and mounting points.
2.3 Wiring the Switch
- Strip approximately 13mm of insulation from the ends of the electrical wires.
- Connect the wires to the appropriate terminals on the switch mechanism. Refer to the wiring diagram usually found on the product or packaging. For a 1-way circuit, connect the live input to one terminal and the switched live output to the other.
- Assegureu-vos que totes les connexions estiguin estretes i segures.
Figura 3: Detallada view of the wiring terminals.
2.4 Assembling the Switch Mechanism and Cover
- Carefully position the wired switch mechanism into the mounted switch box.
- Ensure the mechanism is seated correctly and securely within the box.
Figure 4: Internal mechanism of the switch.
- Attach the grey front plate to the switch mechanism, ensuring it clicks into place and forms a tight seal for waterproof protection.

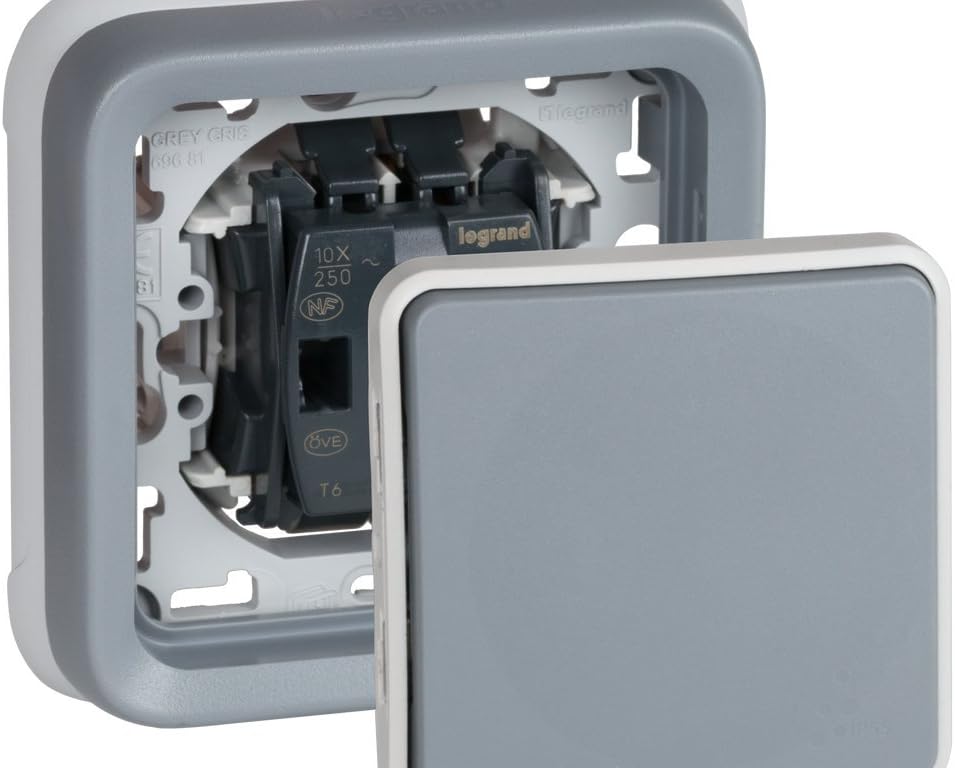

Figure 5: Attaching the front plate to the switch mechanism.
- Once fully assembled, restore power at the main circuit breaker.
3. Funcionament
3.1 Funcionalitat bàsica
The Legrand 191510 Plexo Recessed Switch operates as an ON-ON-OFF push-button switch. Pressing the button will toggle the connected electrical circuit between its ON and OFF states. The switch has 3 positions, allowing for flexible control of the connected load.
4. Manteniment
4.1 Neteja
To clean the switch, wipe the surface with a soft, damp cloth. Do not use abrasive cleaners, solvents, or excessive water, as this may damage the finish or compromise the waterproof seal.
4.2 Inspecció
Periodically inspect the switch for any signs of damage, wear, or compromise to the waterproof seal. If any damage is observed, disconnect power and have the switch inspected or replaced by a qualified professional.
5. Solució De Problemes
5.1 Problemes comuns
- L'interruptor no respon: Check if the main circuit breaker is ON. Verify all wiring connections are secure. If the issue persists, consult a qualified electrician.
- Funcionament intermitent: This could indicate a loose connection or internal damage. Disconnect power and have the switch inspected by a professional.
- Entrada d'aigua: If water is observed inside the switch or connected enclosure, immediately disconnect power. The waterproof seal may be compromised. The switch must be replaced.
6. Especificacions tècniques
| Especificació | Valor |
|---|---|
| Número de model | 191510 |
| Marca | Legrand |
| Mode d'operació | ON-ON-OFF |
| Valoració actual | 6 Amps |
| Vol. Operatiutage | 230 Volts |
| Tipus de contacte | Normalment obert |
| Tipus de connector | Connectar-se |
| Tipus de terminal | Botó |
| Dimensions (L x A x A) | 3.35 x 3.35 x 1.57 polzades (8.5 x 8.5 x 4 cm) |
| Tipus de circuit | 1 vies |
| Tipus d'actuador | Palanca de frontissa |
| Material de contacte | Metall |
| Classificació de protecció internacional | IP54 |
| Nombre de llocs | 3 |
| Tipus de controlador | Pulsador |
| Mètode de control | Toca |
| Protocol de connectivitat | X-10 |
| Color | Gris |
| Wattage | 1380 watts |
| Pes de l'article | 3.52 unces (100 g) |
7. Informació de la garantia
The Legrand 191510 Plexo Recessed Switch is covered by a standard manufacturer's warranty. For specific details regarding warranty terms, duration, and claims, please refer to the documentation provided with your purchase or visit the official Legrand weblloc web. Conserveu el comprovant de compra per a finalitats de garantia.
8. Atenció al client
For further assistance, technical support, or inquiries regarding the Legrand 191510 Plexo Recessed Switch, please contact Legrand customer service. You can find contact information, FAQs, and additional resources on the official Legrand weblloc:
