Introducció
This manual provides detailed instructions for the installation, operation, and maintenance of your hansgrohe Talis S Kitchen Tap 160. Please read these instructions carefully before installation and use to ensure safe and optimal performance. Keep this manual for future reference.
Informació de seguretat
- Assegureu-vos que es compleixin totes les normes locals de fontaneria i construcció durant la instal·lació.
- Si no esteu segurs de cap pas, la instal·lació l'ha de dur a terme un professional qualificat.
- Always turn off the main water supply before beginning any installation, repair, or maintenance work.
- Protegiu el producte de les gelades.
- Operating pressure: minimum 1 bar / maximum 10 bar. Recommended operating pressure: 1.6 - 5 bar.
Contingut del paquet
Verifiqueu que tots els components siguin presents i no estiguin danyats abans de continuar amb la instal·lació.
- hansgrohe Talis S Kitchen Tap 160 Assembly
- Manual d'instruccions
- MagFit Magnetic Shower Support
- Quick Connect Shower Hose
- Polvoritzador
- Maquinari de muntatge
Configuració i instal·lació
The hansgrohe Talis S Kitchen Tap 160 is designed for single-hole deck mount installation.
Pas 1: prepareu l'àrea d'instal·lació
Ensure the mounting surface on the sink or countertop is clean, dry, and clear of any obstructions. Turn off the main water supply to the kitchen.
Step 2: Mount the Faucet
Insert the faucet body into the designated mounting hole. From underneath the sink, secure the faucet using the provided mounting hardware (washer, gasket, and nut). Tighten firmly but do not overtighten.
Image: Detailed technical drawing illustrating the dimensions and connection points for the faucet, including G 3/8" hose connections and a maximum deck thickness of 70mm.
Pas 3: connecteu les línies de subministrament d'aigua
Connect the hot and cold water supply lines to the faucet's G 3/8" hose connections. Ensure all connections are hand-tightened, then use a wrench for a final quarter-turn. Avoid overtightening to prevent damage. Note the hot water connection is typically on the left and cold on the right.
Step 4: Install Pull-Out Spray and Hose
Connect the quick-connect shower hose to the faucet's outlet. Ensure it clicks securely into place. Install the MagFit magnetic shower support mechanism to ensure the pull-out spray retracts smoothly and holds firmly in the spout.
Image: The hansgrohe Talis S Kitchen Tap 160 in stainless steel, demonstrating the pull-out spray feature.
Step 5: Test for Leaks
Slowly turn on the main water supply. Check all connections for any signs of leaks. If leaks are detected, turn off the water supply and re-tighten the connections. Operate the faucet to ensure proper water flow and temperature control.
Instruccions de funcionament
Control del flux i la temperatura de l'aigua
La maneta monomando controla tant el cabal com la temperatura de l'aigua:
- Control de flux: Aixequeu la maneta cap amunt per augmentar el cabal d'aigua. Empenyeu-la cap avall per disminuir o aturar el cabal.
- Control de temperatura: Moveu la maneta cap a l'esquerra per a aigua calenta i cap a la dreta per a aigua freda.
Pull-Out Spray Function
The faucet features a 50 cm pull-out spray for enhanced flexibility:
- Extend Spray: Estireu suaument el capçal del polvoritzador del broc per estendre la mànega.
- Spray Type Selection: Press the spray diverter button on the spray head to switch between the laminar spray (standard flow) and the spray jet (shower function).
- Lockable Shower Spray: The shower spray can be locked in position. It will return to the laminar spray upon pressing the diverter again or turning off the water.
- Retracció: The MagFit magnetic support ensures the spray head retracts smoothly and securely into the spout when released.
Swivel Range Adjustment
The spout's swivel range can be adjusted to either 110° or 150°, providing optimal flexibility for various sink configurations and tasks.
Manteniment i cura
Neteja
To maintain the finish and functionality of your hansgrohe faucet, clean it regularly:
- Use only soft cloths and mild cleaning agents specifically designed for kitchen fixtures.
- Avoid abrasive cleaners, scouring pads, or solvents, as these can damage the surface finish.
- Esbandiu bé amb aigua neta després de la neteja i eixugueu amb un drap suau per evitar taques d'aigua.
Quick Clean Technology
The faucet features Quick Clean technology for easy lime scale removal. Simply rub the silicone nozzles on the spray head with your finger to dislodge mineral deposits and maintain optimal spray performance.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Baix cabal d'aigua | Clogged aerator or supply lines | Remove and clean the aerator; check supply line filters for debris. |
| Fuites de connexions | Loose connections or improperly seated washers | Turn off water, tighten connections, and ensure washers are correctly seated. |
| Spray Head Not Retracting Smoothly | Obstruction in hose path or issue with MagFit | Check the hose for kinks or obstructions under the sink; ensure the MagFit mechanism is clear. |
| Temperatura de l'aigua inconsistent | Water heater settings or unbalanced hot/cold supply | Check your water heater settings; ensure hot and cold water supply pressures are balanced. |

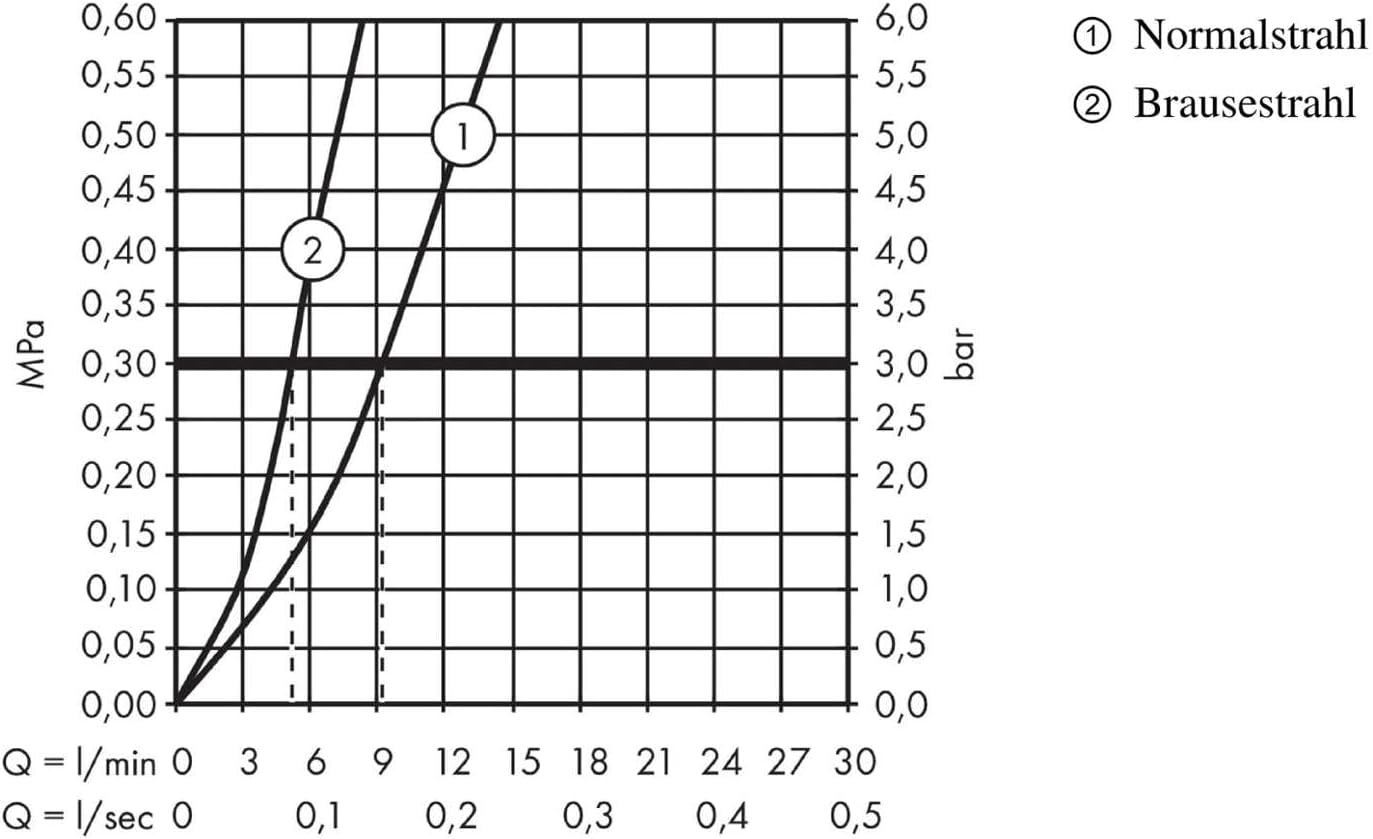

Image: Performance chart indicating water flow rates (Q) in liters per minute and liters per second against pressure (MPa/bar) for normal (1) and spray jet (2) modes.
Especificacions
| Característica | Detall |
|---|---|
| Número de model | 72815800 |
| Marca | hansgrohe |
| Tipus d'acabat | Acer inoxidable |
| Tipus de muntatge | Muntatge de coberta, forat únic |
| Tipus de mànec | Palanca |
| Gamma giratòria | 110° / 150° |
| Pull-Out Spray Length | 50 cm |
| Pressió de funcionament | Mín. 1 bar / Màx. 10 bar |
| Tipus de connexió | G 3/8" hose connections |
| Alçada del bec | 135 mil·límetres |
| Abast del bec | 20 centímetres |
| Pes de l'article | 2.79 quilos |
Garantia i Suport
For detailed warranty information, technical support, or to purchase replacement parts, please refer to the official hansgrohe weblloc web o poseu-vos en contacte amb el seu departament d'atenció al client. Conserveu el rebut de compra com a comprovant de compra per a reclamacions de garantia.
Recursos en línia: www.hansgrohe.com
