Introducció
This manual provides detailed instructions for the installation, operation, and maintenance of your Tesa Assa Abloy Tuipa 3501U0AE Enamelled Steel Door Knob Set. Please read these instructions carefully before beginning installation or use to ensure proper function and safety.
Informació de seguretat
- Always wear appropriate personal protective equipment, such as safety glasses, during installation.
- Assegureu-vos que tots els components estiguin ben subjectats abans d'utilitzar-los.
- Mantingueu les peces petites allunyades dels nens per evitar perills d'asfixia.
- Si no esteu segurs de cap pas, consulteu un professional qualificat.
Contingut del paquet
Verifiqueu que tots els components següents estiguin inclosos al paquet:
- Tesa Assa Abloy Tuipa Door Knob Set (Exterior and Interior Knobs)
- Mecanisme de tancament
- Placa de vaga
- Cargols de muntatge
- Keys (if applicable for your function type)
- Maquinari d'instal·lació
Image: Overall view of the Tesa Assa Abloy Tuipa door knob set, showing the exterior and interior knobs, latch mechanism, and keys.
Especificacions
| Característica | Detall |
|---|---|
| Marca | Tesa Assa Abloy |
| Número de model | 3501U0AE |
| Mida | funció 01 |
| Color | Acer esmaltat |
| Estil | Tulipa |
| Acabar | Polit |
| Material | Acer d'aliatge |
| Forma | Ronda |
| Quantitat de paquet d'articles | 1 |
| Nombre de peces | 1 |
| Material del mànec | Acer d'aliatge |
| Característiques especials | Smooth, anti-panic function (for specific versions) |
| Instruccions específiques d'ús | Porta |
| Dimensions del producte | 18 x 9 x 6.5 cm; 590 g |
Image: Various finish options available for Tesa Assa Abloy door knobs, including polished brass, matte brass, polished chrome, matte chrome, antique brass, satin nickel, glossy marengo, white, black, and enamelled steel.
Configuració i instal·lació
The Tesa Assa Abloy Tuipa door knob set is designed for convenient installation. Follow these steps for proper setup:
1. Prepara la porta
- Ensure your door is prepared with the correct bore holes and backset. Refer to the dimensional drawing for precise measurements.
Image: Technical drawing detailing the required bore hole dimensions and backset for door preparation when installing the Tesa Assa Abloy door knob.
2. Install the Latch Mechanism
- Insert the latch mechanism into the edge bore hole of the door.
- Secure it with the provided screws. Ensure the latch bolt faces the correct direction for door closure.
3. Install the Door Knobs
- Align the spindle of the exterior knob with the latch mechanism.
- Place the interior knob onto the spindle, ensuring proper alignment.
- Secure both knobs together using the long mounting screws, tightening them evenly until the knobs are firm but can still turn freely.

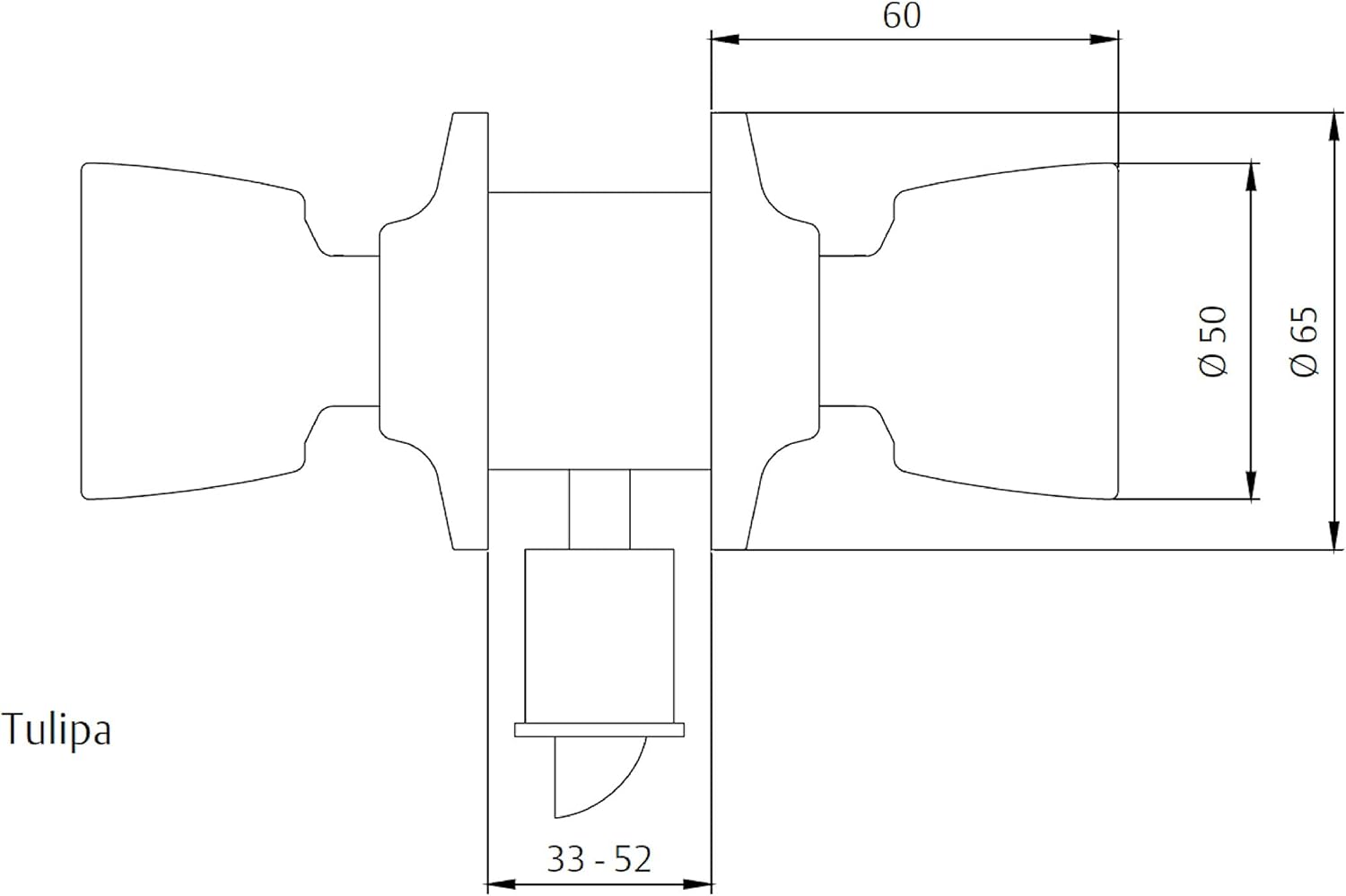

Image: Technical drawing illustrating the dimensions of the Tesa Assa Abloy Tuipa door knob, including diameter and projection.
4. Instal·leu la placa de tancament
- Align the strike plate with the latch bolt on the door frame.
- Mark and chisel out the necessary recess for a flush fit.
- Secure the strike plate with the provided screws.
Instruccions de funcionament
This Tesa Assa Abloy Tuipa door knob set features Function 01 (Input). Understanding this function is key to its operation:
- Funcionament exterior: The door can be locked and unlocked exclusively by using the key from the exterior side.
- Funcionament interior: The interior knob remains locked. This means the door cannot be opened from the inside without the key once it is locked from the outside.
Operar:
- To Open from Exterior (when locked): Insert the key into the exterior knob and turn to unlock. Turn the knob to retract the latch and open the door.
- Per tancar des de l'exterior: Close the door. Insert the key into the exterior knob and turn to lock. Remove the key.
- To Open from Exterior (when unlocked): Simply turn the exterior knob to retract the latch and open the door.
- To Open from Interior: The interior knob is always locked in Function 01. To open from the interior, the door must be unlocked from the exterior using the key.

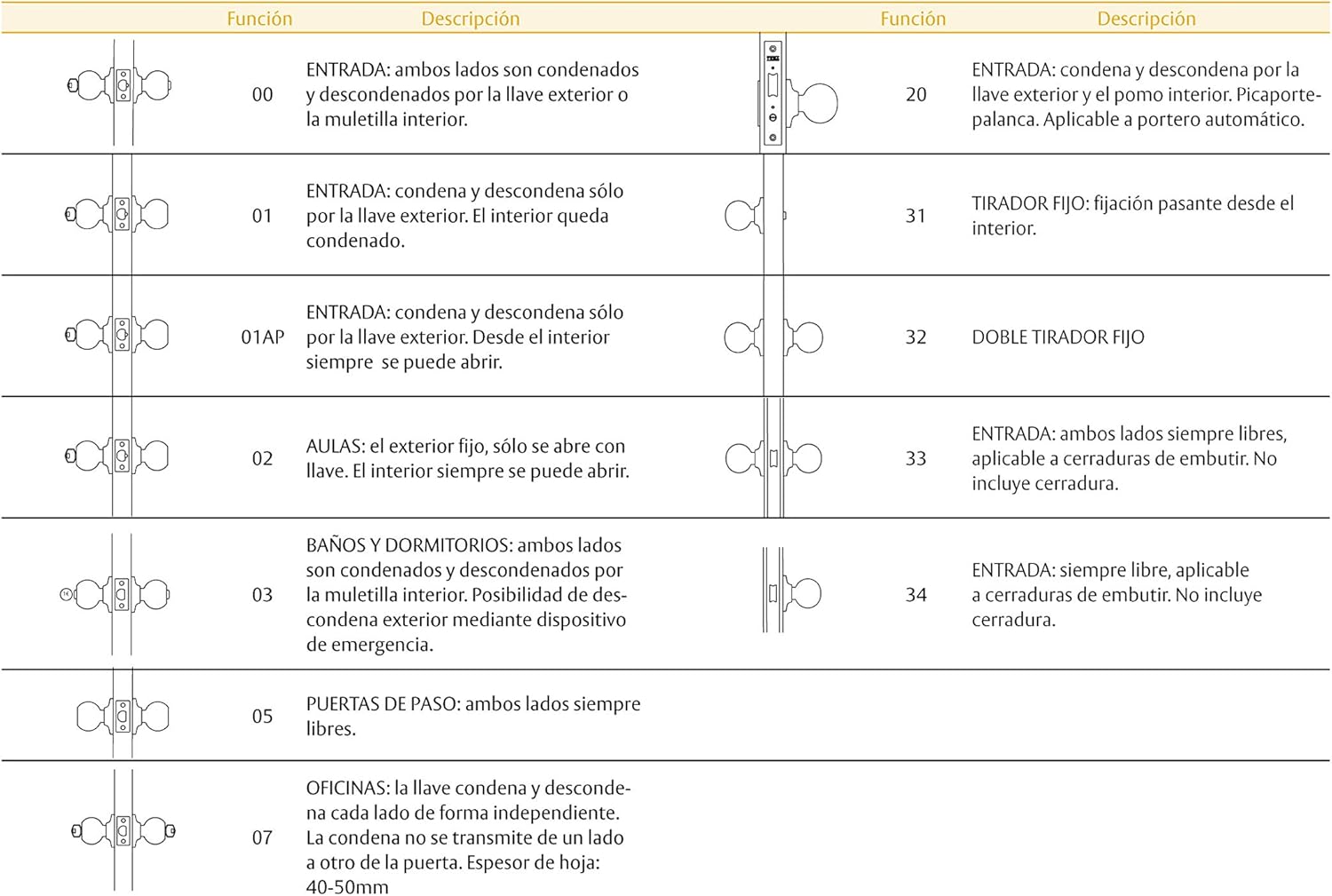

Image: Diagram illustrating different door knob functions, specifically highlighting Function 01 (input) where the exterior key controls locking and unlocking, and the interior remains locked.
Manteniment
- Neteja: Clean the door knob surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals, as these can damage the enamelled steel finish.
- Lubricació: Periodically apply a small amount of graphite lubricant or a silicone-based spray to the latch mechanism and keyway to ensure smooth operation. Do not use oil-based lubricants as they can attract dust and debris.
- Inspecció: Regularly check all screws and fasteners to ensure they are tight. Loose components can affect the security and functionality of the door knob.
Resolució de problemes
- Knob is stiff or hard to turn: Apply lubricant to the latch mechanism and keyway. Check for any obstructions in the latch bolt path. Ensure mounting screws are not overtightened.
- Key does not turn smoothly: Apply graphite lubricant to the keyway. Ensure the key is fully inserted and is the correct key for the lock.
- Door does not latch properly: Check the alignment of the strike plate on the door frame. Adjust if necessary. Ensure the latch bolt is extending fully.
- Knob feels loose: Tighten the mounting screws evenly. Do not overtighten.
Garantia i Suport
For information regarding warranty coverage or technical support for your Tesa Assa Abloy Tuipa 3501U0AE door knob set, please refer to the manufacturer's official weblloc web o poseu-vos en contacte amb el seu departament d'atenció al client. Conserveu el rebut de compra com a comprovant de compra.
