Introducció
Welcome to your new Fancii Small Personal Desk USB Fan. This manual provides essential information for the safe and efficient operation of your fan. Please read it thoroughly before use and retain it for future reference.
Producte acabatview
The Fancii FC-TTUF300 is a compact, portable USB-powered fan designed to provide personal cooling with quiet operation.
Característiques clau
- Twin turbo Cyclone-Blade technology provides maximum airflow to keep you cool anywhere, anytime.
- 25% quieter and 40% more powerful than similar models | Max. airflow up to 4.2m/s.
- Small, portable and lightweight personal fan perfect for use in home, office, desktop, camping, o viatjar.
- Experience cooling air circulation in any desired direction with 180 degree tilt rotation.
- USB powered for convenience and portability | 2 speed settings with touch control for Low/High.
Contingut del paquet
- Fancii Small Personal Desk USB Fan (FC-TTUF300)
- Cable de càrrega USB
- Manual d'instruccions
Diagrama del producte
Figura 1: Frontal view of the Fancii FC-TTUF300 fan with approximate dimensions (117mm height, 112mm width).
Figura 2: Intern view highlighting the twin turbo blades and touch control icons for speed settings.
Configuració
Carregant el ventilador
The Fancii FC-TTUF300 is powered via a USB port.
- Locate the USB charging port on the back of the fan.
- Connect the provided USB cable to the fan's charging port.
- Connecteu l'altre extrem del cable USB a una font d'alimentació USB compatible (per exemple, un ordinador, un adaptador de paret USB o un carregador extern).
- The fan is fully charged when the charging indicator light changes (refer to the operating section for specific indicator behavior).
Figure 3: Connecting the USB charging cable to the fan.
Funcionament
Engegada/Apagada i Ajust de Velocitat
The fan features touch controls for easy operation.
- Per engegar el ventilador ON, gently touch the power button located on the top of the fan.
- To adjust the fan speed, touch the speed control button. The fan has 2 speed settings: Low and High.
- Per engegar el ventilador OFF, torna a tocar el botó d'engegada.
Figure 4: The Fancii FC-TTUF300 fan operating quietly in an office environment.
Ajust de la direcció del flux d'aire
The fan head can be tilted 180 degrees to direct airflow precisely where needed.
- Gently hold the fan body.
- Tilt the fan head up or down to achieve the desired angle.

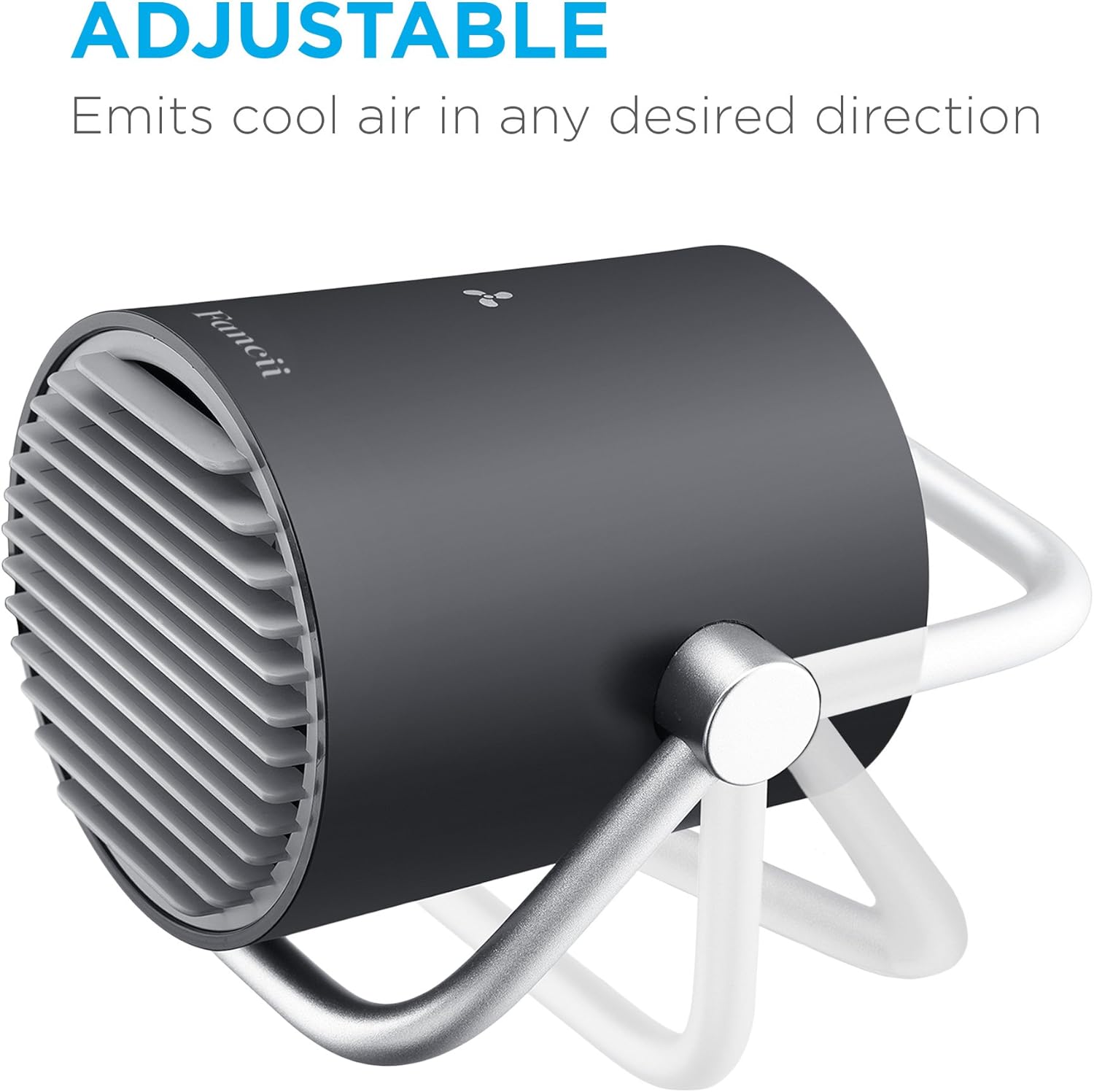

Figure 5: Adjusting the 180-degree tilt of the fan head.
Portabilitat
The compact and lightweight design makes the fan easy to move and position.
Figure 6: The fan's compact size allows for easy portability.
Manteniment
Neteja
To ensure optimal performance and longevity, regular cleaning is recommended.
- Ensure the fan is turned OFF and unplugged from any power source before cleaning.
- Use a soft, dry cloth to wipe down the exterior surfaces of the fan.
- Per a la brutícia persistent, una mica deamp cloth can be used, but ensure no water enters the fan's internal components.
- Do not use abrasive cleaners, solvents, or harsh chemicals, as these may damage the fan's finish.
Emmagatzematge
Quan no l'utilitzeu durant períodes prolongats, guardeu el ventilador en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
Resolució de problemes
El ventilador no s'encén
- Check if the fan is fully charged. Connect it to a USB power source and allow it to charge for a few hours.
- Assegureu-vos que el botó d'encesa estigui premut amb fermesa.
Flux d'aire feble
- Check the speed setting and increase it if necessary.
- Ensure the fan's intake and exhaust vents are not obstructed.
- Netegeu la pols o les restes de les aspes i les reixetes del ventilador.
Soroll inusual
- Assegureu-vos que el ventilador estigui col·locat sobre una superfície plana i estable.
- Comproveu si hi ha objectes estranys que obstrueixin les aspes del ventilador.
- Si el soroll persisteix, interrompeu l'ús i poseu-vos en contacte amb el servei d'atenció al client.
Especificacions
| Característica | Detall |
|---|---|
| Marca | Fancii |
| Nom del model | FC-TTUF300 |
| Color | Negre |
| Font d'alimentació | Port USB alimentat |
| Dimensions del producte | 3.94 "P x 4.72" W x 3.94" H |
| Pes de l'article | 7.9 unces (225 grams) |
| Nivell de soroll | 30 decibels |
| Mètode de control | Toca |
| Nombre de fulles | 3 |
| Voltage | 5 Volts |
| Wattage | 5 watts |
| Longitud del cable | 165.35 polzades |
| Característica especial | Lleuger, portàtil |
Garantia i Suport
For warranty information or technical support, please refer to the contact details provided on the product packaging or visit the official Fancii weblloc web. Conserveu el rebut de compra com a comprovant de compra.
For further assistance, you may also contact Fancii customer service directly.
