1. Introducció
Thank you for choosing the Duravit Luv Washbowl, Model 038060. This ceramic washbowl is designed for modern bathrooms, offering both aesthetic appeal and functionality. This manual provides important information regarding the safe installation, proper use, and effective maintenance of your new washbowl. Please read these instructions carefully before beginning installation or use, and retain them for future reference.

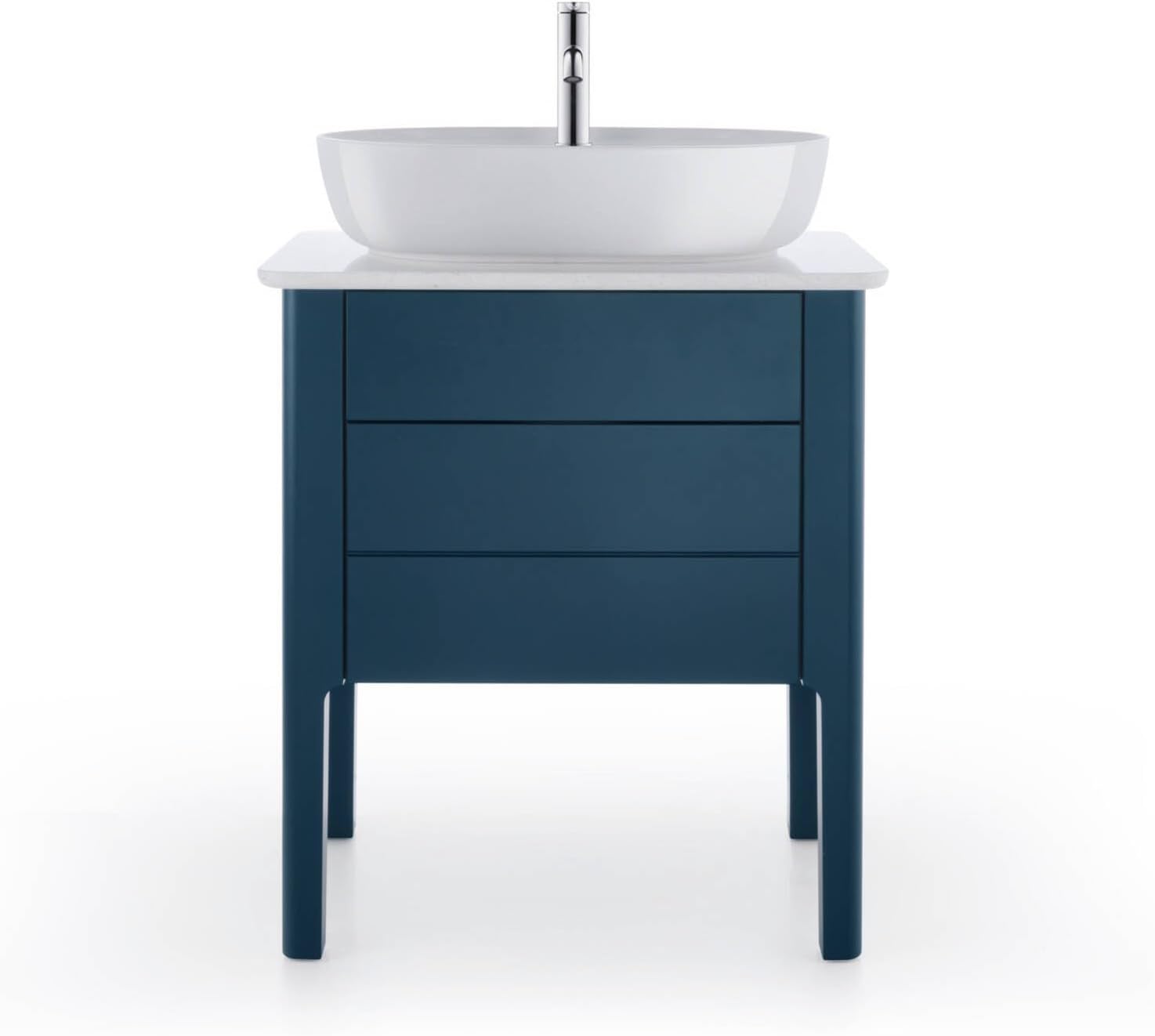

Image 1.1: The Duravit Luv Washbowl (Model 038060) in a typical bathroom setting, showcasing its elegant design and integration with a vanity.
2. Informació de seguretat
Always observe basic safety precautions when installing or maintaining plumbing fixtures. Failure to follow these instructions could result in property damage, personal injury, or void the product warranty.
- Instal·lació professional recomanada: Installation of this washbowl should ideally be performed by a qualified plumber or a certified professional to ensure correct setup and compliance with local plumbing codes.
- Manejar amb cura: Ceramic is a fragile material. Handle the washbowl carefully to prevent chipping, cracking, or breakage. Do not drop or subject it to heavy impact.
- Subministrament d'aigua: Ensure the main water supply is turned off before commencing any installation work to prevent leaks or flooding.
- Eines adequades: Use appropriate tools for installation. Avoid overtightening connections, which can damage the washbowl or plumbing.
- Ventilació: Ensure adequate ventilation when using sealants or adhesives during installation.
- Pes: The washbowl has a significant weight (approximately 22.7 pounds). Use proper lifting techniques or seek assistance to avoid injury.
3. Contingut del paquet
Upon unpacking, please verify that all components are present and undamaged. If any parts are missing or damaged, contact your retailer or Duravit customer service immediately.
- Duravit Luv Washbowl (Model 038060)
- Mounting Hardware (as supplied by manufacturer)
Note: Faucet, drain assembly, and vanity are sold separately unless specified otherwise by your retailer.
4. Configuració i instal·lació
This section provides general guidelines for installing the Duravit Luv Washbowl. Specific installation methods may vary depending on your vanity type (e.g., countertop, wall-mounted) and local plumbing configurations. Always refer to the detailed technical drawings and consult a professional if unsure.
4.1 Passos previs a la instal·lació
- Inspect the Washbowl: Before installation, carefully inspect the washbowl for any visible defects or damage. Do not install a damaged product.
- Prepareu l'àrea d'instal·lació: Ensure the countertop or vanity surface is clean, level, and structurally sound to support the washbowl's weight.
- Recollida d'eines: Have all necessary tools ready, including wrenches, sealant, measuring tape, level, and safety gear.
- Review Dimensions: Consult the dimension diagram to ensure proper placement and clearance for plumbing connections.
Image 4.1: Technical drawing illustrating the dimensions and installation clearances for the Duravit Luv Washbowl.
4.2 General Installation Procedure (Surface Mounted)
- Posicionament: Carefully place the washbowl on the desired location on the countertop. Mark the outline and the drain hole position.
- Forats (si cal): If your countertop does not have pre-drilled holes for the drain or faucet, carefully drill them according to the manufacturer's template and the dimension diagram.
- Instal·leu el conjunt de drenatge: Install the drain assembly into the washbowl's drain hole, following the drain manufacturer's instructions. Ensure a watertight seal using plumber's putty or silicone sealant.
- Aplicar segellador: Apply a bead of silicone sealant around the bottom edge of the washbowl where it will contact the countertop.
- Set the Washbowl: Carefully lower the washbowl onto the sealant, aligning it with the marked position. Press down firmly to ensure good adhesion.
- Connecteu la fontaneria: Connect the drain assembly to the P-trap and the water supply lines to the faucet (if applicable). Ensure all connections are hand-tightened, then gently snugged with a wrench. Do not overtighten.
- Prova de fuites: Turn on the main water supply slowly and check all connections for leaks. Run water into the washbowl and observe the drain for any drips.
- Cure Sealant: Allow the sealant to cure completely as per the sealant manufacturer's instructions before using the washbowl.
Imatge 4.2: Ex.ample of the Duravit Luv Washbowl installed on a vanity, demonstrating a finished setup.
5. Instruccions de funcionament
The Duravit Luv Washbowl is designed for standard bathroom use. Its operation is straightforward:
- Flux d'aigua: Use the faucet handles to control the water temperature and flow rate.
- Drenatge: The washbowl is equipped with a standard drain opening. Ensure the pop-up or grid drain is functioning correctly to allow water to drain or retain water as needed.
- Eviteu productes químics durs: Do not pour harsh chemicals, paints, or abrasive materials down the drain, as this can damage the ceramic finish or the plumbing system.
6. Manteniment i cura
Proper care will ensure the longevity and pristine appearance of your Duravit Luv Washbowl. Ceramic is durable but requires gentle cleaning.
- Neteja regular: Wipe the washbowl with a dry, soft cloth after each use to prevent water spots and soap scum buildup.
- Neteja suau: For deeper cleaning, use a mild, non-abrasive liquid cleaner and a soft sponge or cloth. Rinse thoroughly with clean water and dry immediately.
- Eviteu els abrasius: Do not use abrasive cleaners, scouring pads, steel wool, or harsh chemical cleaners (e.g., strong acids, alkalis, or bleach-based products) as these can damage the ceramic glaze.
- Eliminació de taques: For stubborn stains, a diluted solution of vinegar or lemon juice can be used, followed by thorough rinsing. Test on an inconspicuous area first.
- Prevent Hard Water Stains: In areas with hard water, regular cleaning is crucial to prevent mineral deposits. A diluted vinegar solution can help dissolve existing deposits.
- Drain Care: Periodically clean the drain stopper and surrounding area to prevent buildup and ensure proper drainage.
7. Solució De Problemes
This section addresses common issues you might encounter with your washbowl. For problems not listed here, or if solutions do not resolve the issue, contact a qualified plumber or Duravit customer support.
| Problema | Causa possible | Solució |
|---|---|---|
| Drenatge lent | Acumulació de cabells o restes al desguàs. | Remove and clean the drain stopper. Use a drain snake or a mild drain cleaner (avoid harsh chemicals). |
| Leaks around the drain or faucet base | Connexions soltes o juntes desgastades. | Check and tighten all plumbing connections. Replace worn washers or O-rings. Reapply plumber's putty or silicone sealant if necessary. |
| Taques d'aigua o acumulació de minerals | Dipòsits d'aigua dura. | Clean regularly with a soft cloth and a mild cleaner. For stubborn spots, use a diluted vinegar solution, then rinse thoroughly. |
| Chipped or cracked ceramic | Impact damage. | Ceramic damage is typically not repairable. Replacement may be necessary. Contact your retailer or Duravit for options. |
8. Especificacions
The following specifications apply to the Duravit Luv Washbowl, Model 038060:
- Marca: Duravit
- Número de model: 038060
- Color: Blanc
- Material: Ceràmica
- Dimensions del producte (P x A x A): 5.5" x 23.63" x 5.5" (approximately 140mm x 600mm x 140mm)
- Estil: americà
- Tipus d'instal·lació: Undermount (though often used as a vessel/washbowl)
- Tipus d'acabat: Blanc
- Forma: Oval
- Tipus de drenatge: Desplegable (compatible)
- Pes de l'article: 22.7 lliures (aproximadament 10.3 kg)
- Recompte de forats: 1 (for drain)
- Components inclosos: Washbowl, Hardware
9. Garantia i Suport
For warranty information, please refer to the documentation provided at the time of purchase or visit the official Duravit weblloc. Els termes de la garantia solen cobrir els defectes de fabricació i varien segons la regió i el distribuïdor.
If you require technical assistance, have questions about installation, or need to report a product issue, please contact your authorized Duravit retailer or Duravit customer service directly. When contacting support, please have your product model number (038060) and proof of purchase readily available.
Duravit Official Weblloc: www.duravit.com
