1. Introducció
This manual provides detailed instructions for the installation, operation, and maintenance of your Blackweb BWA17AV015 HDMI 4K 4-Way Splitter. This device is designed to distribute a single HDMI input signal to up to four high-definition display devices simultaneously. It supports various source devices such as DVD players, Blu-ray players, satellite receivers, set-top boxes, DV cameras, A/V receivers, and other HDMI-enabled video products.
2. Contingut del paquet
Si us plau, reviseu atentament el contingut del paquet. Si falta algun article o hi ha algun dany, poseu-vos en contacte amb el vostre distribuïdor.
- Negreweb BWA17AV015 HDMI 4K 4-Way Splitter Unit
- Adaptador de corrent continu de 5 V
- Manual d'usuari
3. Producte acabatview
El Negreweb BWA17AV015 HDMI 4K 4-Way Splitter features one HDMI input and four HDMI outputs, allowing for simultaneous display on multiple screens. It is housed in a compact black casing.

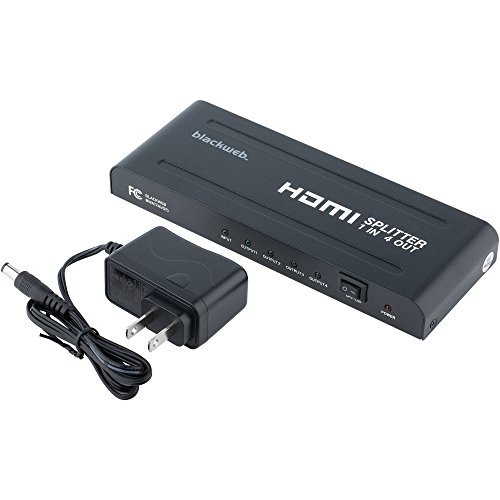

Figura 1: frontal i posterior View del Negreweb BWA17AV015 HDMI 4K 4-Way Splitter. The image shows the compact black unit with various ports. The front typically includes status indicators, while the rear features the HDMI input, four HDMI outputs, and the power input.
3.1 Tauler frontal
- LED d'alimentació: S'il·lumina quan el dispositiu està encès.
- LED d'entrada: S'il·lumina quan es detecta un senyal d'entrada HDMI.
- Output LEDs (1-4): Illuminates when an HDMI output device is connected and receiving a signal.
3.2 Panell posterior
- Entrada HDMI: Connecteu el dispositiu font HDMI (per exemple, un reproductor de Blu-ray o una consola de jocs).
- HDMI OUT (1-4): Connect up to four HDMI display devices (e.g., TVs, monitors).
- CC 5V: Connect the provided 5V DC power adapter.
4. Instruccions de configuració
Segueix aquests passos per configurar el teu divisor HDMI:
- Apagueu els dispositius: Ensure all HDMI source devices and display devices are powered off before making connections.
- Connecteu la font HDMI: Connect one end of an HDMI cable (not included) to the HDMI output of your source device (e.g., DVD player, set-top box) and the other end to the Entrada HDMI port al divisor.
- Connecteu pantalles HDMI: Connect one end of an HDMI cable (not included) to an SORTIDA HDMI port on the splitter and the other end to the HDMI input of your display device (e.g., TV, monitor). Repeat this step for up to four display devices.
- Connectar l'alimentació: Connect the provided 5V DC power adapter to the DC 5V port on the splitter, then plug the adapter into a standard electrical outlet. The Power LED on the splitter should illuminate.
- Dispositius d'encesa: Power on your HDMI display devices first, then power on your HDMI source device.
- Verifica el senyal: Check that the video and audio signals are displayed correctly on all connected screens. The Input LED and corresponding Output LEDs should be illuminated.
Nota: Use high-quality HDMI cables for optimal performance, especially for 4K resolutions and longer cable runs.
5. Instruccions de funcionament
Once properly set up, the Blackweb BWA17AV015 HDMI 4K 4-Way Splitter operates automatically.
- Automatic Signal Distribution: The splitter will automatically detect the HDMI input signal and distribute it to all connected and powered-on HDMI output devices.
- Suport a la resolució: The splitter supports various HDMI resolutions, including 4K (3840x2160) and 1080p. The output resolution will be determined by the lowest common resolution supported by all connected display devices.
- Suport d'àudio: The splitter passes through various audio formats supported by HDMI.
No additional user interaction is typically required after initial setup.
6. Solució De Problemes
Si teniu problemes, consulteu la guia de resolució de problemes següent:
| Problema | Possible causa/solució |
|---|---|
| No picture or sound on display(s). |
|
| Picture quality is poor or flickering. |
|
| Only some displays show a picture. |
|
7. Especificacions
The following are the technical specifications for the Blackweb BWA17AV015 HDMI 4K 4-Way Splitter:
- Model: BWA17AV015
- Dimensions del producte: 7.6 x 3.3 x 0.7 polzades
- Pes de l'article: 12.8 unces
- Color: Negre
- Tipus de connector: HDMI
- Tipus de cable: HDMI
- Entrada: 1x HDMI
- Sortida: 4x HDMI
- Resolucions suportades: Up to 4K (3840x2160)
- Font d'alimentació: 5V CC (adaptador inclòs)
- Dispositius compatibles: Blu-Ray Player, Camera, DVD Player, Satellite Receiver, Set-Top Box, A/V Receiver, etc.
8. Manteniment
To ensure the longevity and optimal performance of your HDMI splitter, follow these maintenance guidelines:
- Neteja: Feu servir un drap suau i sec per netejar l'exterior de la unitat. No utilitzeu netejadors líquids ni aerosols.
- Medi ambient: Mantingueu el dispositiu en un lloc fresc i sec, allunyat de la llum solar directa, de fonts de calor i de la humitat.
- Ventilació: Assegureu-vos que hi hagi una ventilació adequada al voltant de la unitat per evitar el sobreescalfament. No bloquegeu cap obertura de ventilació.
- Manipulació: Eviteu deixar caure la unitat ni sotmetre-la a impactes forts.
9. Informació de seguretat
Please read and follow these safety precautions to prevent damage to the unit and ensure your safety:
- Do not expose this unit to water or excessive moisture.
- Do not attempt to open or modify the unit. There are no user-serviceable parts inside.
- Use only the provided power adapter. Using an incorrect power adapter may damage the unit and void the warranty.
- Keep the unit away from sources of heat, such as radiators, heat registers, stoves, or other heat-producing appliances.
- Desendolleu la unitat durant les tempestes llamps o quan no l'utilitzeu durant llargs períodes.
10. Garantia i Suport
For warranty information or technical support, please refer to the documentation included with your purchase or contact Blackweb customer service. Keep your proof of purchase for warranty claims.
Nota: Specific warranty terms and conditions may vary by region and retailer.
