7artisans 25mm F1.8 APS-C Manual Focus Fixed Lens Instruction Manual

1. Producte acabatview

The 7artisans 25mm F1.8 APS-C Manual Focus Fixed Lens is a compact and lightweight prime lens designed for Fujifilm X-mount cameras. It features a bright F1.8 maximum aperture, making it suitable for low-light photography and creating images with shallow depth of field. The lens construction includes 7 elements in 5 groups, ensuring optical quality. Its all-aluminum body and copper core contribute to its durability and portability.

Característiques principals:

• Disseny òptic: 7 elements in 5 groups.
• Interval d'obertura: F/1.8 to F16, with 12 diaphragm blades for smooth bokeh.
• Construcció: Durable aluminum body with a copper core.
• Mida compacta: Lightweight at approximately 143g (0.31oz).
• Compatibilitat: Specifically designed for Fujifilm APS-C X-mount cameras. Not suitable for full-frame cameras unless used in APS-C mode.

2. Contingut del paquet

Si us plau, comproveu el contingut del paquet en rebre'l per assegurar-vos que hi hagi tots els elements:

• 7artisans 25mm F1.8 APS-C Manual Focus Fixed Lens
• Tap de l'objectiu frontal
• Tap de la lent posterior
• Manual d'usuari (aquest document)

3. Identificació de peces

Familiarize yourself with the different parts of your 7artisans 25mm F1.8 lens:

Figura 3.1: lateral view of the 7artisans 25mm F1.8 lens, highlighting the focus ring (top) and aperture ring (bottom) with their respective markings for distance (feet/meters) and f-stops (F1.8 to F16).

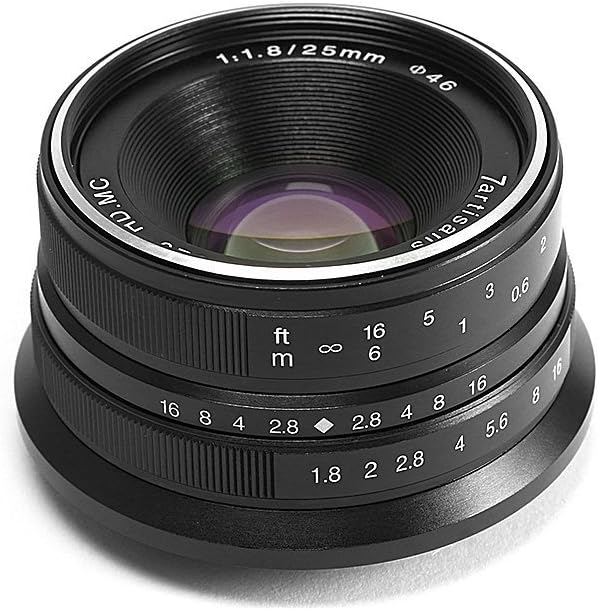

Figura 3.2: Davant view of the 7artisans 25mm F1.8 lens, showing the front element, filter thread (Φ46), and lens markings including '7artisans', '1:1.8/25mm', and 'HD.MC'.

4. Configuració

4.1 Muntatge de l'objectiu

1. Assegureu-vos que la càmera estigui apagada.
2. Remove the rear lens cap from the 7artisans 25mm F1.8 lens and the body cap from your camera.
3. Alineeu el punt vermell de l'objectiu amb el punt vermell corresponent a la muntura de l'objectiu de la càmera.
4. Introduïu suaument l'objectiu a la muntura de la càmera i gireu-lo en sentit horari fins que encaixi. No forceu l'objectiu.
5. Replace the front lens cap when not in use to protect the front element.

Figura 4.1: The 7artisans 25mm F1.8 lens correctly mounted on a Fujifilm X-mount camera body.

4.2 Full-Frame Camera Usage

This lens is designed for APS-C sensors. If you are using a full-frame camera, it is essential to change your camera's settings to APS-C mode (also known as crop mode) to avoid vignetting and ensure optimal image quality. Refer to your camera's instruction manual for specific steps on how to activate APS-C mode.

5. Instruccions de funcionament

The 7artisans 25mm F1.8 is a fully manual lens, requiring manual adjustment of both focus and aperture.

5.1 Enfocament manual

• To adjust focus, rotate the focus ring (the ring closer to the camera body) until your subject appears sharp in the viewfinder or on the LCD screen.
• Many modern mirrorless cameras offer focus peaking and magnification features to assist with precise manual focusing. It is highly recommended to enable these features for best results.
• The focus distance scale (in feet and meters) on the lens can be used for zone focusing or pre-focusing.

5.2 Ajust de l'obertura

• The aperture ring (the outer ring) allows you to control the amount of light entering the lens and the depth of field.
• Rotate the aperture ring to select your desired f-stop, ranging from F1.8 (widest aperture) to F16 (narrowest aperture).
• The lens features 12 diaphragm blades, which contribute to a smooth and pleasing bokeh (background blur) at wider apertures.

Figura 5.1: Illustration of the 12-blade aperture design, which helps create smooth out-of-focus areas.

5.3 Configuració d'exposició

Since this is a manual lens, you will need to set your camera to Manual (M) mode or Aperture Priority (A) mode. In Aperture Priority mode, you set the aperture on the lens, and the camera will automatically select the appropriate shutter speed. In Manual mode, you control both aperture and shutter speed, and ISO.

6. Manteniment

Una cura i un manteniment adequats allargaran la vida útil i el rendiment de la vostra lent.

• Neteja de la lent: Use a soft, lint-free microfiber cloth specifically designed for optics to clean the lens elements. For stubborn smudges, use a small amount of lens cleaning fluid applied to the cloth, not directly to the lens. Use a blower brush to remove dust particles before wiping.
• Emmagatzematge: Store the lens in a dry, cool place away from direct sunlight and extreme temperatures. Always attach both front and rear lens caps when the lens is not in use. Consider using a desiccant pack in humid environments to prevent mold growth.
• Manipulació: Avoid dropping or subjecting the lens to strong impacts. When changing lenses, do so in a clean environment to prevent dust from entering the camera body or settling on the lens elements.

7. Solució De Problemes

If you encounter issues with your lens, refer to the following common solutions:

8. Especificacions

Detailed technical specifications for the 7artisans 25mm F1.8 lens:

9. Vídeo oficial del producte

Watch the official product video for a visual guide on the 7artisans 25mm F1.8 lens:

10. Garantia i Suport

For warranty information, technical support, or service inquiries, please contact 7artisans customer service through their official website or the retailer from whom you purchased the product. Please retain your proof of purchase for warranty claims.
