The Norco 78099 Heavy Duty 4 Point Engine Support Tool is designed for securely supporting vehicle engines during maintenance or removal of other components like transmissions or subframes. This tool mounts onto the vehicle's shock strut towers, providing stable support. It is engineered to accommodate various engine sizes and vehicle configurations through its adjustable features.

Key features include fully adjustable strut tower mounts that can span up to 47-1/2 inches, two front support adapters for flexible positioning, and three 1/2-inch diameter hooks, 14 inches long, with spin knobs for precise and strong engine support.

Informació de seguretat

Always read and understand all instructions and warnings before using this equipment. Failure to follow these instructions may result in serious injury or property damage.

• Ensure the vehicle is on a level, stable surface and properly secured before beginning any work.
• Never exceed the rated load capacity of the engine support tool.
• Verify all connections and adjustments are secure before applying load.
• Utilitzeu l'equip de protecció individual (EPI) adequat, incloent-hi ulleres i guants de seguretat.
• Keep hands and other body parts clear of pinch points and moving parts.
• Do not modify the equipment. Use only genuine Norco replacement parts.

Muntatge i muntatge

The Norco 78099 engine support tool requires assembly before use. Follow these steps:

1. Desempaquetar components: Carefully remove all parts from the packaging. Verify all components are present and undamaged. Refer to the parts list (if provided separately) to ensure completeness.
2. Assemble Transverse Bar: Connect the sections of the transverse support bar if it comes in multiple pieces. Ensure all fasteners are tightened securely.
3. Attach Strut Tower Mounts: Slide the adjustable strut tower mounts onto the transverse support bar. These mounts can be positioned up to 47-1/2 inches apart to fit various vehicle widths. Secure them loosely for initial adjustment.
4. Install Front Support Adapters: If required for heavier engines or specific configurations, attach the two front support adapters to the transverse support bar. These can be adjusted to suit the engine compartment.
5. Enganxeu ganxos: Insert the three 1/2-inch diameter, 14-inch long hooks into their designated positions on the support structure. Use the spin knobs to secure and adjust their length.
6. Col·locació inicial: Position the assembled tool over the vehicle's engine bay, resting the strut tower mounts on the vehicle's shock strut towers. Adjust the width of the mounts to fit snugly and securely on the towers.
7. Muntatges segurs: Once positioned correctly, tighten the fasteners on the strut tower mounts to firmly secure them to the transverse bar.

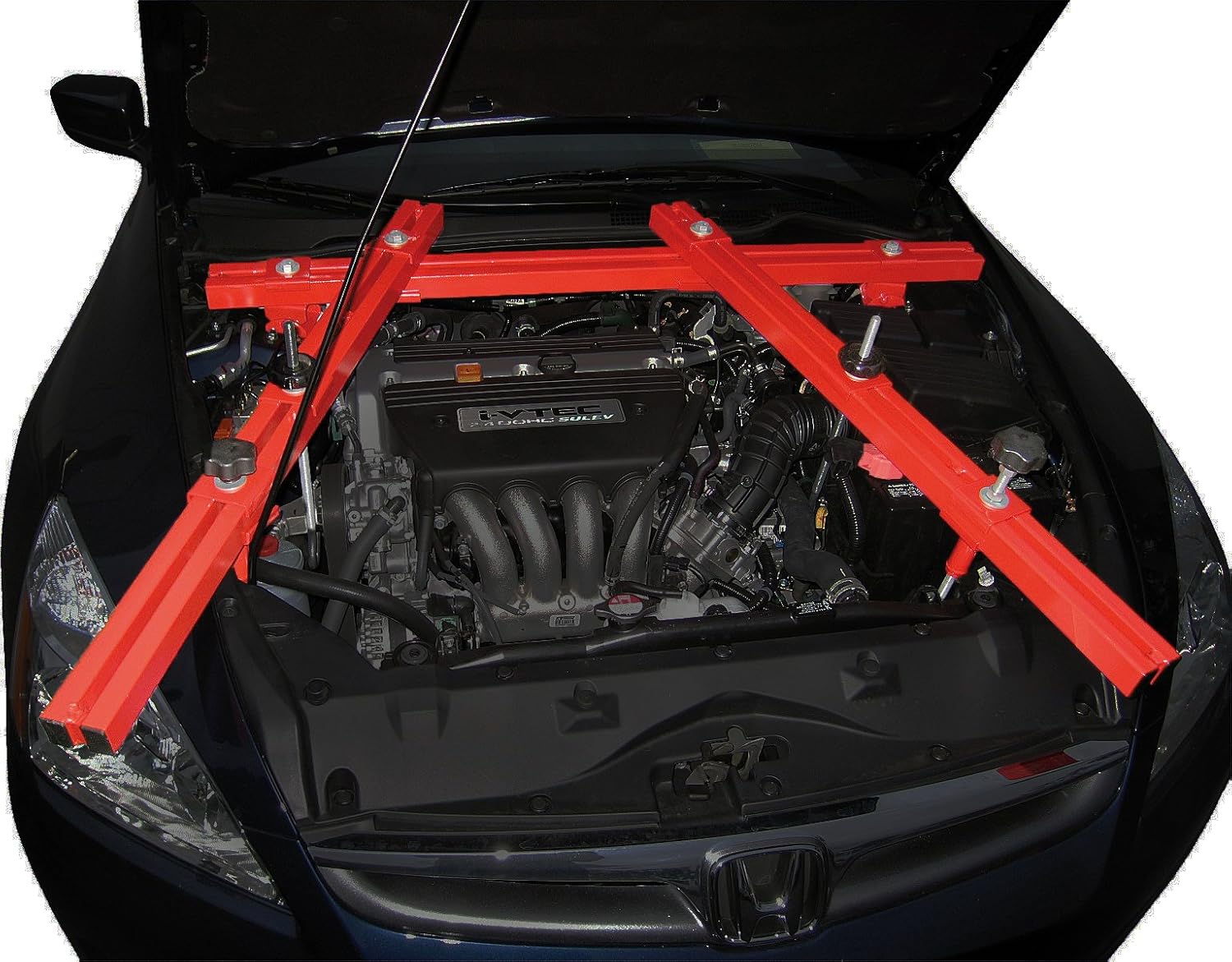

Descripció de la imatge: Una sobrecàrrega view of a red Norco 78099 4-point engine support tool installed on the engine bay of a dark-colored car. The tool consists of a main transverse bar spanning across the engine bay, with two angled support bars extending forward and outward to rest on the vehicle's strut towers. Adjustable hooks with spin knobs are visible, ready to connect to the engine for support. The car's hood is open, revealing the engine components beneath the support tool.

Instruccions de funcionament

Once the engine support tool is securely set up on the vehicle, follow these steps to support the engine:

1. Identify Engine Lift Points: Consult the vehicle's service manual to identify the appropriate and safe lifting points on the engine.
2. Connect Hooks: Attach the hooks of the engine support tool to the designated engine lift points. Ensure a secure connection.
3. Adjust Support: Use the spin knobs on the hooks to carefully raise or lower the engine until the desired support level is achieved. The goal is to relieve pressure from engine mounts or to hold the engine in a specific position.
4. Verifica l'estabilitat: Before proceeding with any work, double-check that the engine is stable and securely supported by the tool. Ensure there is no excessive movement or strain on any part of the tool or engine.
5. Perform Work: With the engine safely supported, you can now proceed with transmission removal, subframe work, or other engine-related maintenance.
6. Release Engine: Once work is complete, carefully reverse the adjustment process using the spin knobs to lower the engine back onto its mounts. Disconnect the hooks and remove the support tool from the vehicle.

Manteniment

Proper maintenance ensures the longevity and safe operation of your Norco engine support tool:

• Inspecció periòdica: Before each use, inspect the tool for any signs of damage, wear, or deformation. Check all welds, fasteners, hooks, and adjustment mechanisms.
• Neteja: Keep the tool clean and free from dirt, grease, and corrosive materials. Wipe down surfaces with a clean cloth after use.
• Lubricació: Periodically lubricate moving parts and threaded sections of the spin knobs with a light machine oil to ensure smooth operation.
• Emmagatzematge: Store the engine support tool in a dry, clean environment when not in use. Avoid exposing it to extreme temperatures or harsh chemicals.
• Parts danyades: If any part of the tool is damaged or worn, discontinue use immediately and replace the affected components with genuine Norco parts. Do not attempt to repair damaged structural components.

Resolució de problemes

This section addresses common issues that may arise during the use of the engine support tool.

• Tool does not fit vehicle:
  • Ensure the strut tower mounts are fully extended or retracted to match the vehicle's width (up to 47-1/2 inches).
  • Verify the tool is compatible with your specific vehicle model.
• Engine not stable after support:
  • Re-check all connections, including strut tower mounts and hooks, for tightness.
  • Ensure the engine's center of gravity is properly balanced and supported.
  • Verify the vehicle is on a level surface and stable.
• Spin knobs are difficult to turn:
  • Clean any dirt or debris from the threads.
  • Apply a light lubricant to the threaded sections.
  • Ensure no excessive load is being applied that could bind the threads.

Especificacions

Note: The "Load Capacity" listed in some product specifications as 52 Pounds appears to refer to the tool's own weight. The tool is designed to support engines, which are significantly heavier. Always refer to the manufacturer's official documentation for the actual maximum engine support capacity.

Garantia i Suport

For warranty information, technical support, or to order replacement parts, please contact Norco Professional Lifting Equipment directly.

• Fabricant: NORCO Industries, Inc.
• Weblloc: www.norcoind.com (This is a placeholder URL, as no specific support URL was provided in the input. Users should verify the official weblloc.)
• Atenció al client: Consulteu el fabricant weblloc web o l'embalatge del producte per obtenir les dades de contacte actuals.

Si us plau, tingueu a mà el número de model (78099) i la data de compra quan us poseu en contacte amb el servei d'assistència.
