Weiser Camino and Halifax Entry Lever Featuring SmartKey, Satin Nickel User Manual

1. Producte acabatview

The Weiser San Clemente handleset, featuring the Camino and Halifax levers, offers a sleek, modern aesthetic for your home's entry. Designed with clean lines and a durable Satin Nickel finish, this handleset enhances both security and style. It includes an adjustable screw for easy door mounting and a guaranteed fit, accommodating various standard door preparations. The handleset can be securely locked or unlocked using a key from the exterior or a key/turnpiece from the interior. Its crisp, clean appearance complements modern homes and offices.

Característiques principals:

• Designed for exterior doors requiring keyed entry and enhanced security.
• Incorporates SmartKey re-key technology, allowing you to re-key the lock in seconds with three simple steps.
• Compta amb un baix profile 1/2 inch exterior depth for a contemporary and streamlined look.
• Equipped with an adjustable latch to ensure compatibility with all standard door preparations.
• Amb una garantia mecànica i d'acabats de per vida.
• Contemporary styling suitable for modern homes, offices, and other settings.

Figura 1: Frontal view of the Weiser Camino and Halifax Entry Lever handleset in Satin Nickel on an exterior door.

2. Configuració i instal·lació

Eines necessàries:

• Tornavís Phillips
• Cinta mètrica
• Llapis (per marcar)

Passos d'instal·lació:

1. Prepara la porta: Ensure your door is properly prepared with standard bore holes for a handleset. The adjustable latch is designed to fit common door preparations.
2. Instal·leu el tancament: Insert the latch into the door edge. The handleset features an adjustable latch to fit standard door preparations. Secure it with the provided screws.
3. Mount the Exterior Handleset: Align the exterior handleset with the latch and the lower through-bolt hole. The low-profile design ensures a sleek fit.
4. Instal·leu la palanca interior: Attach the interior lever assembly, ensuring the spindle engages correctly with the latch mechanism.
5. Secure the Handleset: Fasten the interior and exterior components together using the provided screws. Ensure all connections are snug but do not overtighten.
6. Instal·leu la placa de tancament: Munteu la placa del contrapeu al marc de la porta, alineant-la amb el forrellat.

Figura 2: lateral view illustrating the handleset components and their placement on the door edge during installation.

Figura 3: Esquena view showing the internal mechanism and screw points of the handleset on the door edge.

Disseny reversible:

The Weiser Camino and Halifax Entry Lever features a reversible design, allowing it to be installed on both right-handed and left-handed doors. This flexibility ensures compatibility with various door configurations.

Figure 4: Diagram illustrating the reversible design of the handleset, suitable for both left-handed and right-handed door installations.

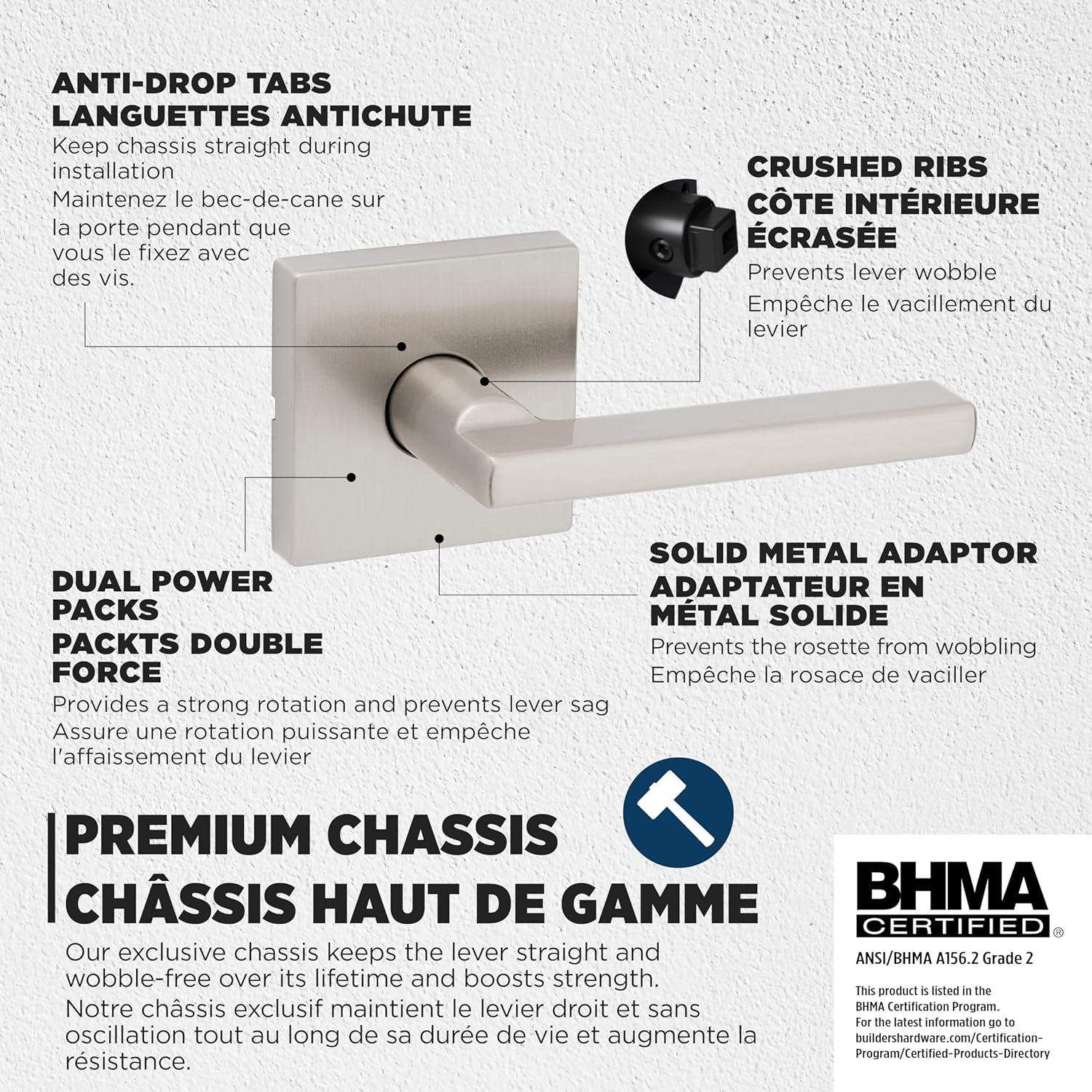

Figure 5: Detailed diagram of the handleset's internal components, highlighting features such as anti-drop tabs, crushed ribs, dual power packs, solid metal adaptor, and premium chassis for enhanced durability and stability.

3. Instruccions de funcionament

Bloqueig i desbloqueig:

• Des de l'exterior: Insert the key into the keyway and turn to lock or unlock the handleset.
• Des de l'interior: Use the turnpiece to lock or unlock the handleset.

SmartKey Re-key Technology:

The Weiser handleset features SmartKey re-key technology, allowing you to re-key your lock in seconds without removing it from the door. This is useful for situations such as moving into a new home, losing keys, or managing multiple doors with a single key.

3 Easy Steps to Re-key:

1. Insert your functioning key and turn it 90 degrees clockwise.
2. Insert the SmartKey tool fully and firmly into the SmartKey hole. Remove the SmartKey tool.
3. Remove your functioning key and insert your new key fully and firmly into the keyway. Turn the new key 180 degrees counter-clockwise. Your lock is now re-keyed.

Figure 6: Illustration of the SmartKey security feature, showing the keyway and the reset tool insertion point for re-keying.

4. Manteniment

Neteja:

To maintain the Satin Nickel finish, clean the handleset regularly with a soft, damp cloth. Avoid using abrasive cleaners, harsh chemicals, or polishing agents, as these can damage the finish.

Lubricació:

Periodically, apply a silicone-based lubricant to the latch mechanism and keyway to ensure smooth operation. Do not use oil-based lubricants, as they can attract dirt and debris.

5. Solució De Problemes

Problemes comuns i solucions:

• Latch does not engage fully:
  • Check the alignment of the strike plate on the door frame. Adjust if necessary.
  • Ensure the latch mechanism is installed correctly and moves freely.
• Key is difficult to turn or does not turn:
  • Inspect the keyway for any debris or obstructions.
  • Ensure you are using the correct key.
  • If using SmartKey, ensure the key is fully inserted and try the re-keying process if the issue persists with a new key.
• El mànec sembla fluix:
  • Tighten the mounting screws on the interior side of the handleset.
  • Ensure all components are properly seated and secured.

6. Especificacions

7. Informació de la garantia

The Weiser Camino and Halifax Entry Lever handleset is covered by a Garantia limitada de per vida mecànica i d'acabat. This warranty ensures that the product is free from defects in material and workmanship under normal use for the lifetime of the original consumer purchaser. For specific terms and conditions, please refer to the official Weiser warranty documentation or contact customer support.

8. Atenció al client

For further assistance, technical support, or warranty claims, please contact Weiser customer service:

• Informació de contacte del fabricant: MISSISSAUGA, ON, L5W 0G7 CA
• Visita l'oficial Weiser Store on Amazon per a més productes i informació.

Please have your model number (9GLA84710-003) and proof of purchase ready when contacting support.
