Gree Multi21+ Tri-Zone Concealed Duct Mini Split Air Conditioner Heat Pump

1. Producte acabatview

The Gree Multi21+ Tri-Zone Concealed Duct Mini Split System is an advanced air conditioning and heat pump solution designed for multi-zone climate control. It features Gree's G10 inverter-driven compressor and utilizes eco-friendly R410A refrigerant, allowing it to efficiently heat and cool up to three distinct zones without the need for distribution boxes. The concealed duct design offers ultimate flexibility and discretion, as the slim indoor units are installed above suspended ceilings or within open closet spaces, delivering conditioned air through ducting and suitable ceiling or wall grilles.

This system is engineered for quiet, energy-efficient comfort, maintaining steady room temperatures by eliminating the harsh starts and stops common in conventional systems.

Figure 1.1: Complete Gree Multi21+ Tri-Zone Mini Split System Components.

Figure 1.2: Gree Concealed Duct Indoor Unit.

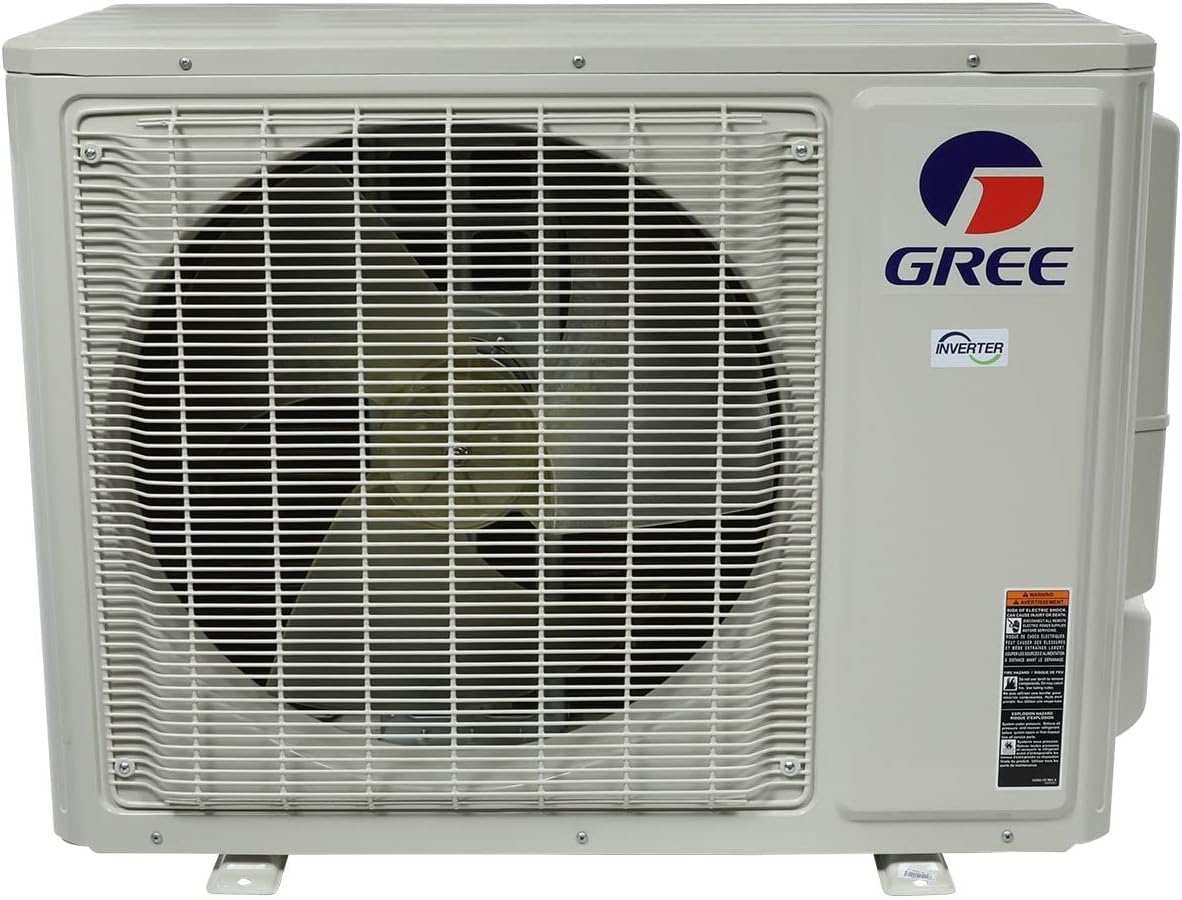

Figure 1.3: Gree Outdoor Condenser Unit.

2. Informació de seguretat

Please read all safety warnings and instructions carefully before installing or operating this unit. Failure to follow these instructions may result in property damage, personal injury, or death.

• Instal·lació professional necessària: Installation, maintenance, and repair of this air conditioning system must be performed by a state-licensed HVAC contractor. Improper installation can lead to electric shock, fire, water leakage, or other serious hazards.
• Seguretat elèctrica: Ensure the unit is properly grounded and connected to a dedicated power supply as specified in the electrical requirements. Do not operate with damaged power cords.
• Manipulació de refrigerants: This unit contains R410A refrigerant. Only qualified personnel should handle refrigerant. Do not vent refrigerant into the atmosphere.
• Liquidacions: Maintain adequate clearances around the outdoor unit for proper airflow and heat dissipation.
• Nens i animals de companyia: Mantingueu els nens i les mascotes allunyats de la unitat durant el funcionament i el manteniment.

3. Configuració i instal·lació

The Gree Multi21+ Tri-Zone system requires professional installation due to its complex nature and the need for proper refrigerant handling and electrical connections. The concealed duct indoor units are designed for discreet installation within ceiling or closet spaces.

3.1 Key Installation Requirements:

• Conjunt de línies: Three sets of 1/4" x 3/8" line sets are required (not included with the unit). Ensure proper sizing and insulation for optimal performance.
• Subministrament elèctric: The system operates on 208/230V. A dedicated circuit with appropriate overcurrent protection is essential.
• Conductes: Proper ductwork design and installation are crucial for efficient air distribution from the concealed indoor units to the conditioned spaces.
• Drenatge: Ensure proper condensate drainage from all indoor units to prevent water damage.

Figure 3.1: Gree DUCT-A Indoor and Outdoor Unit Dimensions.

4. Instruccions de funcionament

Each indoor unit is controlled independently, allowing for customized temperature settings in each of the three zones. The system provides both heating and cooling functionalities.

4.1 Funcionament bàsic:

• Encès/apagat: Use the remote control to turn the unit on or off.
• Selecció del mode: Select desired mode (Cool, Heat, Fan, Dry, Auto) using the remote control.
• Ajust de temperatura: Set the desired temperature for each zone. The G10 inverter technology ensures precise temperature control and energy efficiency.
• Velocitat del ventilador: Adjust fan speed for comfort and airflow.
• Funció de temporitzador: Utilize the timer function for scheduled operation.

Figure 4.1: Heating and Cooling Functionality.

Figure 4.2: Multi-Zone Temperature Control Example.

5. Manteniment

Regular maintenance is crucial for ensuring the longevity and efficient operation of your Gree Multi21+ system. Always turn off the power to the unit before performing any maintenance.

5.1 Recommended Maintenance:

• Neteja de filtres: Regularly clean or replace the air filters in the indoor units to maintain good air quality and system efficiency. Refer to your installer for access to concealed filters.
• Neteja de bobines: Have the indoor and outdoor coils professionally cleaned annually to prevent dirt buildup, which can reduce efficiency.
• Drain Line Check: Ensure condensate drain lines are clear and free of obstructions to prevent water overflow.
• Neteja de la unitat exterior: Keep the area around the outdoor unit clear of debris, leaves, and other obstructions. Periodically clean the exterior of the outdoor unit.
• Inspecció professional: Schedule annual professional inspections and tune-ups by a licensed HVAC contractor.

6. Solució De Problemes

If you encounter issues with your system, refer to the following basic troubleshooting steps. For complex problems, always contact a licensed HVAC professional.

6.1 Problemes comuns:

• La unitat no s'encén: Check if the unit is plugged in, the circuit breaker is not tripped, and the remote control batteries are functional.
• Refrigeració/calefacció insuficient: Ensure air filters are clean, outdoor unit is not obstructed, and temperature settings are correct. Check if windows and doors are closed.
• Sorolls inusuals: Minor operational noises are normal. If you hear loud or unusual noises, turn off the unit and contact a professional.
• Fuga d'aigua: Check if the condensate drain line is clogged. If the issue persists, contact a professional.
• Codis d'error: If an error code appears on the display, note the code and consult your HVAC professional.

7. Especificacions

Key technical specifications for the Gree 36,000 BTU Multi21+ Tri-Zone Concealed Duct Mini Split Air Conditioner Heat Pump.

Figure 7.1: Product Certifications and Key Features.

8. Garantia i Suport

Gree provides a manufacturer's warranty for this product:

• Parts: 5 anys de garantia limitada
• Compressor: 7 anys de garantia limitada

Important Warranty Note: To be eligible for the warranty, installation must be performed by a state-licensed HVAC contractor. Failure to comply with this requirement may void the warranty.

For technical support, warranty claims, or service, please contact your licensed HVAC installer or visit the official Gree website for authorized service providers.

You can also find more information about Gree products and support on their official store page: GREE Store on Amazon.
