Maxima MTT-450 Commercial Conveyor Toaster Instruction Manual

1. Introducció i finalview

Thank you for choosing the Maxima MTT-450 Commercial Conveyor Toaster. This professional-grade appliance is designed for high-volume toasting, capable of producing up to 450 pieces per hour, including bread and buns. Its robust stainless steel construction and American design ensure durability and efficient performance in commercial kitchen environments. This manual provides important information for the safe and effective use of your toaster.

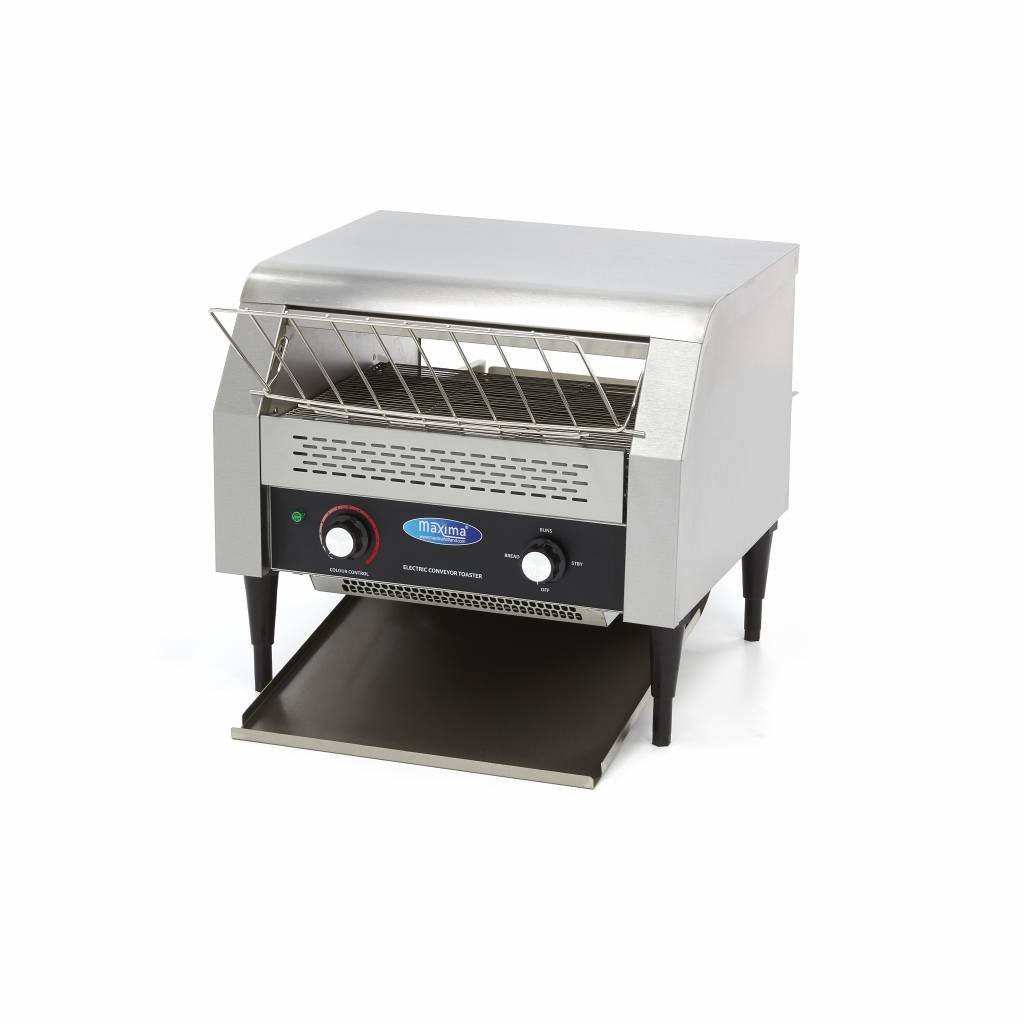

Figure 1: Maxima MTT-450 Commercial Conveyor Toaster - Front View

2. Instruccions de seguretat

Llegiu atentament totes les instruccions de seguretat abans de fer servir l'aparell per evitar lesions o danys. Conserveu aquest manual per a futures consultes.

• Seguretat elèctrica: Assegureu-vos que l'aparell estigui connectat a una presa de corrent amb connexió a terra i el volum correctetage (230V/50Hz/1 phase) and wattage (2640W). Do not use extension cords or adapters. Disconnect power before cleaning or maintenance.
• Superfícies calentes: The toaster's exterior and interior surfaces become extremely hot during operation. Always use caution and avoid direct contact. Allow the appliance to cool completely before handling or cleaning.
• Ventilació: Place the toaster on a stable, heat-resistant surface with adequate clearance around it for proper ventilation. Do not operate near flammable materials.
• Neteja: Never immerse the appliance in water or other liquids. Use a damp cloth for exterior cleaning. Ensure the appliance is unplugged and cool before cleaning.
• Supervisió: Aquest aparell no està pensat per a persones amb capacitats físiques, sensorials o mentals reduïdes, o amb manca d'experiència i coneixements, llevat que hagin rebut supervisió o instruccions sobre l'ús de l'aparell per part d'una persona responsable de la seva seguretat. Cal supervisar els nens per assegurar-se que no juguin amb l'aparell.
• Objectes estrangers: Do not insert metal objects or other foreign materials into the toaster slots or conveyor mechanism.

3. Components del producte

Familiarize yourself with the main components of your Maxima MTT-450 toaster:

• Carcassa d'acer inoxidable: Exterior resistent i fàcil de netejar.
• Cinta transportadora: Transports bread through the heating elements.
• Elements de calefacció: Provide consistent heat for toasting.
• Colour Control Knob: Adjusts the conveyor belt speed, influencing toast darkness.
• Speed Regulator: Fine-tunes the conveyor belt speed.
• Temperature Indicator Light: Illuminates when the toaster reaches operating temperature.
• Safata de molla: Collects crumbs for easy disposal. Located at the bottom front.
• Peus ajustables: Per a una col·locació estable en superfícies irregulars.

Figure 2: Control Panel and Input Area

Figura 3: lateral View with Crumb Tray

4. Configuració

Follow these steps to set up your toaster for the first time:

1. Desembalatge: Carefully remove the toaster from its packaging. Retain packaging materials for future transport or storage.
2. Col·locació: Place the toaster on a stable, level, and heat-resistant surface. Ensure there is sufficient space (at least 10 cm) around the appliance for proper air circulation and heat dissipation. Avoid placing it near walls or other heat-sensitive objects.
3. Peus d'ajust: Use the adjustable feet to ensure the toaster is level and stable.
4. Connexió d'alimentació: Plug the power cord into a dedicated, grounded 230V/50Hz/1 phase electrical outlet. Verify that the electrical supply matches the appliance's requirements.
5. Neteja inicial: Abans del primer ús, netegeu l'exterior amb anunciamp cloth. Remove and clean the crumb tray. Run the toaster empty for approximately 10-15 minutes on a medium setting to burn off any manufacturing residues. This may produce a slight odor; ensure the area is well-ventilated.

5. Instruccions de funcionament

Operating the Maxima MTT-450 is straightforward:

1. Encès: Turn the main power switch to the 'ON' position. The temperature indicator light will illuminate, indicating the toaster is heating up.
2. Preescalfament: Allow the toaster to preheat for approximately 5-10 minutes until the temperature indicator light stabilizes or turns off (depending on model behavior, indicating readiness).
3. Adjusting Toasting Level: Use the 'Colour Control' knob and 'Speed' regulator to adjust the conveyor belt speed. A slower speed results in darker toast, while a faster speed results in lighter toast. Experiment with different settings to achieve your desired browning level.
4. Loading Bread: Place slices of bread, buns, or other suitable items onto the conveyor belt at the input opening. Ensure items are placed flat and do not overlap. The maximum front opening height is 85 mm.
5. Procés de torrat: The conveyor belt will automatically transport the items through the heating elements. Toasted items will exit the toaster at the output tray.
6. Descàrrega: Carefully remove toasted items from the output tray. Be aware that items will be hot.
7. Apagar: After use, turn the main power switch to the 'OFF' position and unplug the appliance from the power outlet. Allow the toaster to cool down completely before cleaning.

Figure 4: Toaster Output Tray

6. Manteniment i Neteja

Una neteja i un manteniment regulars garantiran la longevitat i el rendiment òptim de la torradora.

• Desconnecteu sempre l'alimentació: Before any cleaning or maintenance, ensure the toaster is unplugged from the power outlet and has cooled down completely.
• Safata de molla: The crumb tray should be emptied and cleaned daily, or more frequently depending on usage. Pull out the tray from the front of the toaster, discard crumbs, and wash the tray with warm, soapy water. Rinse thoroughly and dry completely before reinserting.
• Neteja exterior: Netegeu l'exterior d'acer inoxidable amb anunciamp cloth and a mild detergent. Do not use abrasive cleaners, steel wool, or harsh chemicals, as these can damage the finish. Dry thoroughly with a soft cloth.
• Neteja interior: For internal cleaning, ensure the toaster is cool. Use a soft brush or vacuum cleaner to remove any accumulated crumbs or food particles from the heating elements and conveyor mechanism. Do not spray water directly into the interior.
• Cinta transportadora: Periodically inspect the conveyor belt for any debris or signs of wear. Clean gently with a soft brush if necessary.

Figura 5: posterior View (for internal access/cleaning reference)

7. Solució De Problemes

If you encounter issues with your Maxima MTT-450 toaster, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Maxima technical service.

8. Especificacions

9. Garantia i Suport

Maxima is committed to providing high-quality kitchen equipment. We maintain our own technical service department to ensure prompt assistance in the event of any issues with your toaster. If you experience a problem, please do not hesitate to contact us. Our goal is to get your Maxima appliance operational as quickly as possible.

Per a més ajuda o per a view our range of products, you may visit our showroom where our employees are available to provide detailed advice and support.

Consulteu la documentació de compra per conèixer els termes específics de la garantia i la informació de contacte.
