Mont Alpi Premium 6-Burner Stainless Steel Built-in Propane BBQ Grill Head

Introducció

Thank you for choosing the Mont Alpi Premium 6-Burner Stainless Steel Built-in Propane BBQ Grill Head. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new grill. Please read all instructions carefully before assembly and use. Keep this manual for future reference.

Davant view of the Mont Alpi Premium 6-Burner Stainless Steel Built-in BBQ Grill Head.

Informació de seguretat

Your safety and the safety of others are paramount. Always follow these basic precautions when using your gas grill:

• Llegiu totes les instruccions abans d’utilitzar l’aparell.
• Només per a ús a l'aire lliure. No utilitzeu l'aparell en interiors ni en una zona tancada.
• Assegureu una ventilació adequada.
• Mantingueu els nens i les mascotes lluny de la graella durant el funcionament.
• No emmagatzemeu ni utilitzeu gasolina o altres vapors i líquids inflamables a prop d'aquest o qualsevol altre aparell.
• Comproveu sempre si hi ha fuites de gas abans de cada ús.
• No deixeu mai la graella sense vigilància durant la cocció.
• Utilitzeu guants de protecció quan manipuleu superfícies calentes.
• Ensure the electronic ignition requires an AA battery (not included).
• Transportation of this item is subject to hazardous materials regulation. Handle with care.

Contingut del paquet

Verifiqueu que tots els components siguin presents abans de començar el muntatge:

• Mont Alpi Premium 6-Burner Built-in BBQ Grill Head
• 6 Tubular Stainless Steel High-Efficiency Burners
• Rear Height-Adjustable Ceramic Infrared Rotisserie Burner
• Reixeta d'escalfament d'acer inoxidable
• 8mm Stainless Steel Cooking Grids
• Flame Tamers / Heat Plates
• Necessary Brackets for Installation
• Double Lined Grill Hood with Temperature Gauge
• Dues llums halògenes de superfície de cocció
• On/Off Red/Blue Changing Control Knob Lights
• Obridor d'ampolles
• Electronic Ignition (AA battery not included)
• Full Front Pull-Out Grease Tray
• 110V 4-Watt Heavy Duty Electric Motor Rotisserie Kit (holds up to 25 lbs)
• Mànega i regulador de propà
• Water-Resistant Outdoor Rated Black Weather Cover

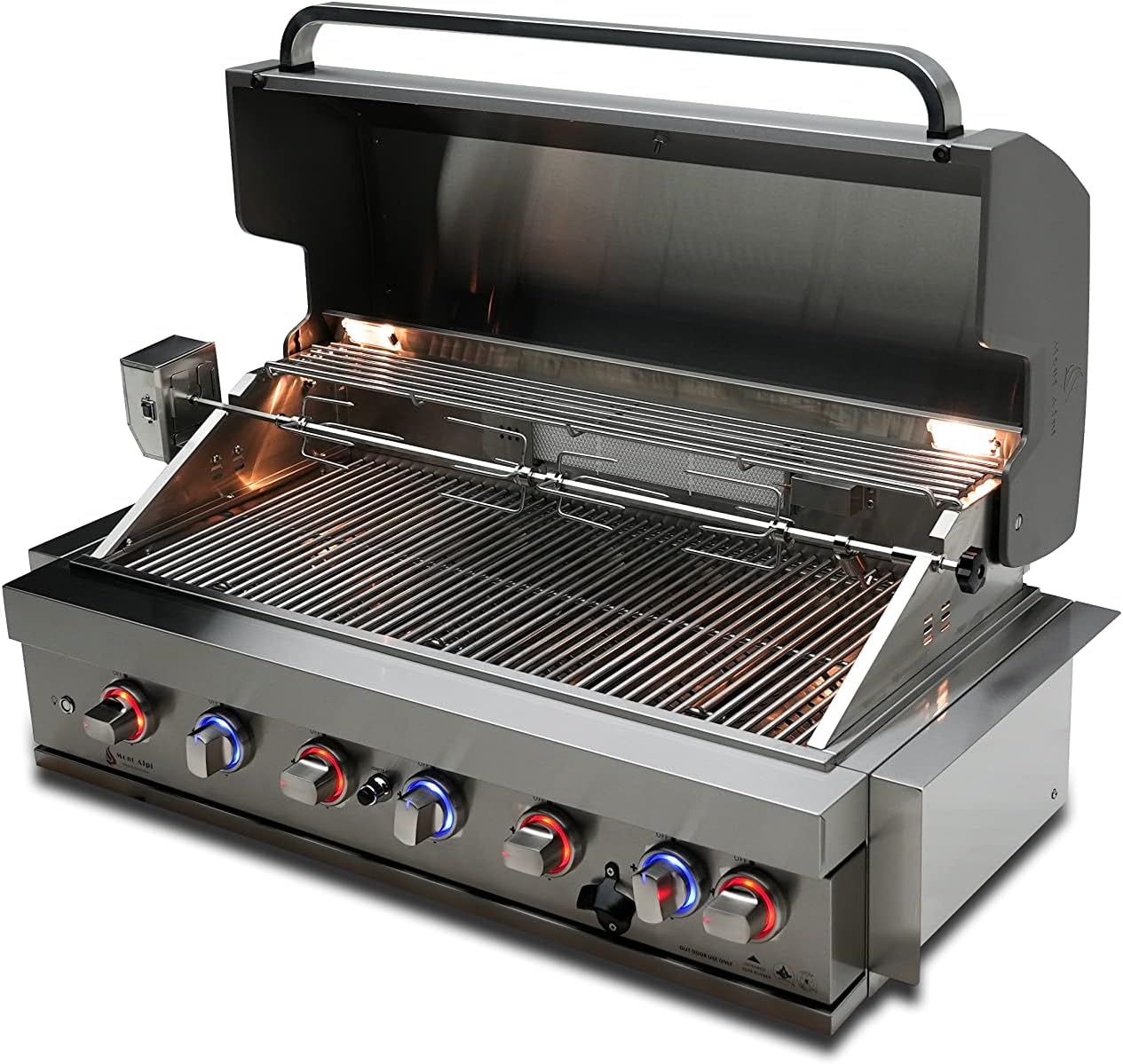

The grill head includes a protective cover for outdoor use.

Configuració i instal·lació

The Mont Alpi Premium 6-Burner Built-in BBQ Grill Head is designed for built-in installation into an outdoor kitchen island. The grill is delivered fully assembled, simplifying the installation process. Brackets are included for secure mounting.

Conversió de gas natural

This grill comes ready for propane use with an included propane hose and regulator. It can be easily converted to natural gas. All Mont Alpi grills include both propane and natural gas orifices. To convert, remove the propane orifices on each burner and use the natural gas hose and regulator from the separately sold conversion kit.

Referència del vídeo d'instal·lació

Instruccions de funcionament

Ignition and Burner Operation

The grill features 6 tubular stainless steel main burners and a rear infrared rotisserie burner. The electronic ignition system (requires AA battery) allows for quick and reliable startup. Control knobs illuminate with red/blue changing lights, indicating their status.

Control panel with illuminated knobs for precise temperature management.

Monitorització de la temperatura

A temperature gauge is integrated into the double-lined grill hood for accurate monitoring of internal cooking temperatures, ensuring optimal heat retention.

View of the grill's interior, highlighting the infrared rear burner and stainless steel cooking grids.

Rotisserie Kit Use

The included 110V 4-Watt heavy-duty electric motor rotisserie kit can hold up to 25 lbs of meat, perfect for slow roasting. Utilize the height-adjustable ceramic infrared rear burner for even cooking.

The rotisserie kit is easily installed for roasting various meats.

Manteniment i Neteja

The grill's 304 heavy-duty stainless steel construction ensures durability and resistance to corrosion, making it easy to clean and maintain. Regular cleaning will prolong the life and performance of your grill.

• Safata de greix: The easy-access full front pull-out grease tray simplifies cleaning. Regularly remove and clean the tray to prevent grease buildup and potential flare-ups.
• Cooking Grids: Clean the 8mm stainless steel cooking grids after each use with a grill brush.
• Exterior: Wipe down stainless steel surfaces with a soft cloth and a stainless steel cleaner to maintain its polished finish.
• Portada: Use the provided water-resistant outdoor rated black weather cover to protect the grill head from the elements when not in use.

The pull-out grease tray facilitates easy cleaning and maintenance.

Resolució de problemes

Si teniu problemes amb la vostra barbacoa, consulteu els següents consells habituals per a la resolució de problemes:

• Fallada d'encesa: Check if the AA battery for the electronic ignition is correctly installed and has sufficient charge. Ensure gas supply is open.
• Calor desigual: Clean burners and flame tamers to ensure no blockages. Verify proper gas pressure.
• Flama baixa: Check the gas tank level (for propane) or natural gas supply. Ensure the regulator is properly connected.
• Esclats: Reduce cooking temperature, trim excess fat from meats, and regularly clean the grease tray and cooking grids.

For persistent issues, please contact Mont Alpi customer support.

Especificacions

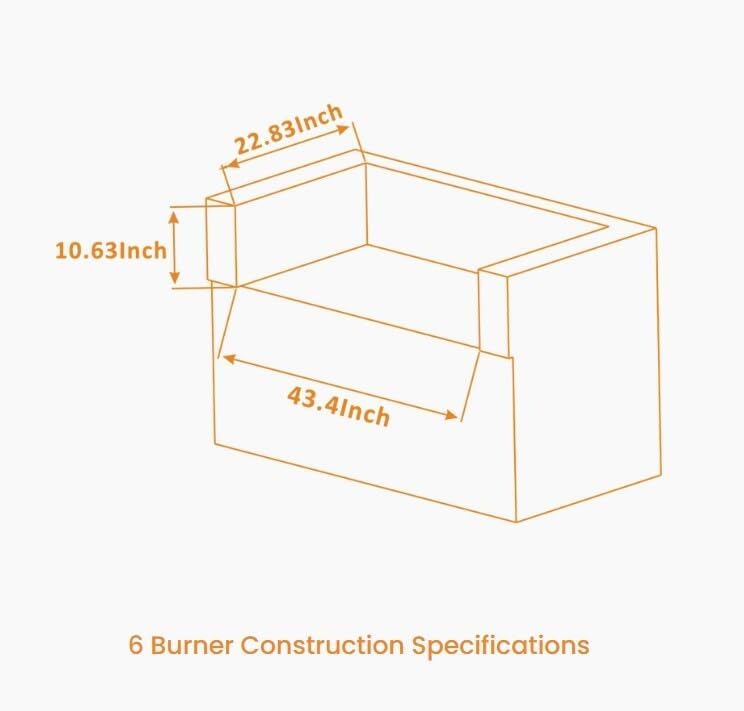

Detailed dimensions for the Mont Alpi MABi805 grill head.

Garantia i Suport

Mont Alpi grills are designed for durability and performance. This product comes with a Garantia limitada de per vida (limitations apply) and a 15 anys de garantia limitada as specified in the product documentation. For any questions or concerns regarding your product, please do not hesitate to reach out to Mont Alpi customer support. We are committed to customer satisfaction.
