Commax DR-2UM/DP-SS/RF-12015S

Manual d'usuari del conjunt d'intercomunicador d'àudio Commax per a edificis de 2 apartaments

Model: DR-2UM/DP-SS/RF-12015S

1. Introducció

This manual provides detailed instructions for the installation, operation, and maintenance of your Commax 2-Apartment Building Audio Intercom Set. This system is designed to facilitate clear audio communication between visitors at the building entrance and residents in two separate apartments, along with the capability to remotely release an electric door strike (not included).

Please read this manual thoroughly before installation and operation to ensure proper functionality and safety.

2. Components del producte

Your Commax 2-Apartment Building Audio Intercom Set includes the following main components:

Commax 2-Apartment Building Audio Intercom Set components
Figura 2.1: Complete Commax 2-Apartment Building Audio Intercom Set. This image displays all primary components of the intercom system: the outdoor lobby unit, two indoor handsets, and the power supply unit.
Commax Lobby Unit and Handsets
Figura 2.2: Commax Lobby Unit (DR-2UM) and Household Handsets (DP-SS). This image provides a closer view of the sleek design of the outdoor lobby unit and the two indoor handsets.
Commax Power Supply RF-12015S
Figura 2.3: Commax Power Supply (RF-12015S). This image shows the compact power adapter responsible for supplying power to the intercom system.

2.1. Lobby Unit (DR-2UM)

The DR-2UM is the outdoor unit, typically flush-mounted at the building entrance. It features two call buttons, one for each apartment, and an integrated speaker and microphone for two-way audio communication with visitors.

Commax Lobby Unit DR-2UM front view
Figura 2.4: Davant view of the Commax Lobby Unit DR-2UM. This image highlights the two call buttons and the speaker grille on the aluminum-finished outdoor unit.

2.2. Household Handset (DP-SS)

The DP-SS is the indoor unit, designed for surface mounting within each apartment. It allows residents to communicate with visitors at the lobby unit and features a button to release an electric door strike (if connected).

Commax Household Handset DP-SS
Figura 2.5: Commax Household Handset DP-SS. This image shows the indoor handset with its receiver and the door release button.
Commax Household Handset DP-SS rear view amb diagrama de cablejat
Figura 2.6: posterior view of the Commax Household Handset DP-SS. This image displays the wiring terminals and a label with the wiring diagram for the handset.

3. Configuració i instal·lació

Proper installation is crucial for the optimal performance of your intercom system. It is recommended that installation be performed by a qualified technician.

3.1. Consideracions importants

3.2. Instal·lació de la unitat de vestíbul (DR-2UM)

The DR-2UM lobby unit is designed for flush mounting. Follow these steps for installation:

  1. Prepare the wall opening according to the dimensions provided in the specifications (refer to Figure 3.1).
  2. Run the necessary wiring from the power supply and to the handsets through the opening.
  3. Connect the wiring to the lobby unit terminals as per the wiring diagram (refer to Section 3.4).
  4. Secure the lobby unit into the prepared opening using appropriate fasteners.
Commax Lobby Unit DR-2UM installation diagram

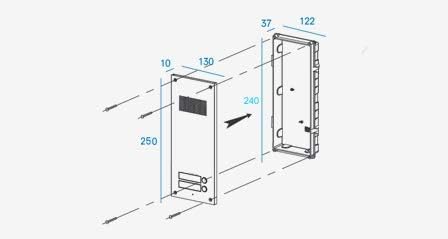

Figura 3.1: Installation diagram for the Commax Lobby Unit DR-2UM. This diagram illustrates the flush-mounting process and required dimensions for the wall opening.

3.3. Household Handset (DP-SS) Installation

The DP-SS handsets are designed for surface mounting indoors. Follow these steps:

  1. Choose a suitable indoor location for each handset.
  2. Mount the handset bracket securely to the wall using screws (refer to Figure 3.2).
  3. Run the wiring from the lobby unit and to the door strike (if applicable) to the handset location.
  4. Connect the wiring to the handset terminals as per the wiring diagram (refer to Section 3.4).
  5. Attach the handset to the mounted bracket.
Commax Household Handset DP-SS installation diagram
Figura 3.2: Installation diagram for the Commax Household Handset DP-SS. This diagram shows the surface-mounting method for the indoor handset.

3.4. Esquema de cablejat

The system requires a 12V DC power source. The lobby unit powers the handsets. Ensure correct polarity and secure connections for all wiring.

Refer to the wiring diagram on the back of the DP-SS handset (Figure 2.6) for detailed terminal connections.

4. Instruccions de funcionament

4.1. From the Lobby Unit (DR-2UM)

  1. Per trucar a un apartament: A visitor presses the corresponding call button for the desired apartment.
  2. Per parlar: Once the resident picks up the handset, two-way audio communication is established automatically.

4.2. From the Household Handset (DP-SS)

  1. Per respondre una trucada: When the lobby unit calls, the handset will ring. Pick up the handset to establish communication with the visitor.
  2. Per parlar: Speak into the handset's microphone and listen through the earpiece.
  3. To Release Door: While communicating with a visitor, press the door release button on the handset to activate the connected electric door strike (door strike not included).

5. Manteniment

To ensure the longevity and proper functioning of your intercom system, follow these simple maintenance guidelines:

6. Solució De Problemes

Si teniu problemes amb el sistema d'intercomunicació, consulteu els problemes i solucions més comuns següents:

ProblemaCausa possibleSolució
No power to system/handsetsPower supply unplugged or faulty; wiring issue.Check if the power supply is securely plugged in. Verify the power outlet is functional. Inspect all power wiring connections.
No audio from lobby unit or handsetLoose wiring connections; faulty component.Check all audio wiring connections between the lobby unit and handsets. Ensure handsets are properly seated.
Door release not workingElectric door strike not connected or faulty; wiring issue.Verify the electric door strike is correctly installed and functional. Check the 2-wire connection from the handset to the door strike. Ensure the door strike has its own power supply if required.
Comunicació intermitentLoose connections; interference.Inspect all wiring for secure connections. Ensure wiring is not run too close to sources of electrical interference.

If the problem persists after attempting these solutions, please contact customer support or a qualified technician.

7. Especificacions

Detailed specifications for the Commax 2-Apartment Building Audio Intercom Set components:

CaracterísticaLobby Unit (DR-2UM)Room Station (DP-SS)
Número de modelDR-2UMDP-SS
Font d'alimentacióDC12V, 500mADC12V (des de la placa de porta)
Mètodes de comunicacióComunicació síncronaComunicació síncrona
Cablejat3 cables comuns + 1 cable individual6 wires: 4 to door station, 2 to door lock
Unitat d'habitació compatibleCommax Handset: DP-SS, DP-MSS, DP-TS, DP-KSSN/A
Distància de transmissióØ0.5 mm/AWG24: 30 m/90 peus
Ø0.65 mm/AWG22: 50 m/150 peus
Ø0.8 mm/AWG20: 70 m/210 peus
Ø1.0 mm/AWG18: 100 m/300 peus
N/A
Temperatura de funcionament-10 °C a +50 °C0 °C a +50 °C
Dimensions (mm)142 x 250 x 5070 x 210 x 80 (with handset)
Tipus de muntatgeTipus encastatMuntatge en superfície

Especificacions generals:

8. Garantia i Suport

For warranty information, please refer to the documentation provided with your purchase or contact your retailer. Commax products typically come with a manufacturer's warranty covering defects in materials and workmanship.

For technical support, troubleshooting assistance beyond this manual, or to inquire about replacement parts, please contact Commax customer service or the authorized dealer from whom you purchased the product.
