Furinno Lova 3-Tier Bookcase with Storage Cabinet, Light Blue (Model FR16121LB) - Instruction Manual

1. Introducció

Thank you for choosing the Furinno Lova 3-Tier Bookcase with Storage Cabinet. This manual provides essential information for the safe assembly, proper use, and maintenance of your new furniture. Please read these instructions carefully before beginning assembly and retain them for future reference.

The Furinno Lova bookcase features one row of book storage, two open shelves, and one closed cabinet, offering spacious areas and compartments for storing and displaying books, magazines, and other items. It is constructed from durable CARB Grade composite wood.

2. Informació de seguretat

• Keep away from open flames or direct heat sources.
• Assegureu-vos que totes les peces estiguin ben subjectes abans d'utilitzar-les.
• Do not overload shelves or cabinet compartments.
• Place the unit on a flat, stable surface to prevent tipping.
• Supervise children around the furniture to prevent accidents.

3. Contingut del paquet

Before assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact Furinno customer support.

• Panells laterals (esquerra i dreta)
• Panell superior
• Panell inferior
• Prestatgeries fixes
• Taulers posteriors
• Portes d'armaris
• Frontisses i poms de porta
• Maquinari de muntatge (cargols, espigues, panys de lleva, etc.)
• Manual d'instruccions

4. Instruccions de muntatge i instal·lació

Assembly is designed to be straightforward with clear instructions. It is recommended to assemble the unit on a soft, clean surface to prevent scratches. Two people are recommended for assembly.

4.1 Eines necessàries

• Tornavís Phillips
• Martell (opcional, per a espigues)

4.2 Passos de muntatge

1. Identify all parts: Lay out all panels and hardware. Refer to the parts list to ensure everything is accounted for.
2. Attach cam bolts and dowels: Insert cam bolts and wooden dowels into the pre-drilled holes on the side panels and shelves as indicated in the diagram.
3. Connect shelves to side panels: Align the shelves with the side panels and secure them using cam locks. Turn the cam locks clockwise until tight.
4. Attach the top and bottom panels: Secure the top and bottom panels to the assembled frame using cam bolts and cam locks.
5. Install back panels: Slide or nail the back panels into the grooves or attach them to the rear of the unit using small nails or screws provided.
6. Assemble cabinet doors: Attach hinges to the cabinet doors, then attach the doors to the designated cabinet section. Install door knobs.
7. Comprovació final: Assegureu-vos que totes les connexions estiguin ben ajustades i que la unitat sigui estable.

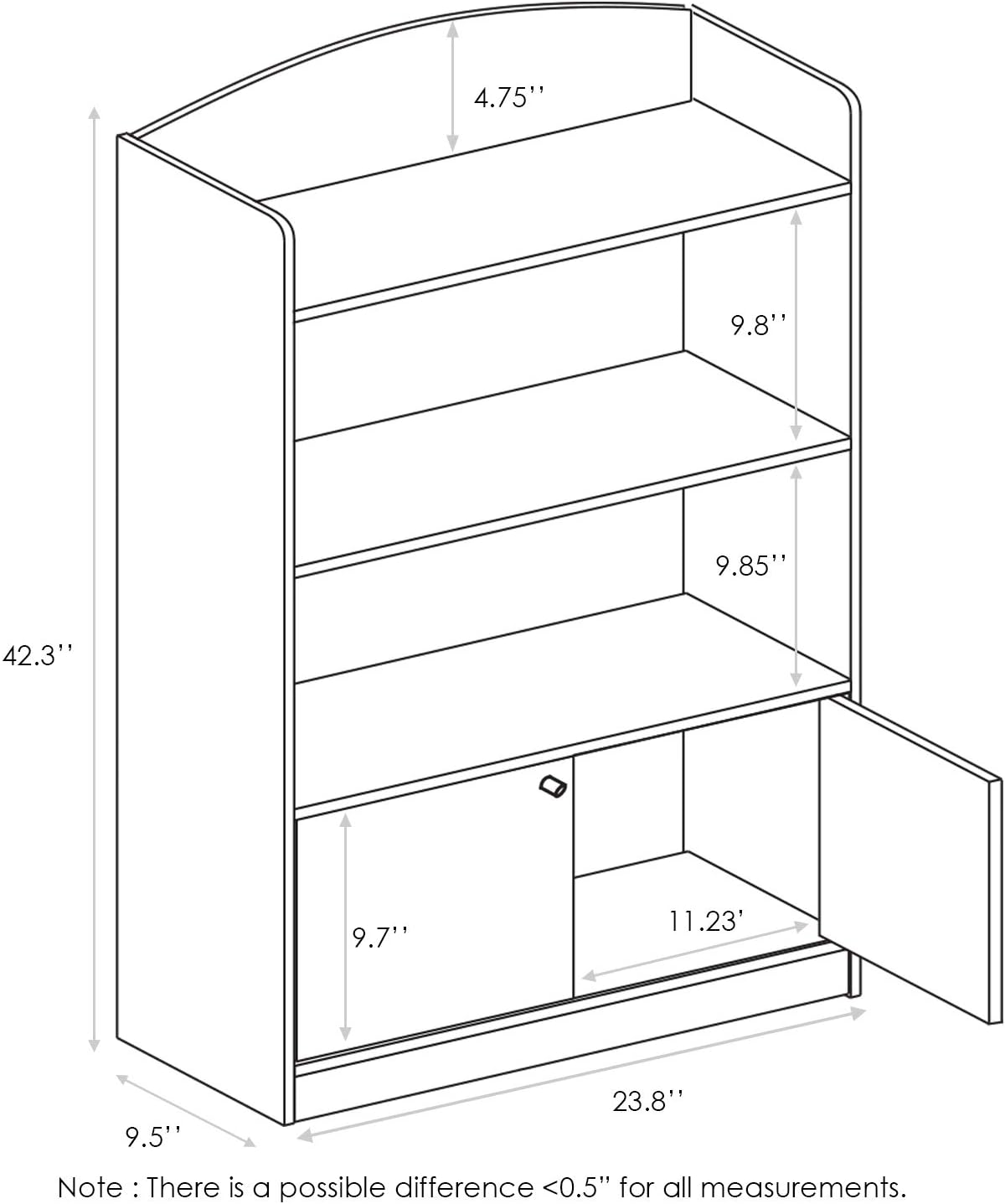

Figure 1: Dimensional diagram of the Furinno Lova bookcase, showing height, width, and depth measurements for various sections. Note: There is a possible difference <0.5" for all measurements.

Figure 2: The Furinno Lova bookcase with one of its lower cabinet doors open, illustrating the internal storage space.

5. Funcionament i ús

The Furinno Lova bookcase is designed for organizing and displaying various items in your home or office.

• Prestatges oberts: Utilize the two open shelves for displaying books, decorative items, or frequently accessed materials.
• Book Storage Row: The top tier is ideal for a single row of books or smaller decorative pieces.
• Armari tancat: The lower cabinet provides concealed storage for items you wish to keep out of sight, such as documents, supplies, or personal belongings.
• Distribució de pes: Distribueix el pes uniformement entre els prestatges i dins de l'armari per mantenir l'estabilitat. Col·loca els articles més pesats als prestatges inferiors.

Figure 3: The Furinno Lova bookcase in light blue, showcasing its three tiers and lower cabinet, filled with books and children's toys.

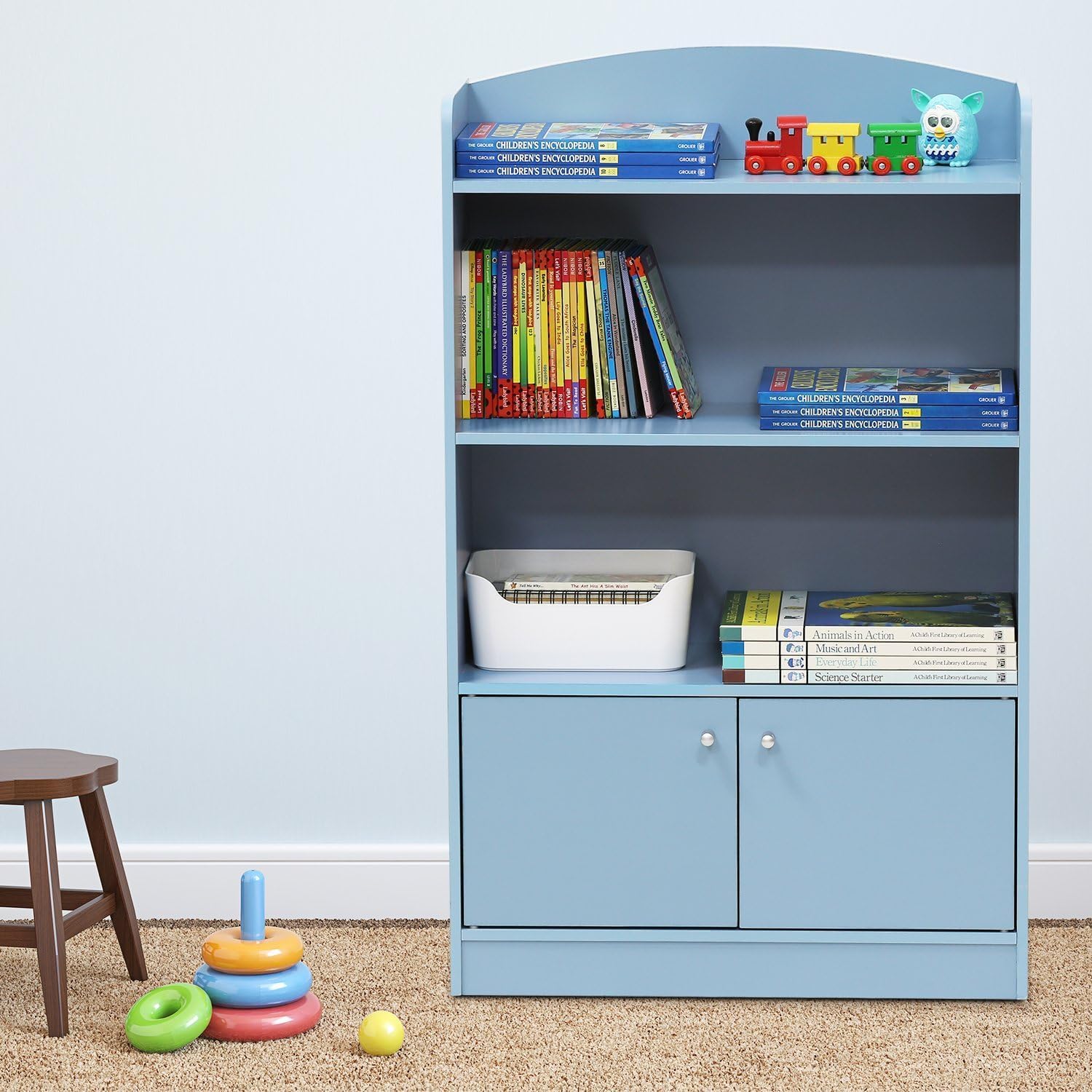

Figure 4: The Furinno Lova bookcase positioned in a room, demonstrating its size and aesthetic appeal alongside other furniture and decor.

6. Manteniment

Regular maintenance will help preserve the appearance and longevity of your Furinno Lova bookcase.

• Neteja: Netegeu les superfícies amb un suau, damp drap. Eviteu utilitzar productes químics agressius o netejadors abrasius, ja que poden danyar l'acabat.
• Vessaments: Netegeu els vessaments immediatament per evitar taques o danys per aigua.
• Comprovació de maquinari: Reviseu periòdicament tots els cargols i elements de fixació per assegurar-vos que romanen ajustats. Estrenyeu-los si cal per mantenir l'estabilitat.
• Eviteu la llum solar directa: L'exposició prolongada a la llum solar directa pot causar decoloració o esvaïment de l'acabat.

7. Solució De Problemes

If you encounter any issues with your bookcase, refer to the following common solutions:

8. Especificacions

• Marca: Furinno
• Número de model: FR16121LB
• Dimensions del producte: 60.5 cm (A) x 24.1 cm (F) x 107.4 cm (Al)
• Pes: 12.25 kg
• Material: CARB Grade Composite Wood
• Tipus de muntatge: Muntatge al terra
• Tipus d'habitació: Library, Living Room, Bedroom
• Nombre de prestatgeries: 2 (open) + 1 (top tier)
• Característiques especials: Heavy Duty, Storage Cabinet
• Estil: Contemporània
• Tipus d'acabat: Laminat
• País d'origen: Malàisia

Figura 5: posterior view of the Furinno Lova bookcase, showing its construction and overall metric dimensions (width, depth, height).

9. Garantia i Suport

For warranty information, please refer to the documentation included with your purchase or contact the retailer where the product was acquired. Furinno typically offers a limited warranty against manufacturing defects.

If you require assistance with assembly, have questions about product use, or need to report missing/damaged parts, please contact Furinno customer support directly. Have your model number (FR16121LB) and purchase details ready for faster service.

Furinno Customer Service: Please visit the official Furinno weblloc per obtenir informació de contacte.
