Producte acabatview
The Gree Sapphire series offers an ultra high-efficiency, smart ductless split system designed for optimal comfort and energy savings. This 9,000 BTU model provides superior cooling and heating performance, featuring an industry-best energy efficiency rating of up to 38 SEER for cooling and 15.0 HSPF for heating. It incorporates ULTRA Heating technology, allowing it to reliably warm spaces even when outdoor temperatures drop as low as -22°F. With universal Wi-Fi technology, the unit can be conveniently controlled via the Gree+ app on your smartphone, making operation simple and intuitive. Its quiet and unobtrusive design ensures comfort without compromising aesthetics, making it an ideal choice for various home or office environments.
Image: The complete Gree Sapphire mini split system, showing both the indoor wall-mounted unit, the outdoor condenser unit, and the wireless remote control. This illustrates the primary components of the system.
Informació important de seguretat
ADVERTÈNCIA: aquest producte us pot exposar a substàncies químiques, com ara el plom, que l'estat de Califòrnia sap que causa càncer i defectes de naixement o altres danys reproductius. Per a més informació aneu a www.P65Warnings.ca.gov.
- Installation and servicing of this equipment should only be performed by qualified, experienced technicians. Improper installation can lead to electric shock, fire, or water leakage.
- Ensure the power supply matches the unit's specifications (208/230V). Always disconnect power before performing any maintenance or service.
- Do not attempt to repair or modify the unit yourself. Contact qualified service personnel for all repairs.
- This unit uses R410a refrigerant. Handling of refrigerants requires specialized tools and training. Do not release refrigerant into the atmosphere.
- Keep children and pets away from the outdoor unit, especially during operation.
- Ensure proper drainage for the indoor unit to prevent water damage.
Contingut del paquet
En desembalar, verifiqueu que tots els components que s'enumeren a continuació siguin presents i no estiguin danyats. Si falta algun element o està danyat, poseu-vos en contacte amb el vostre proveïdor immediatament.
- Indoor Wall-Mounted Unit
- Unitat condensadora exterior
- Comandament a distància sense fil
- Titular de control remot
- Manual d'usuari i Guia d'instal·lació
- Drain Hose (short length for initial connection)
Note: Essential installation components such as refrigerant line sets (1/4" x 1/2"), electrical wiring (e.g., 4-conductor 14 gauge for communication, 3-conductor 12 gauge for power), and additional drain hose (5/8" ID) are no inclòs i s'han de comprar per separat.
Imatge: Una imatge detallada view of the wireless remote control for the Gree Sapphire system, showing its display and various function buttons for controlling the unit.
Instal·lació i Configuració
Installation of a ductless mini-split system requires specialized knowledge and tools. It is highly recommended that installation be performed by a certified HVAC professional to ensure proper operation, safety, and warranty validity.
Key Installation Steps (Professional Recommended):
- Selecció del lloc: Choose appropriate locations for both indoor and outdoor units, considering air circulation, noise, and accessibility for maintenance.
- Muntatge: Securely mount the indoor unit on a wall and the outdoor unit on a stable, level surface or wall bracket.
- Connexió de la línia de refrigerant: Connect the 1/4" and 1/2" copper refrigerant lines between the indoor and outdoor units. Ensure proper flaring and torqueing to prevent leaks.
- Cablejat elèctric: Connect the communication cable (4-conductor, 14 gauge) between units and the power supply cable (3-conductor, 12 gauge) to the outdoor unit and electrical switch box. All electrical work must comply with local codes.
- Vacuuming the System: Crucially, the refrigerant lines must be thoroughly vacuumed to remove all air and moisture. A digital vacuum gauge is recommended for accuracy (below 400 microns). Water in the system can lead to acid formation and system failure.
- Alliberament de refrigerant: Once vacuumed, release the pre-charged R410a refrigerant from the outdoor unit into the system.
- Connexió de drenatge: Connect the indoor unit's drain hose to a suitable drainage point, ensuring a continuous downward slope.
- Comprovació de fuites: Feu una comprovació exhaustiva de fuites a totes les connexions.

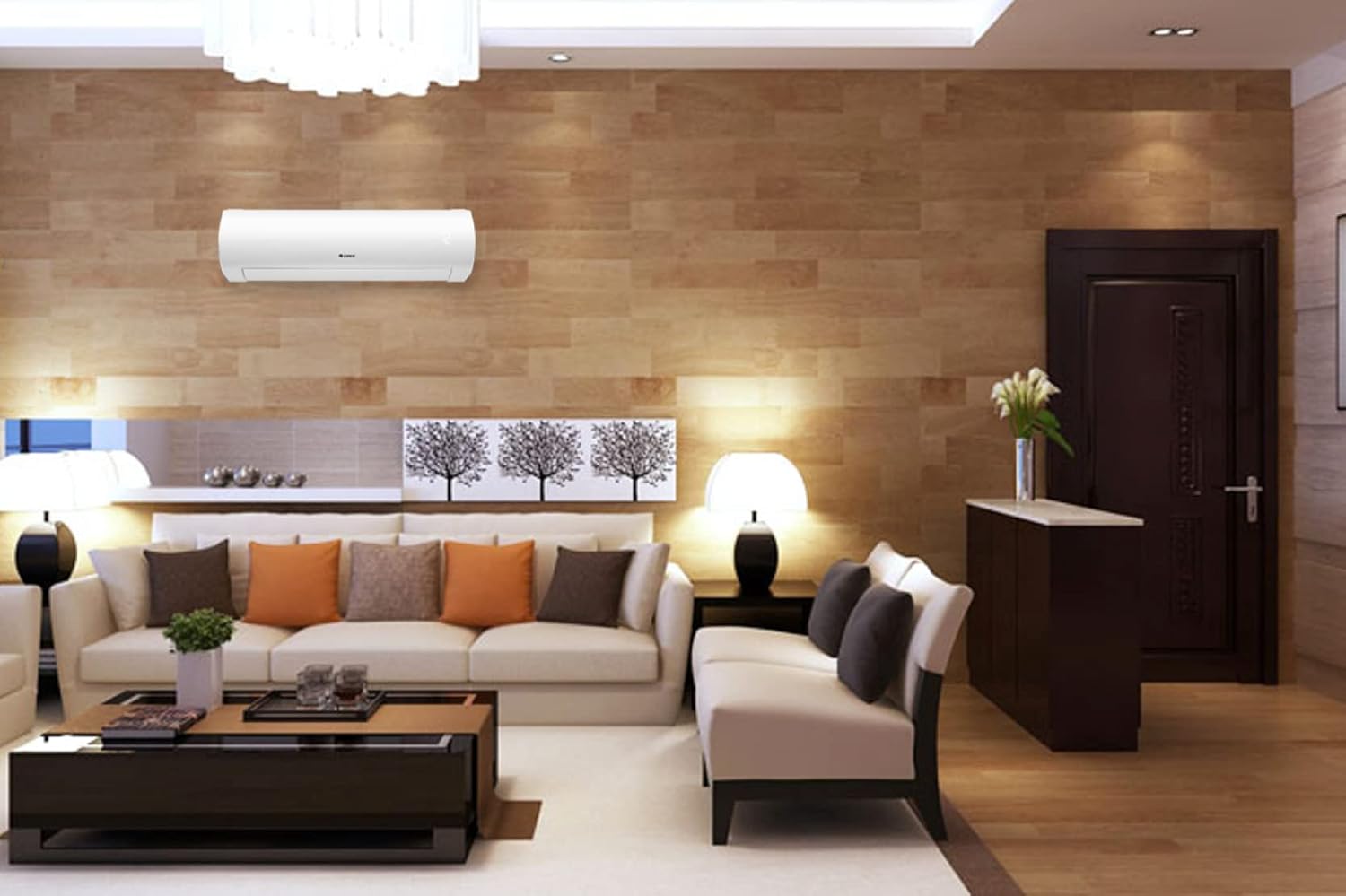

Image: The Gree Sapphire indoor unit seamlessly installed on a wall in a modern living room setting, demonstrating its discreet design.
Instruccions de funcionament
Your Gree Sapphire mini-split system can be operated using the included wireless remote control or via the Gree+ smartphone application.
Ús del comandament a distància sense fil:
The remote control allows you to adjust settings from anywhere within the room. Ensure there are no obstructions between the remote and the indoor unit's receiver.
- Botó ON/OFF: Premeu per encendre o apagar la unitat.
- Botó MODE: Cycle through operating modes: Auto, Cool, Dry, Fan, Heat.
- TEMP +/- Buttons: Ajusteu la temperatura desitjada.
- Botó FAN: Select fan speed: Auto, Low, Medium, High, Turbo.
- Botó SWING: Adjust the vertical airflow direction.
- Botó QUIET: Activates a low-noise operation mode.
- Botó SLEEP: Optimitza la temperatura i la velocitat del ventilador per a un son còmode.
- IFeel Button: Activates the "I Feel" function, sensing the temperature at the remote's location for more precise comfort.
- Botons d'encesa/apagada del temporitzador: Set a timer for the unit to turn on or off automatically.
Using the Gree+ App (Wi-Fi Control):
The Gree+ app provides remote control and advanced features via your smartphone. Download the app from your device's app store and follow the in-app instructions to connect your unit to your home Wi-Fi network. This allows for control from anywhere with an internet connection.
Imatge: Un front view of the Gree Sapphire indoor unit, highlighting its sleek design and digital temperature display.
Manteniment
Regular maintenance ensures optimal performance and longevity of your Gree Sapphire system. Always disconnect power to the unit before performing any maintenance.
Neteja del filtre d'aire:
- Freqüència: Clean air filters every two weeks or more frequently if the unit is used heavily or in dusty environments.
- Procediment:
- Obriu el panell frontal de la unitat interior.
- Traieu suaument els filtres d'aire.
- Netegeu els filtres amb un aspirador o renteu-los amb aigua tèbia i un detergent suau.
- Rinse thoroughly and allow them to dry completely in a shaded area before reinserting. Do not expose to direct sunlight.
Manteniment de la unitat exterior:
- Mantingueu la zona al voltant de la unitat exterior neta de deixalles, fulles i neu per garantir un flux d'aire adequat.
- Periodically clean the outdoor coil with a soft brush or vacuum cleaner. Avoid bending the coil fins.
Servei professional:
It is recommended to have a qualified HVAC technician inspect and service your unit annually to ensure optimal performance and identify any potential issues early.
Imatge: Un primer pla view of the Gree Sapphire outdoor condenser unit, showing the fan and protective grille. Regular cleaning of this unit is important for efficiency.
Resolució de problemes
Abans de contactar amb l'atenció al client, consulteu els següents problemes comuns i les seves solucions.
| Problema | Causa possible | Solució |
|---|---|---|
| La unitat no s'encén. | Sense alimentació, piles del comandament a distància esgotades, interruptor automàtic saltat. | Comproveu el subministrament d'alimentació, substituïu les piles del comandament a distància i reinicieu l'interruptor automàtic. |
| Refrigeració/calefacció insuficient. | Dirty air filters, blocked outdoor unit, wrong mode selected, low refrigerant. | Clean filters, clear obstructions from outdoor unit, select correct mode, contact professional for refrigerant check. |
| Soroll inusual. | Peces soltes, obstrucció del ventilador, soroll del flux de refrigerant (normal). | Check for loose parts or obstructions. If noise persists and is abnormal, contact service. |
| Fuga d'aigua de la unitat interior. | Mànega de desguàs obstruïda, instal·lació incorrecta. | Clear drain hose. If issue persists, professional re-installation may be required. |
| Problemes de connectivitat Wi-Fi. | Router issues, incorrect Wi-Fi settings, app malfunction. | Restart router, reconfigure Wi-Fi settings in app, reinstall app if necessary. Ensure unit is within Wi-Fi range. |
For issues not listed here or if solutions do not resolve the problem, please contact qualified service personnel.
Especificacions tècniques
| Especificació | Detall |
|---|---|
| Marca | GREE |
| Número de model | SAP09HP230V1A |
| Capacitat de refrigeració | 9,000 BTU (0.75 tones) |
| SEER (índex d'eficiència energètica estacional) | Fins a 38.00 |
| HSPF (Heating Seasonal Performance Factor) | 15.0 (Estimated from description) |
| Voltage | 208/230 volts |
| Wattage | 2638 watts |
| Nivell de soroll | 56 dB (Outdoor unit, typical max) |
| Dimensions del producte (unitat exterior) | 35 x 23 x 14 polzades |
| Pes de l'article | 105 lliures |
| Mida recomanada de l'habitació | 300 - 500 ft² |
| Tipus de refrigerant | R410a |
| Característiques especials | Air Purification Filter, Wi-Fi Connectivity, ULTRA Heating (down to -22°F) |
Image: A collection of icons highlighting key features: 5-Year Limited Parts Warranty, Wi-Fi Ready, Ultra Heating down to -22°F, AHRI Certified, up to 38 SEER, and Energy Star certification.
Garantia i Suport
Your Gree Sapphire Mini Split Air Conditioner Heat Pump comes with a comprehensive warranty and dedicated customer support.
- Garantia limitada de peces: The product includes a 5-year limited parts warranty. Please refer to the official warranty document provided with your unit for full terms and conditions.
- Devolucions: A 30-day easy return policy is typically offered by authorized sellers. Please check with your specific retailer for their return policy details.
- Atenció al client: For technical assistance, warranty claims, or service inquiries, please contact the customer support provided by your authorized dealer or the manufacturer.
For online support and resources, you may visit the official GREE store on Amazon: GREE Store.
