RYOBI 089041028145 Dust Chute Front Instruction Manual

1. Introducció

This manual provides instructions for the proper installation, operation, and maintenance of the RYOBI 089041028145 Dust Chute Front. This component is an original equipment manufacturer (OEM) replacement part designed to maintain the dust collection efficiency of compatible miter saws. Please read this manual thoroughly before installation and use.

2. Informació de seguretat

Always observe basic safety precautions when working with power tools and their accessories. Failure to do so may result in serious personal injury or property damage.

• Desconnecteu l'alimentació: Always unplug the miter saw from the power source before installing, removing, or performing any maintenance on the dust chute or any other saw component.
• Porteu protecció ocular: Always wear appropriate eye protection (safety glasses or goggles) when operating or working near power tools.
• Read Saw Manual: Refer to your miter saw's original instruction manual for specific safety warnings and operating procedures.
• Inspeccionar components: Before each use, inspect the dust chute for any damage, cracks, or wear. Replace damaged parts immediately.
• Instal·lació segura: Ensure the dust chute is securely fastened before operating the saw. A loose chute can become a projectile or interfere with saw operation.

3. Compatibilitat

The RYOBI 089041028145 Dust Chute Front is compatible with the following miter saw models:

• R4210
• R4221
• R4222

Verify your saw's model number before attempting installation.

4. Contingut del paquet

El paquet ha de contenir:

• 1 x RYOBI 089041028145 Dust Chute Front

No additional fasteners or tools are typically included, as existing hardware is often reused.

5. Instal·lació

Follow these steps to install the dust chute front:

1. Preparar la serra: Ensure the miter saw is unplugged from the power source to prevent accidental startup.
2. Localitza la zona de muntatge: Identify the dust collection port or the area where the dust chute attaches on your miter saw. This is typically at the rear of the saw blade housing.
3. Remove Old Chute (if applicable): If replacing an existing dust chute, carefully remove any screws, clips, or other fasteners holding it in place. Keep these fasteners for reuse.
4. Position New Chute: Align the new RYOBI 089041028145 Dust Chute Front with the designated mounting points on the saw. Ensure it fits snugly and correctly.
5. Secure Chute: Using the fasteners removed in step 3 (or new, compatible fasteners if needed), securely attach the dust chute to the saw. Do not overtighten, but ensure it is firm.
6. Verifica la instal·lació: Gently tug on the installed chute to confirm it is securely attached and does not wobble. Check that it does not obstruct any moving parts of the saw or the blade's path.

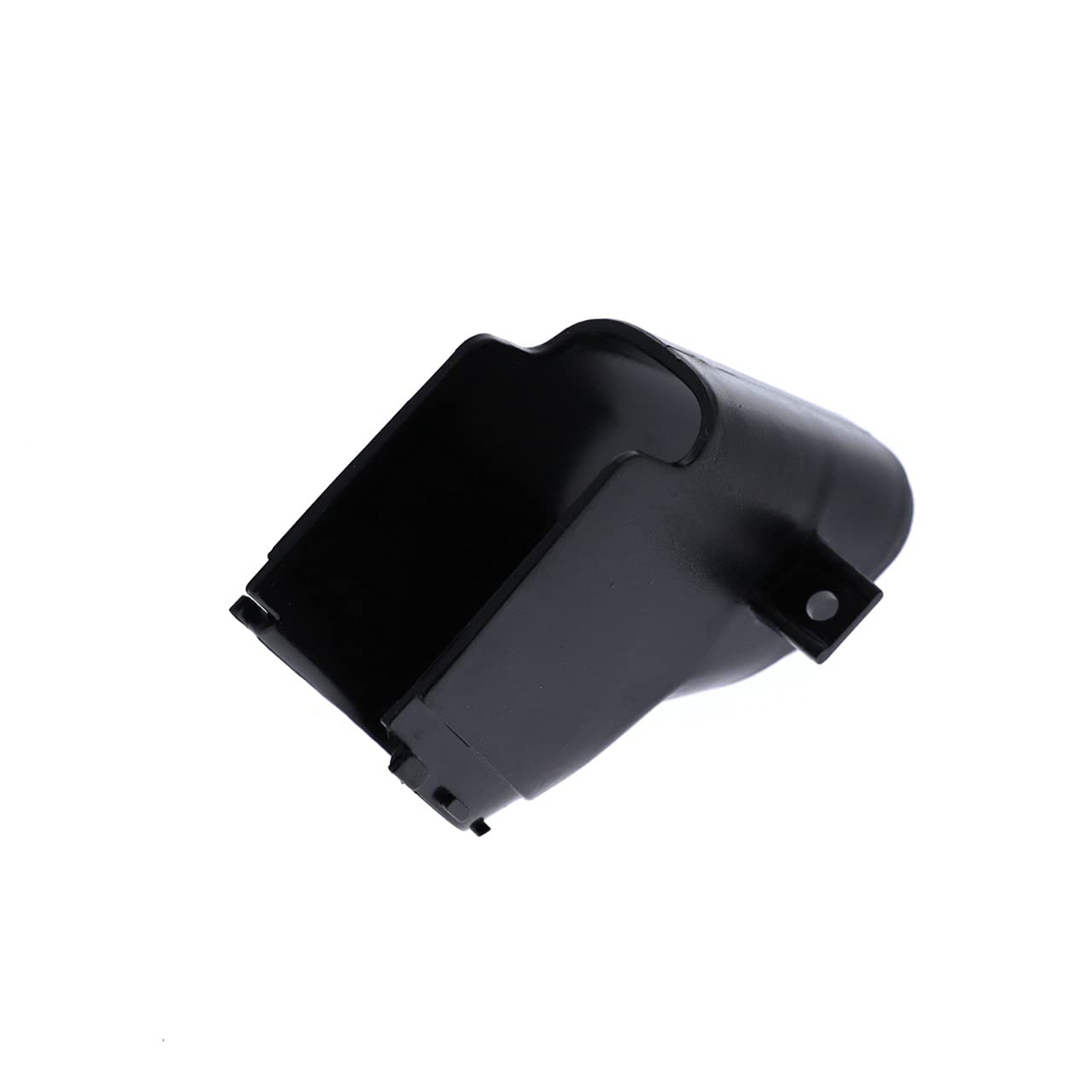

Image showing the RYOBI 089041028145 Dust Chute Front, a replacement part for miter saws. This component is designed to direct sawdust away from the cutting area into a collection bag or vacuum system.

6. Funcionament

The dust chute operates passively as part of the miter saw's dust collection system. Once installed, it directs sawdust and debris generated during cutting into an attached dust bag or vacuum hose. Ensure the dust collection system (bag or vacuum) is properly attached to the chute's outlet for effective dust management.

7. Manteniment

Regular maintenance of the dust chute ensures optimal performance and longevity.

• Neteja: Periodically inspect the dust chute for sawdust buildup or blockages. Use a brush or compressed air to clear any obstructions. Ensure the saw is unplugged before cleaning.
• Inspecció: Check the chute for cracks, damage, or signs of wear. Replace the chute if it is damaged, as this can impair dust collection efficiency and potentially pose a safety risk.
• Comprovació de fixació: Ensure all fasteners holding the chute in place remain tight. Retighten if necessary.

8. Solució De Problemes

If you encounter issues with your dust chute, consider the following:

• Mala recollida de pols:
  • Check for blockages within the chute or the attached dust bag/vacuum hose.
  • Ensure the dust chute is securely installed and not loose.
  • Verify that the dust collection bag or vacuum system is properly attached and functioning.
• Chute Does Not Fit:
  • Double-check your miter saw's model number against the compatibility list in Section 3.
  • Ensure the chute is oriented correctly before attempting to fasten it.

9. Especificacions

10. Garantia i Suport

This RYOBI OEM part is designed for durability and performance. For specific warranty information, please refer to the original purchase documentation or contact RYOBI customer support directly. Keep your proof of purchase for any warranty claims.

For technical assistance or further inquiries, please visit the official RYOBI website or contact their customer service department. When contacting support, please have your product model number (089041028145) and your miter saw's model number ready.
