1. Introducció
This manual provides essential information for the safe and efficient installation, operation, and maintenance of the Schneider Electric LC1D09B7 TeSys D Contactor. Please read this manual thoroughly before attempting any installation or operation to ensure proper use and prevent potential hazards.
2. Informació de seguretat
ADVERTIMENT: Electrical shock hazard. Installation and maintenance should only be performed by qualified and authorized personnel. Always disconnect power before working on the contactor or associated circuitry.
- Assegureu-vos que es compleixin tots els codis elèctrics locals i nacionals.
- Utilitzar equips de protecció individual (EPI) adequats.
- Comproveu que el volum de subministramenttage matches the contactor's coil voltage rating (24 V AC).
- No feu funcionar el contactor si sembla que està danyat.
3. Producte acabatview
The Schneider Electric LC1D09B7 is a TeSys D series contactor designed for controlling electrical loads in various industrial and commercial applications. It features a 3-pole (3 NO) configuration suitable for AC-3 duty, rated for 9 Amps at 440 Volts, and operates with a 24 V AC coil.
Les característiques clau inclouen:
- Model: LC1D09B7
- TeSys D Contactor
- 3-Pole (3 Normally Open)
- AC-3 Duty Rating
- Corrent nominal: 9 Ampa 440 volts
- Bobina Voltage: 24 V AC
4. Configuració i instal·lació
The LC1D09B7 contactor is designed for easy mounting and wiring. Always ensure power is disconnected before beginning installation.

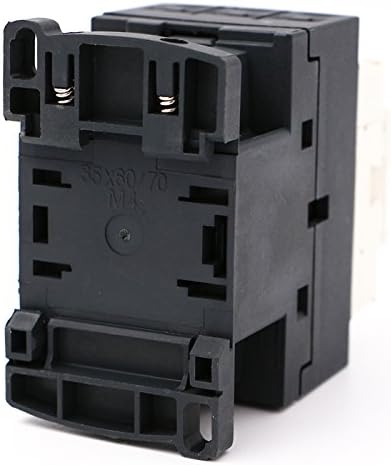

4.1 Muntatge
The contactor can be mounted on a standard DIN rail or directly to a panel using screws. Ensure sufficient clearance for ventilation and wiring.
4.2 Cablejat
Connect the main power circuit to the power terminals (L1, L2, L3 for input; T1, T2, T3 for output). Connect the 24 V AC control voltage to the coil terminals (A1, A2). Ensure all connections are secure and tightened to the manufacturer's specified torque values to prevent loose connections and overheating.
Refer to the wiring diagram provided with the product packaging or on the Schneider Electric official website for detailed connection instructions specific to your application.
5. Instruccions de funcionament
The LC1D09B7 contactor operates by energizing its coil. When the 24 V AC control voltage is applied to terminals A1 and A2, the coil creates a magnetic field, causing the main contacts (L1-T1, L2-T2, L3-T3) to close. This establishes a connection between the power source and the load.
- Energitzant la bobina: Apply 24 V AC to terminals A1 and A2. The contactor will audibly click as the contacts close.
- Desactivació de l'alimentació de la bobina: Remove the 24 V AC supply from terminals A1 and A2. The magnetic field collapses, and the main contacts will open, disconnecting power to the load.
- Capacitat de càrrega: Ensure the connected load does not exceed the contactor's rated current of 9 Amps at 440 Volts (AC-3 duty).
6. Manteniment
Regular maintenance helps ensure the longevity and reliable operation of the contactor. Always disconnect all power before performing any maintenance.
- Inspecció visual: Periodically inspect the contactor for signs of wear, damage, discoloration, or loose connections. Check for any foreign objects or dust accumulation.
- Estanquitat del terminal: Verify that all terminal screws are securely tightened. Loose connections can lead to overheating and contact failure.
- Contact Condition: While power is disconnected, visually inspect the main contacts for excessive pitting or erosion. Severely worn contacts may require replacement of the contactor.
- Neteja: Use a dry, lint-free cloth to clean the exterior of the contactor. Do not use solvents or abrasive cleaners.
7. Solució De Problemes
Si el contactor no funciona com s'espera, feu les comprovacions bàsiques següents:
| Problema | Causa possible | Solució |
|---|---|---|
| Contactor does not engage (no click) | Sense control voltage to coil (A1-A2) Incorrect coil voltage Damaged coil | Check 24 V AC supply to A1-A2 Verifica el volum de la bobinatage matches supply Replace contactor if coil is faulty |
| Contactor hums loudly or overheats | Connexions soltes Incorrect coil voltage Foreign material in magnet system Càrrega excessiva | Tighten all terminal connections Verifica el volum de la bobinatage Inspect and clean magnet system (power off) Ensure load is within ratings |
| Main contacts do not close or open reliably | Worn or pitted contacts Obstrucció mecànica Insufficient coil voltage | Substituïu el contactor Inspect for obstructions (power off) Check 24 V AC supply to A1-A2 |
If troubleshooting steps do not resolve the issue, contact Schneider Electric customer support or a qualified electrician.
8. Especificacions
| Especificació | Valor |
|---|---|
| Fabricant | Schneider |
| Número de part | LC1D09B7 |
| Número de model de l'article | LC1D09B7 |
| Pes de l'article | 11.3 unces |
| Dimensions del paquet | 4.41 x 3.62 x 2.05 polzades |
| Mida | Petit |
| Material | Plàstic |
| Voltage (bobina) | 24 volts de corrent altern |
| AmpCapacitat d'emmagatzematge (AC-3) | 9 Amps |
| Quantitat de paquet d'articles | 1 |
9. Informació de la garantia
For detailed warranty information regarding the Schneider Electric LC1D09B7 Contactor, please refer to the official documentation included with your purchase or visit the Oficial de Schneider Electric weblloc. Warranty terms and conditions may vary by region and product.
10. Suport
If you require technical assistance, have questions about installation, or need further support for your Schneider Electric LC1D09B7 Contactor, please contact Schneider Electric customer service through their official website or local support channels. You can find contact information and resources at the Schneider Electric weblloc.
