1. Informació general de seguretat
Always prioritize safety when operating the Razor E Prime Electric Scooter. Read and understand all instructions before use. Failure to follow safety guidelines can result in serious injury.
- Always wear a helmet and appropriate safety gear (knee pads, elbow pads, wrist guards).
- No conduïu de nit o en condicions de poca visibilitat.
- Eviteu circular per superfícies mullades, grava solta o terreny irregular.
- Mantenir una distància de seguretat amb els vianants i altres vehicles.
- No supereu el límit de pes màxim de 176 lliures (80 kg).
- Recomanat per a majors de 14 anys.
- Always check local laws and regulations regarding electric scooter use.
A rider demonstrating safe operation of the Razor E Prime scooter, wearing a helmet for protection.
2. Configuració
2.1 Desembalatge i muntatge inicial
Your Razor E Prime scooter comes partially assembled. Follow these steps to prepare it for use.
- Carefully remove the scooter and all components from the packaging.
- Desplegueu el patinet alliberant-loasing the folding mechanism. Ensure it locks securely into the upright position.
- Insert the handlebars into the steering tube. Ensure the spring-loaded buttons snap into place, securing the handlebars.
The scooter's folding mechanism, designed for compact storage and portability.

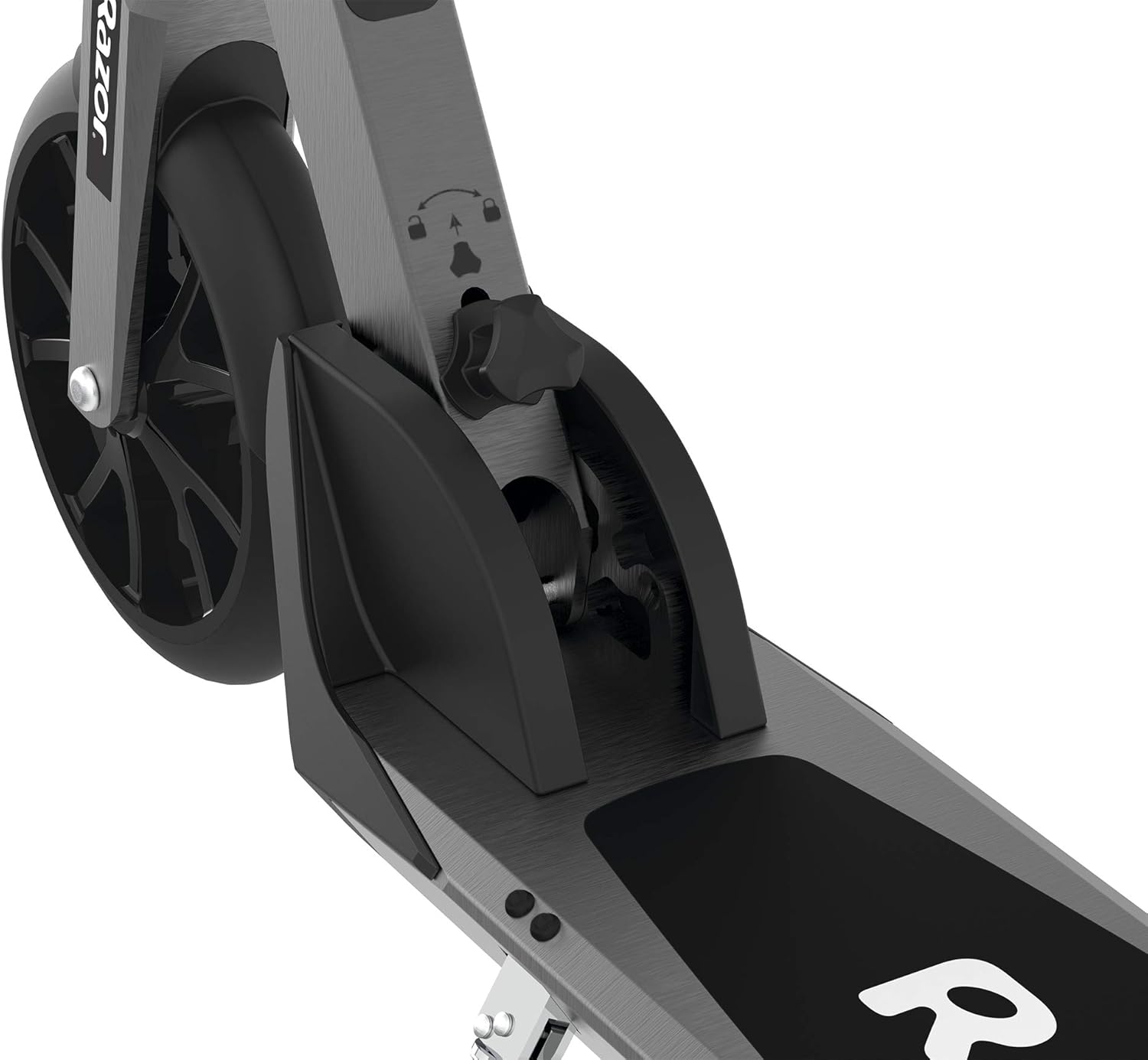

Un detallat view of the latch that secures the scooter in its folded or unfolded position.
2.2 Adjusting Handlebars
The handlebars are adjustable to suit different rider heights for optimal comfort and control.
- Afluixeu el cl. d'alliberament ràpidamp al tub de direcció.
- Adjust the handlebar height to a comfortable position, typically around waist level.
- Securely tighten the quick-release clamp. Ensure the handlebars are firmly in place before riding.
The adjustable handlebar mechanism, allowing riders to customize height for comfort.
A visual representation of the adjustable handlebars, highlighting the range of height options.
2.3 Càrrega inicial de la bateria
Before first use, fully charge the scooter's battery. This ensures optimal performance and battery longevity.
- Locate the charging port on the scooter's deck.
- Connect the charger to the port and then to a standard wall outlet.
- The charging indicator light on the charger will change (e.g., from red to green) when fully charged.
- Initial charge time may be up to 12 hours. Subsequent charges typically take 4-6 hours.
Official product video demonstrating the setup and initial use of the Razor E Prime Electric Scooter, including folding and unfolding. (Source: Razor USA LLC)
3. Instruccions de funcionament
3.1 Engegada/apagada
To turn the scooter on, press the power button located on the deck. The LED battery indicator will light up. To turn off, press and hold the power button until the lights extinguish.
A hand pressing the power button on the scooter's deck, activating the unit.
Els 5-stage LED display indicating the current battery charge level.
3.2 Conduint el scooter
The Razor E Prime features a kick-to-start mechanism and a thumb-activated accelerator.
- Place one foot firmly on the scooter's deck.
- Use your other foot to push off the ground, gaining initial momentum (kick-start).
- Once moving, gently press the thumb-activated accelerator on the right handlebar to engage the motor.
- Maintain balance and steer by leaning into turns.
Proper foot placement on the scooter's large aluminum deck for stability.
Close-up of the variable-speed paddle control, which acts as the thumb-activated accelerator.
3.3 Frenades
The Razor E Prime features dual braking systems for reliable stopping power.
- Thumb-Activated Electric Brake: Located on the left handlebar, gently press down to engage the electric brake.
- Foot-Activated Fender Brake: Press your foot down on the rear fender to activate the mechanical brake.
- For optimal stopping, use both braking systems simultaneously.
The thumb-activated electric brake lever on the left handlebar.

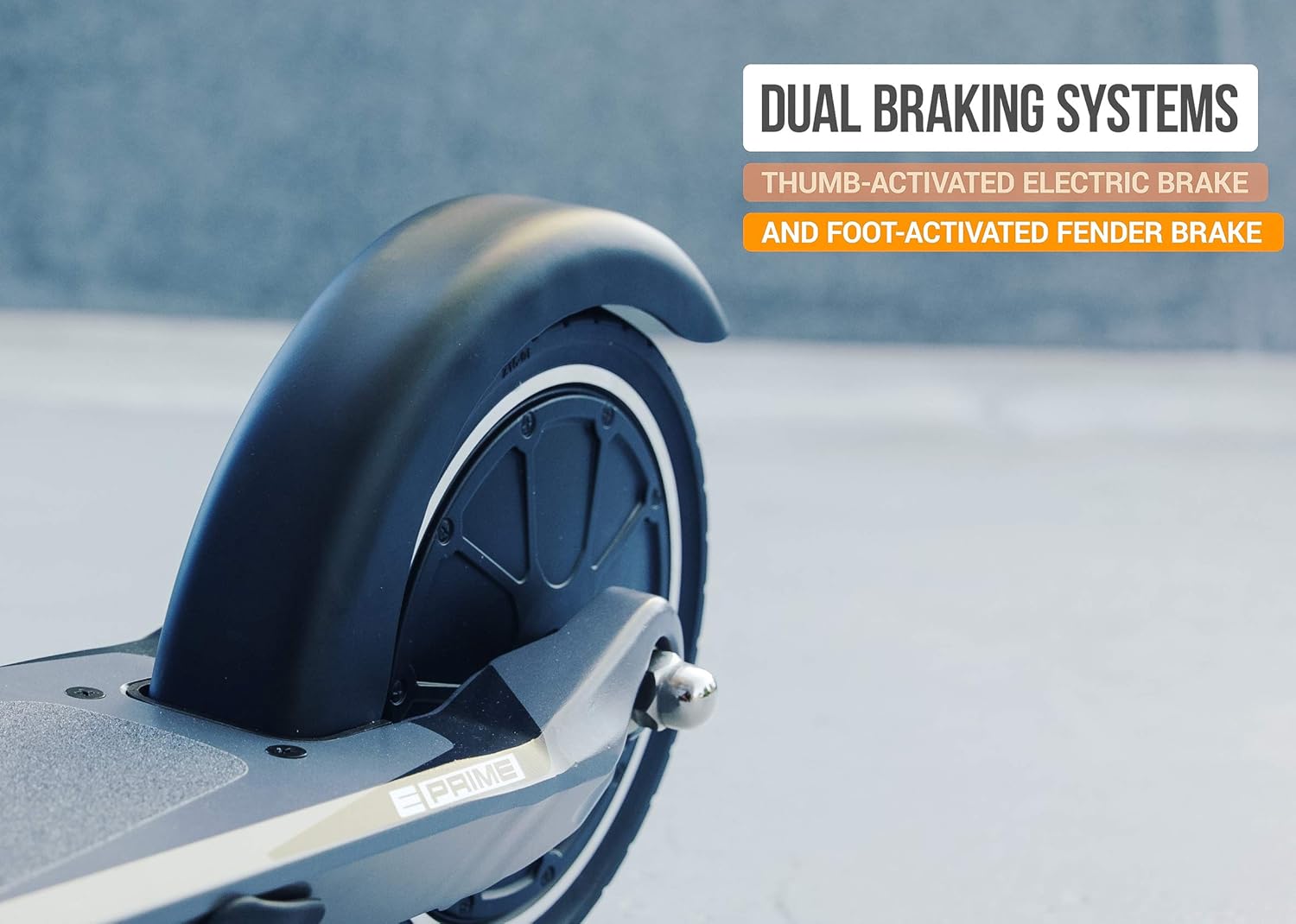

The rear fender brake, activated by pressing down with your foot.
Una breu projecció de vídeoasing the Razor E Prime Electric Scooter in action, highlighting its features and smooth ride. (Source: Merchant Video)
4. Manteniment
Regular maintenance ensures the longevity and safe operation of your Razor E Prime scooter.
4.1 Neteja i emmagatzematge
- Netegeu el patinet amb anuncisamp drap després de cada ús. Eviteu utilitzar productes químics agressius o netejadors abrasius.
- Guardeu el patinet en un lloc sec i fresc, allunyat de la llum solar directa i la humitat.
- For long-term storage, ensure the battery is fully charged and recharge it every 30 days.
4.2 Cura de la bateria
- Always use the original charger provided with the scooter.
- Do not overcharge the battery. Disconnect the charger once the indicator light turns green.
- Avoid completely draining the battery before recharging, as this can reduce battery life.
The integrated 36V Lithium-Ion battery system, providing up to 40 minutes of continuous use per charge.
4.3 Wheel and Tire Inspection
- Regularly inspect the 8-inch airless, flat-free rubber tires for wear and tear.
- Assegureu-vos que les rodes girin lliurement i que no estiguin obstruïdes per deixalles.
- Check the front and back fenders for any damage or looseness.
The large diameter front wheel, designed to provide a smoother ride.
The rear wheel and fender, which protects the rider from dirt and debris.
4.4 Brake Check
- Before each ride, test both the electric brake and the fender brake to ensure they are functioning correctly.
- If brakes feel loose or unresponsive, do not ride the scooter and contact customer support.
5. Solució De Problemes
This section addresses common issues you might encounter with your Razor E Prime scooter.
| Problema | Causa possible | Solució |
|---|---|---|
| El patinet no s'encén. | La bateria està baixa o esgotada. | Carregueu la bateria completament. |
| Scooter does not accelerate. | Not kick-started sufficiently. | Ensure you kick-start the scooter to at least 3 mph (5 km/h) before engaging the accelerator. |
| Velocitat o autonomia reduïdes. | Low battery charge; riding uphill; heavy load; extreme temperatures. | Recharge battery; avoid steep inclines; reduce load; ride in moderate temperatures. |
| Els frens no són efectius. | Brake mechanism worn or loose. | Inspect brake components. Contact customer support for repair or replacement. |
| Rattling noise from folding mechanism. | Folding mechanism not fully secured. | Ensure the anti-rattle folding technology is properly engaged and tightened. |
6. Especificacions
Key technical specifications for the Razor E Prime Adult Electric Scooter.
| Característica | Detall |
|---|---|
| Nom del model | Razor E Prime Electric Scooter |
| Motor | Motor de concentrador sense escombretes de 250 W |
| Velocitat màxima | Fins a 15 mph (24 km/h) |
| Bateria | Ió de liti de 36V |
| Temps d'execució | Fins a 40 minuts d'ús continu |
| Material del marc | Alumini |
| Rodes | 8-inch (200 mm) Airless, Flat-free Rubber |
| Estil de fre | Rear Braking (Thumb-activated electric and Foot-activated fender) |
| Límit de pes | 176 lliures (80 kg) |
| Pes de l'article | 21.56 lliures (9.78 kg) |
| Tipus de manillar | Alçada ajustable |
The durable aluminum frame with anti-rattle folding technology.
The powerful and quiet hub motor, quickly reaching speeds up to 15 mph.
7. Informació de la garantia
The Razor E Prime Adult Electric Scooter comes with a limited warranty.
- Tipus de garantia: Garantia de 90 dies
- This warranty covers manufacturing defects in materials and workmanship.
- It does not cover normal wear and tear, tires, tubes, or any damage, failure or loss caused by improper assembly, maintenance, storage, or use of the Razor E Prime.
- For full warranty details, please refer to the official Razor weblloc o contacteu amb el servei d'atenció al client.
8. Suport
For further assistance, parts, or service, please contact Razor customer support.
- Visita la màquina d'afaitar oficial weblloc: www.razor.com
- Refer to the contact section on their weblloc web per obtenir números de telèfon o assistència per correu electrònic.
