Introducció
This comprehensive manual, spanning 82 pages, is a brand new TechMedia reprint designed to guide owners and operators of the Ford 8600 Tractor. It includes a supplement to ensure all necessary information is covered for proper use and upkeep. Familiarize yourself with its contents to ensure safe, efficient, and long-lasting performance of your tractor.
Precaucions de seguretat
Always prioritize safety when operating the Ford 8600 Tractor. Familiarize yourself with all warnings and instructions before use. Failure to follow these precautions can result in serious injury or death.
Image description: A page from the manual titled 'Safety Precautions' listing numerous safety guidelines, such as reading the manual, wearing appropriate clothing, and never operating the tractor under the influence. An alert symbol is visible.
- Llegeix el manual: Thoroughly read and understand the entire operator's manual before operating the tractor.
- Appropriate Clothing: Wear close-fitting clothing and sturdy footwear. Avoid loose clothing that could get caught in moving parts.
- Operator Alertness: Never operate the tractor under the influence of alcohol, drugs, or medication that impairs judgment.
- Guards and Shields: Ensure all safety guards and shields are in place and properly secured before starting the tractor.
- Seguretat dels passatgers: Do not allow passengers on the tractor unless it is equipped with a designated passenger seat.
- P.T.O. Safety: Always disengage the Power Take-Off (P.T.O.) and shut off the engine before servicing or adjusting P.T.O. driven equipment.
Controls i instruments
Understanding the tractor's controls and instruments is crucial for effective and safe operation. This section details the function and location of various components.
Seat, Light, Steering, and Engine Controls
Image description: A page illustrating the adjustable seat, flasher warning lamp, key-starter switch, and diesel engine stop control. Diagrams show various switches and indicators on the dashboard, including the fuel gauge and oil pressure light.
- Seient ajustable: The operator's seat can be adjusted for height and fore-aft position to ensure comfort and proper control access.
- Flasher Warning Lamp: Used to signal turns or warn other traffic.
- Key-Starter Switch: Controls the ignition and starting of the engine.
- Diesel Engine Stop Control: Used to shut down the diesel engine.
Brake and Rear Axle Controls

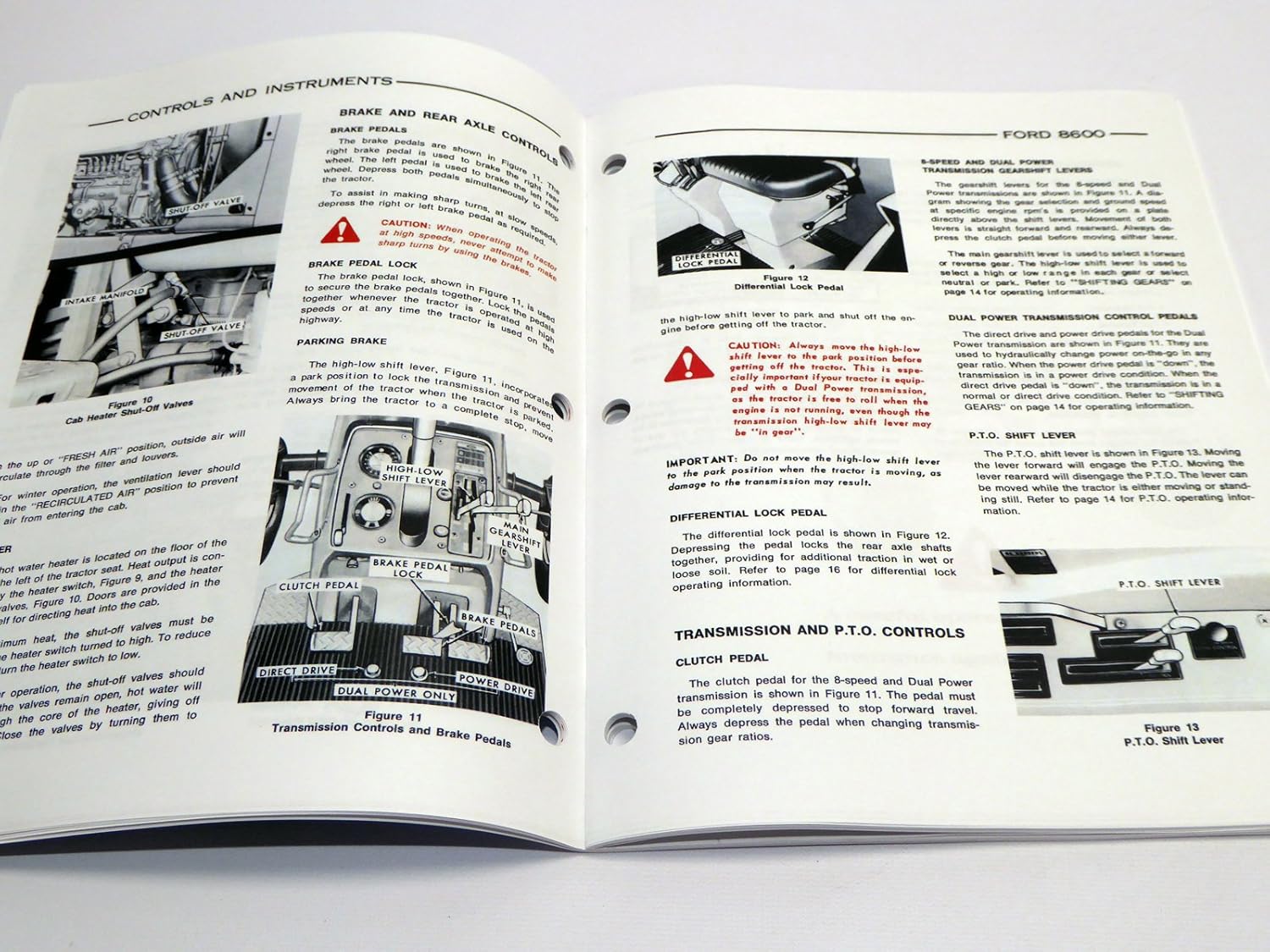

Image description: A page detailing the brake pedals, brake pedal lock, parking brake, and high-low shift lever. Diagrams show the foot pedals and transmission controls, including the differential lock pedal.
- Brake Pedals: Separate pedals for left and right brakes, which can be locked together for simultaneous braking.
- Brake Pedal Lock: Engages to secure the brake pedals in a locked position.
- Fre d'estacionament: A separate lever or pedal to engage the parking brake for securing the tractor when stationary.
- Differential Lock: Engages the differential lock for improved traction in slippery conditions.
Transmission and P.T.O. Controls
The Ford 8600 Tractor features specific controls for its transmission and Power Take-Off (PTO) system.
- High-Low Shift Lever: Selects between high and low ranges for the transmission.
- P.T.O. Shift Lever: Engages and disengages the Power Take-Off for operating implements.
Hydraulic Lift System Controls
The hydraulic lift system is controlled by specific levers and settings for various implements.
- Hydraulic Control Levers: Used to raise, lower, and control the position of rear-mounted implements.
- Lift Linkage and Drawbar: Adjustments for connecting and operating various towed or mounted equipment.
Configuració
Proper setup ensures optimal performance and safety. This includes initial adjustments and preparations before operation.
Configuració de la banda de rodament de les rodes
Image description: A detailed diagram showing various configurations for manually adjusted rear wheel tread settings for the Ford 8600 tractor, indicating different widths and bolt patterns for 100-inch and 84-inch axles.
Adjusting the wheel tread is essential for stability and specific operational requirements. Refer to the diagrams for correct settings for both front and rear wheels to match your application and ensure safe operation.
Tractor Weighting
Appropriate tractor weighting improves traction, stability, and overall performance, especially when using heavy implements. Consult the manual for recommended ballast configurations and methods for adding weight to the wheels or chassis.
Procediments operatius
This section outlines the correct procedures for operating your Ford 8600 Tractor, from initial startup to advanced functions.
Procediments d'intrusió
Follow the recommended break-in procedures for new or overhauled engines to ensure longevity and optimal performance. This typically involves operating the tractor under varying loads and speeds for the initial hours.
Arrencada del motor
Detailed steps for safely starting the Ford 8600 Tractor engine, including pre-start checks, engaging the starter, and monitoring initial engine operation.
Aturant el motor
Instructions for safely shutting down the tractor, including disengaging all implements, reducing engine speed, and turning off the ignition.
Operating the Tractor and P.T.O.
Guidance on engaging and disengaging the Power Take-Off (PTO) and general tractor operation, including gear selection and speed control for various tasks.
Operating the Differential Lock
Instructions for using the differential lock to improve traction in challenging conditions, such as muddy fields or uneven terrain. Understand when and how to engage and disengage it.
Operating the Hydraulic Lift System
Learn how to effectively use the hydraulic lift system for various implements, including lift linkage and drawbar adjustments. This section covers raising, lowering, and maintaining implement position.
Guia de manteniment
Regular maintenance is critical for the reliability, safety, and lifespan of your Ford 8600 Tractor. Adhere to the recommended service intervals and procedures.
Lubrication and Maintenance Chart
Image description: A two-page spread showing a detailed lubrication and maintenance chart for the Ford 8600 tractor. It lists service intervals (e.g., 10 hours or daily, 50 hours, 300 hours, 600 hours, 1200 hours, seasonal) and corresponding maintenance items, checks, and page references for tasks like oil changes, filter replacements, and fluid checks.
Refer to the comprehensive chart for scheduled lubrication points and maintenance tasks, including engine oil changes, filter replacements, and fluid checks. Following this schedule will help prevent premature wear and ensure optimal performance.
Fuel and Lubricants
Information on recommended fuel types and lubricants, along with proper service procedures for fuel filters, oil filters, and hydraulic systems. Using the correct fluids is vital for engine and component health.
Manteniment general
Instructions for routine checks and adjustments, including cleaning the air cleaner element, inspecting the fan belt, checking battery fluid levels, and other components that require regular attention.
Fuel Injector Removal and Installation
Image description: A page from the manual illustrating the process of fuel injector removal and installation, including diagrams of the injector, sealing washers, and related components with numbered steps.
Detailed steps for removing and installing fuel injectors, including necessary precautions, cleaning procedures, and torque specifications. This procedure should only be performed by individuals with appropriate mechanical knowledge.
Emmagatzematge de tractors
Guidelines for preparing your tractor for extended storage to prevent damage and ensure readiness for future use. This includes cleaning, fluid changes, battery care, and protecting exposed components.
Resolució de problemes
This section provides guidance on identifying and resolving common operational issues that may arise with your Ford 8600 Tractor. Consult the relevant sections of the manual for specific diagnostic and repair procedures.
- El motor no arrenca: Check fuel supply, battery charge, and ignition system.
- Pèrdua de potència: Inspect fuel filters, air cleaner, and engine timing.
- Hydraulic System Malfunctions: Verify fluid levels, filter condition, and control lever settings.
- Problemes de frens: Check fluid levels, pedal adjustment, and wear on brake components.
For complex problems or issues not covered in this manual, it is recommended to contact a certified Ford service technician.
Especificacions
Key technical specifications for the Ford 8600 Tractor manual:
- Editor: TechMedia
- Data de publicació: 1 de gener de 2017
- Idioma: Anglès
- Longitud d'impressió: 82 pàgines
- Pes de l'article: 1 lliures
- ASIN: B0773XWF8X
Garantia i Suport
This manual is a reprint. For information regarding the original manufacturer's warranty for the Ford 8600 Tractor itself, please refer to the documentation provided at the time of the tractor's original purchase or contact an authorized Ford dealer.
For support related to the content or quality of this specific manual reprint, please contact the publisher, TechMedia, or the vendor from whom this reprint was acquired.
