CKPSMS BC-PF9076-NBL Bobbin Case Instruction Manual

1. Introducció

This manual provides comprehensive instructions for the CKPSMS BC-PF9076-NBL Bobbin Case. This product is designed to be compatible with a wide range of PFAFF sewing machines, offering a 9mm wide needle slot and a non-backlash spring mechanism to ensure smooth operation and prevent bobbin overspin during sewing.

2. Producte acabatview

The CKPSMS BC-PF9076-NBL Bobbin Case is a precision-engineered component for domestic sewing machines. It features a 9mm wide needle slot, which is essential for certain sewing machine models and applications. The integrated non-backlash spring helps maintain consistent thread tension and prevents the bobbin from unwinding excessively when the machine stops, contributing to cleaner stitches and fewer thread jams.

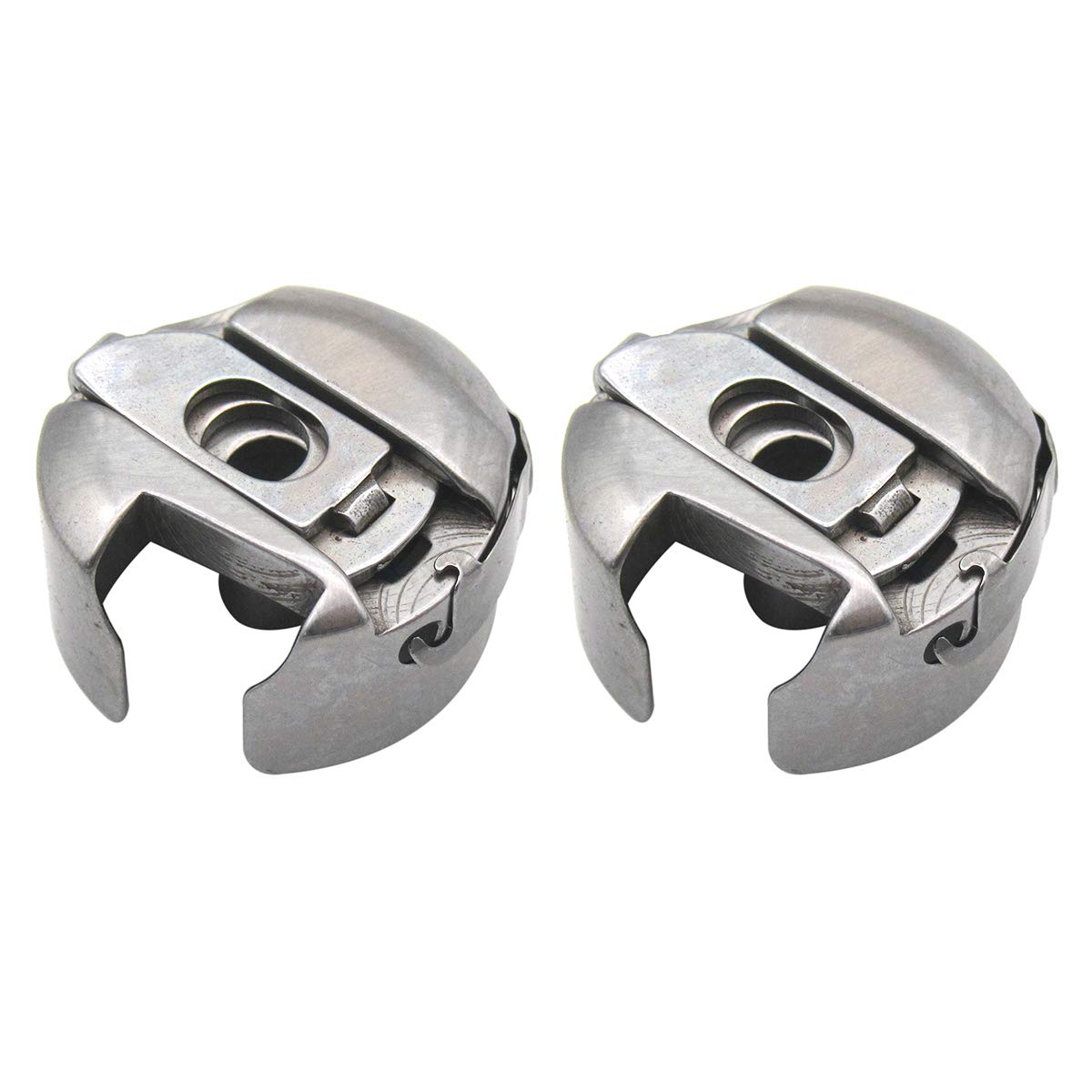

Figura 1: Interior view of the CKPSMS Bobbin Case, highlighting the non-backlash spring.

Figure 2: The bobbin case demonstrating its 9mm needle slot width.

This product is supplied as a set of two (2) bobbin cases, ensuring you have a spare or can use them across multiple compatible machines.

3. Compatibilitat

The BC-PF9076-NBL bobbin case is compatible with numerous PFAFF sewing machine models. Please verify your machine's model number against the list below to ensure proper fit and function.

• Pfaff Select Series: 2.0, 3.0, 4.0
• Pfaff Models: 76, 77, 78, 79, 84, 85, 86, 87, 90, 91, 92, 93, 94, 95, 96, 97, 130, 138, 229, 230, 238, 259, 260, 262, 284, 285, 285-1, 294, 295, 295-1, 296, 296-1, 297, 297-1, 332, 360, 362, 368, 438, 463, 801, 803, 806, 807, 809, 875, 876, 904, 905, 906, 907, 916, 917, 919, 927, 933, 935, 939, 946, 947, 953, 955, 975
• Pfaff Models: 1011, 1013, 1014, 1015, 1018, 1019, 1027, 1029, 1035, 1037, 1047, 1050, 1051, 1067, 1069, 1071, 1147, 1150, 1151, 1171, 1196, 1197, 1199, 1209, 1211, 1212, 1213, 1214, 1215, 1216, 1217, 1221, 1222, 1222E, 1222SE, 1229, 1371, 1467, 1469, 1471, 1472, 1473, 1473CD, 1475, 1475CD
• Pfaff Models: 1520, 1522, 1523, 1524, 1525, 1526, 1527, 1528, 1529, 1530, 1536, 1538, 1540, 1546, 1548, 2010, 2014, 2020, 2022, 2024, 2025, 2026, 2027, 2028, 2029, 2030, 2032, 2034, 2036, 2038, 2040, 2042, 2044, 2046, 2048, 2054, 2056, 2058, 2124, 2134, 2140, 2144, 2170
• Pfaff Models: 6085, 6086, 6087, 6091, 6110, 6112, 6120, 6122, 6150, 6152, 6230, 6232, 6250, 6252, 6270 7510, 7530, 7550, 7560, 7562, 7570, XNUMX, XNUMX
• Compatible with Durkopp Sewing Machine: 69-373
• Compatible with Adler Sewing Machine: 69-373

4. Configuració i instal·lació

Proper installation of the bobbin case is crucial for optimal sewing performance. Always refer to your specific sewing machine's instruction manual for detailed steps on accessing and replacing the bobbin case, as procedures may vary slightly between models.

1. Apagar: Ensure your sewing machine is turned off and unplugged from the power outlet before beginning any installation or maintenance.
2. Access Bobbin Area: Open the bobbin cover or remove the free arm extension to access the bobbin housing area.
3. Remove Old Bobbin Case: Carefully remove the existing bobbin case. Note its orientation for correct installation of the new one.
4. Insert New Bobbin Case: Place the CKPSMS BC-PF9076-NBL bobbin case into the bobbin housing. Ensure it is seated firmly and correctly, aligning any notches or guides as per your machine's design. It should click or lock into place securely.
5. Verificar seients: Gently try to rotate the bobbin case to confirm it is properly seated and does not wobble.
6. Tancar la coberta: Replace the bobbin cover or free arm extension.

5. Instruccions de funcionament

Once the bobbin case is installed, follow these steps for proper bobbin winding and insertion:

1. Enrotllament de la bobina: Wind your bobbin with the desired thread according to your sewing machine's instructions. Ensure the bobbin is evenly wound and not overfilled.
2. Inserting Bobbin into Case: Place the wound bobbin into the CKPSMS bobbin case. The thread should unwind in the direction specified by your sewing machine manual (usually clockwise or counter-clockwise).
3. Threading the Bobbin Case: Guide the bobbin thread through the tension spring slot on the bobbin case. You should feel a slight resistance, indicating the thread is correctly engaged with the non-backlash spring. Pull a few inches of thread out.
4. Insert Bobbin Case into Machine: Open the bobbin cover. Hold the bobbin case by its latch and insert it into the shuttle race of your sewing machine. Release the latch once it is securely in place.
5. Bring Up Bobbin Thread: Hold the upper thread lightly. Turn the handwheel towards you (counter-clockwise) to lower and raise the needle, catching the bobbin thread loop. Pull the bobbin thread up through the needle plate opening.
6. Prepare for Sewing: Place both upper and bobbin threads under the presser foot and towards the back of the machine before you begin sewing.

6. Manteniment

Regular maintenance of your bobbin case will extend its lifespan and ensure consistent sewing quality.

• Neteja: Periodically remove the bobbin case and use a small brush or lint remover to clean out any lint, dust, or thread fragments that may accumulate around the tension spring and inside the case. Accumulation can affect thread tension.
• Inspecció: Visually inspect the bobbin case for any signs of wear, nicks, or burrs, especially along the edges where the thread passes. Damaged areas can snag or fray the thread.
• Tensió: The tension of the bobbin case is factory-set. If you suspect bobbin tension issues, consult your sewing machine's manual or a qualified technician. Avoid adjusting the small screw on the bobbin case unless you are experienced, as incorrect adjustment can lead to significant sewing problems.
• Emmagatzematge: When not in use, store the bobbin case in a clean, dry place, preferably in its original packaging or a dedicated sewing accessory box to prevent damage.

7. Solució De Problemes

If you encounter issues while using the bobbin case, consider the following common troubleshooting steps:

• Thread Jamming/Tangling:
  • Ensure the bobbin is correctly inserted and the thread is properly engaged in the tension spring.
  • Check for any lint or debris inside the bobbin case or shuttle area.
  • Verify that the bobbin is wound evenly and not too full.
• Punts saltats:
  • Confirm the bobbin case is fully and correctly seated in the machine.
  • Ensure the needle is inserted correctly and is not bent or dull.
• Uneven Stitching/Tension Issues:
  • Re-thread both the upper thread and the bobbin thread completely.
  • Check for any damage or wear on the bobbin case tension spring.
  • Ensure the correct size and type of bobbin are being used.
• Bobbin Not Spinning Smoothly:
  • Remove the bobbin and bobbin case and clean the entire bobbin area thoroughly.
  • Check for any obstructions or bent parts within the bobbin case or shuttle race.

8. Especificacions

9. Garantia i Suport

For warranty information, returns, or technical support regarding your CKPSMS BC-PF9076-NBL Bobbin Case, please contact the retailer from whom you purchased the product or the manufacturer directly. Keep your proof of purchase for any warranty claims.
