1. Producte acabatview
The DJI TB55 Intelligent Flight Battery is a high-capacity lithium polymer (LiPo) battery designed specifically for the DJI Matrice 200, Matrice 210, and Matrice 210 RTK series drones. It provides reliable power for extended flight times and features intelligent management systems for safe and efficient operation.
Figura 1.1: En angle view of the DJI TB55 Intelligent Flight Battery, showcasing el seu robust c negreasing and connection port.
This battery is engineered to integrate seamlessly with the Matrice series, ensuring optimal performance and safety during flight operations. It is crucial to use only genuine DJI TB55 batteries with compatible Matrice drones.
2. Pautes de seguretat
Adherence to the following safety guidelines is essential to prevent damage to the battery, drone, and to ensure personal safety. Failure to follow these instructions may result in fire, injury, or property damage.
- Do not expose the battery to liquids. Do not leave the battery outdoors or near heat sources.
- Do not use non-DJI approved chargers. Always use the official DJI charger designed for this battery.
- Do not use or charge swollen, leaking, or damaged batteries.
- No intenteu desmuntar ni modificar la bateria.
- Guardeu la bateria en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
- Mantingueu les piles fora de l'abast dels nens i les mascotes.
- Dispose of batteries according to local regulations. Do not dispose of batteries in general waste.
3. Configuració
3.1 Càrrega inicial
Before first use, fully charge the TB55 Intelligent Flight Battery using a compatible DJI battery charger. The charging temperature range is 41° to 104° F (5° to 40° C).
- Connect the battery to the DJI charging hub or directly to the charger.
- Connecteu el carregador a una presa de corrent.
- Monitor the battery's charge indicators. The LEDs will illuminate progressively during charging and turn off when fully charged.
Figura 3.1: A dalt view of the TB55 battery, highlighting the power button and LED charge indicators. Press the power button once to check the current charge level.
3.2 Instal·lació de la bateria
The TB55 battery is designed for specific installation into the DJI Matrice 200/210/210 RTK series drones. Refer to your drone's user manual for detailed installation instructions.
- Ensure the drone is powered off before installing or removing batteries.
- Alineeu la bateria amb el compartiment de la bateria del dron.
- Empenyeu suaument la bateria al seu lloc fins que faci clic de manera segura.
- Verify that both batteries (if applicable for your drone model) are properly seated before flight.
4. Funcionament
4.1 Engegada/apagada
- Per encendre: Press the power button once, then press and hold for two seconds. The battery indicators will light up.
- Per apagar: Press the power button once, then press and hold for two seconds. The battery indicators will turn off.
4.2 Comprovació del nivell de la bateria
Press the power button once to check the current battery level. The LED indicators will show the remaining charge.
| LEDs encesos | Nivell de bateria |
|---|---|
| 4 LED | 75-100% |
| 3 LED | 50-75% |
| 2 LED | 25-50% |
| 1 LED | 0-25% |
4.3 Usage in Drone
The TB55 battery is designed to provide stable power to your Matrice series drone. Always ensure the battery is fully charged and securely installed before each flight. Monitor battery levels during flight using the drone's flight control app.
Figura 4.1: Side profile of the TB55 battery, showing its compact design for drone integration.
5. Manteniment
5.1 Emmagatzematge
Proper storage is crucial for extending battery life and ensuring safety.
- For short-term storage (less than 3 months), store the battery at -4° to 113° F (-20° to 45° C).
- For long-term storage (more than 3 months), store the battery at 71.6° to 82.4° F (22° to 28° C).
- Store batteries with a charge level between 50% and 60%. Fully charged or fully discharged batteries can degrade faster.
- Keep batteries in a dry, well-ventilated area, away from direct sunlight and flammable materials.
5.2 Neteja
Clean the battery surface with a soft, dry cloth. Do not use liquid cleaners or solvents. Ensure the connection terminals are clean and free of debris.
6. Solució De Problemes
This section addresses common issues you might encounter with your TB55 Intelligent Flight Battery.
| Problema | Causa possible | Solució |
|---|---|---|
| La bateria no es carrega | Charger not connected, battery too hot/cold, battery fault. | Ensure charger is properly connected. Allow battery to reach optimal charging temperature (41° to 104° F). If issue persists, contact DJI Support. |
| Battery indicators not lighting up | Battery fully discharged, internal fault. | Attempt to charge the battery. If no response, the battery may be deeply discharged or faulty. Contact DJI Support. |
| Drone not powering on with battery installed | Battery not fully inserted, battery fault, drone issue. | Ensure battery is securely clicked into place. Test with another known good battery if available. Refer to drone's manual for power-on sequence. |
| Temps de vol reduït | Battery aging, improper charging/storage, extreme temperatures. | Ensure proper charging and storage practices. Battery capacity naturally degrades over time. Consider replacing older batteries. |

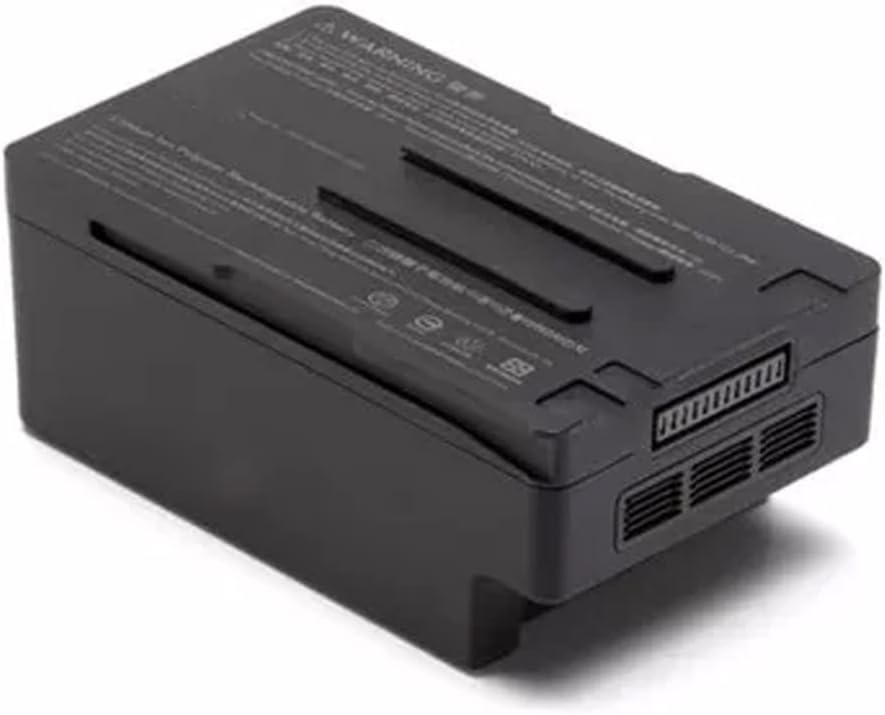

Figura 6.1: A baix view of the TB55 battery, illustrating the main connection port and ventilation areas. Keep these areas clear of obstructions.
7. Especificacions
Detailed technical specifications for the DJI TB55 Intelligent Flight Battery:
- Model: TB55
- Capacitat: 7660 mAh
- Voltage: 22.8 V
- Tipus de bateria: 6S LiPo
- Energia: 176.93 Wh
- Pes net: Aprox. 885 g (2.22 lliures)
- Dimensions del producte: 6.5 x 5 x 3 polzades
- Temperatura de funcionament: -4 ° a 113 ° F (-20 ° a 45 ° C)
- Storage Temperature (Less than 3 months): -4 ° a 113 ° F (-20 ° a 45 ° C)
- Storage Temperature (More than 3 months): De 71.6 a 82.4 °C (22 a 28 °F)
- Temperatura de càrrega: De 41 a 104 °C (5 a 40 °F)
- Potència de càrrega màxima: 180 W
- Usos recomanats: Drone (DJI Matrice 200/210/210 RTK series)
8. Garantia i Suport
The DJI TB55 Intelligent Flight Battery is covered by DJI's standard product warranty. For detailed warranty terms and conditions, please refer to the official DJI website or contact DJI customer support.
For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact DJI Support through their official channels. Ensure you have your product model number (43235-193873) and purchase information ready when contacting support.
You can find more information and support resources on the official DJI weblloc: www.dji.com/support
