Introducció
Thank you for choosing the La-Z-Boy 48968 2000 Big and Tall Executive Chair. This manual provides essential information for the proper assembly, operation, and maintenance of your new chair. Please read these instructions carefully before use to ensure safety and optimal performance.
Informació de seguretat
ADVERTIMENT:
- Exceeding the maximum weight capacity of 400 lbs may cause damage to the chair or result in personal injury.
- Assegureu-vos que tots els components estiguin correctament muntats i ajustats abans d'utilitzar-los per mantenir l'estabilitat.
- Individuals sensitive to memory foam materials should be aware that the seat cushion contains gel memory foam.
- Mantingueu les mans i els dits allunyats de les peces mòbils durant l'ajust.
Què hi ha a la caixa
Si us plau, comproveu que tots els components siguin presents abans de començar el muntatge.
- Cadira de respatller
- Seient de la cadira
- Reposabraços (2)
- Base de cinc estrelles
- Rodes (5)
- Cilindre d'elevació de gas
- Mechanism/Seat Plate
- Paquet de ferramenta (cargols, volanderes, clau Allen)
Muntatge i muntatge
Follow these steps to assemble your La-Z-Boy Executive Chair. It is recommended to assemble the chair on a soft, non-abrasive surface to prevent damage.
- Fixeu les rodes a la base: Insert each caster into the holes at the end of each leg of the five-star base. Push firmly until they click into place.
- Inseriu l'elevador de gas: Place the gas lift cylinder into the center hole of the five-star base.
- Fixeu el mecanisme al seient: Align the mechanism/seat plate with the pre-drilled holes on the underside of the chair seat. Ensure the front of the mechanism faces the front of the seat. Secure with bolts and washers using the provided Allen wrench.
- Col·loqueu els recolzabraços: Attach the armrests to the chair seat and back using the appropriate bolts. Do not fully tighten until both arms are in place and aligned.
- Attach Seat to Gas Lift: Col·loqueu amb cura el seient muntat sobre el cilindre d'elevació de gas, assegurant-vos que estigui centrat.
- Ajustament final: Once all components are loosely assembled and aligned, fully tighten all bolts.
Image: Fully assembled La-Z-Boy 48968 Executive Chair, showcasing its black bonded leather upholstery, chrome arms, and five-star base with casters.
Instruccions de funcionament
Your La-Z-Boy Executive Chair offers several adjustment features for personalized comfort.
- Ajust de l'alçada del seient: To raise the seat, lift the lever on the right side of the chair while taking your weight off the seat. To lower the seat, lift the lever while seated. Release the lever at the desired height.
- Knee Tilt and Lock: The chair features a knee tilt seat plate with four-point locking tilt positions. Pull the lever on the left side outwards to allow the chair to tilt. Push the lever inwards to lock the chair in an upright or tilted position.
- Ajust de la tensió d'inclinació: The round knob located under the front of the seat controls the tilt tension. Turn clockwise to increase tension (making it harder to recline) or counter-clockwise to decrease tension (making it easier to recline).
- Seat Slider: The seat slider allows you to adjust the depth of the seat. Locate the lever or button under the seat (typically on the left side). Engage the lever, slide the seat forward or backward to your preferred depth, and then release the lever to lock it in place.
Manteniment
Una cura adequada allargarà la vida útil i l'aspecte de la vostra cadira.
- Neteja: Spot clean the bonded leather upholstery as needed. Use a soft, damp drap amb aigua i sabó suau. Eviteu productes químics agressius o netejadors abrasius.
- Comprovació de maquinari: Periodically check all bolts and screws to ensure they are tight. Re-tighten if necessary to maintain stability.
- Cura de les rodes: Keep casters free of debris (hair, dust) to ensure smooth movement. Clean with a damp tela.
Resolució de problemes
Si teniu problemes amb la cadira, consulteu les solucions habituals següents:
- Chair Sinks or Won't Stay Up: El cilindre d'elevació de gas pot estar defectuós. Poseu-vos en contacte amb el servei d'atenció al client per obtenir un recanvi.
- La cadira tremola: Ensure all assembly bolts are securely tightened. Check that the casters are fully inserted into the base.
- Difficulty Tilting or Locking: Check the tilt tension knob and the tilt lock lever. Adjust tension or ensure the lever is fully engaged/disengaged.
- Rodes que no giren suaument: Clean any debris from the caster wheels. If still an issue, casters may need replacement.
Especificacions
| Característica | Detall |
|---|---|
| Marca | La-Z-Boy |
| Nom del model | La Z Boy 48968 |
| Dimensions del producte | 27.75 "P x 36.75" W x 18.75" H |
| Recomanació de pes màxim | 400 lliures |
| Tipus de material | Bonded Leather (Upholstery), Cotton (Fill) |
| Material de farciment | Escuma de memòria |
| Color | Negre |
| Estil d'esquena | Espatlla sòlida |
| Estil de braç | With arms (Aluminum with PU arm pads) |
| Moviment de base de mobles | Giratòria |
| Inclinació | Yes (Knee tilt with 4-point lock) |
| Instruccions de cura del producte | Spot Neted |
| Pes de l'article | 69 lliures |
| UPC | 656292489681 |

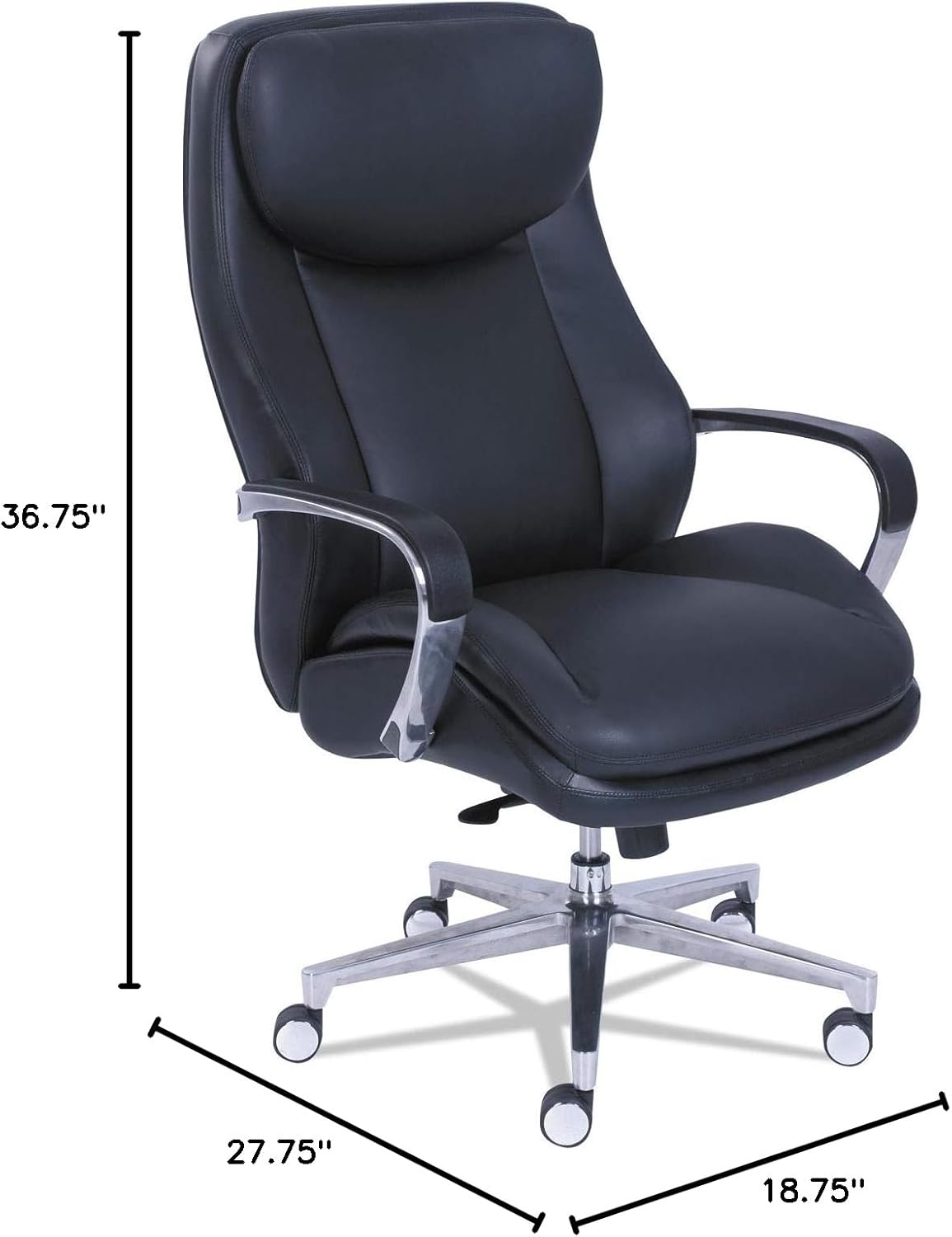

Image: Diagram showing the dimensions of the La-Z-Boy 48968 Executive Chair: 36.75 inches high, 27.75 inches deep, and 18.75 inches wide.
Image: Cross-section diagram illustrating the ComfortCore with Gel Memory Foam construction, detailing layers such as breathable perforated leather, polyfiber-fill, gel memory foam, and firmer support at the back of the cushion.
Garantia i Suport
For warranty information or technical support, please refer to the documentation included with your purchase or visit the official La-Z-Boy weblloc web. Conserveu el comprovant de compra per a reclamacions de garantia.
Fabricant: LA-Z-BOY CHAIR COMPANY
