Manual d'usuari del monitor de tauleta de dibuix Huion Kamvas GT-156HD V2

1. Introducció

This manual provides detailed instructions for the setup, operation, and maintenance of your Huion Kamvas GT-156HD V2 Drawing Tablet Monitor. Please read this manual thoroughly before using the device to ensure proper functionality and to prevent damage.

Figure 1: Huion Kamvas GT-156HD V2 Drawing Tablet Monitor.

2. Producte acabatview

The Huion Kamvas GT-156HD V2 is a 15.6-inch HD IPS pen display designed for digital art and graphic design. It features advanced pen technology and customizable controls to enhance your creative workflow.

2.1 Característiques clau

• 8192 Nivells de sensibilitat a la pressió: Experience precise control and accuracy in drawing, painting, and sketching with significantly enhanced pressure detection.
• 14 User-defined Express Keys and 1 Touch Bar: Customize shortcuts for improved work efficiency. The touch bar allows for functions like zooming in/out of images.
• Full HD (1920x1080) Screen with Anti-glare Glass: Enjoy vivid visuals with a 178° wide viewing angle, 262K colors, and 72% NTSC color gamut. The anti-glare glass provides an eye-protective and paper-like drawing surface.
• Disseny portàtil: With a thickness of only 15 mm and a weight of 1.5 kg, the tablet is designed for convenience and portability.
• Compatibilitat del sistema operatiu: Compatible with Windows 7/8/8.1/10 and Mac 10.11 or later versions.
• Two-section Multi-angle Adjustable Stand: Find a comfortable working position with the included adjustable stand.

2.2 Components

El paquet inclou:

• Huion Kamvas GT-156HD V2 Drawing Tablet Monitor
• Bolígraf digital
• 3-in-1 Cable (USB, HDMI, Power)
• Adaptador d'alimentació
• Pen Holder with Replacement Nibs
• Guant d'artista
• Two-section Multi-angle Adjustable Stand
• Guia d'inici ràpid

2.3 Visual Overview

Observe the following images for a visual guide to the product's features:

Figure 2: Illustration of 8192 levels of pen pressure sensitivity.

Figure 3: Location and function of 14 express keys and the touch bar.

Figure 4: The upgraded 3-in-1 cable for simplified connection.

Figure 5: Displaying 72% NTSC color gamut for natural and vivid colors.

Figure 6: The two-section multi-angle adjustable stand for ergonomic use.

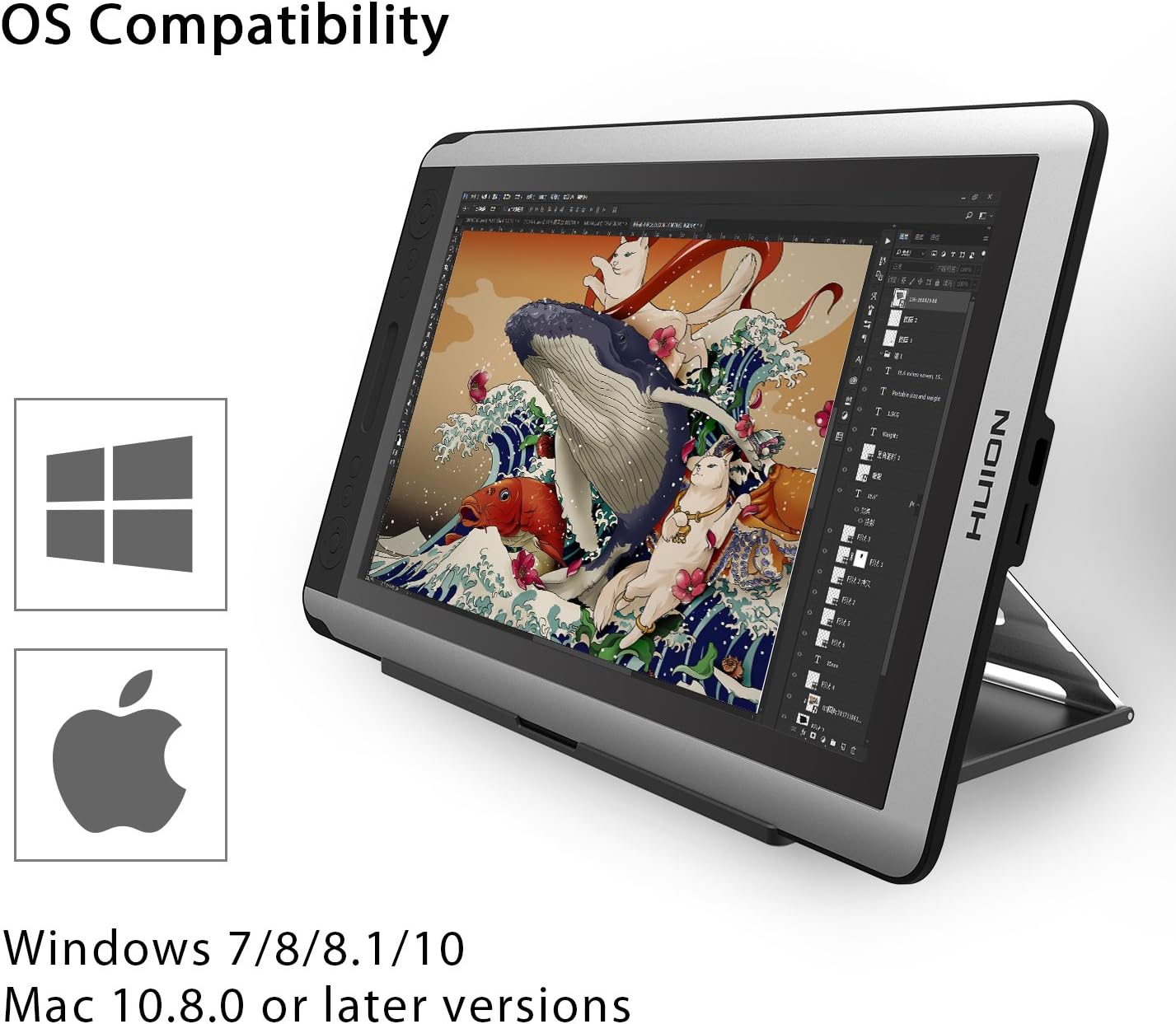

Figure 7: Operating System compatibility with Windows and Mac.

Figure 8: Dimensions and weight highlighting the tablet's portability.

2.4 Vídeo del producteview

Watch this official product video for a quick overview of the Huion Kamvas GT-156HD V2's features and benefits.

3. Configuració

Follow these steps to set up your Huion Kamvas GT-156HD V2 Drawing Tablet Monitor:

1. Instal·leu els controladors: Before connecting the tablet, download and install the latest drivers from the official Huion weblloc (www.huion.com). If you have other tablet drivers installed, uninstall them first to avoid conflicts.
2. Connect the 3-in-1 Cable:
   • Connect the Mini HDMI end of the 3-in-1 cable to the tablet's Mini HDMI port.
   • Connect the HDMI and USB-A ends of the cable to your computer's respective ports.
   • Connect the power adapter to the power port on the 3-in-1 cable and then to a power outlet.
3. Encès: Press the power button on the tablet to turn it on.
4. Configura la configuració de la pantalla: Your computer should detect the tablet as an external display. Adjust display settings (resolution, orientation) as needed in your operating system's display settings. The recommended resolution is 1920x1080.
5. Calibrate Pen: Open the Huion driver software and perform pen calibration to ensure accurate cursor tracking.
6. Charge Pen: Ensure your digital pen is charged before use. Connect it to a USB port using the provided charging cable.

4. Instruccions de funcionament

4.1 Using the Digital Pen

The digital pen functions as your primary input device. It supports 8192 levels of pressure sensitivity, allowing for varied line thickness and opacity based on pressure applied. The pen also features two customizable buttons for quick access to functions like right-click or eraser.

4.2 Customizing Express Keys and Touch Bar

The 14 express keys and the touch bar on the side of the tablet can be customized through the Huion driver software. You can assign various keyboard shortcuts, mouse clicks, or specific functions to these controls to streamline your workflow in different applications.

• Open the Huion driver software.
• Navigate to the "Express Keys" or "Work Area" section.
• Select each key or the touch bar to assign your desired function.
• Apply changes to save your settings.

4.3 Using the Adjustable Stand

The two-section multi-angle adjustable stand allows you to position the tablet at various angles for comfortable drawing. Adjust the stand to your preferred ergonomic position to reduce strain during long creative sessions.

5. Manteniment

Proper maintenance ensures the longevity and optimal performance of your tablet:

• Neteja de la pantalla: Feu servir un drap suau i sense borrissol per netejar suaument la pantalla. Per a taques difícils, fregueu lleugeramentampNetegeu el drap amb aigua o un netejador de pantalles. Eviteu productes químics agressius.
• Puntas de ploma: Regularly check the pen nib for wear. Replace it with a new nib from the pen holder when it becomes too short or sharp to prevent scratching the screen.
• Cura del cable: Handle the 3-in-1 cable with care. Avoid bending it sharply or placing heavy objects on it to prevent internal damage.
• Emmagatzematge: Quan no l'utilitzeu, guardeu la tauleta en un lloc net i sec, allunyat de la llum solar directa i de temperatures extremes.
• Bateria del bolígraf: To prolong the pen's battery life, avoid overcharging. Charge it only when the battery is low.

6. Solució De Problemes

If you encounter issues with your Huion Kamvas GT-156HD V2, refer to the following common problems and solutions:

6.1 Pen Not Responding or Cursor Not Moving

• Comprova la connexió USB: Ensure the USB cable is securely connected to both the tablet's 3-in-1 cable and your computer. Try a different USB port.
• Estat del conductor: Verify that the Huion driver software is running and recognizes the device. If the driver icon is grayed out or shows "Device disconnected," try reconnecting the USB cable or restarting your computer.
• Bateria del bolígraf: Ensure the digital pen is charged.
• Reinstal·lació del controlador: If issues persist, uninstall existing drivers, restart your computer, and then reinstall the latest drivers from the Huion weblloc.

6.2 Problemes de pantalla (sense senyal, parpelleig)

• Check HDMI Connection: Ensure the HDMI cable is securely connected to both the tablet's 3-in-1 cable and your computer's HDMI port.
• Connexió d'alimentació: Confirm the power adapter is correctly connected and the tablet is receiving power.
• Configuració de la pantalla: Check your computer's display settings to ensure the tablet is detected and configured as an extended or duplicated display.
• Parpelleig: If the screen flickers after prolonged use, ensure adequate ventilation around the tablet to prevent overheating.

6.3 Driver Software Not Recognizing Tablet After Sleep/Restart

Some users have reported that the tablet may not be recognized by the driver software after the computer enters sleep mode or is restarted. To resolve this:

1. Before shutting down or putting your computer to sleep, unplug the tablet's USB and power cables.
2. After restarting your computer, reconnect the USB and power cables to the tablet.
3. Open the Huion driver software to confirm recognition.

For a visual demonstration of a common connection issue and potential solutions, please refer to the video below:

7. Especificacions

8. Garantia i Suport

For warranty information, technical support, or service inquiries, please visit the official Huion weblloc web o contacteu directament amb el servei d'atenció al client. Conserveu el rebut de compra com a comprovant de compra per a reclamacions de garantia.

Oficial Weblloc: www.huion.com
