1. Informació important de seguretat
Please read all instructions carefully before installing, operating, or performing maintenance on your Mueller Deluxe 36" Wall Mount Range Hood. Retain this manual for future reference.
- Seguretat elèctrica: Ensure the range hood is properly grounded. Do not modify the power plug. Avoid using extension cords. All electrical work must be performed by a qualified electrician in accordance with local codes and standards.
- Seguretat de la instal·lació: The wall structure must be capable of supporting the weight of the range hood. Wear appropriate protective gear during installation. Follow all local building and safety codes.
- Seguretat de funcionament: Never leave cooking unattended. Grease fires can occur. Clean grease filters regularly to prevent grease buildup, which can be a fire hazard.
- Seguretat de neteja: Always disconnect power to the range hood before cleaning or performing any maintenance. Use only non-abrasive cleaning agents to avoid damaging surfaces.
2. Producte acabatview
The Mueller Deluxe 36" Wall Mount Range Hood, Model HAF-49, is designed for efficient removal of smoke, steam, and cooking odors. It features a powerful 900 CFM motor, a sleek Eurocentric design with black tempered glass and stainless steel, dual LED lighting, and a responsive touch control panel with three fan speeds. The unique glass panel opens during operation to maximize capture and closes when the unit is off for a clean, integrated appearance.
Image: The Mueller Deluxe 36-inch Wall Mount Range Hood installed above a cooktop, showcasing its design and LED lighting.
3. Configuració i instal·lació
3.1 Desembalatge i inspecció
Carefully remove all packaging materials. Inspect the range hood for any signs of damage during transit. Report any damage to the retailer immediately.
3.2 Requisits d'ubicació
This range hood is designed for wall-mount installation. Ensure the mounting surface is structurally sound and capable of supporting the unit's weight (approximately 66.9 pounds). Maintain a vertical distance of 13.8 to 17.7 inches (35 to 45 cm) between the cooking surface and the bottom of the range hood for optimal performance and safety.

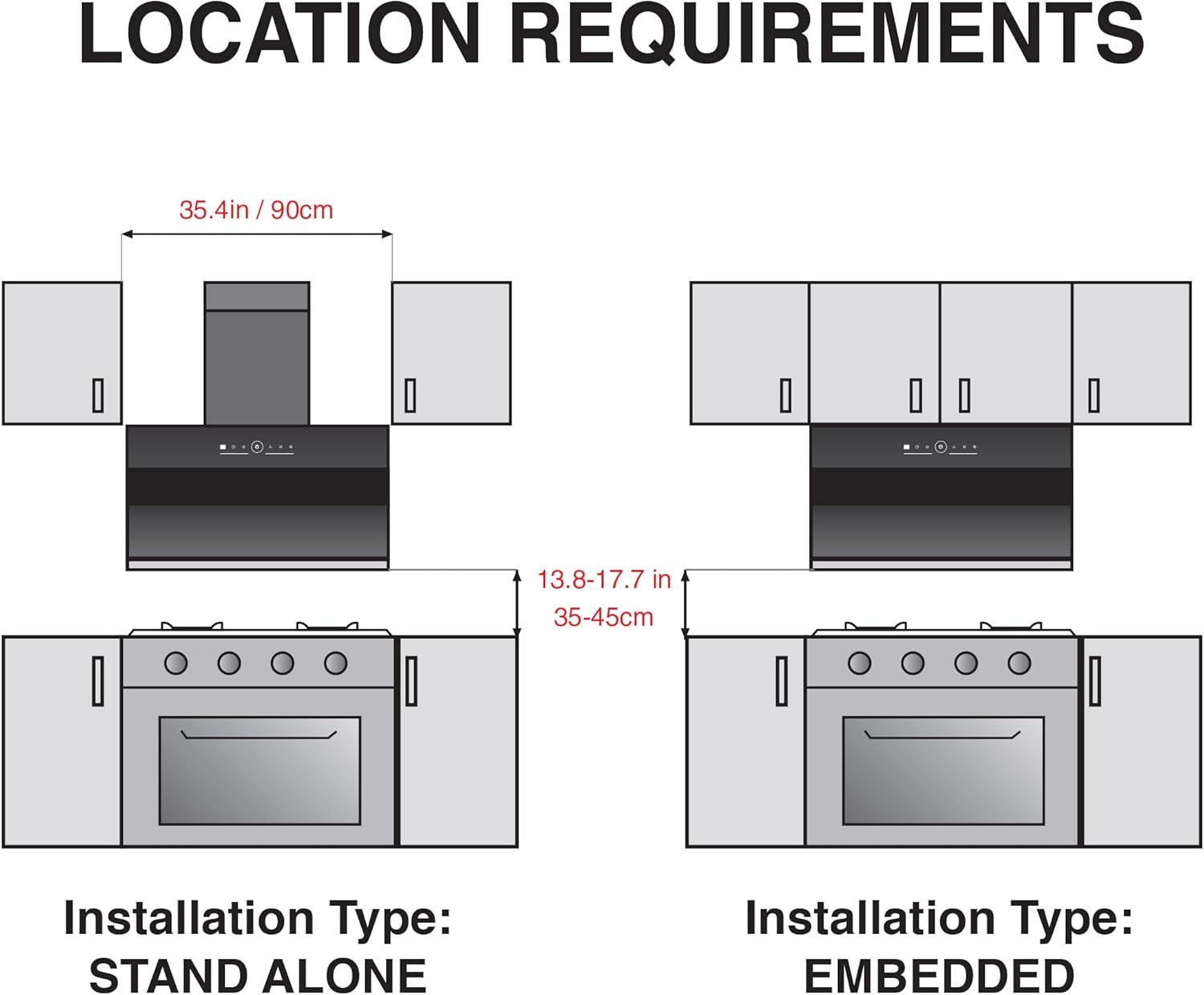

Image: Installation diagram illustrating required clearances for standalone and embedded range hood setups.
3.3 Conductes
The unit requires ducted operation. Connect a standard 6-inch diameter exhaust duct to the range hood's outlet. For best performance, ensure the ductwork is as straight and short as possible, with minimal bends.
3.4 Connexió elèctrica
Connect the range hood to a dedicated, grounded electrical circuit in accordance with all applicable local and national electrical codes.
3.5 Chimney Cover Installation
Install the provided stainless-steel extendable chimney cover over the ductwork for a complete and aesthetic finish.
4. Instruccions de funcionament
The range hood is operated via a touch control panel located on the front of the unit.
Image: A user cooking with the Mueller Deluxe 36-inch Wall Mount Range Hood actively extracting steam and odors.
- Encès/apagat: Toca el Icona de potència to turn the range hood on or off.
- Ajust de velocitat del ventilador: Select from three fan speeds (Low, Medium, High) by touching the respective Fan Speed Icons. Adjust the speed according to the intensity of cooking fumes.
- Il·luminació LED: Toca el Icona de llum to activate or deactivate the dual LED lights, providing illumination for your cooking area.
- Temporitzador de retard: El Funció de temporitzador de retard allows the fan to continue operating for a preset duration after cooking, ensuring complete removal of residual odors. Consult the full manual for specific timer settings.
- Glass Panel Operation: The black tempered glass panel automatically extends forward when the unit is powered on and retracts when powered off, maintaining a sleek profile.
5. Manteniment
Regular maintenance is crucial for the optimal performance and longevity of your range hood.
5.1 Cleaning Grease Filters
The triple-layer aluminum grease filters should be cleaned regularly, typically monthly, depending on cooking frequency. Clean filters ensure efficient air extraction and prevent fire hazards.
- Disconnect the range hood from its power supply.
- Locate the filter release latch, pull it, and carefully lower the filter to remove it.
- Wash the filters in hot soapy water or place them in a dishwasher.
- Assegureu-vos que els filtres estiguin completament secs abans de tornar-los a instal·lar.
- Re-install the filters by aligning them and pushing them into place until the latch engages securely.
5.2 Neteja de l'exterior
Wipe the stainless steel and tempered glass surfaces with a soft cloth and a mild, non-abrasive cleaner. Avoid using harsh chemicals, abrasive pads, or steel wool, as these can scratch or damage the finish.
5.3 Safata de greixatge
Periodically empty and clean the easy-access grease tray to prevent overflow and maintain hygiene.
6. Solució De Problemes
Consulteu la taula següent per veure els problemes habituals i les seves possibles solucions.
| Problema | Causa possible | Solució |
|---|---|---|
| El ventilador no funciona. | No power supply; motor malfunction. | Check power connection and circuit breaker. Ensure the unit is plugged in. If the problem persists, contact customer support. |
| Els llums no funcionen. | Fallada de la bombeta LED; problema de connexió elèctrica. | Check electrical connections. If LED bulbs are replaceable, replace them according to the full manual. Otherwise, contact customer support. |
| Mal rendiment de succió. | Clogged grease filters; restricted ductwork; incorrect installation height. | Clean or replace grease filters. Check ductwork for obstructions. Verify installation height as per Section 3.2. |
| Soroll excessiu durant el funcionament. | Loose components; motor issue; ductwork obstruction. | Check for loose screws or parts. Inspect ductwork for obstructions. If noise persists after these checks, contact customer support. |
7. Especificacions
| Característica | Detall |
|---|---|
| Número de model | HAF-49 |
| Capacitat de cabal d'aire | 900 peus cúbics per minut (CFM) |
| Material | Vidre temperat, acer inoxidable |
| Nivell de soroll | Less than 69 Decibels |
| Tipus de muntatge | Muntatge de paret |
| Tipus de controls | Control tàctil |
| Nombre de velocitats | 3 |
| Tipus de font de llum | LED doble |
| Tipus de filtre | Triple-layer Aluminum Grease Filters |
| Tipus de ventilació | Ducted Exhaust |
| Dimensions del producte (P x A x A) | 27 "P x 36" W x 20" H |
| Pes de l'article | 66.9 lliures |
| Font d'alimentació | AC |
| Característiques especials | Adjustable, Easy to Install, Quiet, Variable Speed |
8. Garantia i atenció al client
8.1 Informació de la garantia
This Mueller range hood is covered by a 2-year manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your original proof of purchase for any warranty claims.
8.2 Atenció al client
For technical assistance, replacement parts, or warranty inquiries, please visit the official Mueller weblloc web o poseu-vos en contacte amb el seu departament d'atenció al client. Normalment, podeu trobar la informació de contacte al fabricant weblloc web o a l'embalatge del producte.
