Introducció
This user manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your MasterChef Planetary Mixer BA3001V/01. Please read this manual thoroughly before first use and keep it for future reference.
Instruccions importants de seguretat
To reduce the risk of fire, electric shock, or injury, basic safety precautions should always be followed, including the following:
- Llegiu totes les instruccions abans d’utilitzar l’aparell.
- No submergiu la base del motor, el cable ni l'endoll en aigua ni en altres líquids.
- És necessària una supervisió estreta quan qualsevol aparell és utilitzat per o a prop dels nens.
- Desendolleu la presa de corrent quan no estigui en ús, abans de posar o treure peces i abans de netejar.
- Eviteu el contacte amb les peces mòbils. Mantingueu les mans, els cabells i la roba, així com les espàtules i altres estris, allunyats dels batedors durant el funcionament per evitar lesions i/o danys a la batedora.
- No feu servir cap aparell amb un cable o un endoll danyats o després que l'aparell funcioni malament, o s'hagi caigut o s'hagi danyat de cap manera.
- L'ús d'accessoris no recomanats o venuts pel fabricant pot provocar incendis, descàrregues elèctriques o lesions.
- No utilitzar a l'aire lliure.
- No deixeu que el cable pengi de la vora de la taula o del taulell.
- No deixeu que el cable entri en contacte amb superfícies calentes, inclosa l'estufa.
- Assegureu-vos sempre que l'aparell estigui ben muntat abans d'utilitzar-lo.
- Ensure the speed control is in the "OFF" position before plugging in or unplugging.
- Aquest aparell només és per a ús domèstic.
Figure 1: MasterChef Planetary Mixer BA3001V/01 with meat grinder attachment. This image shows the main unit of the mixer in red and silver, with a meat grinder attachment installed on the front port. The stainless steel mixing bowl is visible below the mixer head.
Producte acabatview i Components
Familiarize yourself with the various parts of your MasterChef Planetary Mixer:
- Cap del motor: Contains the motor and attachment ports.
- Bol gran: 4.3-liter stainless steel bowl for ingredients.
- Ganxo de massa: Per pastar masses pesades (per exemple, pa, pizza).
- Beater (Flat Beater): For medium-heavy mixtures (e.g., cakes, cookies, mashed potatoes).
- Batre: For light mixtures (e.g., egg whites, cream, meringues).
- Protecció contra esquitxades: Transparent cover to prevent splattering.
- Marcador de control de velocitat: Adjusts mixing speed (8 speeds + Pulse).
- Head Release Lever: To tilt the motor head back.
- Port d'accessoris: For optional attachments like the meat grinder.
Figure 2: The MasterChef Planetary Mixer with its 4.3-liter stainless steel mixing bowl attached. A hand is shown adjusting the speed dial on the side of the mixer. This view highlights the main body and bowl of the appliance.
Figure 3: Close-up of the 4.3-liter stainless steel mixing bowl, featuring integrated handles for easy handling and removal from the mixer base.
Configuració i primer ús
- Desembalatge: Traieu amb cura tots els components de l'embalatge. Conserveu l'embalatge per a futurs emmagatzematges o transports.
- Neteja: Before first use, wash the mixing bowl, splash guard, and all attachments (dough hook, beater, whisk) in warm, soapy water. Rinse thoroughly and dry completely. Wipe the motor base with a damp tela. No submergiu la base del motor en aigua.
- Col·locació: Place the mixer on a clean, dry, stable, and flat surface. Ensure there is enough space around the mixer for ventilation and operation. The anti-slip feet should firmly grip the surface.
- Fixació del bol: Place the mixing bowl onto the base, aligning the grooves, and twist clockwise until it locks securely into place.
- Accessoris de fixació:
- Ensure the mixer is unplugged and the speed dial is in the "OFF" position.
- Press the head release lever and tilt the motor head upwards until it locks.
- Select the desired attachment (dough hook, beater, or whisk). Align the top of the attachment with the shaft and push upwards, then twist counter-clockwise until it clicks into place.
- Lower the motor head by pressing the head release lever again and gently pushing the head down until it locks.
- Connexió d'alimentació: Connecteu el cable d'alimentació a una presa de corrent adequada de 127 V.

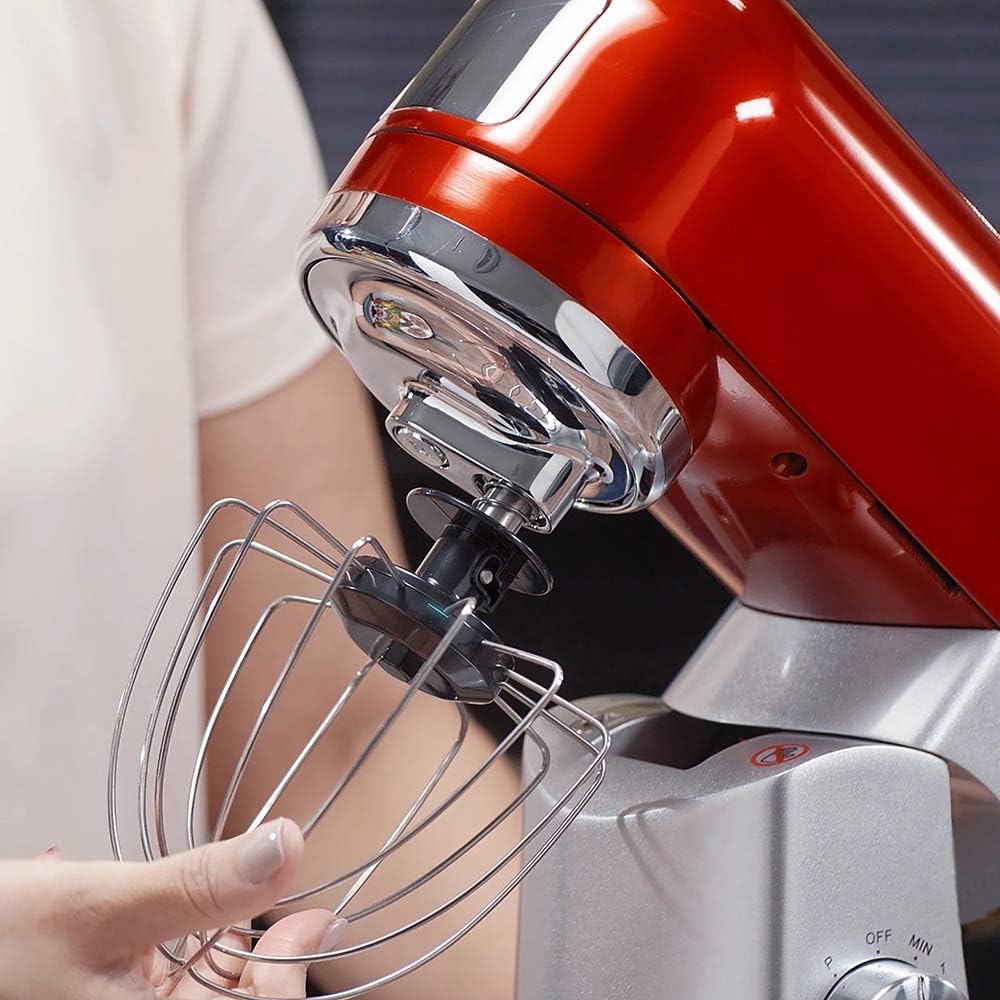

Figure 4: A hand demonstrating the process of attaching the whisk accessory to the mixer's attachment shaft. The mixer head is tilted upwards for easy access.
Instruccions de funcionament
- Afegir ingredients: Poseu els ingredients al bol de la barreja.
- Seleccioneu el fitxer adjunt: Ensure the correct attachment is securely installed for your recipe.
- Capçal inferior: Make sure the motor head is fully lowered and locked.
- Seleccioneu la velocitat: Turn the speed control dial clockwise from "OFF" to the desired speed setting (1-8).
- Velocitats 1-2: For heavy mixtures, kneading dough.
- Velocitats 3-4: For medium-heavy mixtures, creaming butter and sugar.
- Velocitats 5-6: For light mixtures, beating batters.
- Velocitats 7-8: For whipping egg whites, cream, or meringues.
- Pols (P): Per a ràfegues curtes de màxima potència.
- Mescla: The mixer will begin to operate. Do not overload the mixer.
- Parada: To stop the mixer, turn the speed control dial counter-clockwise back to the "OFF" position.
- Removing Bowl/Attachments: Unplug the mixer. Press the head release lever to tilt the head. Remove the attachment by pushing up and twisting clockwise. Then, twist the bowl counter-clockwise to unlock and remove it.
Figura 5: Un primer pla view of a hand turning the speed control dial on the MasterChef Planetary Mixer. The dial features settings from "OFF" to "MIN" and numbered speeds, along with a "P" for pulse function.
Figure 6: The whisk attachment actively mixing a white batter inside the stainless steel bowl, demonstrating the planetary mixing action.
Figure 7: The whisk attachment mixing a yellow liquid in the stainless steel bowl, illustrating the mixer's capability for lighter liquid ingredients.
Manteniment i Neteja
Una neteja i un manteniment adequats garantiran la longevitat i el rendiment òptim de la vostra batedora.
- Desconnecta sempre: Abans de netejar-lo, assegureu-vos sempre que la batedora estigui desendollada de la presa de corrent.
- Base del motor: Netegeu l'exterior de la base del motor amb un drap suau iamp drap. No utilitzeu productes de neteja abrasius ni fregalls. No submergiu mai la base del motor en aigua ni en cap altre líquid.
- Bol de barreja i accessoris: The stainless steel mixing bowl, dough hook, beater, and whisk are dishwasher safe. Alternatively, they can be washed by hand in warm, soapy water. Rinse thoroughly and dry immediately to prevent water spots or corrosion.
- Protecció contra esquitxades: Wash the transparent splash guard in warm, soapy water and rinse well. Dry with a soft cloth.
- Emmagatzematge: Store the mixer and its accessories in a clean, dry place. Ensure all parts are completely dry before storing.
Resolució de problemes
If you encounter any issues with your mixer, refer to the following table for common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| La batedora no s'encén. | Not plugged in; power outlet not working; speed dial not in "ON" position. | Check power cord connection; test outlet with another appliance; turn speed dial to a numbered setting. |
| El fitxer adjunt no es barreja correctament. | Attachment not securely installed; wrong attachment for mixture consistency. | Ensure attachment is pushed up and twisted into place; use appropriate attachment (e.g., whisk for light, dough hook for heavy). |
| Mixer is vibrating excessively or moving on counter. | Overloaded; unstable surface; anti-slip feet not gripping. | Reduce batch size; ensure mixer is on a flat, stable, dry surface; clean anti-slip feet. |
| Motor smells or sounds unusual. | Overloaded; continuous operation for too long. | Turn off and unplug the mixer immediately. Allow it to cool down. Reduce load for future use. If problem persists, contact customer support. |
Especificacions
| Marca | MasterChef |
| Model | BA3001V/01 |
| Color | Vermell |
| Voltage | 127 Volts |
| Poder | 1000 Watts (Note: Product description states 1000W, specifications state 100W. Assuming 1000W based on product title and description for a planetary mixer of this type.) |
| Capacitat del bol | 4.3 litres |
| Velocitats | 8 velocitats + funció de pulsació |
| Material | Alumini i acer inoxidable |
| Característiques especials | Automatic, Multi-purpose, Removable bowl, Anti-slip feet |
| Dimensions (producte) | 18 x 32 x 35 cm; 6.27 kg |
| Inmetro Registration | HOUS 0771/C 1226.17 |
Garantia i Suport
Your MasterChef Planetary Mixer BA3001V/01 comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including warranty period and coverage details.
For technical support, service, or to inquire about replacement parts, please contact MasterChef customer service through the contact information provided on your warranty card or the official MasterChef weblloc.
When contacting support, please have your product model number (BA3001V/01) and purchase date readily available.
