DigiTech Digital Rain Gauge with Temperature User Manual

Introducció

Gràcies per la compraasing the DigiTech Digital Rain Gauge with Temperature, Model XC0430. This advanced weather instrument provides accurate measurements of rainfall and temperature, along with historical data logging and various display modes. Designed for ease of use, it features a wireless self-emptying rain collector and a large backlit LCD display unit for convenient monitoring of your local weather conditions. Please read this manual thoroughly before setup and operation to ensure optimal performance and longevity of your device.

Image: The DigiTech Digital Rain Gauge system, showing the main display unit on the left and the wireless rain collector on the right.

Contingut de la caixa

Si us plau, comproveu el contingut del paquet per assegurar-vos que tots els articles hi són i no estan danyats.

• 1 x LCD Screen (Main Display Unit)
• 1 x Rain Collector Gauge (Wireless Sensor)
• 1 x LCD Stand
• 1 x Gauge Mount
• 1 x Mounting Hardware Pack (screws, anchors)
• 1 x Manual d'usuari (aquest document)

Image: A visual representation of the box contents, including the main display unit, rain collector, stand, mount, and hardware.

Configuració

1. Instal·lació de la bateria

The main display unit and the rain collector require batteries (not included).

• Unitat de visualització principal: Locate the battery compartment on the back of the unit. Insert 2 x AA size 1.5V batteries, ensuring correct polarity (+/-).
• Rain Collector Gauge: Locate the battery compartment on the base of the collector. Insert the required batteries (refer to the collector's specific instructions, typically 2 x AA or AAA), ensuring correct polarity.

Important: Always insert batteries into the rain collector first, then into the main display unit to ensure proper synchronization.

2. Rain Collector Placement

For accurate rainfall measurement, the rain collector should be placed in an open area, away from obstructions like trees, buildings, or fences that could block rain or cause splash-back.

• Ensure the collector is level to prevent inaccurate readings. Use a spirit level if necessary.
• Mount the collector securely using the provided gauge mount and hardware. It can be mounted on a post or flat surface.
• The maximum transmission range between the collector and the display unit is 150 meters (line of sight). Obstacles like walls or dense foliage will reduce this range.

Imatge: Una imatge detallada view of the wireless rain collector, showing its self-emptying mechanism and base.

3. Main Display Unit Placement

The main display unit is designed for indoor use.

• Place the unit on a flat surface using the provided LCD stand, or mount it on a wall using the wall mounting hole.
• Ensure it is within the 150m transmission range of the rain collector.
• Avoid placing it near heat sources or direct sunlight, which could affect indoor temperature readings.

Imatge: Anvers i revers views of the display unit, highlighting various buttons and features for setup and operation.

Key Parts of Main Display Unit:
1. Botó Posposa/Llum
2. Pantalla LCD amb retroiluminació
3. Alert LED Indicator
4. Botó Historial
5. Since Button
6. Rain Button
7. Botó de memòria
8. Visualització del rellotge
9. Botó d'alarma
10. Botó d'alerta
11. Wall Mounting Hole
12. Down / Up Buttons
13. Botó de reinici
14. Compartiment de piles
15. °C or °F Select Button
16. MM / In Select Button
17. Botó d'escaneig

Instruccions de funcionament

Initial Synchronization

After battery installation, the main display unit will automatically attempt to connect with the rain collector. This may take a few minutes. A signal icon on the display will indicate successful connection.

Display Modes and Functions

• Rainfall Display: The large LCD shows current rainfall data. Use the PLUJA button (6) to cycle through different rainfall views: Hourly, Daily, Weekly, Monthly, and Yearly totals.
• Graphical Histogram: The display includes a graphical histogram to visualize rainfall patterns over time.
• SINCE Function: Premeu el botó DES DE botó (5) per view the total rainfall accumulated from a customized date. This function allows you to track rainfall for specific periods.
• Visualització de la temperatura: The unit displays indoor temperature. Use the °C or °F Select button (15) to switch between Celsius and Fahrenheit.
• Visualització del rellotge: The real-time clock displays HH:MM and Weekday. It features an Atomic Radio Controlled function for accurate timekeeping.
• Funció de memòria: Premeu el botó MEMÒRIA button (7) to access stored data. The unit logs and stores data for the past 24 hours, including current, minimum, and maximum values with timestamps.
• High/Low Alert: Set high and low alerts for temperature or rainfall. When a set threshold is met, the Alert LED Indicator (3) will flash, and an alarm may sound. Press the ALERTA button (10) to configure these settings.
• Funció d'alarma: The unit includes an alarm with an ice-alert function. Press the ALARMA button (9) to set or disable the alarm.
• Il·luminació de fons: Premeu el botó SNOOZE / LLUM button (1) to activate the display backlight for better visibility in low light conditions.
• Història: Premeu el botó HISTÒRIA button (4) to review historical rainfall data.
• MM / In: Utilitza el MM / In button (16) to switch between millimeters and inches for rainfall measurement.

Configuració de l'hora i la data

Refer to the detailed instructions in the full manual for setting the time, date, and atomic clock synchronization. Typically, you will use the BAIX / Amunt buttons (12) to adjust values and other function buttons to confirm.

Manteniment

• Neteja: Periodically clean the rain collector to ensure no debris (leaves, dirt) obstructs the funnel or the tipping bucket mechanism. Use a soft, damp drap per a la unitat de visualització. No utilitzeu productes de neteja abrasius.
• Substitució de la bateria: Replace batteries in both units when the low battery indicator appears on the display. The unit features data retention during battery changes, but it's recommended to replace them promptly.
• Rain Collector Check: Ensure the rain collector is free from spiderwebs or insect nests, which can interfere with accurate readings.
• Comprovació de nivell: Periodically verify that the rain collector remains level in its mounted position.

Resolució de problemes

Especificacions

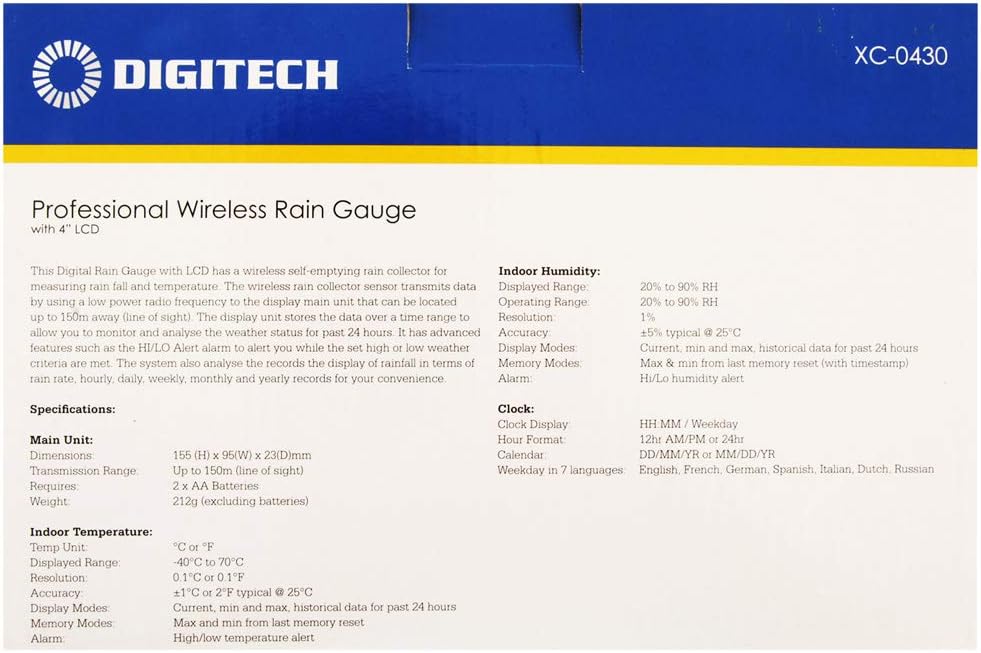

Image: A close-up of the product box detailing the technical specifications of the rain gauge system.

Garantia i Suport

This product is covered by a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation included with your purchase or contact DigiTech customer support.

For technical assistance, troubleshooting, or replacement parts, please contact your retailer or the manufacturer directly. Keep your purchase receipt as proof of purchase for warranty claims.
