CKPSMS Needle Bar and Thread Guide Instruction Manual

1. Producte acabatview

This manual provides essential information for the installation, maintenance, and safe use of the CKPSMS #110-91303 Needle Bar and Thread Guide. This product is a high-quality replacement part designed for specific JUKI industrial sewing machines.

Figure 1: Two CKPSMS #110-91303 Needle Bars and Thread Guides.

The package includes two brand new high-quality needle bars and thread guides, part number 110-91303. Alternative part numbers include 400-00221, and 229-06002.

2. Compatibilitat

This Needle Bar and Thread Guide is compatible with the following JUKI brand industrial sewing machine models:

• DDL-8500
• DDL-1388N
• DDL-5530N
• DDL-5550N
• DDL-5550N-7
• DDL-5570N
• DDL-5571
• DDL-8388
• DDL-8500-7
• DDL8300
• DDL9000
• DLN-9010

Important: Please verify the size and specifications of the product to ensure compatibility with your specific machine model before installation.

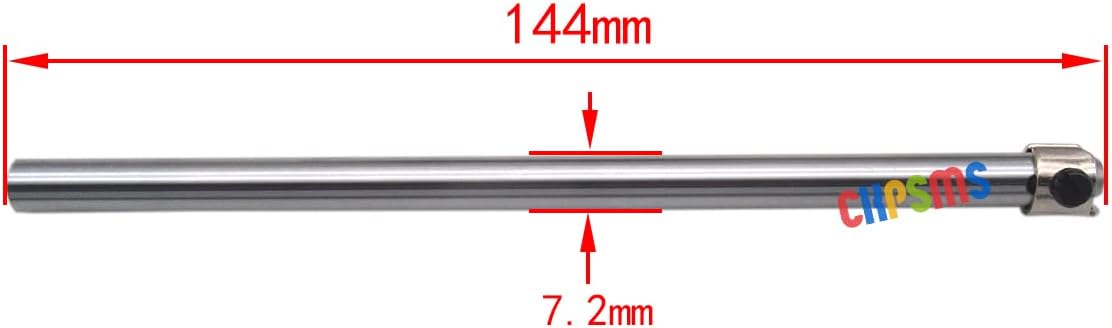

Figure 2: Key dimensions of the needle bar.

3. Instal·lació

The Needle Bar and Thread Guide are critical components of a sewing machine's needle assembly. Proper installation is essential for correct machine operation and stitch formation. While specific steps may vary slightly by machine model, the general procedure involves replacing the existing needle bar assembly.

1. La seguretat primer: Always ensure your sewing machine is turned off and unplugged from the power source before attempting any installation or maintenance.
2. Access the Needle Bar Area: Refer to your sewing machine's specific service manual for instructions on how to access the needle bar assembly. This may involve removing covers or panels.
3. Elimina el component antic: Carefully loosen any screws or fasteners holding the old needle bar and thread guide in place. Gently remove the old assembly. Note its orientation for correct installation of the new part.
4. Instal·la un component nou: Position the new CKPSMS #110-91303 Needle Bar and Thread Guide into the machine, ensuring it is correctly aligned. The thread guide should be positioned to allow smooth thread passage to the needle.
5. Secure the Part: Tighten all screws and fasteners securely, but do not overtighten, as this can damage the component or machine.
6. Prova de funcionament: Once installed, manually turn the machine's handwheel a few times to ensure the needle bar moves freely and without obstruction. Reattach any covers or panels.
7. Thread and Test Stitch: Thread the machine and perform a test stitch on scrap fabric to confirm proper function and stitch quality. Adjust tension if necessary.

Figure 3: Illustration of a needle bar installed in a sewing machine, highlighting the thread guide.

4. Manteniment

To ensure the longevity and optimal performance of your needle bar and thread guide, regular maintenance is recommended:

• Neteja: Periodically clean the needle bar and thread guide to remove lint, dust, and thread residue. Use a soft brush or compressed air.
• Lubricació: Apply a small amount of high-quality sewing machine oil to moving parts as recommended by your sewing machine's manufacturer. Avoid over-lubrication.
• Inspecció: Regularly inspect the needle bar for any signs of bending, wear, or damage. Check the thread guide for burrs or rough spots that could snag the thread. Replace the part if any damage is observed.

5. Solució De Problemes

If you experience issues after installing the new needle bar and thread guide, consider the following:

• Punts saltats: Ensure the needle is inserted correctly and fully seated. Verify the needle bar is at the correct height (refer to your machine's service manual). Check for proper threading.
• Trencament del fil: Inspect the thread guide for any rough edges. Ensure the thread path is clear and smooth. Verify correct thread tension.
• Soroll inusual: Recheck all connections and ensure the needle bar moves freely. Lubricate as necessary.

For persistent issues, consult a qualified sewing machine technician or refer to your machine's comprehensive service manual.

6. Especificacions

7. Informació de seguretat

When working with sewing machine parts, always prioritize safety. The following general guidelines are provided by CKPSMS for various sewing machine components:

Figure 4: General product safety guidelines from CKPSMS.

• Always ensure the sewing machine is turned off and unplugged before changing any parts, including needle plates, bobbin cases, or presser feet.
• Utilitzeu només el fitxer correct needle plate for your sewing machine model. Do not use a damaged or bent needle plate.
• Utilitzeu només el fitxer correct bobbin case for your sewing machine model. Do not use a damaged or bent bobbin case.
• Utilitzeu només el fitxer correct presser foot for your sewing machine model. Do not use a damaged or bent presser foot.
• When using fabric cleaner, do not spray towards the body or face. Keep out of reach of children. Do not use upside down. Do not connect to a power source with a voltage that does not match the product. Do not modify the power cord or auxiliary tools yourself.
• For looper, thread cutter, blades, and other sharp products, take sufficient safety precautions to prevent injury to your fingers.
• Before disassembling or assembling, understand the correct method and make sure to install it in the designated position.
• Keep products in a sturdy packaging box and take measures to prevent rust and corrosion.

8. Informació general

CKPSMS provides a wide range of sewing machine parts and accessories. The following video offers a general overview of the brand's offerings and commitment to quality.

9. Garantia i Suport

For information regarding product warranty, returns, or technical support, please refer to the seller's policies on the platform where the product was purchased. You may also visit the official CKPSMS store for additional resources and contact information.
