Negreweb BWA19WI107

Negreweb Manual d'usuari de 10 bateries portàtils

Model: BWA19WI107

Marca: Negreweb

Introducció

Producte acabatview

This manual provides essential information for the safe and efficient operation of your Blackweb 10x Portable Battery. Please read this manual thoroughly before using the device and retain it for future reference.

El Negreweb 10x Portable Battery is a high-capacity power bank designed to charge various USB-powered devices, including smartphones, tablets, and other accessories. It features a sleek and thin design for portability and convenience.

Negreweb 10x Portable Battery

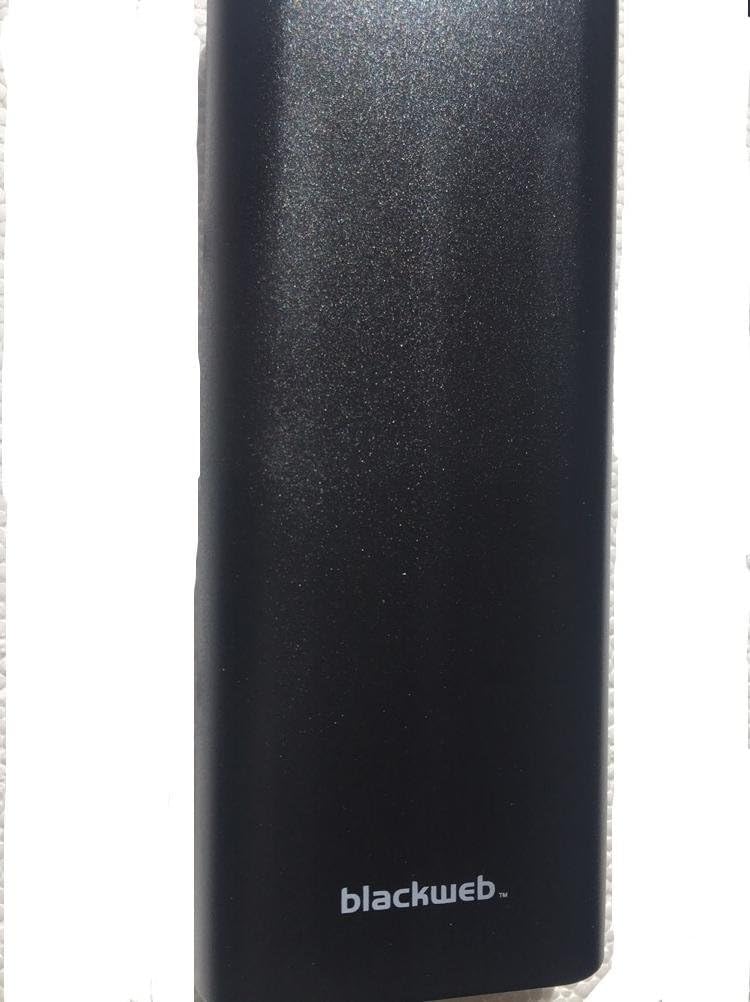

Imatge: Frontal view del Negreweb 10x Portable Battery, showcasing its black, textured finish and the 'blackweb' logotip a la part inferior.

Negreweb 10x Portable Battery Packaging Features

Image: Packaging detail showing the portable battery's charging capabilities for various devices (e.g., iPhone 6S, iPhone 7 Plus, Galaxy S6, iPad Air) and input/output specifications.

Característiques clau

  • 20,000 mAh capacity for multiple device charges.
  • Sleek and thin design for enhanced portability.
  • Compatible with USB-charged devices including smartphones and tablets.
  • Includes Micro-USB charging cable.

Informació de seguretat

Per garantir un funcionament segur i evitar danys, observeu les precaucions següents:

  • No exposeu la bateria a temperatures extremes, llum solar directa o foc.
  • No submergiu la bateria en aigua o altres líquids.
  • Eviteu deixar caure la bateria ni sotmetre-la a impactes forts.
  • Do not attempt to disassemble, repair, or modify the battery.
  • Mantenir fora de l'abast dels nens.
  • Feu servir només cables i adaptadors de càrrega aprovats.
  • Desfeu-vos de la bateria de manera responsable d'acord amb la normativa local.

Configuració

Initial Charging of the Portable Battery

  1. Connect the included Micro-USB cable to the input port of the portable battery.
  2. Connect the other end of the Micro-USB cable to a USB power source (e.g., wall adapter, computer USB port).
  3. Allow the battery to fully charge before first use. Charging indicators (LEDs) will typically show progress and full charge status. Refer to the device's LED indicator section for details (if applicable).

Instruccions de funcionament

Carregant els teus dispositius

  1. Connect your device's charging cable (e.g., USB-C, Lightning, Micro-USB) to one of the output ports on the portable battery.
  2. Connecteu l’altre extrem del cable al dispositiu.
  3. The portable battery should automatically begin charging your device. If not, press the power button on the portable battery (if available) to initiate charging.
  4. Monitor your device's charging indicator to confirm charging is in progress.
  5. Disconnect your device once it is fully charged or when you no longer need to charge it.

Recharging the Portable Battery

When the portable battery's charge level is low, recharge it using the steps outlined in the "Initial Charging of the Portable Battery" section.

Manteniment

  • Keep the portable battery clean by wiping it with a soft, dry cloth.
  • No utilitzeu netejadors abrasius ni dissolvents.
  • Emmagatzemeu la bateria en un lloc fresc i sec, lluny de la llum solar directa i de temperatures extremes.
  • If storing for extended periods, it is recommended to charge the battery to approximately 50% every 3-6 months to maintain battery health.

Resolució de problemes

ProblemaCausa possibleSolució
Portable battery not charging.Cable not connected properly; Faulty cable/adapter; Power source issue.Ensure all connections are secure. Try a different cable or power adapter. Test with a different USB power source.
Device not charging from portable battery.Portable battery is depleted; Incorrect cable; Device not compatible; Battery needs activation.Recharge the portable battery. Use the correct charging cable for your device. Ensure your device is USB-compatible. Press the power button on the portable battery to activate output (if applicable).
Càrrega lenta.Using a low-power adapter; Cable resistance; Device drawing high current.Use a higher output USB wall adapter (e.g., 2A or higher). Ensure the cable is in good condition.

Especificacions

  • Model: BWA19WI107
  • Marca: Negreweb
  • Fabricant: ONN
  • Capacitat de la bateria: 20,000 mAh
  • Composició de la cèl·lula de la bateria: Ió de liti
  • Entrada: DC 5V, 2000mA
  • Sortida 1: DC 5V 2.4A
  • Sortida 2: DC 5V 2.4A
  • Resultat total: DC 5V 2.4A
  • Voltage: 5 Volts
  • Dimensions: 24.13 x 9.65 x 2.54 cm (9.5 x 3.8 x 1 polzades)
  • Pes: 0.28 g

Garantia i Suport

For warranty information or technical support, please refer to the product packaging or contact Blackweb customer service. Contact details may be available on the official Blackweb weblloc web o a través del vostre distribuïdor.
