1. Introducció
This manual provides essential information for the safe and effective installation, operation, and maintenance of the Schneider Easy9 Miniature Circuit Breaker (MCB). The Easy9 MCB is designed for protection against overcurrents resulting from overload and short-circuit in electrical installations, primarily for home and hotel applications. Please read this manual thoroughly before any installation or operation.
2. Informació de seguretat
WARNING: Risk of electric shock or fire.
- La instal·lació i el manteniment només els ha de dur a terme personal qualificat.
- Always disconnect power before working on electrical circuits.
- Ensure proper grounding and wiring according to local electrical codes.
- No utilitzeu el dispositiu si sembla malmès.
- The MCB is designed for 415 Volts systems. Ensure compatibility with your electrical system.
3. Producte acabatview
The Schneider Easy9 MCB is a single-pole (1P) circuit breaker with a C-curve tripping characteristic and a 6 Amps current rating. It is designed for DIN rail mounting.

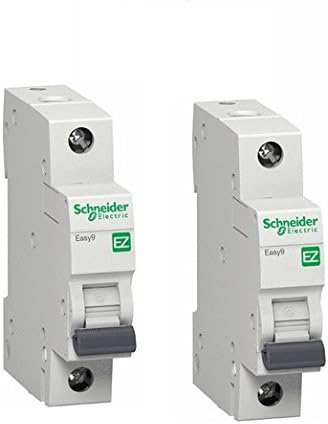

Image: Two Schneider Easy9 Miniature Circuit Breakers. These devices are white, featuring the green 'Schneider Electric' logo and 'EZ' symbol. The image clearly shows the toggle switch for manual operation and the terminal screws for electrical connections at the top and bottom of each unit.
Components clau:
- Commutador: S'utilitza per activar o desactivar manualment l'interruptor automàtic i indica l'estat de dispar.
- Terminals: Terminals de cargol per connectar els cables elèctrics d'entrada i sortida.
- Clip de carril DIN: For secure mounting on a standard DIN rail.
4. Configuració i instal·lació
Seguiu aquests passos per a una instal·lació correcta:
- Desconnexió d'alimentació: Ensure that the main power supply to the distribution board is completely disconnected and locked out before beginning any work. Verify with a voltage provador.
- Muntatge: Attach the Easy9 MCB onto a standard 35mm DIN rail. Ensure it clicks securely into place.
- Cablejat:
- Connect the incoming phase wire to the top terminal of the MCB.
- Connect the outgoing phase wire to the bottom terminal of the MCB.
- Ensure all connections are tight and secure to prevent loose contacts and overheating. Recommended torque for terminal screws should be followed as per electrical standards.
- Verificació: Double-check all wiring connections for correctness and tightness.
- Restaura l'alimentació: Once installation is complete and verified, restore power to the distribution board.
5. Instruccions de funcionament
Encesa/apagada:
- To switch the circuit ON, push the toggle switch upwards to the 'I' (ON) position.
- To switch the circuit OFF, push the toggle switch downwards to the 'O' (OFF) position.
Ensopegada:
In the event of an overload or short-circuit, the MCB will automatically trip, moving the toggle switch to an intermediate or 'O' (OFF) position. This indicates a fault in the circuit it protects.
Resetting a Tripped MCB:
- Identificar i rectificar la causa del desconnexió (per exemple, retirar els aparells sobrecarregats, arreglar els curtcircuits).
- Once the fault is cleared, push the toggle switch fully down to the 'O' (OFF) position, then push it upwards to the 'I' (ON) position to reset the MCB and restore power.
- If the MCB trips immediately after resetting, do not attempt to reset it again. There is still a fault in the circuit that needs professional attention.
6. Manteniment
Schneider Easy9 MCBs are generally maintenance-free. However, periodic checks are recommended:
- Inspecció visual: Periodically inspect the MCB for any signs of physical damage, discoloration, or loose connections.
- Estanquitat del terminal: With power disconnected, occasionally check the tightness of the terminal screws.
- Neteja: If necessary, clean the exterior of the MCB with a dry, lint-free cloth. Do not use liquid cleaners or solvents.
Any repairs or internal inspections should only be carried out by qualified electricians.
7. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El MCB s'activa amb freqüència. | Overload in the circuit, short circuit, or faulty appliance. | Reduce load, disconnect faulty appliances, check wiring for short circuits. If problem persists, consult an electrician. |
| MCB does not reset. | Persistent fault (short circuit/overload) or internal damage to MCB. | Ensure fault is cleared. If still unable to reset, the MCB may be damaged and needs replacement by a qualified electrician. |
| MCB feels hot to the touch. | Sobrecàrrega, connexions soltes o avaria interna. | Immediately disconnect power. Check for overload and tighten connections. Do not restore power until the cause is identified and rectified by a professional. |
8. Especificacions
| Atribut | Valor |
|---|---|
| Marca | Schneider Electric |
| Model | Easy9 |
| Valoració actual | 6 Amps |
| Tipus d'interruptor | Standard Miniature Circuit Breaker (MCB) |
| Tipus de muntatge | Muntatge sobre carril DIN |
| Nombre de pols | 1 (Single Pole) |
| Voltage | 415 Volts |
| Corba de desenganxament | Corba C |
| Color | Blanc |
| Dimensions (approx. for single unit) | Refer to product datasheet for exact dimensions. |
| Weight (for 10 units) | 2.75 lliures |
9. Garantia i Suport
Per obtenir informació sobre la garantia i assistència tècnica, consulteu el lloc web oficial de Schneider Electric. weblloc web o poseu-vos en contacte amb el seu servei d'atenció al client. Conserveu el rebut de compra com a comprovant de compra.
Oficial de Schneider Electric Weblloc: www.se.com
For specific product inquiries or technical assistance, it is recommended to contact a certified Schneider Electric distributor or service center in your region.
