1. Introducció
This manual provides comprehensive instructions for the safe and efficient installation, operation, and maintenance of your Skyflame Rectangular Stainless Steel Drop-in Fire Pit Pan and Burner with Burner Cover. This product is designed to enhance your outdoor living space by providing a reliable and aesthetically pleasing fire feature. Please read this manual thoroughly before installation and keep it for future reference.
2. Característiques del producte
- Construcció duradora: Constructed of #304 stainless steel for maximum rust resistance and long life.
- Easy Gas Connection: Features a male 1/2 inch gas inlet in the bottom center of the pan for easy installation.
- Igniter Ready: Includes an extra mounting plate for an optional igniter (igniter not included).
- Versatile Fuel Compatibility: Applicable for both propane and natural gas. Note: If using liquid propane, an air mixer is required (not included).
- Kit complet: Comes with the fire pit pan (with a 1 1/4" top flange), H burner, burner cover, and mounting plate.
- Drenatge d'aigua: Built-in weep holes prevent water accumulation within the pan.
- Recommended Fire Media: We recommend 50 lbs. of fire glass for this pan to achieve optimal flame appearance.
Image 2.1: The Skyflame Rectangular Stainless Steel Drop-in Fire Pit Pan with its accompanying burner and cover.
Image 2.2: Key features of the fire pit pan, including CSA certification, stainless steel construction, and heat resistance.
3. Especificacions
| Atribut | Detall |
|---|---|
| Material | Acer inoxidable #304 |
| Dimensions del producte | 12 "P x 36" W x 2" H |
| Estil | Paella de foc de caiguda |
| Tipus d'acabat | Raspallat |
| Forma | Rectangular |
| Pes de l'article | 19 lliures |
| Tipus de combustible | Liquefied Petroleum Gas (LP), Natural Gas (NG) |
| Número de model | Paella de foc |
Image 3.1: Detailed dimensions of the fire pit pan and cover.
Image 3.2: Key structural and material details of the fire pit pan.
4. Informació de seguretat
AVÍS: Només per a ús a l'aire lliure. Una instal·lació, un ajust, una alteració, una revisió o un manteniment incorrectes poden causar lesions o danys materials. Llegiu atentament les instruccions d'instal·lació, funcionament i manteniment abans d'instal·lar o fer el manteniment d'aquest equip.
- Assegureu-vos sempre una ventilació adequada.
- Keep combustible materials away from the fire pit.
- Do not leave the fire pit unattended while in operation.
- Ensure all gas connections are secure and leak-free before use.
- Only use the specified fuel type (Natural Gas or Liquid Propane).
- If using Liquid Propane, an air mixer is required for proper combustion.
- Keep children and pets away from the fire pit area.
- Allow the unit to cool completely before handling or covering.
5. Instal·lació i configuració
5.1 Llista de comprovació prèvia a la instal·lació
- Verify all components are present: Fire Pit Pan, H Burner, Burner Cover, Mounting Plate.
- Ensure the installation area is level and clear of combustible materials.
- Confirm the gas supply type (Natural Gas or Liquid Propane) matches the intended use.
- If using Liquid Propane, ensure an appropriate air mixer is available and installed (sold separately).
5.2 Pan Placement
Carefully place the stainless steel fire pit pan into the designated opening in your fire pit structure. Ensure the pan sits securely and is level. The 1 1/4" top flange should rest evenly on the edge of the opening.
5.3 Connexió de gas
- Locate the male 1/2 inch gas inlet at the bottom center of the pan.
- Connect your gas supply line to this inlet. Use appropriate gas-rated sealant on threaded connections.
- For Liquid Propane (LP) applications, ensure an LP air mixer is installed between the gas supply and the burner inlet. This is crucial for proper combustion and flame appearance.
- Perform a leak test on all gas connections using a soap and water solution. Bubbles indicate a leak. Tighten connections until no bubbles appear.
Image 5.1: Compatibility with Natural Gas and Liquid Propane. An air mixer is required for LP.
5.4 Optional Igniter Installation
The pan includes an extra mounting plate for an optional igniter (not included). If you wish to install an igniter, follow the igniter manufacturer's instructions and utilize the provided mounting plate for secure attachment.

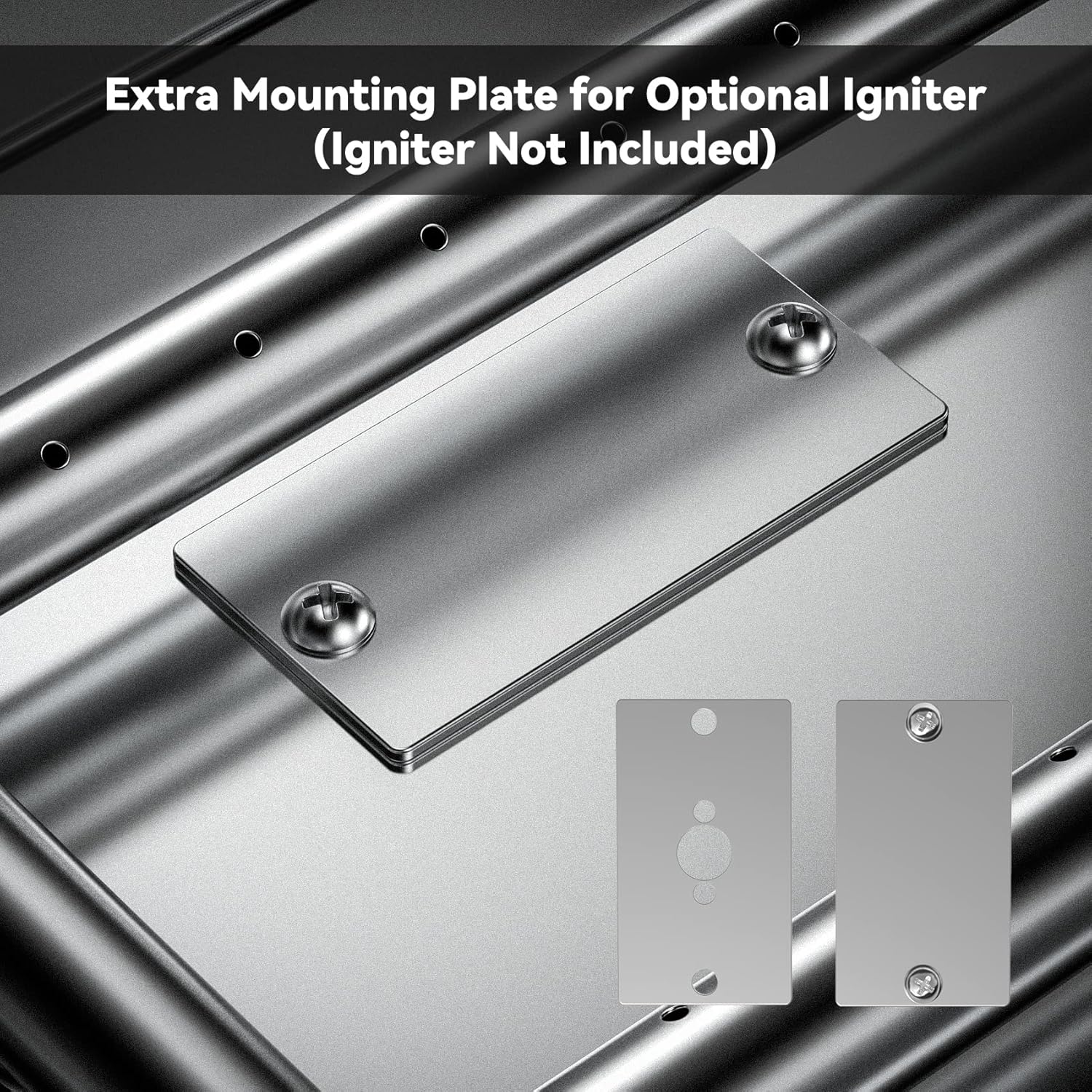

Image 5.2: The mounting plate for an optional igniter.
5.5 Adding Fire Media
Once the pan is securely installed and gas connections are verified, you can add your preferred fire media, such as fire glass or lava rocks. Distribute approximately 50 lbs. of fire glass evenly over the burner within the pan. Ensure the burner holes are not completely obstructed to allow for proper gas flow and flame distribution.
Imatge 5.3: Ex.amples of fire media (lava rocks, fire glass) and the fire pit with its cover.
6. Instruccions de funcionament
6.1 Lighting the Fire Pit
- Ensure the gas supply valve is in the OFF position.
- Open the main gas supply valve to the fire pit.
- Using a long lighter or match, ignite the gas at the burner.
- Slowly turn the gas control valve on the fire pit to the ON position. The burner should ignite immediately.
- Adjust the flame height to your desired level using the gas control valve.
PRECAUCIÓ: If the burner does not ignite within 5 seconds, turn the gas control valve to the OFF position, wait 5 minutes for gas to dissipate, and then repeat the lighting procedure. Do not lean over the fire pit while lighting.
6.2 Shutting Down the Fire Pit
- Turn the gas control valve on the fire pit to the OFF position.
- Tanqueu la vàlvula principal de subministrament de gas a la foguera.
- Allow the fire pit and fire media to cool completely before covering or handling.
Image 6.1: The fire pit pan in an operational outdoor setting.
Image 6.2: Versatile applications of the fire pit pan in different outdoor environments.
7. Manteniment
- Neteja: Regularly clean the stainless steel pan and burner with a soft cloth and mild soap solution. Avoid abrasive cleaners or scouring pads that could scratch the surface.
- Forats de drenatge: Periodically check and clear the weep holes at the bottom of the pan to ensure proper water drainage and prevent accumulation.
- Inspecció del cremador: Inspect the burner ports for any blockages (e.g., debris, insect nests). Use a small wire or compressed air to clear them if necessary.
- Ús de la coberta: Use the provided burner cover when the fire pit is not in use to protect the burner and pan from weather elements and debris.
- Emmagatzematge: If storing for extended periods, especially during off-season, ensure the unit is clean and dry. Store in a protected area to prolong its lifespan.
8. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El cremador no s’encén | No gas supply; Gas valve closed; Clogged burner ports; Faulty igniter (if installed). | Check gas supply; Open gas valves; Clear burner ports; Check igniter battery/connection. |
| Low flame or uneven flame | Low gas pressure; Clogged burner ports; Incorrect air mixture (LP only). | Verify gas pressure; Clean burner ports; Ensure LP air mixer is correctly installed and adjusted. |
| Olor de gas | Fuita de gas. | Immediately turn off gas supply. Perform a leak test with soap and water. Tighten connections. If smell persists, contact a qualified gas technician. |
| Water accumulation in pan | Blocked weep holes. | Clear debris from weep holes at the bottom of the pan. |
9. Garantia i Suport
Specific warranty information for this Skyflame product is not provided within this manual. Please refer to the product packaging, the manufacturer's official website, or contact Skyflame customer service for detailed warranty terms and conditions.
For technical support, replacement parts, or further assistance, please contact Skyflame customer service through their official channels. Always provide your product model number (Fire Pit Pan) and ASIN (B078W5DJZ3) when seeking support.
