1. Introducció
Thank you for choosing the Schulte Integral Shower Cabin. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new shower cabin. Please read these instructions carefully before beginning assembly or use, and retain them for future reference.
This integral shower cabin, measuring 90x90x202 cm, features a modern design with a silver aluminum profile, transparent safety glass, and aqua green wall panels. It includes two sliding doors, fixed shower walls, a shower tray, a complete drainage system, a hand shower, a shower column, and an integrated shelf for toiletries.
Figure 1: Schulte Integral Shower Cabin (Example)
2. Informació de seguretat
Important: Installation should ideally be performed by qualified personnel. Always follow local building and plumbing codes.
- Ensure all water connections are properly sealed to prevent leaks.
- The shower cabin weighs approximately 93.3 kg. Exercise extreme caution during handling and assembly. It is recommended to have at least two people for installation.
- Utilitzeu l'equip de protecció individual adequat (per exemple, guants, ulleres de seguretat) durant el muntatge.
- Do not use abrasive cleaners or harsh chemicals on any part of the shower cabin, especially glass and chrome surfaces, as this may cause damage.
- Verify that the floor is level and capable of supporting the weight of the shower cabin and its contents.
3. Contingut del paquet
The Schulte Integral Shower Cabin package typically includes the following components:
- Two sliding shower doors
- Fixed shower walls (panels)
- Plat de dutxa
- Sistema de drenatge
- Dutxa de mà
- Columna de dutxa
- Integrated shelf
- Assembly hardware (screws, seals, rollers, profiles)
Please check all components against the packing list provided with your product before beginning assembly. Contact customer support immediately if any parts are missing or damaged.
4. Configuració i instal·lació
The shower cabin is designed for straightforward assembly. A detailed assembly manual is included with the product, providing clear, step-by-step instructions. Please refer to this document for specific diagrams and part numbers.
Figura 2: Fàcil de muntar
4.1 Key Installation Steps and Considerations:
- Preparació: Ensure the installation area is clean, level, and has adequate space for assembly. The product dimensions are 90x90x202 cm.
- Connexions d'aigua: The hot and cold water inlets are typically 1/2 inch male connections. You will need two female-to-female flexible hoses (1 to 2 meters, depending on your existing plumbing) to connect the shower cabin.
Figura 3: Example of Water Connections
- Drenatge: Connect the shower tray's drainage system to your waste pipe. A flexible hose (e.g., 70 cm, 40mm diameter) may be required to ensure proper alignment and access, especially if the shower tray's metal foot obstructs direct connection. Ensure sufficient space behind and to the sides of the tray for connection and future access.
- Segellat: Apply silicone sealant generously to all joints and seams as indicated in the assembly instructions to ensure watertight integrity.
- Muntatge de la porta: Carefully install the sliding doors and their rollers onto the tracks. Ensure smooth operation.
Figure 4: Shower Door Rollers and Track Detail

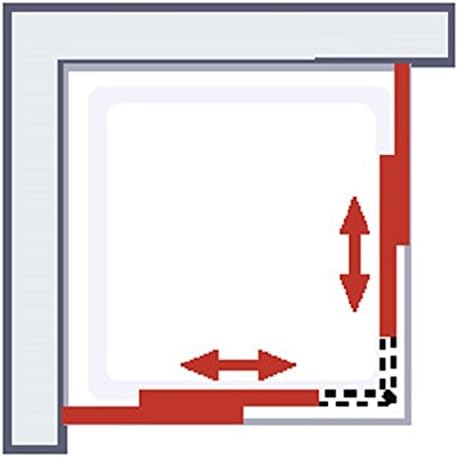

Figure 5: Diagram of Shower Cabin Door Movement
- Screw and Component Details: Refer to the detailed assembly instructions for specific screw and component details. Some users have noted minor recommendations for specific parts, such as using slightly larger screws for certain bars or re-drilling plastic washers for a better fit. Always ensure all connections are tightened securely.
5. Instruccions de funcionament
5.1 Using the Sliding Doors:
The shower cabin features two sliding doors for easy access. Gently push or pull the chrome handles to open and close the doors. Ensure the doors slide smoothly along their tracks. Avoid forcing the doors, as this can cause damage to the rollers or tracks.
Figure 6: Shower Door Handle
5.2 Using the Hand Shower and Shower Column:
The shower cabin is equipped with a hand shower and a fixed shower column. Use the diverter knob on the shower column to switch between the hand shower and the main shower head (if applicable). Adjust water temperature and flow using the mixer tap controls.
Figure 7: Hand Shower and Shower Column
5.3 Using the Integrated Shelf:
The integrated glass shelf provides convenient storage for your shower gel, shampoo, and other toiletries. Ensure items placed on the shelf are stable and do not exceed its weight capacity.
Figure 8: Integrated Shower Shelf
6. Manteniment
Regular cleaning and maintenance will ensure the longevity and optimal performance of your shower cabin.
Figure 9: Easy to Clean
- Cleaning Glass Surfaces: Use a soft cloth and a mild, non-abrasive glass cleaner. For best results, wipe down glass after each use to prevent water spots and limescale buildup.
- Cleaning Profiles and Chrome Parts: Netegeu amb un suau, damp cloth. Avoid abrasive sponges or cleaners that could scratch or damage the finish.
- Cleaning the Shower Tray: Use a mild bathroom cleaner and a soft brush or cloth. Rinse thoroughly.
- Sistema de drenatge: Periodically check and clean the drain to prevent blockages and ensure efficient water evacuation.
- Segells: Inspect seals regularly for wear and tear. Replace damaged seals to maintain watertight integrity.
7. Solució De Problemes
This section addresses common issues you might encounter with your shower cabin.
| Problema | Causa possible | Solució |
|---|---|---|
| Water leaks from the cabin | Improperly sealed joints, loose connections, damaged seals. | Check all silicone seals and water connections. Reapply silicone where necessary. Inspect and replace worn seals. Ensure all screws are tightened. |
| Doors do not slide smoothly | Dirt or debris in tracks, misaligned rollers, damaged rollers. | Clean tracks thoroughly. Adjust roller alignment. Replace damaged rollers if necessary. |
| Slow drainage or unpleasant smell | Blocked drain, insufficient water in siphon. | Clean the drain and trap of hair and debris. Ensure the siphon retains enough water to form a seal. |
| Water temperature/pressure issues | Plumbing issues, clogged shower head. | Check household water supply. Clean shower head nozzles. Consult a plumber if issues persist. |
8. Especificacions
| Característica | Detall |
|---|---|
| Número de model | 4060991009822 |
| Dimensions (L x A x A) | 90 x 90 x 202 cm |
| Pes | 93.3 quilos |
| Material | Vidre, alumini |
| Color | Silver Aluminum Profile |
| Estil de la porta | Sliding, Fixed |
| Nombre de portes | 2 |
| Nombre de panells | 4 |
| Muntatge obligatori | Sí |
| Fabricant | Schulte |
Figure 10: Made in Germany
Figure 11: Durable Products
9. Garantia i Suport
Garantia del fabricant: The Schulte Integral Shower Cabin comes with a 5-year manufacturer's warranty. Please retain your proof of purchase for warranty claims.
Recanvis: Information regarding the availability of spare parts may not be readily available. Please contact Schulte customer support for inquiries about replacement parts.
Atenció al client: For technical assistance, warranty claims, or any other product-related questions, please contact Schulte customer service through their official weblloc web o el venedor on es va comprar el producte.
