Introducció
Thank you for choosing the BLACK+DECKER RCDV404BND540 Air Compressor. This manual provides essential information for the safe and efficient operation, setup, maintenance, and troubleshooting of your new air compressor. Please read this manual thoroughly before operating the unit and keep it for future reference.
Instruccions importants de seguretat
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury. Failure to follow these instructions may result in serious injury or property damage.
- Llegeix totes les instruccions: Familiaritzeu-vos amb els controls i l'ús correcte del compressor.
- Seguretat elèctrica: Assegureu-vos que la font d'alimentació coincideixi amb el voltage specified on the compressor's rating plate. Use only grounded outlets.
- Equips de protecció individual: Always wear safety glasses or goggles when operating the compressor. Hearing protection is recommended.
- Àrea de treball: Keep the work area clean, well-lit, and free from obstructions. Do not operate in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
- Infants i espectadors: Mantingueu els nens i els espectadors lluny del compressor en funcionament.
- Manteniment: Desconnecteu l'alimentació abans de realitzar qualsevol manteniment o ajust.
- Alliberament de pressió: Always release air pressure from the tank before storing or servicing the unit.
Configuració
1. Desembalatge i inspecció
Carefully remove the compressor from its packaging. Inspect the unit for any damage that may have occurred during shipping. If any damage is found, do not operate the compressor and contact customer support.
2. Attaching Wheels and Feet
Attach the wheels to the designated axles on the compressor frame using the provided hardware. Secure the rubber feet to the opposite end of the frame to ensure stability.
3. Installing the Air Filter
Locate the air filter assembly. Screw the air filter into the intake port on the compressor pump. Ensure it is hand-tightened securely to prevent dust and debris from entering the pump.

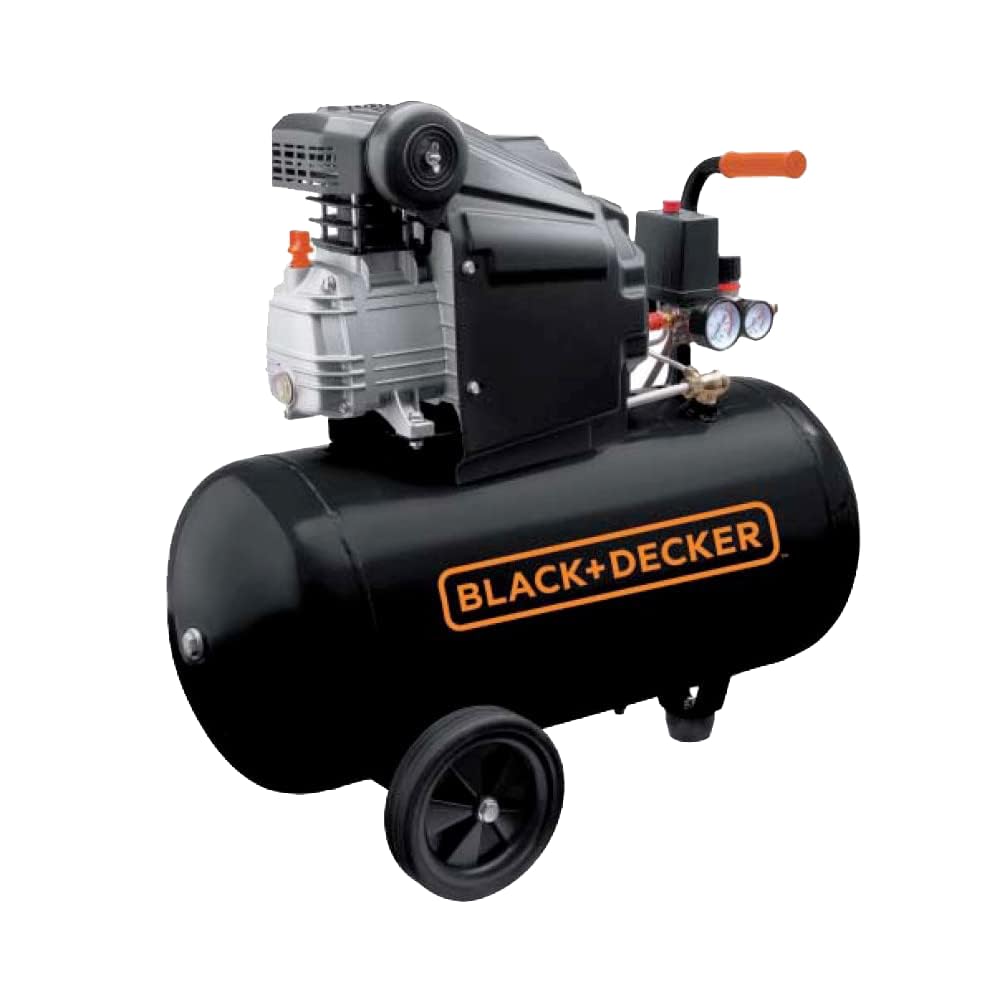

Image: The BLACK+DECKER RCDV404BND540 air compressor shown with its wheels and air filter properly installed, ready for operation.
4. Connexió elèctrica
Connect the power cord to a grounded 230 Volt electrical outlet. Ensure the circuit can handle the compressor's power requirements (2 horsepower motor).
Instruccions de funcionament
1. First Use and Break-in
Before first use, ensure the tank drain valve is closed. Turn on the compressor and allow it to run for approximately 15-20 minutes with the air outlet valve open. This helps to break in the motor and pump components. After this period, close the outlet valve and allow the tank to fill to maximum pressure, then turn off the compressor and drain the tank.
2. Starting and Stopping the Compressor
- Començar: Ensure the pressure regulator is set to minimum pressure. Plug in the compressor and flip the ON/OFF switch to the 'ON' position. The compressor will start filling the tank.
- Parar: Flip the ON/OFF switch to the 'OFF' position. The compressor will stop, but the tank will remain pressurized.
3. Adjusting Air Pressure
Use the pressure regulator knob to adjust the output air pressure. Turn clockwise to increase pressure and counter-clockwise to decrease pressure. Monitor the regulated pressure gauge to set the desired working pressure for your tools.
4. Connecting Air Tools
Attach your air hose to the quick-connect coupler on the compressor. Connect your air tool to the other end of the hose. Ensure all connections are secure before operating the tool.
Manteniment
Regular maintenance ensures the longevity and optimal performance of your air compressor. Always disconnect the power supply before performing any maintenance.
1. Draining Condensation (Daily/After Each Use)
Moisture accumulates in the air tank. To prevent rust and corrosion, drain the condensation daily or after each use. Place a container under the drain valve located at the bottom of the tank. Open the valve slowly to release water and air. Close the valve once all moisture is expelled.
2. Cleaning/Replacing the Air Filter (Monthly or as Needed)
A clogged air filter reduces compressor efficiency. Unscrew the air filter cover and remove the filter element. Clean it with compressed air or replace it if heavily soiled or damaged. Reassemble the filter.
3. Neteja general
Mantingueu net l'exterior del compressor. Netegeu-lo amb un anunci.amp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure cooling fins on the motor and pump are free from dust and debris for proper heat dissipation.
4. Emmagatzematge
Before storing, ensure the tank is drained of all condensation and air pressure is released. Store the compressor in a clean, dry, and well-ventilated area, protected from extreme temperatures.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El compressor no arrenca | Sense corrent, interruptor automàtic saltat, interruptor avariat. | Comproveu la connexió d'alimentació, reinicieu l'interruptor automàtic i contacteu amb el servei tècnic si l'interruptor està avariat. |
| Compressor runs continuously or cycles frequently | Air leak in tank or fittings, faulty pressure switch, open drain valve. | Check for leaks (use soapy water), tighten fittings, close drain valve, contact service for pressure switch. |
| Low air pressure at outlet | Regulator set too low, clogged air filter, air leak in hose/tool. | Adjust regulator, clean/replace air filter, check hose/tool connections for leaks. |
| Sorolls o vibracions inusuals | Loose components, worn pump parts, insufficient lubrication (if applicable). | Inspect and tighten loose parts. If noise persists, contact qualified service personnel. |
Per a problemes que no figuren aquí o si les solucions no resolen el problema, poseu-vos en contacte amb el servei d'atenció al client de BLACK+DECKER.
Especificacions
| Característica | Detall |
|---|---|
| Marca | BLACK+DECKER |
| Número de model | RCDV404BND540 |
| Dimensions del producte | 76.5 x 32.5 x 63 cm |
| Pes de l'article | 32.7 quilos |
| Voltage | 230 Volts |
| Font d'alimentació | Elèctric amb cable |
| Potència màxima | 2 cavalls de potència |
| Capacitat | 50 litres |
| Volum del dipòsit | 50 litres |
| Pressió màxima de treball | 8 Bar |
| Característiques especials | Highly efficient coaxial transmission |
| Usos recomanats | Tire inflation, Cleaning |
Garantia i Suport
For warranty information, technical support, or to order replacement parts, please refer to the official BLACK+DECKER weblloc web o poseu-vos en contacte amb el seu departament d'atenció al client. Conserveu el rebut de compra com a comprovant de compra per a reclamacions de garantia.
Nota: Els termes i condicions específics de la garantia poden variar segons la regió.
