MOXA EDS-508A 8-Port Managed Ethernet Switch User Manual

1. Introducció

This manual provides detailed instructions for the installation, operation, and maintenance of the MOXA EDS-508A 8-Port Managed Ethernet Switch. The EDS-508A is designed for industrial applications, offering robust performance and advanced network management features including VLAN, IGMP Snooping, Port Trunking, RMON, and Quality of Service (QoS). Please read this manual thoroughly before operating the device to ensure proper usage and optimal performance.

2. Informació de seguretat

• Font d'alimentació: Assegureu-vos que la font d'alimentació voltage is within the specified range for the device. Use only approved power adapters.
• Medi ambient: Install the switch in a well-ventilated area, away from direct sunlight, heat sources, and excessive moisture.
• Posada a terra: Proper grounding is essential for safe operation and protection against electrical surges.
• Manteniment: No intenteu obrir ni reparar el dispositiu vosaltres mateixos. Encarregueu totes les tasques de manteniment a personal qualificat.
• Cablejat: Use appropriate Ethernet cables (e.g., Cat5e or better) for reliable network connections.

3. Contingut del paquet

Comproveu que el vostre paquet contingui els elements següents:

• MOXA EDS-508A 8-Port Managed Ethernet Switch
• Guia d'instal·lació ràpida
• Documentation CD (or link to online resources)
• Bloc de terminals per a l'entrada de potència
• Wall mounting kit (if applicable)

If any of these items are missing or damaged, please contact your vendor immediately.

4. Producte acabatview

The MOXA EDS-508A is an industrial-grade managed Ethernet switch featuring 8 10/100BaseTx ports. It supports a wide range of advanced network management functions, making it suitable for demanding industrial environments.

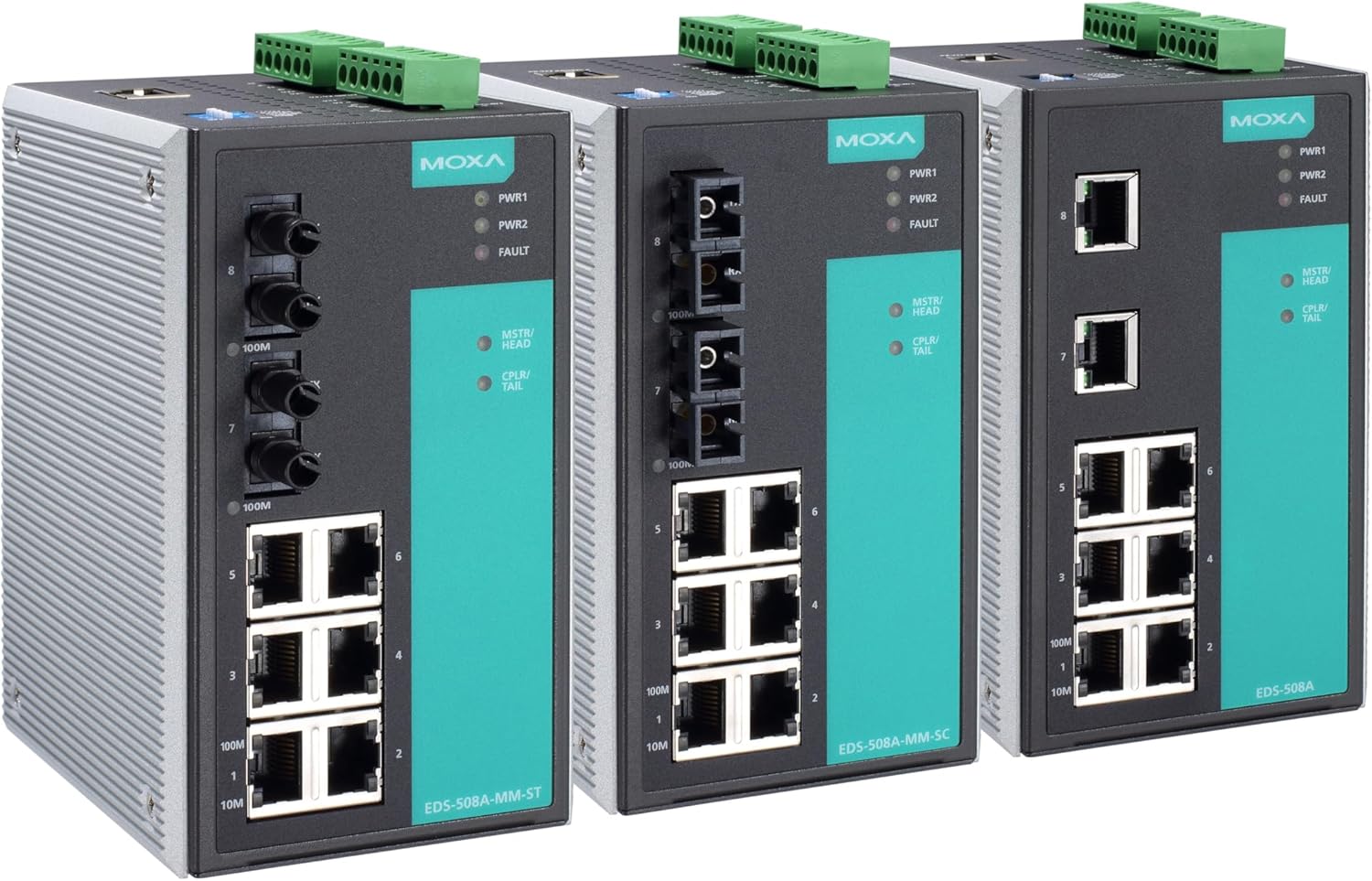

Figure 4.1: MOXA EDS-508A Series Switches. This image displays three variants of the MOXA EDS-508A industrial Ethernet switch. From left to right, the first switch (EDS-508A-MM-ST) features 6 RJ45 10/100BaseTx ports and 2 100M ST fiber ports. The middle switch (EDS-508A-MM-SC) has 6 RJ45 10/100BaseTx ports and 2 100M SC fiber ports. The third switch (EDS-508A) is equipped with 8 RJ45 10/100BaseTx ports. All models include dual power inputs (PWR1, PWR2) and a fault indicator, along with MSTR/HEAD and CPLR/TAIL indicators for redundancy features.

Característiques principals:

• 8 10/100BaseTx Ethernet Ports
• Advanced Network Management: VLAN, IGMP Snooping, Port Trunking
• Traffic Management: RMON, Quality of Service (QoS)
• Industrial Design: Wide operating temperature, redundant power inputs
• Easy Deployment: DIN-rail or wall mounting options

5. Configuració

5.1 Instal·lació física

1. Muntatge: Securely mount the EDS-508A on a DIN-rail or to a wall using the provided mounting kit. Ensure adequate space for ventilation and cable routing.
2. Connexió d'alimentació: Connect the primary and secondary DC power sources to the terminal block on the top of the switch. The EDS-508A supports redundant power inputs for enhanced reliability. Ensure correct polarity.
3. Posada a terra: Connect the grounding wire from the switch to a proper earth ground. This is crucial for electrical safety and EMI protection.

5.2 Connexió de xarxa

• Ports Ethernet: Connect your network devices (e.g., PCs, PLCs, IP cameras) to the 10/100BaseTx RJ45 ports using standard Cat5e or Cat6 Ethernet cables.
• Fiber Ports (if applicable): For models with fiber optic ports (e.g., EDS-508A-MM-ST, EDS-508A-MM-SC), connect appropriate fiber optic cables to extend network reach over longer distances.

5.3 Configuració inicial

1. Encès: Apply power to the switch. The PWR1 and PWR2 LEDs should illuminate, indicating successful power-up.
2. Adreça IP: The switch typically comes with a default IP address (refer to the Quick Installation Guide for the specific default IP). Connect a PC directly to one of the switch's Ethernet ports and configure your PC's IP address to be in the same subnet.
3. WebGestió basada en: Obre a web browser on your PC and enter the switch's default IP address. Log in using the default username and password (consult the Quick Installation Guide).
4. Configuració bàsica: Change the default IP address, username, and password for security. Configure basic network settings such as system time and SNMP.

6. Funcionament

6.1 Indicadors LED

• PWR1/PWR2: Solid green indicates power input is active.
• FALLA: Solid red indicates a system fault or power failure.
• MSTR/HEAD: Indicates the switch's role in a redundant ring topology (e.g., Turbo Ring).
• CPLR/TAIL: Indicates the switch's role in a redundant ring topology.
• LED del port: Solid green indicates a link is established. Blinking green indicates data activity.

6.2 Configuració de funcions avançades

Accedeix al web-based management interface or console port to configure the following features:

• VLAN (Xarxa d'Àrea Local Virtual): Segment your network into logical groups to improve security and performance.
• Snooping IGMP: Optimize multicast traffic delivery, preventing flooding of multicast packets to all ports.
• Port Trunking (Link Aggregation): Combineu diversos enllaços físics en un únic enllaç lògic per augmentar l'amplada de banda i la redundància.
• RMON (Remote Monitoring): Monitor network traffic and performance statistics for diagnostic purposes.
• QoS (Qualitat de servei): Prioritize critical network traffic (e.g., industrial control data, video streams) to ensure consistent performance.
• Redundancy Protocols: Configure Moxa's Turbo Ring, Turbo Chain, or other industry-standard redundancy protocols for network resilience.

7. Manteniment

7.1 actualitzacions de microprogramari

Periodically check the Moxa website for the latest firmware updates. Firmware updates can provide new features, performance improvements, and security patches. Follow the instructions provided with the firmware package for a safe update process.

7.2 Neteja

Ensure the switch remains free of dust and debris. Use a soft, dry cloth to clean the exterior. Do not use liquid cleaners or solvents. Ensure power is disconnected before cleaning.

7.3 Còpia de seguretat de la configuració

Regularly back up your switch's configuration settings. This allows for quick restoration of settings in case of a device replacement or accidental configuration changes.

8. Solució De Problemes

Aquesta secció ofereix solucions a problemes comuns que podeu trobar.

• Sense alimentació (LED PWR apagats):
  • Check power cable connections to the terminal block and power source.
  • Verifiqueu que la font d'alimentació estigui activa i que proporcioni el volum correctetage.
  • Ensure the terminal block is securely fastened.
• No Link on Port (Port LED Off):
  • Verifiqueu que el cable Ethernet estigui connectat correctament pels dos extrems.
  • Check the cable for damage. Try a different cable.
  • Assegureu-vos que el dispositiu connectat estigui encès i funcioni correctament.
  • Check port settings (e.g., speed/duplex) on both the switch and the connected device.
• No es pot accedir Web Interfície:
  • Ensure your PC's IP address is in the same subnet as the switch.
  • Verify the switch's IP address.
  • Comproveu si hi ha conflictes d'adreces IP a la xarxa.
  • Try pinging the switch's IP address.
  • If all else fails, consider resetting the switch to factory defaults (refer to the Quick Installation Guide for procedure).
• Problemes de rendiment de la xarxa:
  • Comproveu si hi ha un trànsit de xarxa excessiu o tempestes de difusió.
  • Review QoS settings to ensure critical traffic is prioritized.
  • Inspect cable quality and length.
  • Utilize RMON data for traffic analysis.

9. Especificacions

10. Garantia i Suport

Moxa products are designed for reliability and come with a standard warranty. For specific warranty terms and conditions, please refer to the warranty information included with your product or visit the official Moxa weblloc.

For technical support, product documentation, and software downloads, please visit the Moxa support portal: www.moxa.com/support.

When contacting support, please have your product model (EDS-508A) and serial number ready.
