1. Producte acabatview
The TecTake Mobile Pedestal is a functional storage unit designed for offices, children's rooms, or any space requiring organized storage. It features six easy-to-open drawers and four smooth-gliding castors for mobility. The top surface has rounded edges for safety.
Característiques principals:
- Six spacious drawers for various items.
- Four smooth-running castors for easy movement.
- Rounded edges on the top surface for enhanced safety.
- Easy assembly and cleaning.

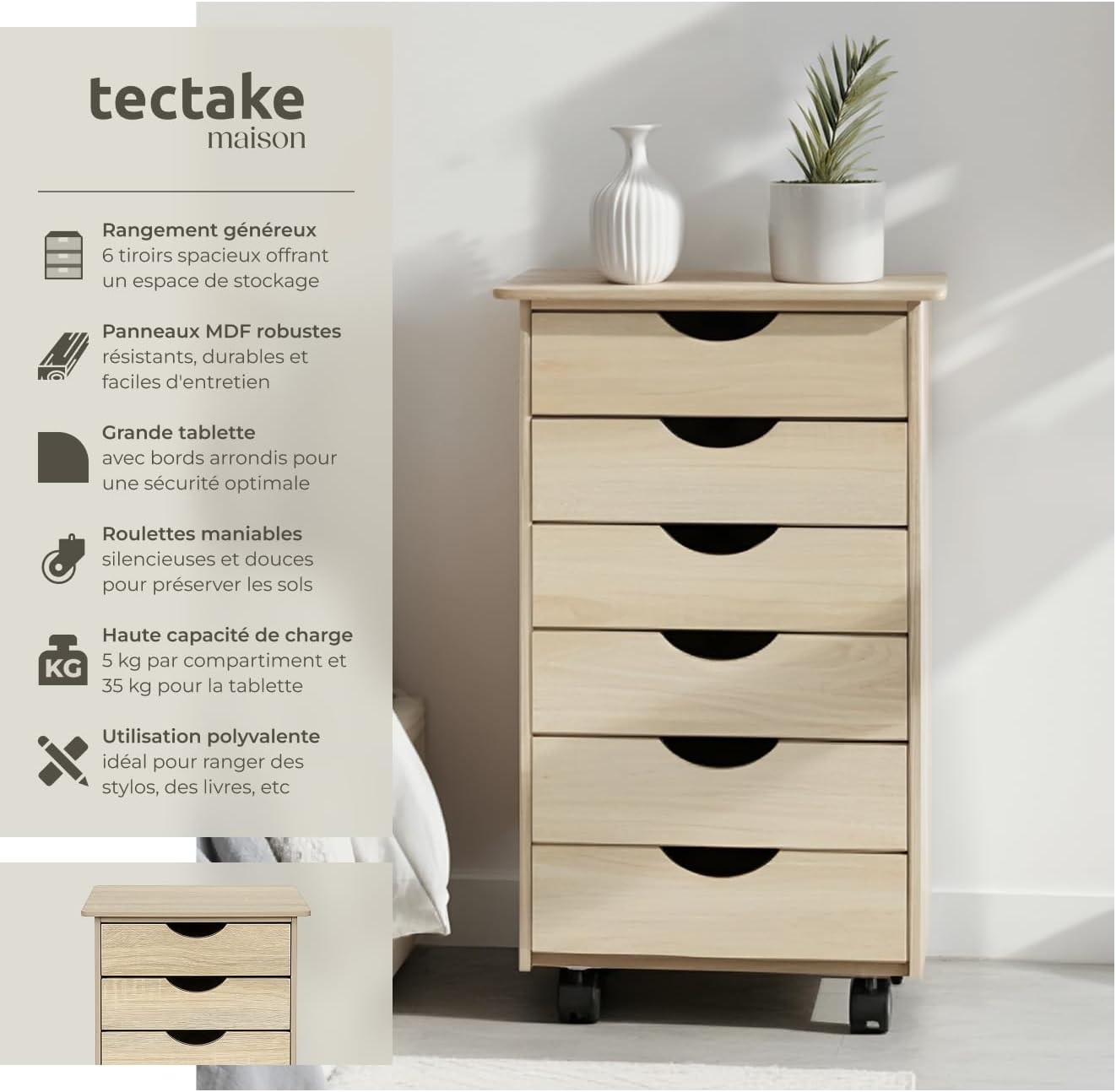

Image 1: TecTake Mobile Pedestal with six drawers, showcasing its oak finish and compact design.
2. Contingut del paquet
Abans de començar el muntatge, assegureu-vos que tots els components que s'enumeren a continuació siguin presents al vostre paquet.
- Mobile Pedestal with six drawers (disassembled components)
- Instruccions de muntatge (aquest document)
- Mounting Hardware (screws, dowels, etc.)
3. Informació de seguretat
- Mantingueu les peces petites allunyades dels nens durant el muntatge.
- Assegureu-vos que tots els cargols estiguin ben ajustats per evitar la inestabilitat.
- Do not overload drawers; adhere to specified weight limits.
- Avoid placing hot items directly on the top surface without protection.
4. Muntatge i muntatge
Assembly is required for this product. Please follow these steps carefully. It is recommended to have a second person assist with assembly.
Muntatge pas a pas:
- Preparació dels components: Unpack all parts and verify against the parts list (if provided separately). Lay them out on a clean, soft surface to prevent scratches.
- Muntar el marc: Attach the side panels to the base and top panels using the provided screws and dowels. Ensure the castor mounting points are at the bottom.
- Install Castors: Securely attach the four castors to the designated points on the bottom panel of the frame.
- Muntar calaixos: For each of the six drawers, assemble the front, back, and side panels. Slide the bottom panel into the grooves and secure with screws.
- Inserir calaixos: Carefully slide each assembled drawer into its respective slot in the main frame. Ensure they glide smoothly.
Video 1: Assembly guide for a similar mobile storage unit. This video demonstrates the general process of assembling the frame and drawers.
Imatge 2: Una explosió view showing the individual components of the mobile pedestal, illustrating how they fit together during assembly.
5. Instruccions de funcionament
Ús dels calaixos:
The drawers are designed for smooth operation. To open, gently pull the integrated handle. To close, push the drawer back until it is flush with the unit. Avoid forcing drawers if they encounter resistance.
Mobilitat:
The unit is equipped with four castors for easy relocation. To move the pedestal, simply push or pull it to the desired position. Ensure the path is clear of obstacles to prevent damage to the unit or flooring.
Imatge 3: Un primer pla view of an open drawer, demonstrating its capacity for storing office supplies.
6. Manteniment i cura
- Neteja: Netegeu les superfícies amb un suau, damp tela. Eviteu netejadors abrasius o productes químics durs que puguin danyar l'acabat.
- Pols: Netegeu la pols de la unitat regularment per mantenir el seu aspecte.
- Guies de calaixos: If drawers become stiff, a small amount of silicone spray on the runners can improve their glide.
- Cargols de tensió: Periodically check and tighten all screws to ensure the unit remains stable.
7. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Els calaixos no llisquen suaument. | Misaligned runners, debris in runners, or loose screws. | Check alignment of runners, clean any debris, or apply silicone spray. Tighten screws if loose. |
| Unit is wobbly. | Cargols de muntatge solts. | Assegureu-vos que tots els cargols de muntatge estiguin ben apretats. |
| Castors not rolling freely. | Debris caught in castor wheels or loose attachment. | Clean castor wheels. Check and tighten castor attachment screws. |
8. Especificacions
| Característica | Detall |
|---|---|
| Total Dimensions (LxWxH) | Aprox. 36 x 40 x 65 cm |
| Drawer Dimensions (LxWxH) | Aprox. 28 x 28 x 8 cm |
| Diàmetre de la roda | Aprox. 4 cm |
| Capacitat de càrrega superficial superior | 35 kg |
| Per Drawer Load Capacity | 5 kg |
| Pes | Aprox. 10.5 kg |
| Material | MDF |
| Número de model | 800055 |
Image 4: Detailed diagram showing the overall dimensions and individual drawer dimensions of the mobile pedestal.
9. Garantia i Suport
For warranty information and customer support, please refer to the purchase documentation or contact TecTake customer service directly. Contact details can typically be found on the manufacturer's weblloc web o el vostre rebut de compra.
Nota: Conserva el comprovant de compra per a qualsevol reclamació de garantia.
