SUNNY SHOWER LED Cold White Flexible Light Strip User Manual

1. Informació important de seguretat

Read all instructions carefully before installation and use. Failure to follow these instructions may result in electric shock, fire, or other hazards.

• Assegureu-vos que la font d'alimentació estigui desconnectada abans de la instal·lació o el manteniment.
• This product operates on 100-120V AC. Use only with the provided UL-certified plug.
• Do not cut the LED strip unless specifically instructed and equipped with appropriate tools and sealing methods to maintain IP68 rating.
• Avoid bending the strip sharply or at angles less than recommended to prevent damage to internal components.
• The strip is IP68 rated for water resistance, suitable for outdoor and wet environments. However, ensure all connections are properly sealed and protected from direct water immersion unless specified for such use.
• Mantenir fora de l'abast dels nens.

2. Producte acabatview

The SUNNY SHOWER LED Cold White Flexible Light Strip (Model CW-2835H) is a versatile lighting solution designed for various applications. It features high-quality 2835 SMD LEDs, providing a bright cold white light with low power consumption. Its flexible PCB design allows for installation in curved or angled patterns, making it suitable for accent lighting, decorative purposes, and general illumination in both indoor and outdoor settings.

Les característiques clau inclouen:

• Disseny flexible: Allows for easy shaping and installation around corners or irregular surfaces.
• Cold White Illumination: Provides a clear, bright white light.
• Eficient energètic: Utilizes SMD 2835 LEDs for super-bright output with low power usage.
• Construcció duradora: IP68 rated, offering excellent water and dust resistance for outdoor use.
• Enllaçable: Designed for continuous rows of lighting.

Image 1: The SUNNY SHOWER LED Cold White Flexible Light Strip, coiled for storage. This image illustrates the compact and flexible nature of the product.

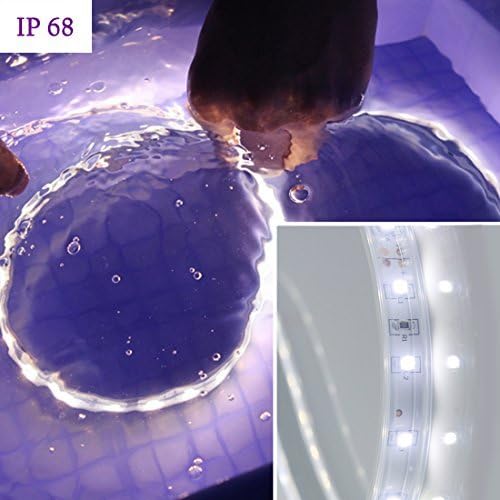

Image 2: A close-up demonstrating the IP68 water resistance rating, with the LED strip partially submerged in water. This highlights the product's suitability for wet environments.

3. Contingut del paquet

Verifiqueu que tots els elements que s'enumeren a continuació s'inclouen al vostre paquet:

• 1 x SUNNY SHOWER LED Cold White Flexible Light Strip (82ft)
• 1 x UL Plug (Power Supply)
• 50 x High Voltage LED Light Hooks
• 100 x cargols
• Installation Clips and Glue (for securing the strip)

Image 3: All components included in the package: the LED strip, power cord with UL plug, mounting clips, and screws. This provides a visual confirmation of the contents.

4. Especificacions

Imatge 4: Una imatge detallada view of the LED strip, highlighting its 6mm width and demonstrating its flexibility. This image helps visualize the physical characteristics of the strip.

5. Configuració i instal·lació

Follow these steps for proper installation of your LED light strip:

1. Planifica el teu disseny: Before installation, unroll the strip and plan the desired path. Ensure the strip can reach the power outlet and that the path avoids sharp bends that could damage the LEDs or wiring.
2. Prepara la superfície: The installation surface should be clean, dry, and smooth. For optimal adhesion with glue, ensure the surface is free of dust, grease, or moisture.
3. Connectar l'alimentació: Securely connect the UL plug to the end of the LED strip. Ensure the connection is tight and properly sealed, especially if installing in a wet environment. Do not plug into a power outlet yet.
4. Muntar la tira:
   • Using Clips and Screws: Position the high voltage LED light hooks along your planned path, typically every few feet or closer for more secure mounting. Mark the screw points, pre-drill if necessary, and secure the clips with the provided screws. Snap the LED strip into the clips.
   • Using Glue: For additional security or in areas where screws are not feasible, apply a suitable adhesive (glue provided) to the back of the strip or the mounting surface and press the strip firmly into place. Allow adequate drying time as per the glue manufacturer's instructions.
5. Linkable Installation (Optional): If connecting multiple strips (ensure total wattage does not exceed power supply capacity), use the designated linkable connectors. Ensure these connections are also properly sealed for environmental protection.
6. Comprovació final: Once the strip is fully mounted and all connections are secure, inspect the entire length for any damage or loose connections.

Image 5: This composite image illustrates key installation aspects: the strip's flexibility, how to secure it with clips and screws, and the connection point for the power supply.

Image 6: Shows the LED strip coiled and a close-up of the linkable connector, demonstrating how multiple strips can be joined for extended lengths.

6. Instruccions de funcionament

Operating the SUNNY SHOWER LED Cold White Flexible Light Strip is straightforward:

1. Encès: After successful installation, plug the UL-certified power plug into a standard 100-120V AC electrical outlet. The LED strip should illuminate immediately.
2. Control (if applicable): The product specifications mention "App" as a control method. If an app is available for this model, please refer to the specific instructions provided with the app or on the manufacturer's website for pairing and control functions. Otherwise, the strip will simply turn on when plugged in and off when unplugged.

7. Manteniment

Per garantir la longevitat i el rendiment òptim de la tira de llums LED, seguiu aquestes pautes de manteniment:

• Neteja: Disconnect power before cleaning. Gently wipe the strip with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners, as these can damage the strip's material or LEDs.
• Inspeccionar connexions: Periodically check all power connections and linked sections for tightness and proper sealing, especially in outdoor or wet environments.
• Protecció del medi ambient: While IP68 rated, avoid prolonged submersion in water unless the specific application is designed for it and all connections are fully waterproofed. Protect the strip from physical damage or excessive tension.

8. Solució De Problemes

If you encounter issues with your LED light strip, refer to the following common problems and solutions:

• Sense llum:
  • Ensure the power plug is securely inserted into a working electrical outlet.
  • Comproveu si la presa de corrent funciona connectant-hi un altre dispositiu.
  • Verify that the power connection to the LED strip is firm and correct.
• Llums intermitents:
  • Check for loose connections at the power plug or between linked strip sections.
  • Assegureu-vos que la font d'alimentació sigui estable i dins del volum especificattagrang e (100-120 V).
• Partial Sections Not Lighting:
  • This may indicate a damaged section of the strip or a faulty connection within that segment. If the strip is linkable, try isolating the faulty section.
  • Avoid cutting the strip unless you are familiar with LED strip repair and can properly re-seal the cut ends to maintain the IP68 rating.

Si aquests passos no resolen el problema, poseu-vos en contacte amb l'atenció al client.

9. Informació de la garantia

The SUNNY SHOWER LED Cold White Flexible Light Strip is designed for a long lifespan. Specific warranty terms and conditions may vary. Please refer to your purchase documentation or contact SUNNY SHOWER customer support for detailed warranty information.

10. Atenció al client

For technical assistance, troubleshooting, or warranty inquiries, please contact SUNNY SHOWER customer support through the retailer where the product was purchased or visit the official SUNNY SHOWER weblloc.

Fabricant: SUNNY SHOWER

ASIN: B079GQD9CY

UPC: 764475657564
