CHANZON 1N5819 Schottky Barrier Rectifier Diodes User Manual

1. Introducció

This user manual provides essential information for the proper handling, installation, and application of CHANZON 1N5819 Schottky Barrier Rectifier Diodes. These diodes are designed for various electronic applications requiring high efficiency and low power loss. Please read this manual thoroughly before use to ensure optimal performance and safety.

2. Producte acabatview

2.1 What is a Schottky Barrier Rectifier Diode?

A Schottky barrier rectifier diode is a semiconductor device that allows current to flow in one direction with a very low forward voltage drop and fast switching action. This makes them ideal for high-frequency applications, power supplies, and voltage clamping circuits where efficiency is critical.

2.2 Característiques clau

• Part Number: 1N5819
• Forward Current: 1 Ampere (1A)
• Màxim pic repetitiu invers Voltage: 40 Volts (40V)
• Package Case: DO-41 (DO-204AL) Axial
• Lead-Free / RoHS Compliant
• High Forward Surge Current Capability
• High Temperature Soldering per MIL-STD-750, Method 2026
• Low Power Loss, High Efficiency

2.3 Contingut del paquet

Each package contains 100 pieces of CHANZON 1N5819 Schottky Barrier Rectifier Diodes, securely packed in an ESD (Electrostatic Discharge) bag for protection.

Figure 1: CHANZON 1N5819 Schottky Barrier Rectifier Diodes in their protective ESD packaging.

3. Setup and Handling

Proper handling of semiconductor devices is crucial to prevent damage from electrostatic discharge (ESD) and physical stress.

• Precaucions ESD: Always handle diodes in an ESD-safe environment. Use anti-static mats, wrist straps, and grounded tools to prevent static electricity buildup.
• Emmagatzematge: Keep diodes in their original ESD bag until ready for use. Store in a cool, dry place away from direct sunlight and extreme temperatures.
• Manipulació física: Avoid bending or stressing the leads excessively. Hold the diode by its body, not by the leads, when inserting into circuit boards or breadboards.
• Identificació: The 1N5819 diode has a band on one end, which indicates the cathode (negative) terminal. The opposite end is the anode (positive) terminal. Correct polarity is essential for proper circuit operation.

4. Instruccions de funcionament

The 1N5819 Schottky diode is designed for through-hole mounting. Adhere to standard electronic assembly practices.

• Disseny de circuit: Ensure your circuit design accounts for the diode's forward voltage drop (Vf), reverse voltage (VRRM), and current ratings to prevent damage and ensure optimal performance. Refer to the specifications datasheet for detailed electrical characteristics.
• Soldadura:
  • Use a soldering iron with a temperature-controlled tip.
  • Apply heat to the lead and pad simultaneously, then introduce solder.
  • Limit soldering time to minimize heat exposure to the diode body. High temperature soldering per MIL-STD-750, Method 2026 is supported.
  • Allow components to cool naturally. Avoid rapid cooling.
• Polaritat: Always observe the correct polarity when installing the diode. The banded end is the cathode, which typically connects to the more negative potential in a forward-biased circuit.

5. Manteniment

Schottky diodes are passive components and generally require no active maintenance. However, proper environmental conditions and handling practices contribute to their longevity.

• Condicions ambientals: Operate diodes within their specified temperature ranges. Avoid exposure to excessive humidity, corrosive gases, or mechanical vibration.
• Neteja: If cleaning is necessary, use isopropyl alcohol and a soft brush. Ensure the circuit board is powered off and fully dry before re-energizing.
• Inspecció: Periodically inspect soldered connections for signs of cold joints, cracks, or corrosion, especially in high-vibration environments.

6. Solució De Problemes

If your circuit is not functioning as expected, consider the following common issues related to diode usage:

• No Current Flow / Incorrect Voltage:
  • Verify diode polarity. Incorrect orientation will prevent current flow in the intended direction.
  • Check for cold solder joints or short circuits.
  • Assegureu-vos que el vol aplicattage does not exceed the diode's maximum reverse voltage (VRRM) of 40V, which could lead to breakdown.
• Excessive Heat / Diode Failure:
  • Confirm that the forward current does not exceed the diode's 1A rating. Use appropriate current limiting resistors if necessary.
  • Ensure adequate heat dissipation. While these diodes have low power loss, high current applications may still require consideration of thermal management.
  • Check for transient voltage spikes that might exceed the diode's breakdown voltage.
• Funcionament intermitent:
  • Inspect for loose connections or hairline cracks in the solder joints or PCB traces.
  • Verify component integrity using a multimeter in diode test mode.

7. Especificacions

Detailed electrical and physical specifications for the CHANZON 1N5819 Schottky Barrier Rectifier Diodes are provided below and in the accompanying datasheets.

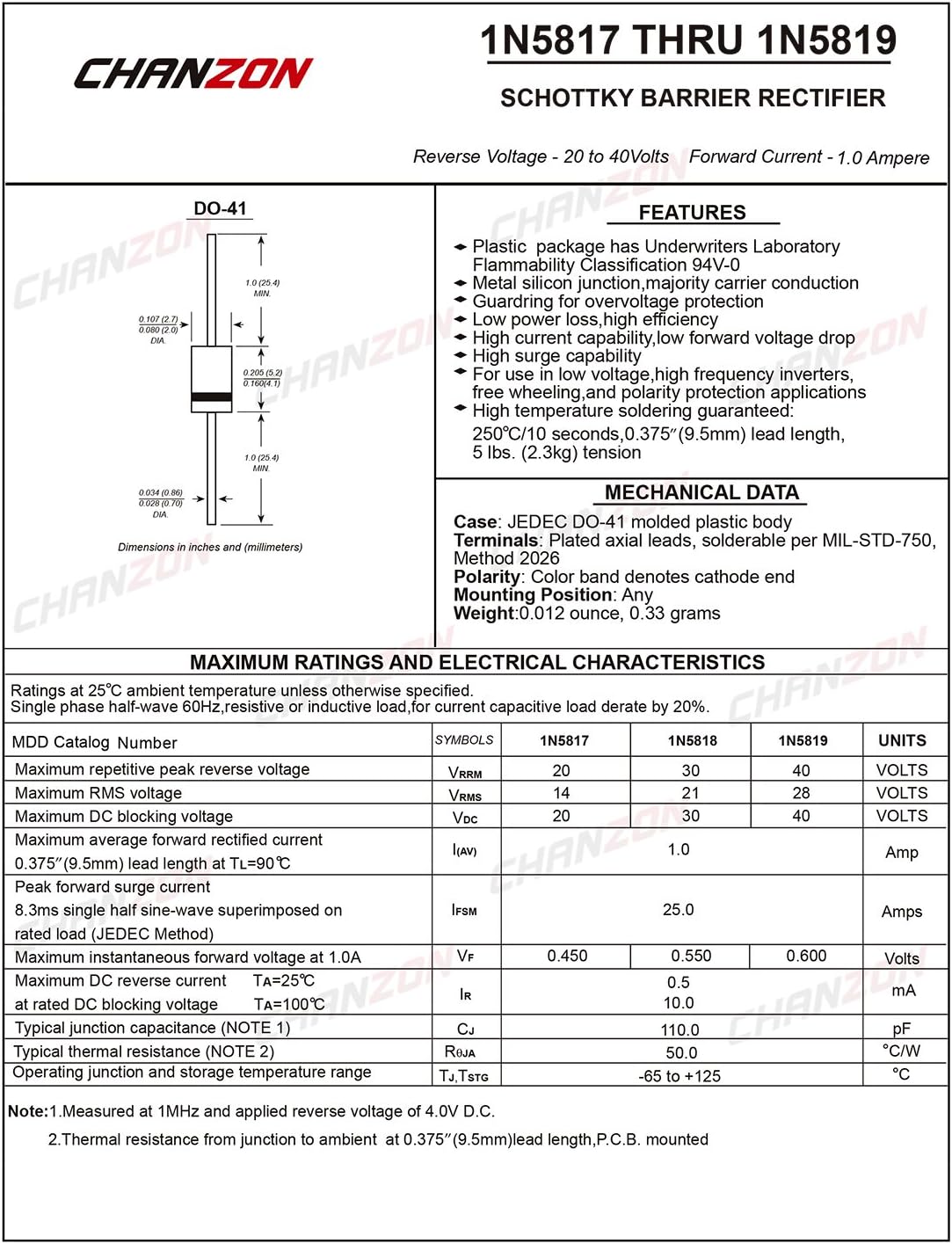

Figure 2: Datasheet for 1N5817 thru 1N5819 Schottky Barrier Rectifiers, showing maximum ratings and electrical characteristics.

Figure 3: Datasheet for 1N5817 thru 1N5819 Schottky Barrier Rectifiers, showing ratings and characteristic curves.

8. Garantia i Suport

CHANZON products are manufactured to high quality standards. For specific warranty information or technical support, please refer to the official CHANZON website or contact their customer service directly. Ensure you have your product model number (1N5819) and purchase details available when seeking support.

Podeu visitar el CHANZON Store on Amazon per a més informació i opcions de contacte.
