CHANZON SR5100 (SB5100) Schottky Barrier Rectifier Diodes Instruction Manual

1. Introducció

This manual provides essential information for the proper use and handling of CHANZON SR5100 (SB5100) Schottky Barrier Rectifier Diodes. These diodes are designed for applications requiring high efficiency and low power loss, such as power supplies, inverters, and converters. Please read this manual thoroughly before installation and operation.

2. Producte acabatview i Característiques

The CHANZON SR5100 (SB5100) is a Schottky Barrier Rectifier diode with the following key characteristics:

• Número de peça: SR5100 (SB5100)
• Corrent directe: 5 Amperes (A)
• Màxim pic repetitiu invers Voltage: 100 Volts (V)
• Package Case: DO-201AD (Axial, DO-27)
• Lead-Free and RoHS Compliant.
• Features high forward surge current capability.
• Designed for high temperature soldering.
• Offers low power loss and high efficiency.

Figure 1: CHANZON SR5100 Schottky Barrier Rectifier Diodes in their protective ESD bag.

3. Especificacions

Detailed electrical and physical specifications for the SR5100 diode are provided below. For comprehensive datasheet information, refer to the manufacturer's official documentation.

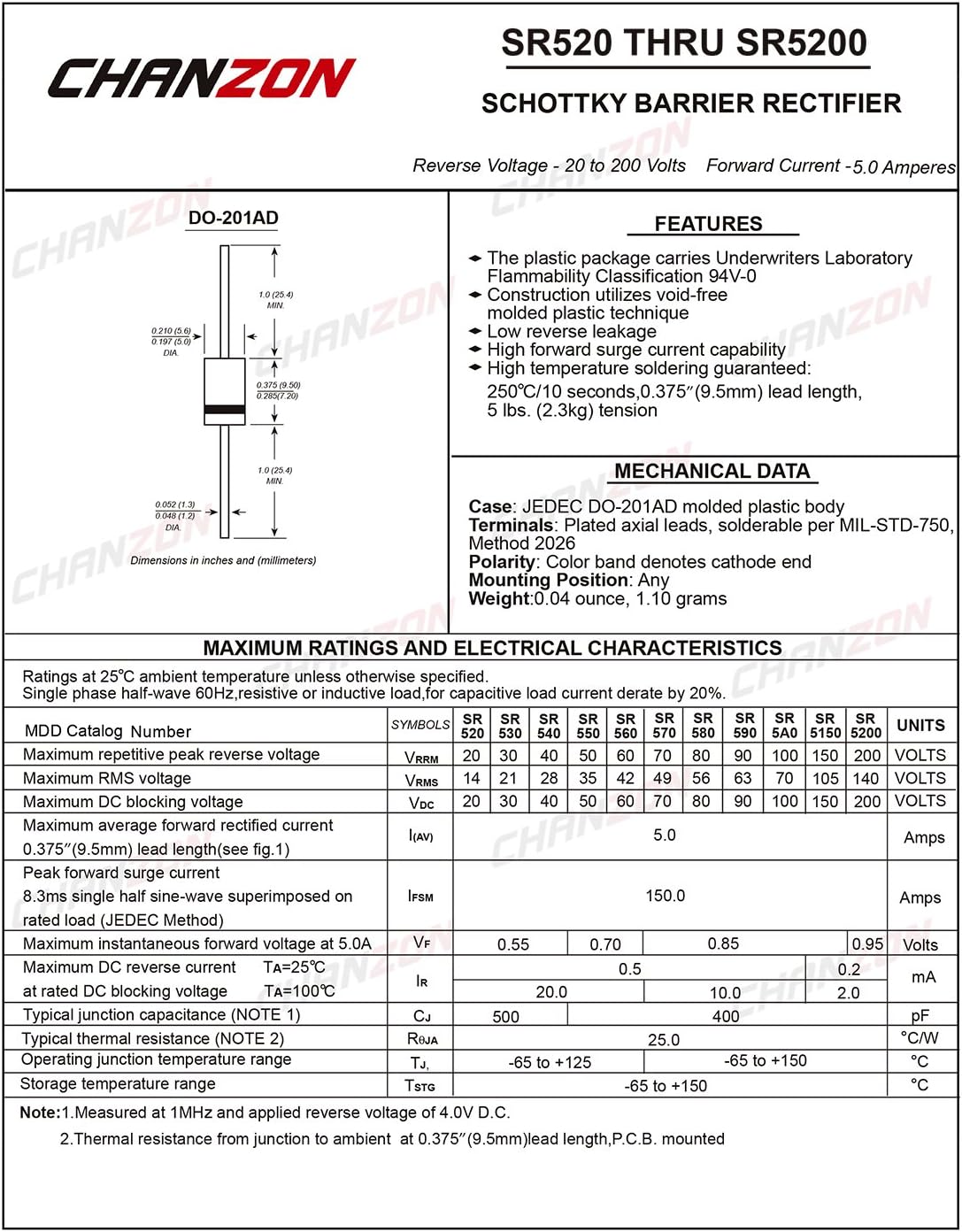

Figure 2: Mechanical data and features for SR5100 series diodes, including DO-201AD package dimensions.

Figure 3: Ratings and characteristic curves for SR5100 series diodes, illustrating performance under various conditions.

4. Informació de seguretat

When working with electronic components, always observe the following safety precautions:

• Ensure power is disconnected from the circuit before installing or removing components.
• Utilitzeu equips de protecció individual adequats, com ara ulleres de seguretat.
• Handle components carefully to avoid physical damage or electrostatic discharge (ESD).
• Verify correct polarity before connecting the diode into a circuit. Incorrect polarity can lead to component failure or circuit damage.
• No supereu el volum màximtage and current ratings specified in the datasheet.

5. Configuració i instal·lació

The SR5100 diodes are axial leaded components designed for through-hole mounting. Follow these general guidelines for installation:

1. Identify Polarity: The cathode end of the diode is typically indicated by a color band (e.g., silver or white band) on the diode body. The anode is the opposite end. Ensure correct polarity matching in your circuit design.
2. Lead Forming: Carefully bend the leads to fit the PCB holes, ensuring not to stress the diode body or the glass-to-metal seal.
3. Muntatge: Insert the diode leads into the designated through-holes on the printed circuit board (PCB).
4. Soldadura: Solder the leads to the PCB pads. The SR5100 is designed for high-temperature soldering. Follow standard soldering practices, ensuring good solder joints without overheating the component. The recommended soldering temperature and duration are typically 250°C for 10 seconds, 0.375 inches (9.5mm) from the lead body.
5. Neteja: After soldering, clean any flux residue from the PCB.

The diodes are packaged in an ESD bag for protection. Always handle them in an ESD-safe environment to prevent damage from static electricity.

6. Principis de funcionament

Schottky barrier rectifiers like the SR5100 are semiconductor devices that allow current to flow in one direction with a very low forward voltage drop and fast switching speed. They are commonly used in:

• Rectificació: Converting alternating current (AC) to direct current (DC).
• Switching Power Supplies: Due to their fast recovery time, they are ideal for high-frequency applications.
• Voltagi Clamping: Protecting circuits from overvoltage.
• Protecció de polaritat inversa: Preventing damage from incorrect power connections.

Ensure that the operating conditions (voltage, current, temperature) remain within the specified limits to ensure optimal performance and longevity of the diode.

7. Manteniment

Schottky diodes are passive components and generally require no active maintenance. However, proper handling and environmental conditions are crucial for their lifespan:

• Emmagatzematge: Store unused diodes in their original ESD-protective packaging in a dry, cool environment to prevent moisture absorption and static damage.
• Condicions ambientals: Ensure the operating environment for the circuit containing the diodes is free from excessive moisture, dust, and corrosive substances.
• Gestió tèrmica: Adequate heat dissipation is essential, especially in high-current applications. Ensure proper heatsinking if required by your circuit design to keep the junction temperature within specified limits.

8. Solució De Problemes

If a diode-related issue arises in your circuit, consider the following:

• No Current Flow / Open Circuit:
  • Check for incorrect polarity.
  • Inspect solder joints for cold joints or bridges.
  • Verify the diode is not damaged (e.g., cracked body, broken leads).
• Short Circuit / Excessive Current Flow:
  • The diode may have failed due to overvoltage, overcurrent, or overheating.
  • Ensure the diode's ratings are appropriate for the application.
• Sobreescalfament:
  • Check if the forward current exceeds the diode's rating.
  • Ensure adequate heat dissipation (e.g., proper PCB layout, heatsink if necessary).
  • Verify ambient temperature is within operating limits.

Always use a multimeter to test diode functionality (forward voltage drop, reverse leakage) if you suspect a component failure.

9. Contacte i suport

For further technical assistance or inquiries regarding CHANZON products, please refer to the official CHANZON website or contact their customer support. You can visit the CHANZON Store on Amazon per a més informació.
