1. Producte acabatview
The Fill-Rite KIT120FLG is a 1-inch meter flange assembly kit designed for use with Fill-Rite FR4200 and FR4400 series pumps. This kit provides essential components for mounting a meter, serving as a cost-effective solution for pump repair and extending equipment lifespan. It includes certified OEM parts to ensure compatibility and reliable performance.
This kit replaces the older 305F0998 flange.
1.1 Contingut del paquet
The KIT120FLG package typically includes the following components:
- Meter Flange (Red, as shown in image)
- junta tòrica
- Bolts (for attaching the meter to the flange)

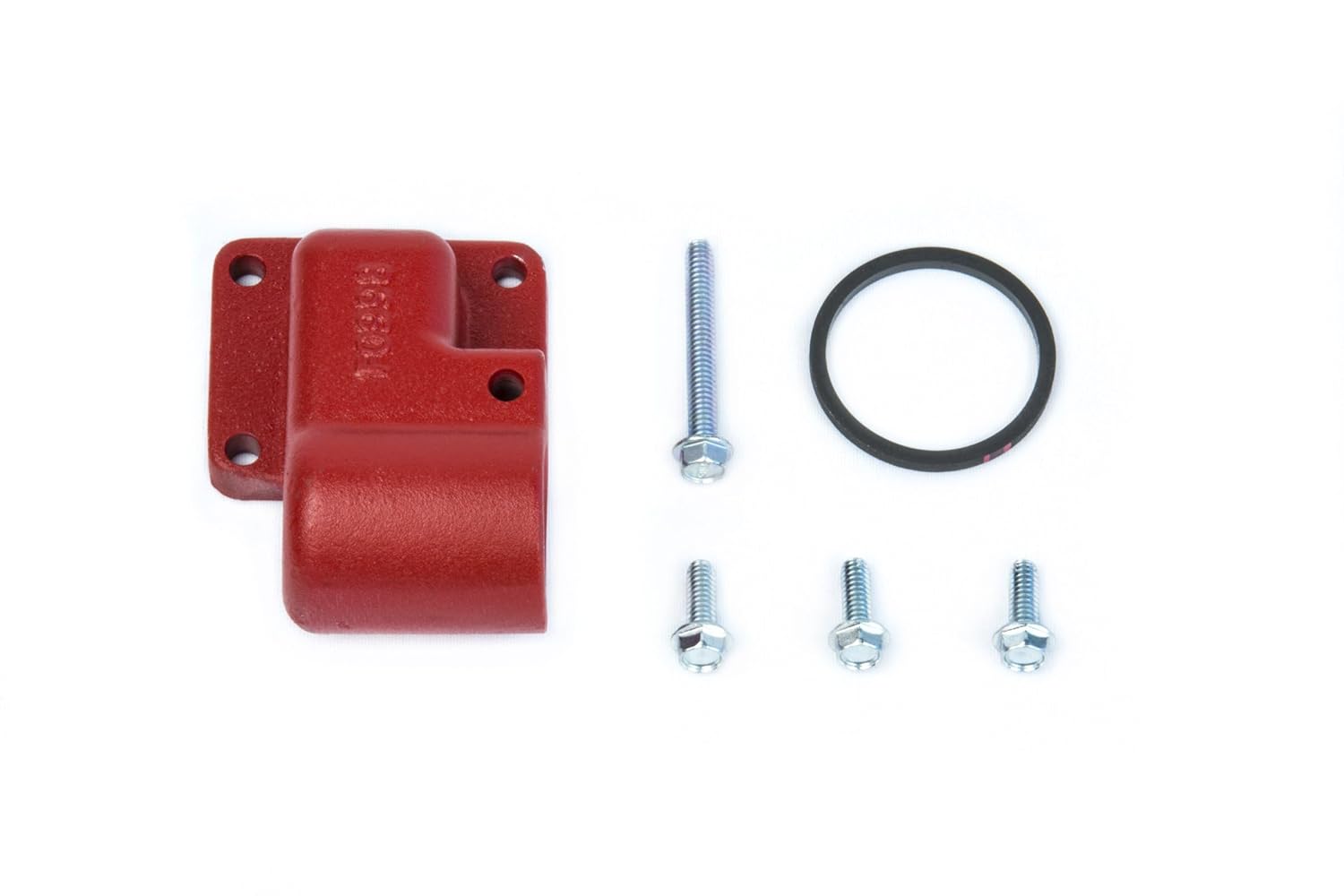

Figura 1: Components of the Fill-Rite KIT120FLG kit, including the red flange, O-ring, and bolts.
2. Informació de seguretat
Always observe the following safety precautions when handling, installing, or maintaining the KIT120FLG meter flange assembly:
- Ensure the pump system is de-pressurized and drained before beginning any installation or maintenance.
- Disconnect power to the pump to prevent accidental operation.
- Utilitzeu equips de protecció individual (EPI) adequats, com ara ulleres i guants de seguretat.
- Refer to the main pump manual for specific safety guidelines related to your FR4200 or FR4400 series pump.
- Handle components carefully to avoid damage or injury.
3. Instruccions d'instal·lació
Follow these steps to properly install the KIT120FLG meter flange assembly:
- Prepareu la bomba: Ensure the FR4200 or FR4400 series pump is turned off, de-pressurized, and any fuel or fluid lines are disconnected from the area where the flange will be installed.
- Remove Existing Flange (if applicable): If replacing an old flange, carefully remove the existing bolts and flange, ensuring no debris enters the pump or lines.
- Position the O-Ring: Place the O-ring onto the meter side of the new KIT120FLG flange. Ensure it is seated correctly to create a proper seal.
- Connect to Pump Discharge: Using a pipe nipple (not included), connect the inlet of the meter flange to the pump's discharge port. Ensure a secure, leak-free connection.
- Attach Meter: Align the meter (not included) with the flange. Use the provided bolts (typically four) to securely attach the meter to the flange. Tighten bolts evenly to prevent stress on the components and ensure a tight seal.
- Inspeccionar connexions: Comproveu totes les connexions per a l'estanquitat i l'alineació correcta.
- Prova de fuites: After installation, slowly re-pressurize the system and carefully inspect for any leaks around the flange and meter connections. Address any leaks immediately.

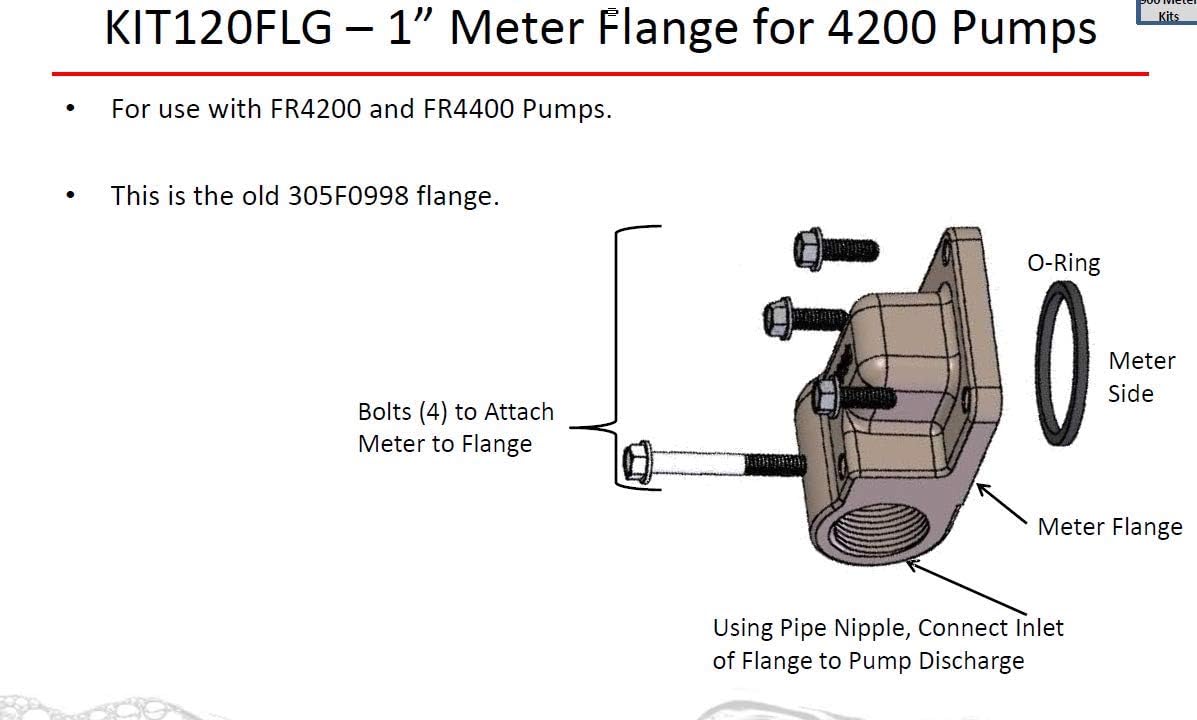

Figura 2: Explotat view diagram illustrating the assembly of the KIT120FLG meter flange, O-ring, and bolts for connection to a meter and pump discharge.
4. Funcionament
Once properly installed, the KIT120FLG meter flange assembly facilitates the connection of a compatible meter to your Fill-Rite FR4200 or FR4400 series pump. The flange ensures a secure and sealed pathway for fluid transfer, allowing the connected meter to accurately measure the dispensed volume. Operation of the meter itself will depend on the specific meter model used.
5. Manteniment
Regular maintenance of the meter flange assembly ensures optimal performance and longevity:
- Inspecció periòdica: Regularly inspect the flange, O-ring, and bolts for any signs of wear, corrosion, or damage. Check for leaks around the connections.
- Substitució de la junta tòrica: The O-ring is a critical sealing component. Replace it if it shows signs of cracking, hardening, or compression set, or if leaks are detected.
- Neteja: Keep the exterior of the flange clean from dirt, debris, and fluid residue.
- Estanquitat del cargol: Periodically check the tightness of the bolts securing the meter to the flange. Do not overtighten.
6. Solució De Problemes
If you encounter issues with your KIT120FLG meter flange assembly, consider the following:
| Problema | Causa possible | Solució |
|---|---|---|
| Fluid Leakage | Damaged or improperly seated O-ring; loose bolts; damaged flange. | Ensure O-ring is correctly positioned and undamaged. Tighten bolts evenly. Inspect flange for cracks or damage; replace if necessary. |
| Meter not seating properly | Misalignment; debris in connection; damaged threads. | Re-align meter and flange. Clean connection surfaces. Inspect threads for damage. |
7. Especificacions
| Característica | Detall |
|---|---|
| Número de model | KIT120FLG |
| Tipus de producte | Mechanical Component (Meter Flange Assembly Kit) |
| Compatibilitat | Fill-Rite FR4200 and FR4400 Series Pumps |
| Mida de la brida | 1 polzades |
| Material | Alumini |
| Dimensions del paquet | 4.72 x 3.62 x 3.35 polzades (aprox. 12.0 x 9.2 x 8.5 cm) |
| Pes del paquet | 0.324 kg (aprox. 11.4 oz) |
| País d'origen | Estats Units |
8. Garantia i Suport
Fill-Rite provides certified OEM parts, ensuring quality and compatibility. For specific warranty information regarding the KIT120FLG or your Fill-Rite pump, please refer to the documentation provided with your original pump purchase or contact Fill-Rite customer support directly.
For technical assistance or to inquire about replacement parts, please visit the official Fill-Rite weblloc web o poseu-vos en contacte amb els seus centres de servei autoritzats.
