Introducció
This manual provides comprehensive instructions for the setup, operation, maintenance, and troubleshooting of your Smartby HTR-D10 Remote Control. This remote is designed as a direct replacement for various Haier LED LCD TV models, ensuring seamless functionality without the need for programming.
Producte acabatview
The Smartby HTR-D10 remote control is a dedicated replacement unit, pre-programmed to work with a wide range of Haier LED LCD TVs. It replicates the functions of the original remote, offering a familiar user experience.
Compatible Haier TV Models include: HL19K1, HL19R1, HLC19R1, HLC19R1A, HLC19K1, HLC19K1A, HLC19K1C, HLC19KW1, HLC19KW1A, HLC19KW2, HLC19KW2A, HLC19K2A, HLC19SL2A, HLC22XSLW2, HLC22R1, HL22F1, HLC22KW2, HL22K1, HLC22K1, HL22R1, HLC22KW1, HLC22K1A, HLC22K2A, HLC22R1A, HLC22XSL2A, HLC24XK2A, HLC24XSL2A, HLC26R1A, HLC26R1B, HLC26R1, HLC32R1, HLC32K2A, HLC32R1A.
Figura 1: Frontal view of the HTR-D10 Remote Control. This image displays the full layout of the remote's buttons, including power, number pad, navigation, volume, channel, and various function keys.

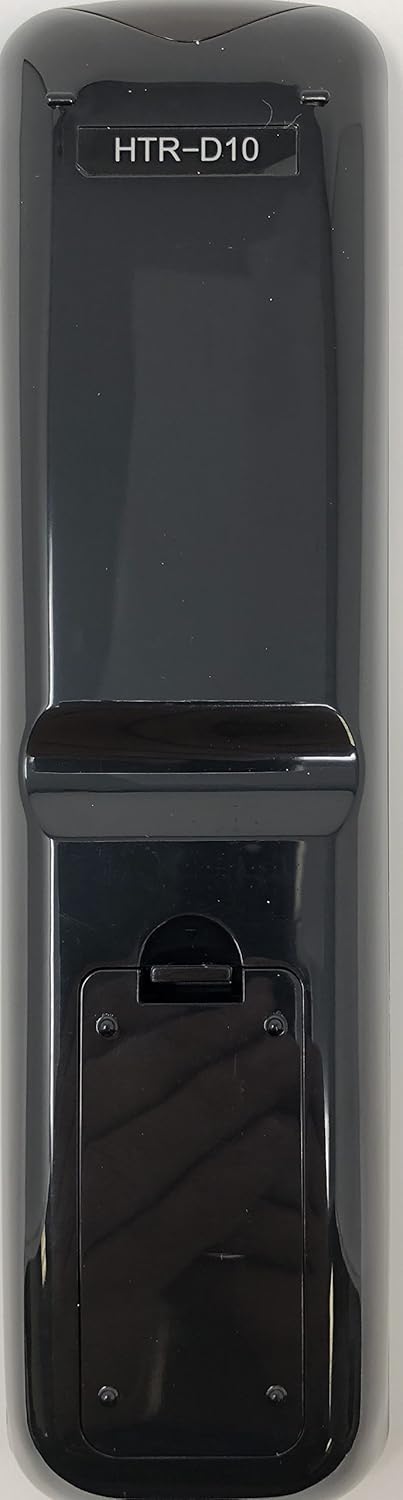

Figura 2: Esquena view of the HTR-D10 Remote Control. This image shows the rear of the remote, highlighting the battery compartment cover and the model number label.
Configuració
Instal·lació de la bateria
- Localitzeu el compartiment de les piles a la part posterior del comandament a distància (vegeu la figura 2).
- Feu lliscar la tapa del compartiment de la bateria cap avall per obrir-lo.
- Introduïu dues (2) piles AAA, assegurant-vos que els terminals positiu (+) i negatiu (-) s'alineïn correctament amb les marques de l'interior del compartiment.
- Feu lliscar la tapa del compartiment de la bateria fins que faci clic de manera segura.
Nota: This remote control does not require any programming. It is ready for use immediately after battery installation.
Instruccions de funcionament
Point the remote control directly at the infrared sensor on your Haier TV. Ensure there are no obstructions between the remote and the TV.
Funcions clau:
- PODER (●): Encén o apaga el televisor.
- Botons numèrics (0-9): Selecciona directament els canals de televisió.
- ENTRADA: Passa ciclísticament per les fonts d'entrada disponibles (HDMI, AV, component, etc.).
- VOL (+/-): Ajusta el nivell de volum.
- CH (▲/▼): Canvia el canal de televisió amunt o avall.
- MUT: Silencia o activa l'àudio del televisor.
- MENÚ: Accedeix al menú principal del televisor.
- SORTIDA: Surt del menú actual o de la visualització en pantalla.
- Navigation Buttons (◀ ▲ ▶ ▼): Navegueu pels menús i opcions.
- ENTRAR: Confirms a selection in menus.
- GUIA: Displays the electronic program guide (if supported by TV).
- PREFERIT: Accedeix a la llista de canals preferits.
- DORMIR: Sets the TV sleep timer.
- MOSTRA: Shows current channel information.
- DVD / USB: Selects DVD or USB input (if TV supports these functions).
- Playback Controls (OPEN/CLOSE, PLAY/PAUSE, STOP, REV, FWD, PREV, NEXT, REPEAT): Control playback for connected DVD players or USB media (if TV supports these functions).
Manteniment
Neteja:
Wipe the remote control with a soft, dry cloth. Do not use liquid cleaners or abrasive materials, as these can damage the remote's surface or internal components.
Cura de la bateria:
- Canvieu les piles quan la resposta del comandament a distància esdevingui lenta o inconsistent.
- Traieu les piles si no feu servir el comandament a distància durant un període prolongat per evitar fuites.
- Eliminar les bateries usades d'acord amb la normativa local.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El comandament a distància no respon. | Piles gastades o incorrectament inserides. | Canvieu les piles per piles AAA noves, assegurant-vos de la polaritat correcta. |
| El comandament a distància té una resposta de curt abast o intermitent. | Weak batteries; obstruction between remote and TV; remote sensor on TV is blocked. | Replace batteries. Remove any objects blocking the line of sight to the TV's sensor. Clean the TV's remote sensor if dusty. |
| Botons específics que no funcionen. | Button malfunction; TV does not support the specific function. | Ensure the TV model supports the function. If other buttons work, the specific button might be faulty. Contact support if issue persists. |
Especificacions
- Model: HTR-D10
- Marca: Smartby
- Dispositius compatibles: Haier LED LCD Televisions
- Tecnologia de connectivitat: Infrarojos (IR)
- Font d'alimentació: 2 piles AAA (no incloses)
- Dimensions del producte: 9 x 1.9 x 0.8 polzades (aproximadament)
- Pes de l'article: 3.2 ounces (approximately, without batteries)
Garantia i Suport
For any questions, concerns, or support regarding your Smartby HTR-D10 remote control, please contact the seller or manufacturer directly through your purchase platform. Please refer to your purchase documentation for specific warranty details, as they may vary.
