ZEISS Conquest V4 3-12x56 Riflescope User Manual

Introducció

Thank you for choosing the ZEISS Conquest V4 3-12x56 Riflescope. This manual provides essential information for the proper setup, operation, maintenance, and care of your new riflescope. Please read these instructions carefully before use to ensure optimal performance and longevity of your product.

Figure 1: ZEISS Conquest V4 3-12x56 Riflescope, showing the objective lens, main tube, and ocular lens with adjustment turrets.

Característiques clau

The ZEISS Conquest V4 3-12x56 Riflescope is engineered with advanced optical and mechanical features to provide superior performance:

• 90% Light Transmission: High-definition glass ensures exceptional light transmission, delivering bright, clear images even in low-light conditions and across the entire magnification range.
• ZEISS T* Coating: Proprietary multi-layer lens coating guarantees brilliant, high-contrast images, especially in challenging light. Each lens is individually tuned for maximum clarity.
• LotuTec Coating: An external lens coating that repels water and dirt, providing a clear and unhindered view en totes les condicions meteorològiques.
• 4x Zoom Range: Offers versatility for various shooting scenarios, allowing for precise detail recognition and an excellent overall field of view.
• Z-Plex Reticle (#20): A non-illuminated reticle with fine crosshairs for precise aiming at long ranges and in daylight. The unique arrow-shaped posts facilitate accurate aiming at smaller targets.
• Capped Elevation Turret: Provides protection against accidental adjustments, ensuring consistent zero.
• Fixed Parallax: Set for optimal performance without the need for parallax adjustment.

Figure 2: Demonstration of the ZEISS T* coating, showing enhanced clarity and contrast.

Figure 3: Comparison showing the water-repellent properties of the LotuTec coating versus a standard coating.

Configuració i instal·lació

Muntatge del visor de rifle

Proper mounting is crucial for accuracy and consistent performance. Ensure your rifle is unloaded and pointed in a safe direction before beginning installation.

1. Select appropriate 30mm scope rings and a base compatible with your rifle.
2. Securely attach the scope base to your rifle's receiver according to the manufacturer's instructions.
3. Place the lower halves of the scope rings onto the base.
4. Carefully place the riflescope into the lower rings.
5. Attach the upper halves of the rings, but do not fully tighten the screws yet.
6. Adjust the riflescope for proper eye relief and reticle alignment (see below).
7. Once positioned correctly, tighten the ring screws evenly and to the torque specifications provided by the ring manufacturer.

Figure 4: Detailed diagram illustrating various components and features of the ZEISS Conquest V4 Riflescope, including mounting points.

Ajustos inicials

• Alleujament ocular: With the rifle shouldered, slide the scope forward or backward in the rings until you achieve a full, clear field of view without any dark crescent (vignetting) around the edges.
• Ajust de diòptries: Point the scope at a plain, bright background (like a wall or clear sky). Look through the scope and quickly glance away. Then, look back through the scope and immediately adjust the diopter ring (located on the ocular lens) until the reticle appears sharp and clear. Do not focus on the target, only the reticle.
• Reticle Leveling: Ensure the reticle is perfectly level with the rifle's bore. This can be done using a scope leveling kit or by aligning the vertical crosshair with a plumb line.

Funcionament de la mira telescòpica

Ajust d'ampliació

The magnification of your riflescope can be adjusted using the zoom ring located on the ocular housing. Rotate the ring to select your desired magnification between 3x and 12x. Higher magnification provides more detail, while lower magnification offers a wider field of view.

Reticle (#20 Z-Plex)

The #20 Z-Plex reticle is a non-illuminated, second focal plane reticle. This means its size appears constant regardless of the magnification setting. It features fine crosshairs for precise aiming and thicker posts that taper towards the center, aiding in quick target acquisition.

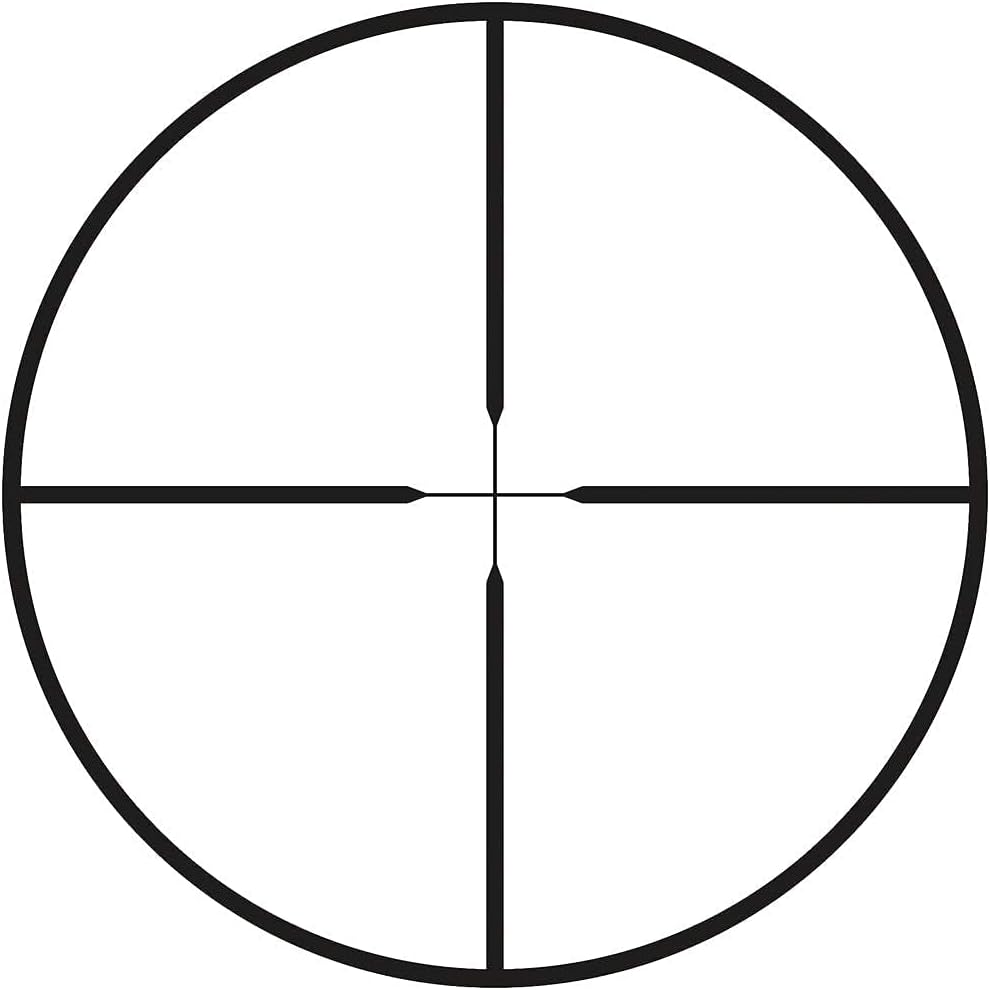

Figure 5: Illustration of the #20 Z-Plex Reticle.

Torretes d'elevació i vent

Your Conquest V4 features a capped elevation turret and a windage turret for making precise adjustments to your point of impact. Each click of the turret adjusts the point of impact by 0.25 MOA (Minutes of Angle).

• Torreta d'elevació: The elevation turret is located on top of the scope. It is capped to prevent accidental adjustments. Remove the cap to access the adjustment dial. Turning the dial clockwise typically moves the point of impact down, and counter-clockwise moves it up.
• Torreta de vent: The windage turret is located on the right side of the scope. Turning the dial clockwise typically moves the point of impact right, and counter-clockwise moves it left.

Always refer to your specific ballistic data and shooting conditions when making adjustments. After zeroing, replace the turret caps to protect the settings.

Figura 6: Primer pla view of the capped elevation turret, showing adjustment markings.

Manteniment i cura

Proper care will ensure your ZEISS Conquest V4 Riflescope provides years of reliable service.

• Neteja de lents: Use a soft brush or compressed air to remove loose dust and debris. For smudges or fingerprints, use a clean microfiber cloth specifically designed for optics and a small amount of lens cleaning fluid. Wipe gently in a circular motion from the center outwards. Avoid using harsh chemicals or abrasive materials.
• Neteja del cos: Netegeu el cos del visor amb un drap suau iamp drap. Per a la brutícia persistent, es pot utilitzar una solució de sabó suau i, a continuació, netejar amb un drap net.amp drap i assecant-lo completament.
• Emmagatzematge: Store your riflescope in a cool, dry place, away from direct sunlight and extreme temperatures. If storing for extended periods, consider using a desiccant to prevent moisture buildup. Always replace lens caps when not in use.
• Eviteu el desmuntatge: Do not attempt to disassemble the riflescope. This will void the warranty and can cause irreparable damage to the precision optics and mechanics.

Resolució de problemes

If you encounter issues with your riflescope, refer to the following common problems and solutions:

• Imatge borrosa:
  • Check diopter adjustment (focus on reticle, not target).
  • Ensure objective and ocular lenses are clean.
  • Verify proper eye relief.
• Punt d'impacte inconsistent:
  • Check that scope rings and base are securely tightened.
  • Ensure the barrel and action are free of obstructions or damage.
  • Verify ammunition consistency.
• Reticle Not Clear:
  • Re-adjust the diopter setting for your eye.
  • Clean the ocular lens.
• Turrets Not Clicking or Adjusting:
  • Ensure turret caps are removed.
  • If frozen in cold weather, allow the scope to warm up slightly.
  • Do not force adjustments. If resistance is met, contact customer support.

If problems persist after attempting these solutions, please contact ZEISS customer support for further assistance.

Especificacions tècniques

Below are the detailed technical specifications for the ZEISS Conquest V4 3-12x56 Riflescope. For a comprehensive overview of the V4 series, please refer to the provided specification tables.

Figure 7: Part 1 of the ZEISS Conquest V4 Riflescopes specifications table, including Model, Magnification, Focal Plane, Effective Lens Diameter, Exit Pupil Diameter, Twilight factor, Field of View, Angular Field of View, Diopter Range, Eye Relief, Parallax Setting, Elevation Adjustment Range, and Windage Adjustment Range.

Figure 8: Part 2 of the ZEISS Conquest V4 Riflescopes specifications table, including Click Value, Main Tube Diameter, Eyepiece Tube Diameter, Objective Tube Diameter, Coating, Fogproof, Waterproof, Operating Temperature, Length, Weight, and Reticle Options.

Garantia i Suport

ZEISS products are known for their high quality and reliability. For detailed information regarding the warranty coverage for your Conquest V4 Riflescope, please refer to the warranty card included with your product or visit the official ZEISS weblloc. La garantia normalment cobreix defectes de materials i fabricació en condicions d'ús normal.

For technical support, service, or any inquiries not covered in this manual, please contact ZEISS customer service. Contact information can usually be found on the ZEISS weblloc web o a l'embalatge del producte.

Always ensure you are contacting an authorized ZEISS service center for repairs or maintenance to maintain your warranty validity.
