Producte acabatview
The Luceco Solar LED Guardian Wall Light is a robust and high-quality outdoor lighting solution designed for easy, wire-free installation. It features a PIR motion sensor and a solar panel for energy efficiency. This light is ideal for illuminating and securing outdoor areas such as terraces, balconies, driveways, and gardens.
Davant view of the Luceco Solar LED Guardian Wall Light, showing the solar panels and the main LED light panel.
Característiques clau
- Temperatura de color: 4000K (Blanc Natural)
- Consum d'energia: 6.8 watts
- Flux lluminós: 800 lúmens
- Tres modes de funcionament: Night light, Night light + motion detection, Motion detection only
- Bateria: 4000 mAh Lithium-ion battery included
- Classificació IP: Classificació IP54 per a ús exterior
- Integrated PIR motion sensor
- Simple push-button switch for mode selection
Configuració i instal·lació
The Luceco Solar LED Guardian Wall Light is designed for simple and quick installation without the need for mains wiring, making it ideal for locations where electrical outlets are not readily available. Ensure the installation location receives ample direct sunlight throughout the day for optimal charging.
Muntatge
- Choose a suitable wall or surface for mounting, ideally between 2 to 3 meters high for optimal motion detection and illumination coverage.
- Mark the positions for the mounting screws using the light's mounting holes as a template.
- Drill pilot holes if necessary and insert appropriate wall anchors.
- Secure the light to the wall using screws, ensuring it is firmly attached.
Diagram showing the dimensions of the Luceco Solar LED Guardian Wall Light: 270mm length, 220mm height, 110mm depth.

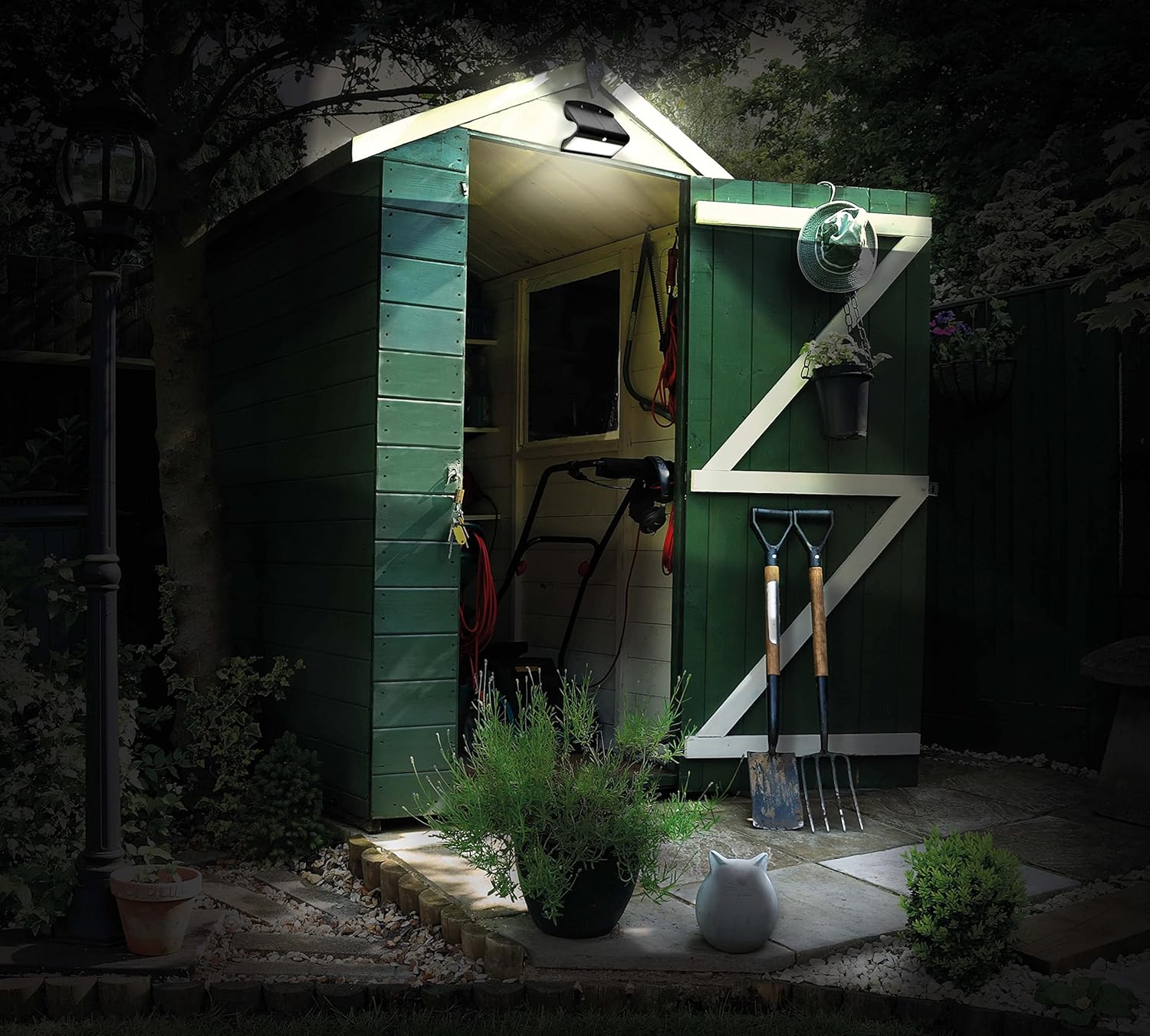

Luceco Solar LED Guardian Wall Light mounted on the exterior of a garden shed, providing illumination at night.
Instruccions de funcionament
The Luceco Solar LED Guardian Wall Light features a push-button switch on the back to select between three distinct operating modes. The light charges automatically during the day via its solar panel.
Carregant
The integrated solar panel charges the internal 4000 mAh Lithium-ion battery during daylight hours. Ensure the solar panel is clean and free from obstructions to maximize charging efficiency.
Modes de funcionament
Press the button on the back of the unit to cycle through the following modes:
- Mode 1 (Beacon Mode): The light turns on at a low beacon level at dusk and remains on for 5 hours, then turns off.
- Mode 2 (Beacon + Detection Mode): The light stays at a low beacon level at dusk. Upon motion detection, it illuminates at full power (800 lm) for 20 seconds, then returns to beacon mode if no further motion is detected.
- Mode 3 (Detection Only Mode): The light remains off at dusk. Upon motion detection, it illuminates at full power (800 lm) for 30 seconds, then turns off if no further motion is detected.
Diagram illustrating the illumination range and height for the Luceco Solar LED Guardian Wall Light, showing optimal mounting height of 2-3m and a detection distance of 4m.
Manteniment
To ensure optimal performance and longevity of your Luceco Solar LED Guardian Wall Light, follow these maintenance guidelines:
- Neteja: Regularly wipe the solar panel and light surface with a soft, damp cloth to remove dust, dirt, and debris. A clean solar panel ensures efficient charging. Avoid abrasive cleaners or solvents.
- Cura de la bateria: The integrated Lithium-ion battery is designed for long-term use. For best performance, ensure the light receives sufficient sunlight for charging daily. In prolonged periods of low sunlight, the light's performance may be reduced.
- Inspecció: Periodically check the mounting screws and the light's housing for any signs of wear or damage. Ensure the light remains securely mounted.
Resolució de problemes
If your Luceco Solar LED Guardian Wall Light is not functioning as expected, refer to the following troubleshooting table:
| Problema | Causa possible | Solució |
|---|---|---|
| La llum no s'encén a la nit | Càrrega solar insuficient El mode no s'ha seleccionat correctament Problema amb la bateria | Ensure the solar panel is clean and exposed to direct sunlight for at least 6-8 hours daily. Relocate if necessary. Press the mode selection button on the back to cycle through the operating modes. The battery may be depleted or at the end of its life. While not user-replaceable, ensure proper charging conditions. |
| Light stays on constantly or does not turn off | Moviment continu detectat Mal funcionament del sensor | Ensure the motion sensor is not obstructed or detecting constant movement from trees, pets, or passing vehicles. If the issue persists after checking for continuous motion, the sensor may be faulty. |
| La llum és tènue o parpelleja | Càrrega baixa de la bateria Placa solar bruta | Deixeu que la llum es carregui completament a la llum solar directa. Clean the solar panel thoroughly. |
| El sensor de moviment no detecta | Obstruction in sensor's path Incorrect mounting height/angle Temperatures extremes | Assegureu-vos que el sensor estigui lliure d'obstruccions. Adjust the mounting height (optimal 2-3m) and angle to ensure the sensor covers the desired area. Performance may be affected by extremely low or high temperatures. |
Especificacions tècniques
Detailed specifications for the Luceco Solar LED Guardian Wall Light:
| Característica | Especificació |
|---|---|
| Marca | Luceco |
| Número de model | LEXS80W40-01 |
| Dimensions del producte | 27 x 27 x 22 cm |
| Pes de l'article | 790 grams |
| Consum d'energia | 6.8 watts |
| Flux lluminós | 800 lúmens |
| Temperatura de color | 4000 Kelvin (Blanc Natural) |
| Índex de reproducció del color (CRI) | 80 |
| Tipus de bateria | 1 bateria de liti-ió (inclosa) |
| Capacitat de la bateria | 4000 mAh |
| Voltage | 3.7 Volts |
| Classificació IP | IP54 |
| Material | Metal Acrylonitrile Butadiene Styrene (ABS) |
| Material d'ombra | Alumini |
| Tipus d'acabat | Recobriment en pols |
| Nombre de bombetes | 1 (LED) |
| Components inclosos | Detector de moviment |
| Usos específics | Ús exterior |
| Característiques especials | Robust, Solar powered |
| Estil de commutació | Pulsador |
| Tipus d'instal·lació | Muntatge de paret |
| País d'origen | França |
Garantia i Suport
Informació de la garantia
Information regarding specific warranty terms and conditions for the Luceco Solar LED Guardian Wall Light (Model LEXS80W40-01) is not provided in the product details. Please refer to your point of purchase or the manufacturer's official website for any available warranty information.
Atenció al client
For technical assistance or further inquiries, please contact Luceco customer support through their official channels. Contact details are typically available on the manufacturer's weblloc o embalatge del producte.
