Introducció
This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your Kohler Rubicon 4-inch Centerset 2-Handle Bathroom Faucet. Please read all instructions carefully before beginning installation or use to ensure proper function and longevity of your product. Keep this manual for future reference.
Producte acabatview

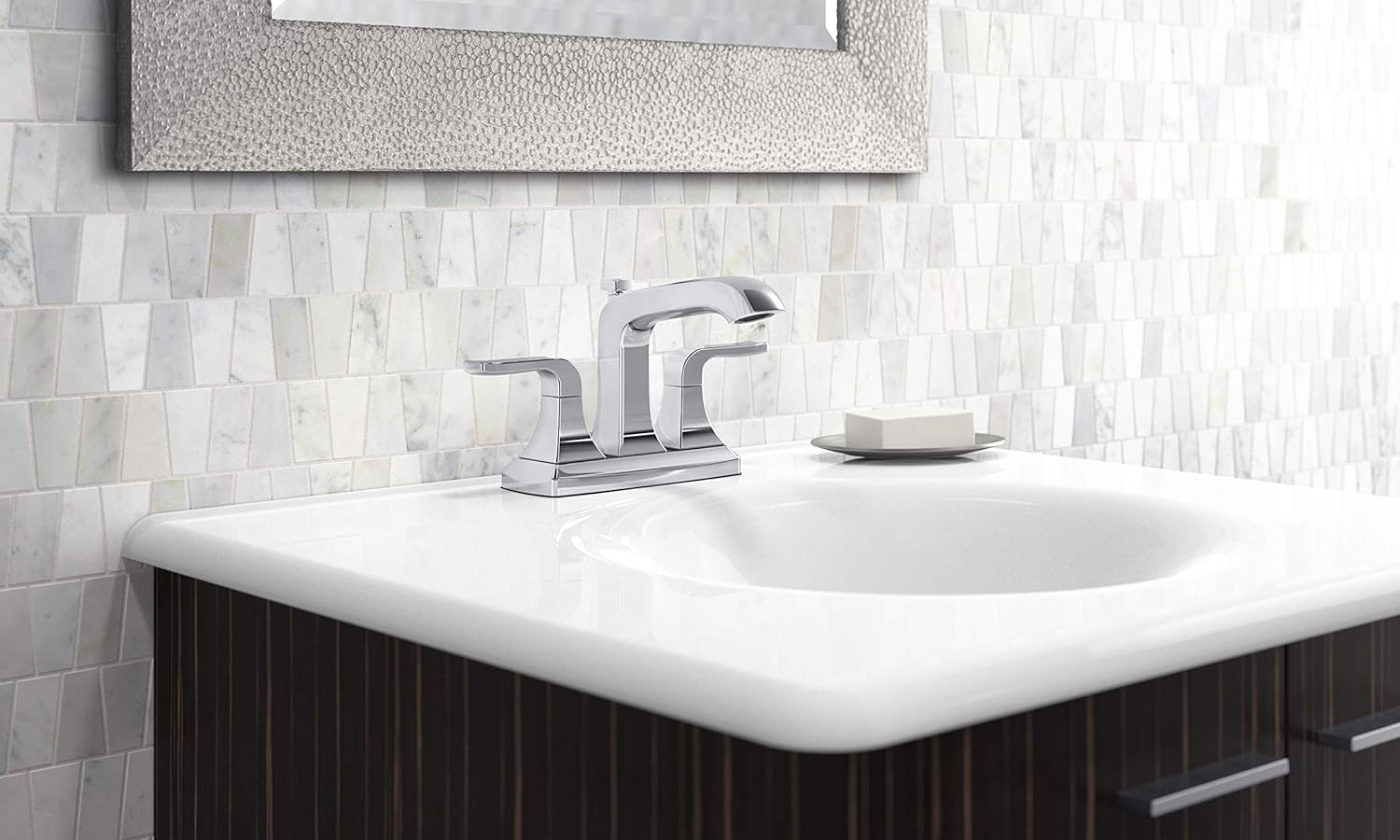

The Kohler Rubicon 4-inch Centerset 2-Handle Bathroom Faucet in Vibrant Brushed Nickel, shown installed on a bathroom vanity. This faucet features a sleek design with two handles for precise control over water temperature and flow.
Un detallat view of the Kohler Rubicon faucet, showcasing its Vibrant Brushed Nickel finish and the design of its two handles and spout.
The Kohler Rubicon faucet is designed for bathroom sinks with a 4-inch centerset configuration. It features two handles for independent control of hot and cold water, and a low-arc spout. The Vibrant Brushed Nickel finish provides a durable and aesthetically pleasinsuperfície g.
Configuració i instal·lació
Professional installation is recommended. Ensure all local plumbing codes are followed. Before beginning, turn off the main water supply to your bathroom.
Eines i materials necessaris:
- Clau ajustable
- Massilla de lampista o segellador de silicona
- Tornavís (Phillips i cap pla)
- Llanterna
- Ulleres de seguretat
Passos d'instal·lació:
- Preparar la pica: Clean the faucet mounting area on the sink. Ensure the three holes (4-inch centerset) are clear of debris.
- Instal·leu el cos de l'aixeta: Apply a thin bead of plumber's putty or silicone sealant around the base of the faucet body. Insert the faucet body and handles through the mounting holes on the sink.
- Assegureu l'aixeta: From underneath the sink, place the rubber gasket and mounting washers over the threaded shanks. Secure the faucet using the mounting nuts, tightening them firmly but do not overtighten.
- Connecteu les línies de subministrament d'aigua: Attach the hot and cold water supply lines to the corresponding inlets on the faucet body. Connect the other ends of the supply lines to your hot and cold water shut-off valves. Use an adjustable wrench to tighten connections, ensuring no leaks.
- Instal·leu el conjunt de drenatge: Follow the instructions provided with your drain assembly. Typically, this involves placing a gasket under the drain flange, inserting it into the sink drain hole, and securing it from underneath with a washer and nut. Connect the pop-up rod to the faucet's lift rod mechanism.
- Prova de fuites: Turn on the main water supply slowly. Check all connections for leaks. Operate the faucet handles to ensure proper water flow and temperature mixing.
Instruccions de funcionament
Your Kohler Rubicon faucet features two lever handles for easy operation.
- Aigua freda: Gireu la maneta dreta en sentit antihorari per activar el flux d'aigua freda.
- Aigua calenta: Gireu la maneta esquerra en sentit antihorari per activar el flux d'aigua calenta.
- Control de temperatura: Ajusteu les manetes d'aigua calenta i freda simultàniament per aconseguir la temperatura de l'aigua desitjada.
- Flux d'aigua: The handles control the volume of water flow. Turn them further counter-clockwise for increased flow.
- Drain Stopper: Pull up the lift rod located behind the faucet spout to close the drain. Push it down to open the drain.
Manteniment
Una neteja i un manteniment regulars ajudaran a preservar l'acabat i la funcionalitat de l'aixeta.
Neteja de l'acabat:
- Utilitzeu un suau, damp drap i sabó suau per netejar la superfície de l'aixeta.
- Esbandiu bé amb aigua i assequeu amb un drap suau per evitar taques d'aigua.
- Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the Vibrant Brushed Nickel finish.
Manteniment de l'airejador:
- If water flow decreases or becomes irregular, the aerator may be clogged.
- Desenrosqueu l'airejador de l'extrem del bec.
- Rinse the aerator screen under running water to remove any debris. For stubborn clogs, soak in a 50/50 solution of white vinegar and water.
- Torneu a col·locar l'airejador, assegurant-vos que estigui ben ajustat.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Baix cabal d'aigua | Clogged aerator; partially closed shut-off valves; low water pressure in home. | Clean the aerator (see Maintenance); ensure shut-off valves are fully open; contact a plumber if home water pressure is consistently low. |
| Fuita de la base de l'aixeta | Loose mounting nuts; worn gaskets. | Tighten mounting nuts underneath the sink; replace gaskets if damaged. |
| Fuita per les nanses | Worn O-rings or cartridges. | Replace O-rings or cartridges. Refer to Kohler's website or contact support for specific part numbers and instructions. |
| Problemes de temperatura de l'aigua | Connexió incorrecta de la línia de subministrament d'aigua calenta/freda; problemes amb l'escalfador d'aigua. | Verifiqueu que les línies de subministrament d'aigua calenta i freda estiguin connectades correctament; comproveu la configuració de l'escalfador d'aigua. |
Especificacions
| Característica | Detall |
|---|---|
| Marca | Kohler |
| Nom del model | K-R76215 |
| Número de part | R76215-4D-BN |
| Color | Níquel raspallat vibrant |
| Tipus d'acabat | Raspallat |
| Material | Metal (Handle Material: Ceramic) |
| Tipus de muntatge | Muntanya de coberta |
| Tipus d'instal·lació | Centre |
| Nombre de nanses | 2 |
| Nombre de forats | 3 |
| Caudal màxim | 1.2 galons per minut |
| Alçada del bec | 5.38 polzades |
| Abast del bec | 4.87 polzades |
| Pes de l'article | 3.43 lliures |
| Dimensions del producte | 10 x 10 x 10 polzades |
Garantia i Suport
Kohler products are manufactured to the highest standards of quality and performance. For specific warranty information, please refer to the warranty card included with your product or visit the official Kohler website. If you require technical assistance, replacement parts, or have any questions not covered in this manual, please contact Kohler customer support directly. Contact information can typically be found on the Kohler weblloc web o a l'embalatge del producte.
