LUXRITE 4 Inch Square LED Flush Mount Ceiling Light

Informació important de seguretat

Please read these instructions carefully before installation and retain them for future reference. Failure to follow these instructions could result in electric shock, fire, or other hazards that could cause personal injury or property damage.

• ADVERTIMENT: Risc de descàrrega elèctrica. Desconnecteu l'alimentació al fusible o al disjuntor abans d'instal·lar o fer el servei.
• Aquest producte s'ha d'instal·lar d'acord amb el codi d'instal·lació aplicable per una persona familiaritzada amb la construcció i el funcionament del producte i els perills que comporta.
• Ensure all electrical connections are secure and correct.
• No modifiqueu l'aparell. Qualsevol modificació pot anul·lar la garantia i crear riscos per a la seguretat.
• Apte per a damp i llocs humits.

Configuració i instal·lació

The LUXRITE 4 Inch Square LED Flush Mount Ceiling Light is designed for easy surface mount installation. An optional recessed can installation is also possible with a compatible adapter (sold separately).

Surface Mount Installation Steps:

1. Prepareu la caixa de connexions: Ensure the power supply to the junction box is turned off at the circuit breaker.
2. Instal·leu la placa de muntatge: Screw the provided mounting plate to your 4-inch junction box using the supplied mounting screws.
3. Connecteu el cablejat: Connect the supply wires from the junction box to the corresponding wires on the ceiling fixture. Typically, this involves connecting black to black (live), white to white (neutral), and green/bare copper to green (ground). Use appropriate wire connectors.
4. Fixació segura: Carefully push the spring on the back of the fixture into the mounting plate until the fixture is flush with the ceiling. Ensure it is securely held in place.

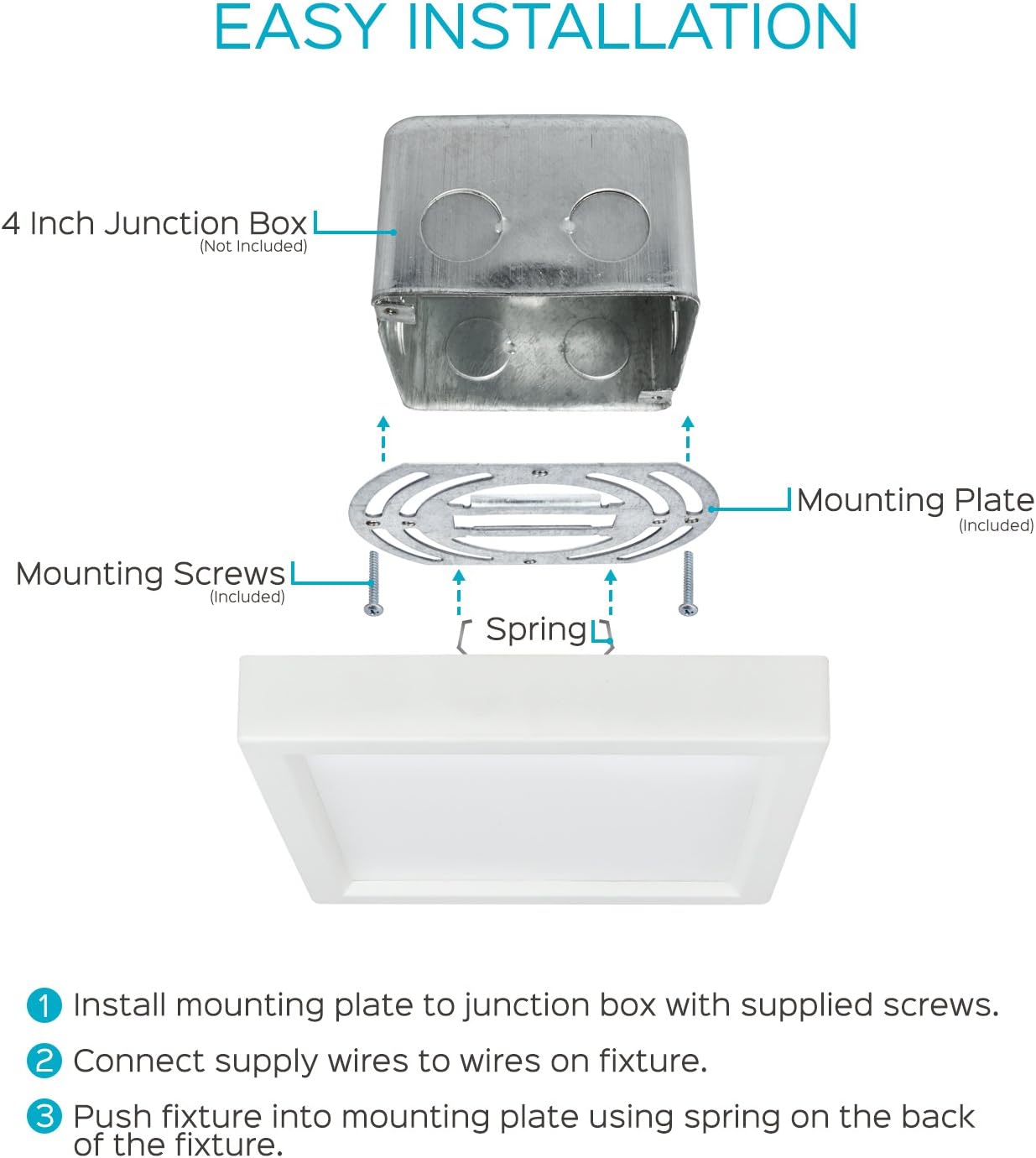

Imatge: Easy Installation Steps. This diagram illustrates the three main steps: 1. Install mounting plate to junction box with supplied screws. 2. Connect supply wires to wires on fixture. 3. Push fixture into mounting plate using the spring on the back of the fixture.

Optional Recessed Installation:

This fixture can be used with a 4-inch recessed can when installed with the Luxrite can adapter (Model LR23640), which is not included and sold separately. The adapter simplifies the process of converting the surface mount fixture for recessed applications.

Imatge: Product Dimensions and Recessed Option. This image shows the light fixture's dimensions (4.3 inches square, 0.6 inches thick) and highlights the 4-inch housing holes on the back for optional recessed can installation (parts sold separately).

Instruccions de funcionament

Once installed, the LUXRITE LED Flush Mount Ceiling Light operates like a standard light fixture controlled by a wall switch. It is designed to be dimmable, allowing you to adjust the light output.

Funcionalitat regulable:

This fixture is compatible with most standard LED dimmers, allowing you to reduce the light output from 100% down to 10%. To dim the light, ensure you have a compatible dimmer switch installed in your electrical circuit. Adjust the dimmer to achieve your desired brightness level.

Imatge: Dimmable Feature. This image shows a living room with multiple LUXRITE ceiling lights, illustrating how the brightness can be adjusted from full illumination to a lower, more ambient setting.

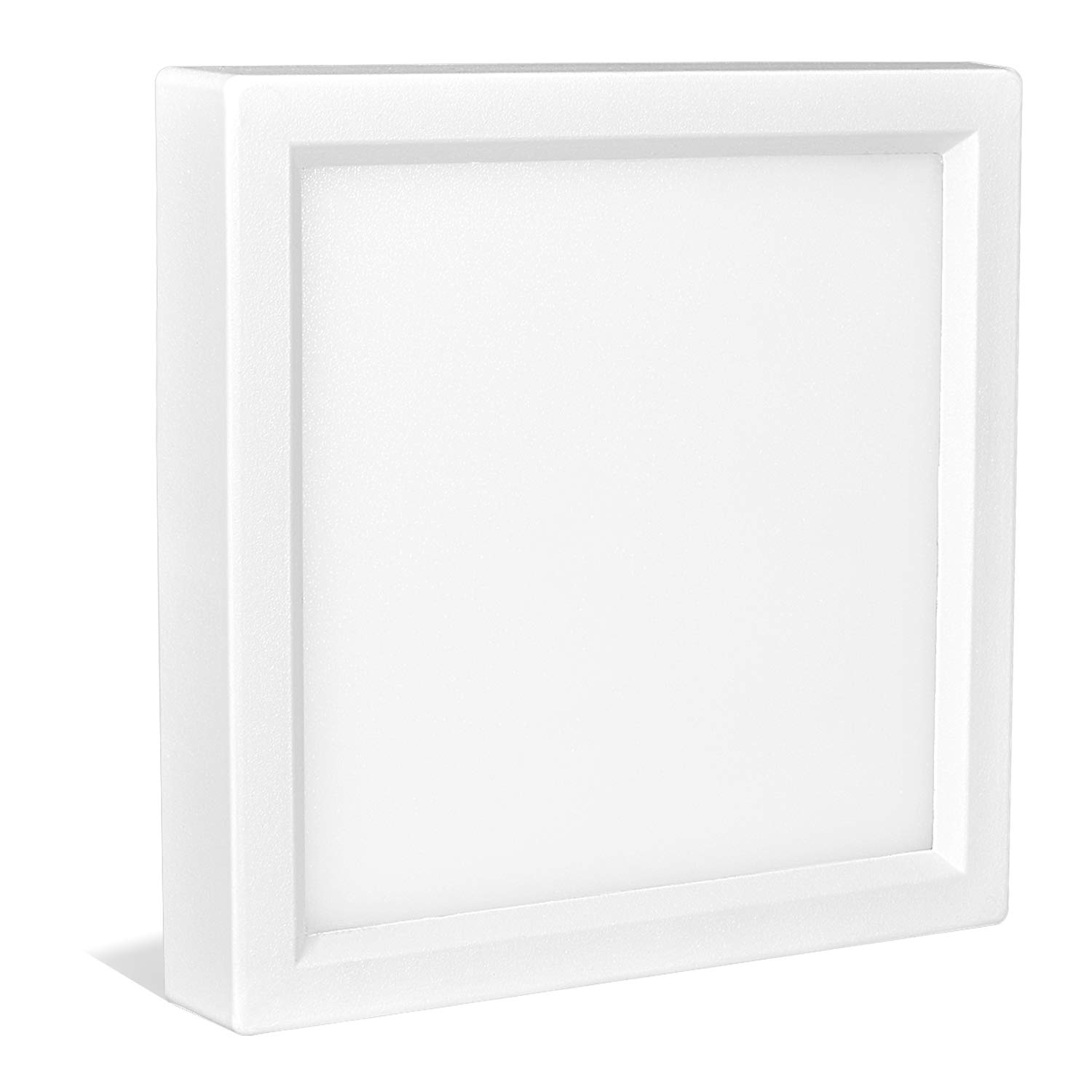

Imatge: 4000K Cool White Light. This image demonstrates the cool white light output at 4000 Kelvin, providing a bright and neutral illumination.

Manteniment

The LUXRITE LED Flush Mount Ceiling Light requires minimal maintenance due to its long-lasting LED technology.

• Neteja: Per netejar l'aparell, assegureu-vos que l'alimentació estigui apagada. Feu servir un drap suau, sec o lleugerament humit.amp drap. No utilitzeu productes químics agressius, netejadors abrasius ni dissolvents, ja que poden danyar l'acabat o els components elèctrics.
• Substitució de bombetes: This fixture uses integrated LED technology, meaning there are no bulbs to replace. The LEDs are designed to last for the lifetime of the fixture.

Resolució de problemes

If you experience issues with your LUXRITE LED Flush Mount Ceiling Light, refer to the following common troubleshooting steps:

Si el problema persisteix després d'intentar aquestes solucions, poseu-vos en contacte amb l'atenció al client.

Especificacions

Detailed technical specifications for the LUXRITE 4 Inch Square LED Flush Mount Ceiling Light, Model LR23610.

• Marca: LUXRIT
• Número de model: LR23610
• Wattage: 10 watts
• Brillantor: 600 lúmens
• Temperatura de color: 4000K (blanc fred)
• Voltage: 120 Volts
• Dimensions: 4.3 x 0.6 x 0.6 polzades (L x A x A)
• Pes de l'article: 4.6 unces
• Material: Plàstic
• Tipus d'acabat: Blanc
• Tipus d'instal·lació: Surface Mount (Recess option with adapter LR23640, sold separately)
• Regulable: Yes (100-10% output)
• Vida útil: 50,000 hores
• Classificació Energy Star: Sí
• Classificació en humit: Sí
• Forma: Plaçada

Imatge: Reliable Lighting. This image emphasizes the product's reliability with features like zero flickering, zero delay, and a 3-year warranty, along with key specifications: 10W, 600 Lumens, 4000K Cool White, 90° Flood Angle.

Garantia i Suport

Informació de la garantia:

This LUXRITE LED Flush Mount Ceiling Light is backed by a Garantia del fabricant de 3 anys des de la data de compra. Aquesta garantia cobreix els defectes de materials i de fabricació en condicions d'ús normal. Conserveu el comprovant de compra per a reclamacions de garantia.

Atenció al client:

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact LUXRITE customer support. Refer to the product packaging or the official LUXRITE weblloc web per obtenir la informació de contacte més actualitzada.
