VAN RYSEL Decathlon 500 Indoor Bike Trainer User Manual

Producte acabatview

The VAN RYSEL Decathlon 500 Indoor Bike Trainer, model 8487132, is designed to provide a smooth and quiet indoor cycling experience. It features a fluid brake system where resistance automatically adjusts with your pedaling speed, mimicking road sensations. This trainer is developed for ease of use and stability, making it suitable for both road and mountain bikes.

Figure 1: The VAN RYSEL Decathlon 500 Indoor Bike Trainer, showcasing its compact design and fluid technology.

Característiques principals:

• Potència: Fins a 1500 watts.
• Brake Control: Fluid brake system, resistance increases automatically with speed.
• Connectivitat: Not natively smart, but can be upgraded with a connection kit (item 8487134).
• Smooth Pedaling: Equipped with a 2.2 kilogram flywheel and fluid braking for a very smooth pedaling sensation.
• Easy Assembly/Dismantling: Features a quick-release system for simple and fast bike attachment.

Instruccions de configuració

Follow these steps to properly set up your VAN RYSEL Decathlon 500 Indoor Bike Trainer and ensure a stable and effective training session.

1. Desempaquetar i posicionar: Carefully remove the trainer from its packaging. Place the trainer on a flat, stable surface. Ensure there is enough clear space around the trainer for safe operation.


   Figure 2: The trainer unfolded and positioned, showing its stable base.
2. Prepara la teva bicicleta: For optimal performance and tire longevity, it is highly recommended to use a tire specifically designed for home trainers. These tires have a reinforced structure and harder rubber to reduce noise and wear.
3. Attach the Bike:
   • Remove the rear wheel of your bicycle.
   • Align the bicycle's rear dropouts with the quick-release skewer of the trainer.
   • Secure the bike firmly using the quick-release mechanism on the trainer. Ensure the bike is centered and stable.


   Figure 3: A road bike securely mounted on the VAN RYSEL trainer, ready for indoor cycling.


   Figura 4: Detallada view of the quick-release skewer, demonstrating how the bike's rear axle is secured.

4. Use a Front Wheel Riser Block: For enhanced stability and to maintain a natural riding position, place a front wheel riser block under your bicycle's front wheel. This elevates the front wheel to match the height of the rear wheel on the trainer.
5. Protection (Recommended):
   • Sweat Guard: To protect your bike from corrosive perspiration, consider using a sweat guard (e.g., Decathlon item 8056757).
   • Home Trainer Mat: A mat placed under the trainer can reduce noise, provide additional stability, and protect your floor from sweat (e.g., Decathlon item 8369937).

Operating the Trainer

The VAN RYSEL Decathlon 500 features a fluid brake system that simplifies your training experience.

• Automatic Resistance: The resistance level of the trainer automatically increases as you pedal faster. There are no manual adjustments needed for resistance control on the trainer itself. Your bike's gears will be used to manage your effort and speed.

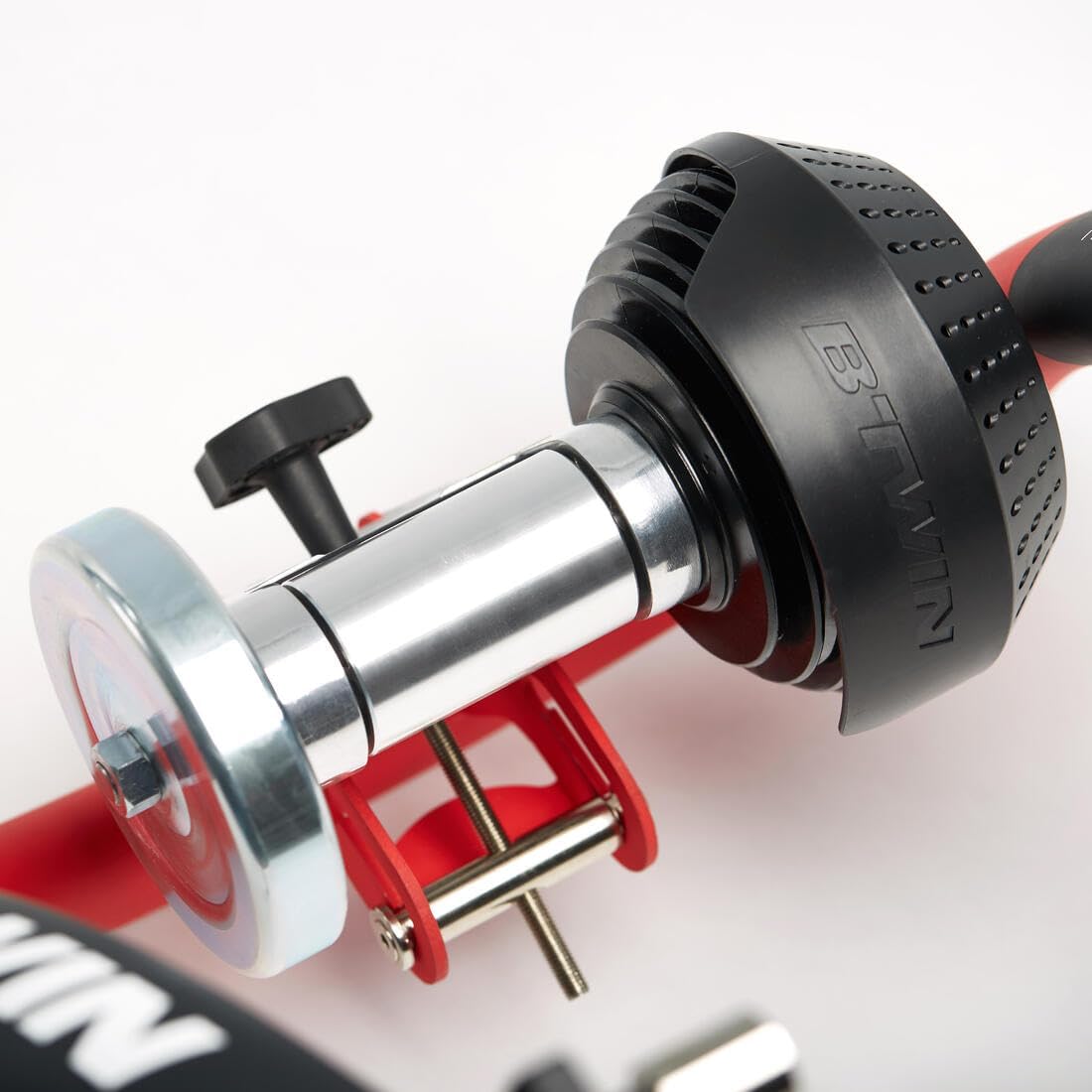

  Figure 5: Close-up of the fluid resistance unit, which provides smooth and progressive resistance.

• Smooth Pedaling: The 2.2 kg flywheel combined with the fluid braking system ensures a very smooth and realistic pedaling feel, similar to riding on the road.
• Comenceu el vostre entrenament: Simply mount your bike, ensure it is securely fastened, and begin pedaling. Adjust your bike's gears to find your desired cadence and effort level.

Manteniment i cura

Proper maintenance will extend the lifespan of your indoor bike trainer and ensure continued smooth operation.

• Neteja: After each use, especially if you sweat heavily, wipe down the trainer with a damp cloth to remove sweat and dust. Avoid using abrasive cleaners or solvents.
• Emmagatzematge: When not in use, the trainer can be folded for compact storage. Store it in a dry place away from direct sunlight and extreme temperatures.

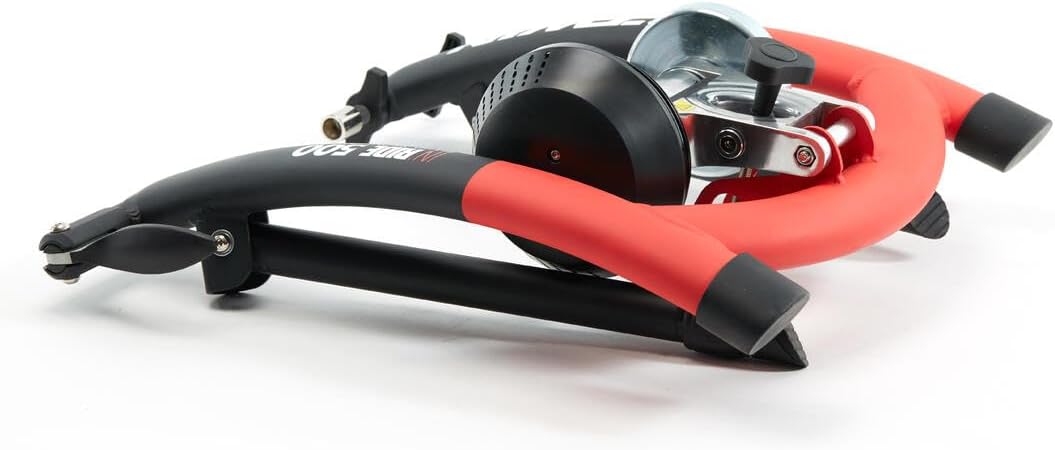

  Figure 6: The trainer in its folded position, demonstrating its space-saving design for easy storage.

• Comproveu les connexions: Periodically check all bolts and quick-release mechanisms to ensure they are tight and secure.
• Fluid Unit: The fluid resistance unit is sealed and requires no maintenance. Do not attempt to open or modify it.

Resolució de problemes

Aquí teniu alguns problemes comuns i les seves possibles solucions:

Especificacions tècniques
